Scan Tool Output Controls

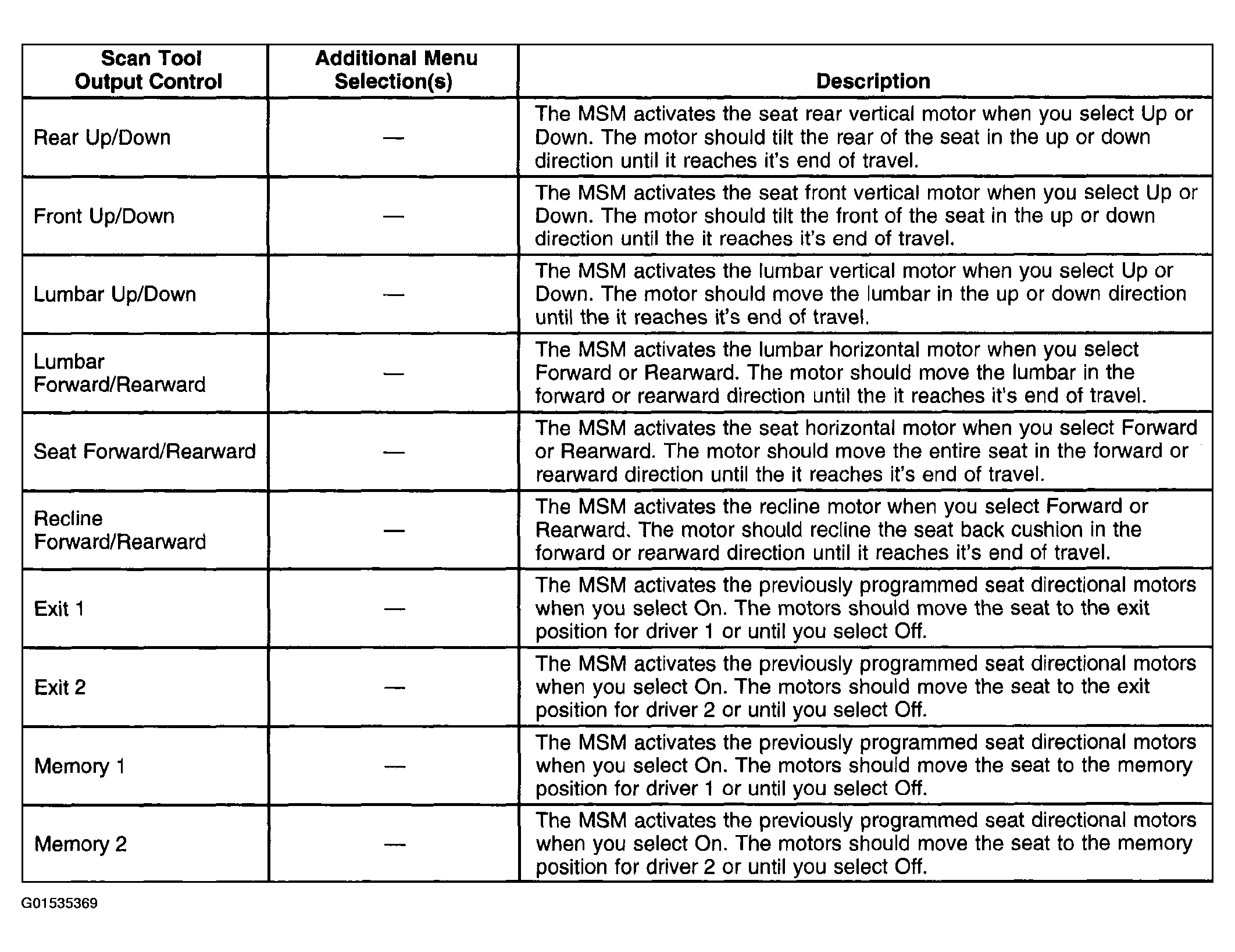

Fig 1: Scan Tool Output Controls - Memory Seat Module (MSM)
G01535369Courtesy of GENERAL MOTORS CORP.

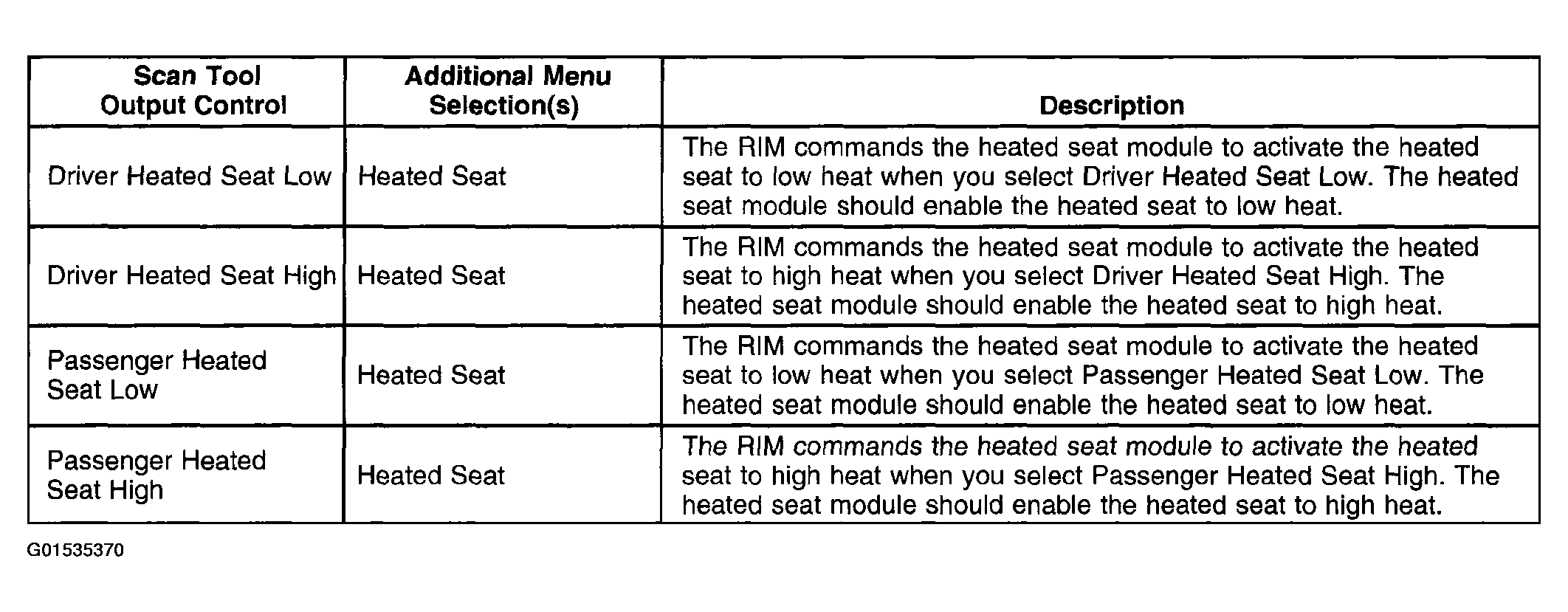

Fig 2: Scan Tool Output Controls - Rear Integration Module (RIM)
G01535370Courtesy of GENERAL MOTORS CORP.
