Scan Tool Data List: Notes

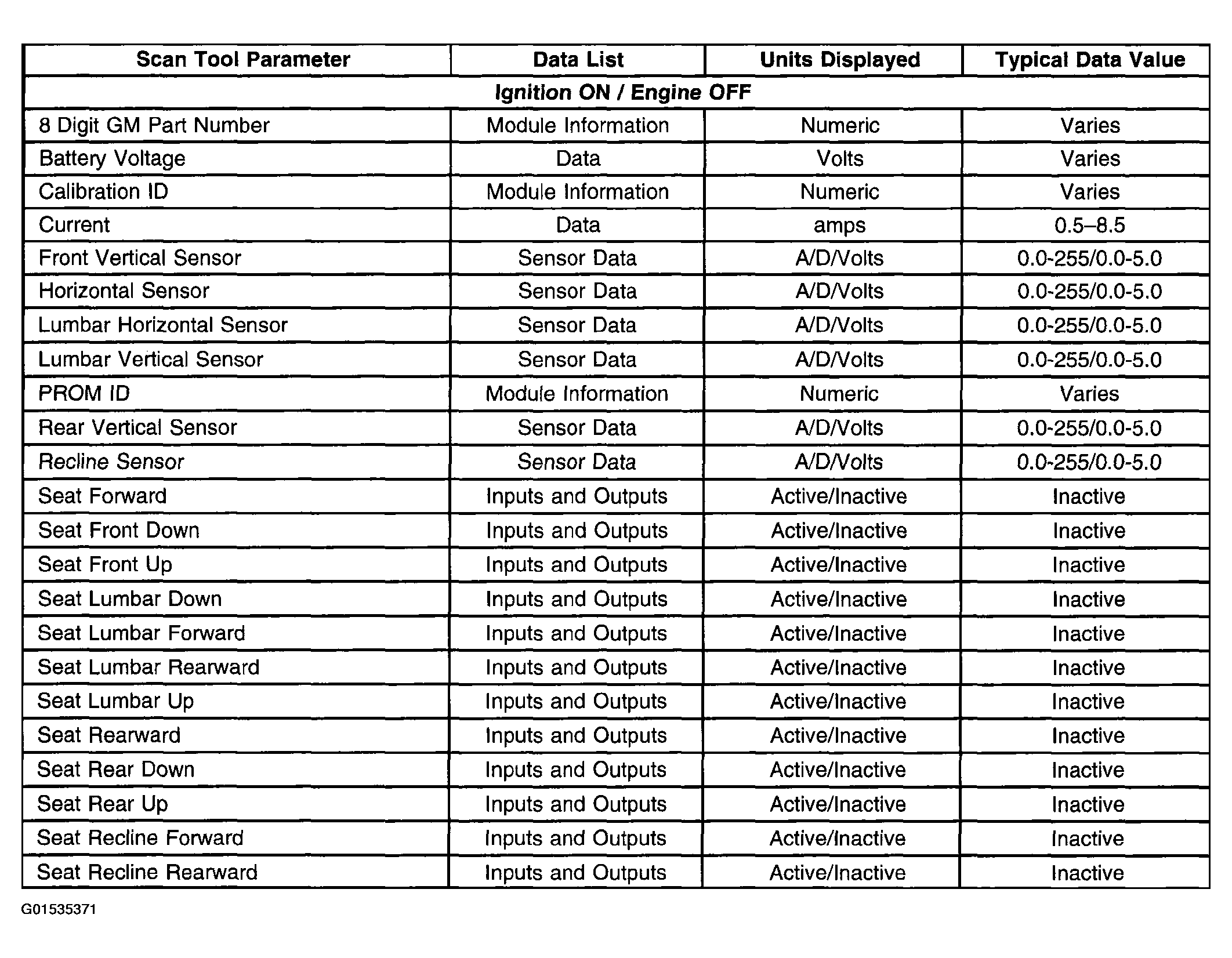

Fig 1: Scan Tool Data List - Memory Seat Module (MSM)
G01535371Courtesy of GENERAL MOTORS CORP.

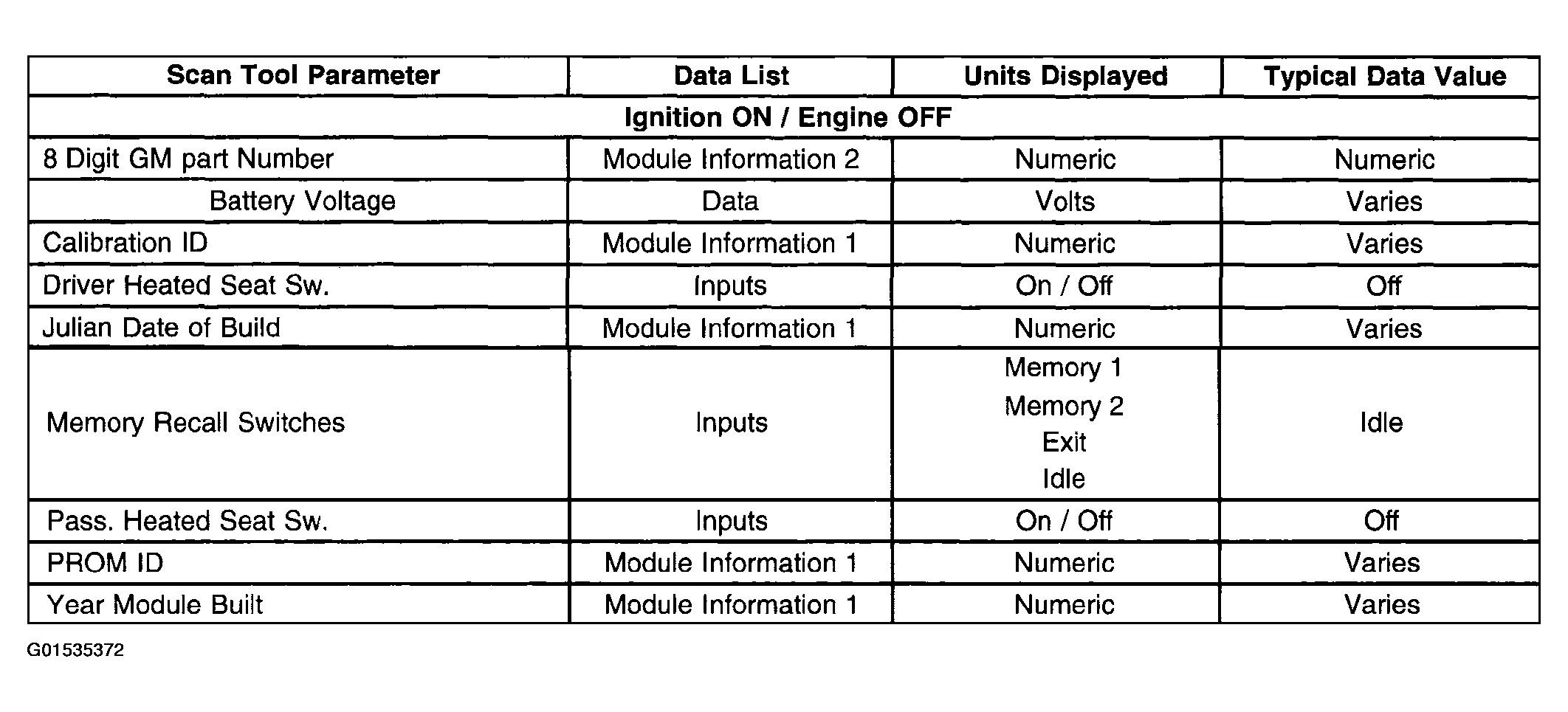

Fig 2: Scan Tool Data List - Driver Door Module (DDM)
G01535372Courtesy of GENERAL MOTORS CORP.

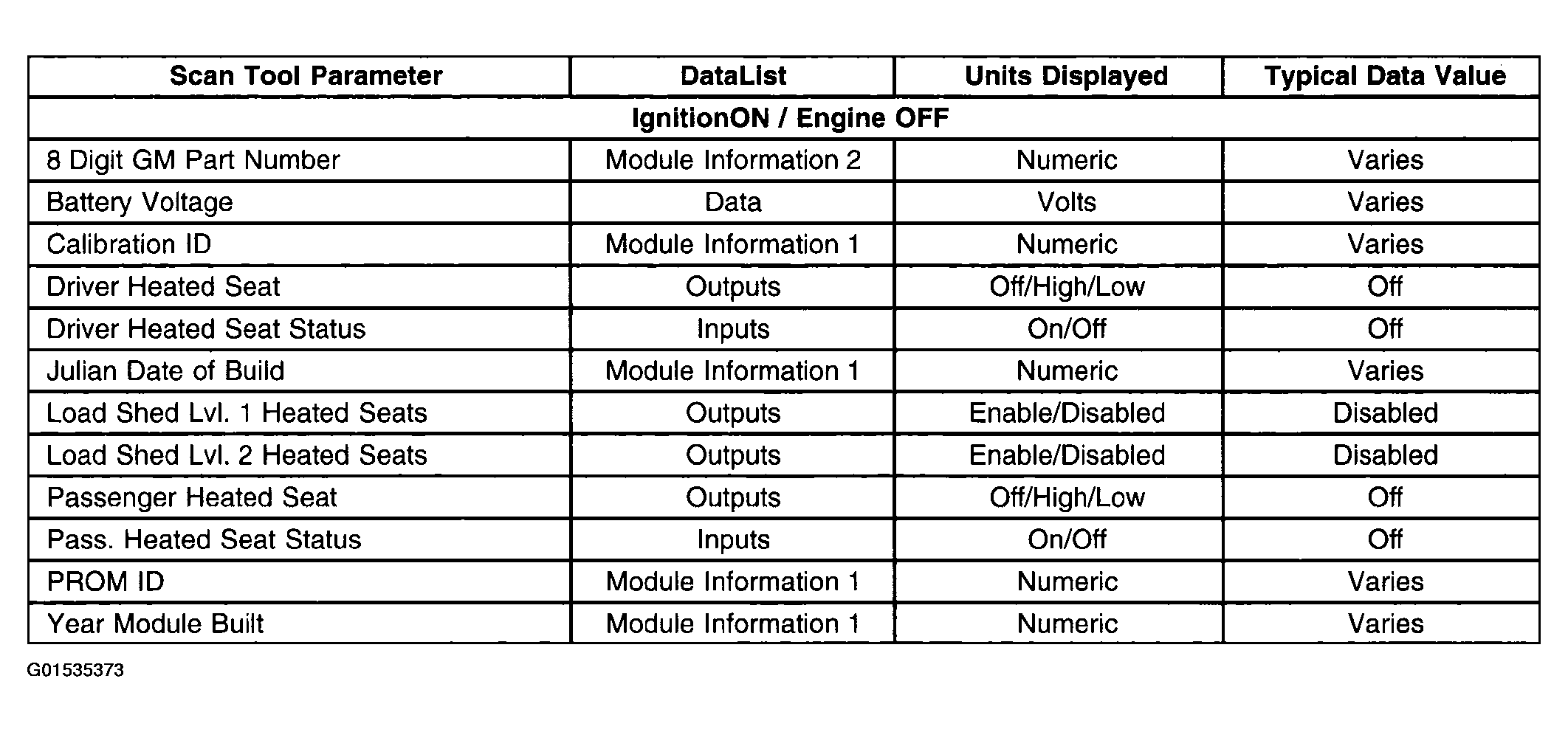

Fig 3: Scan Tool Data List - Rear Integration Module (RIM)
G01535373Courtesy of GENERAL MOTORS CORP.
