Keyless Entry Schematics (Keyless Entry Schematics)

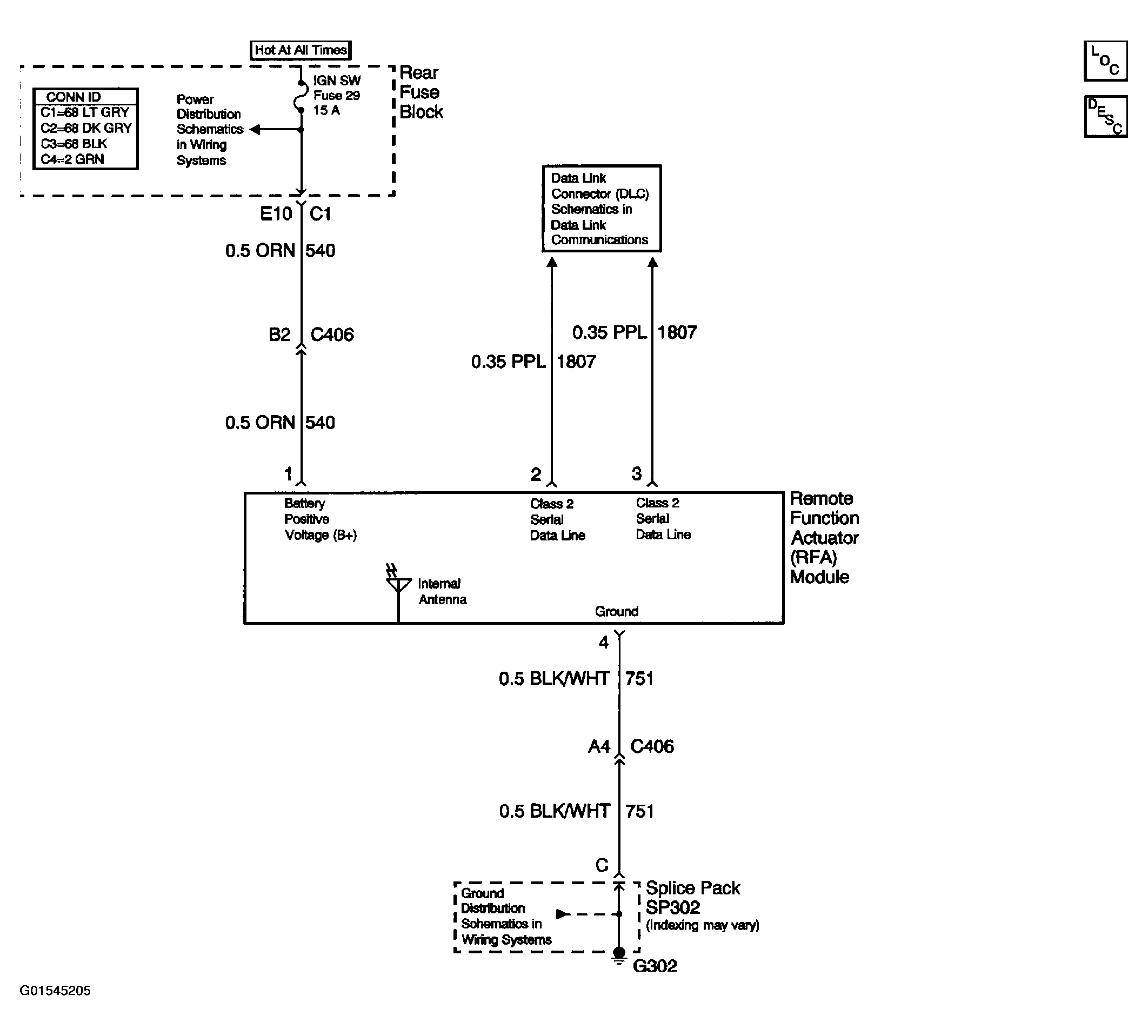

Fig 1: Keyless Entry Schematics (Keyless Entry Schematics)

G01545205

Courtesy of GENERAL MOTORS CORP.
