Keyless Entry System Inoperative

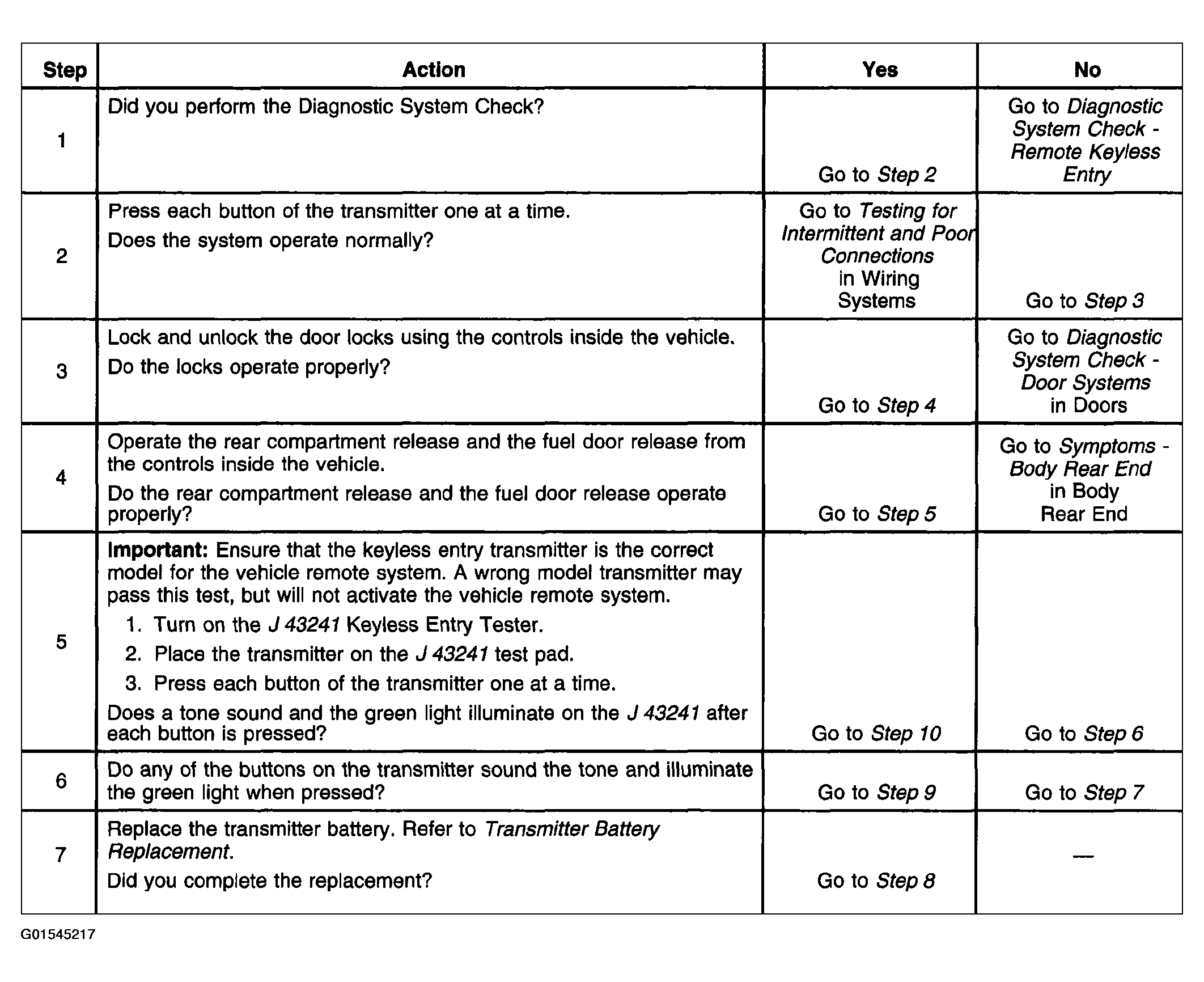

Fig 1: Diagnostic System Check - Keyless Entry System Inoperative (1 Of 2)
G01545217Courtesy of GENERAL MOTORS CORP.

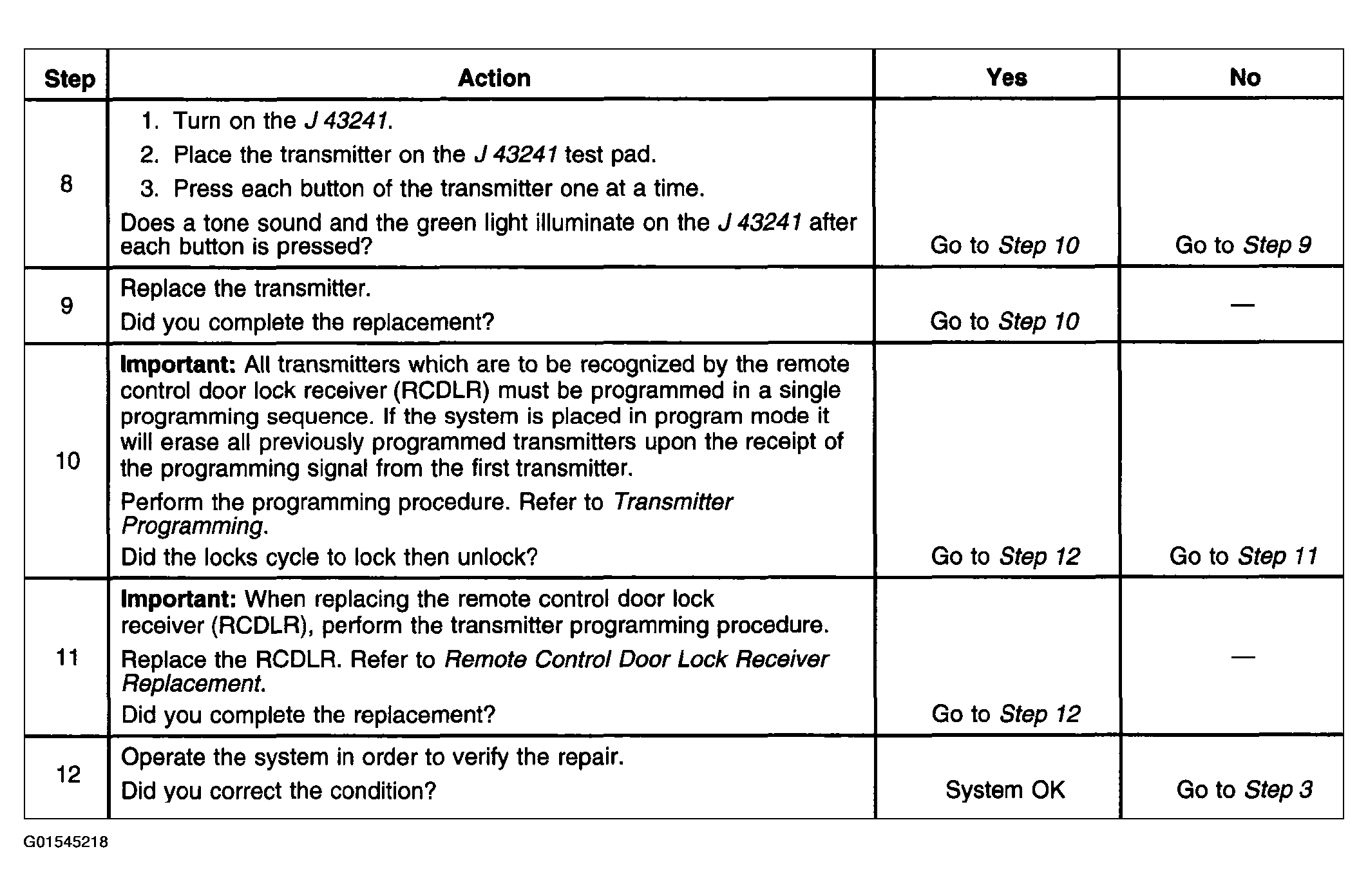

Fig 2: Diagnostic System Check - Keyless Entry System Inoperative (2 Of 2)
G01545218Courtesy of GENERAL MOTORS CORP.
