Component Locator
>>
Cruise Control Component Views
Cruise Control Component Views

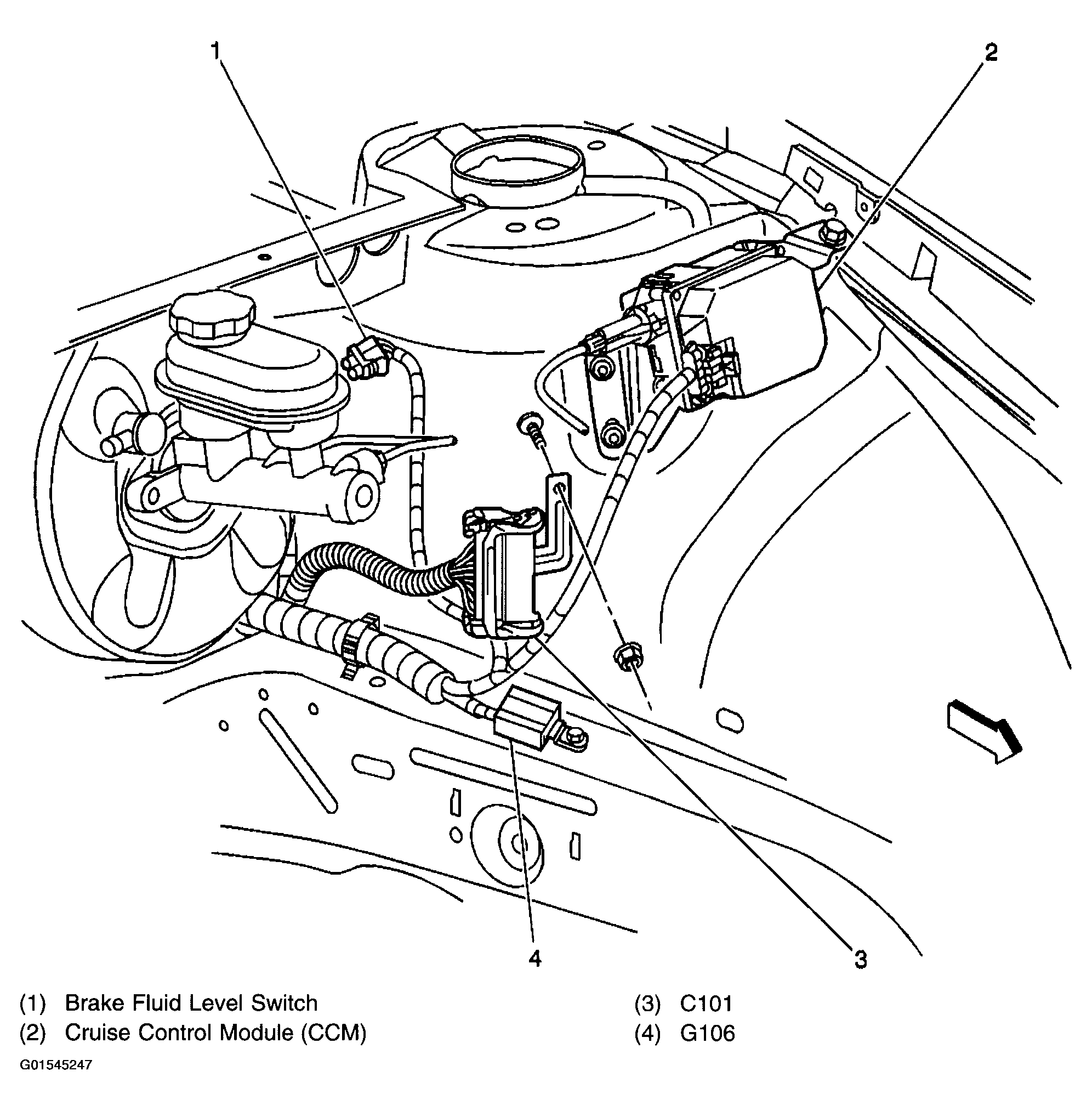

Fig 1: Removing Brake Fluid Level Switch & C101
Courtesy of GENERAL MOTORS CORP.

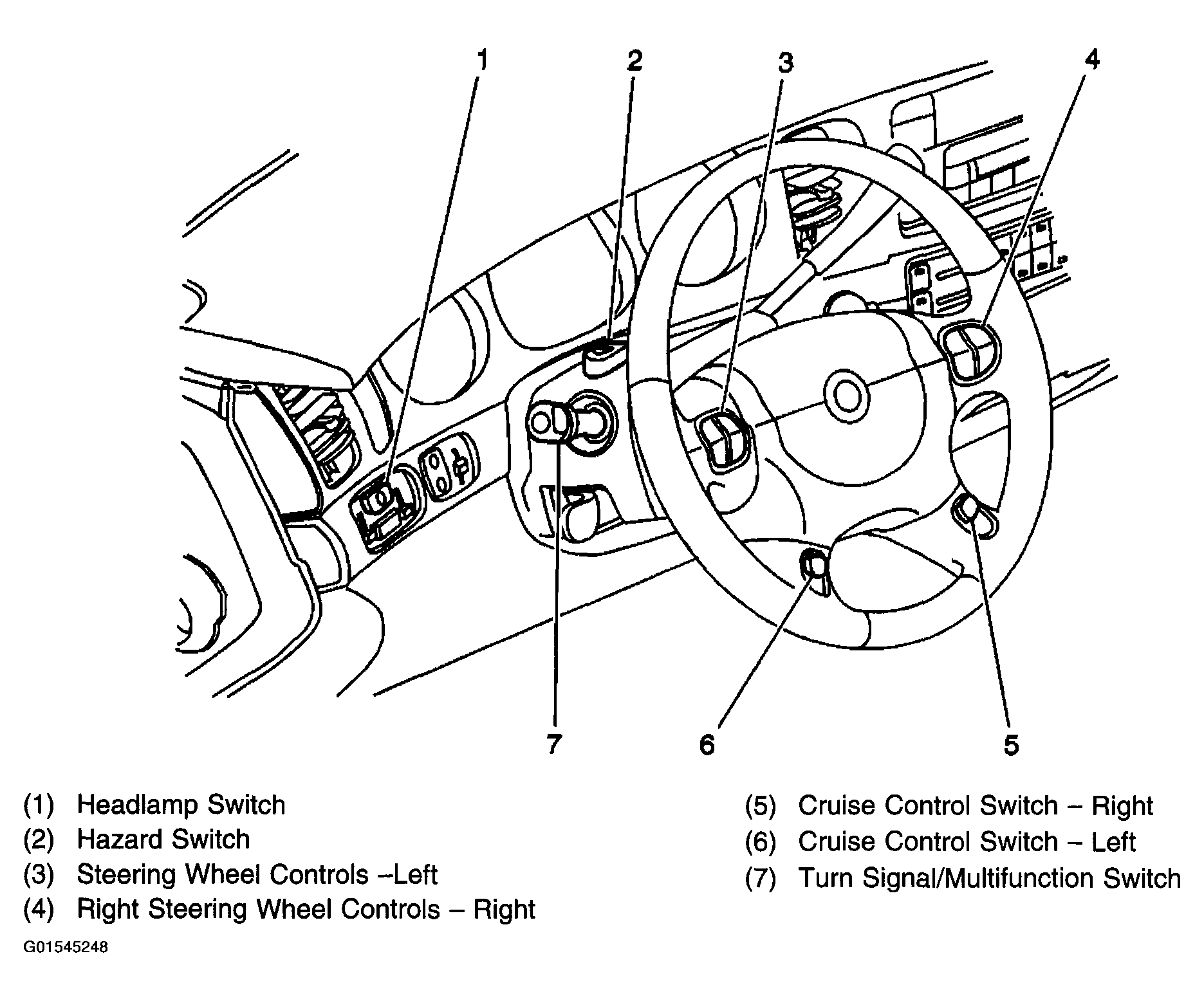

Fig 2: Locating Accessory Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
