Body Control System Schematics

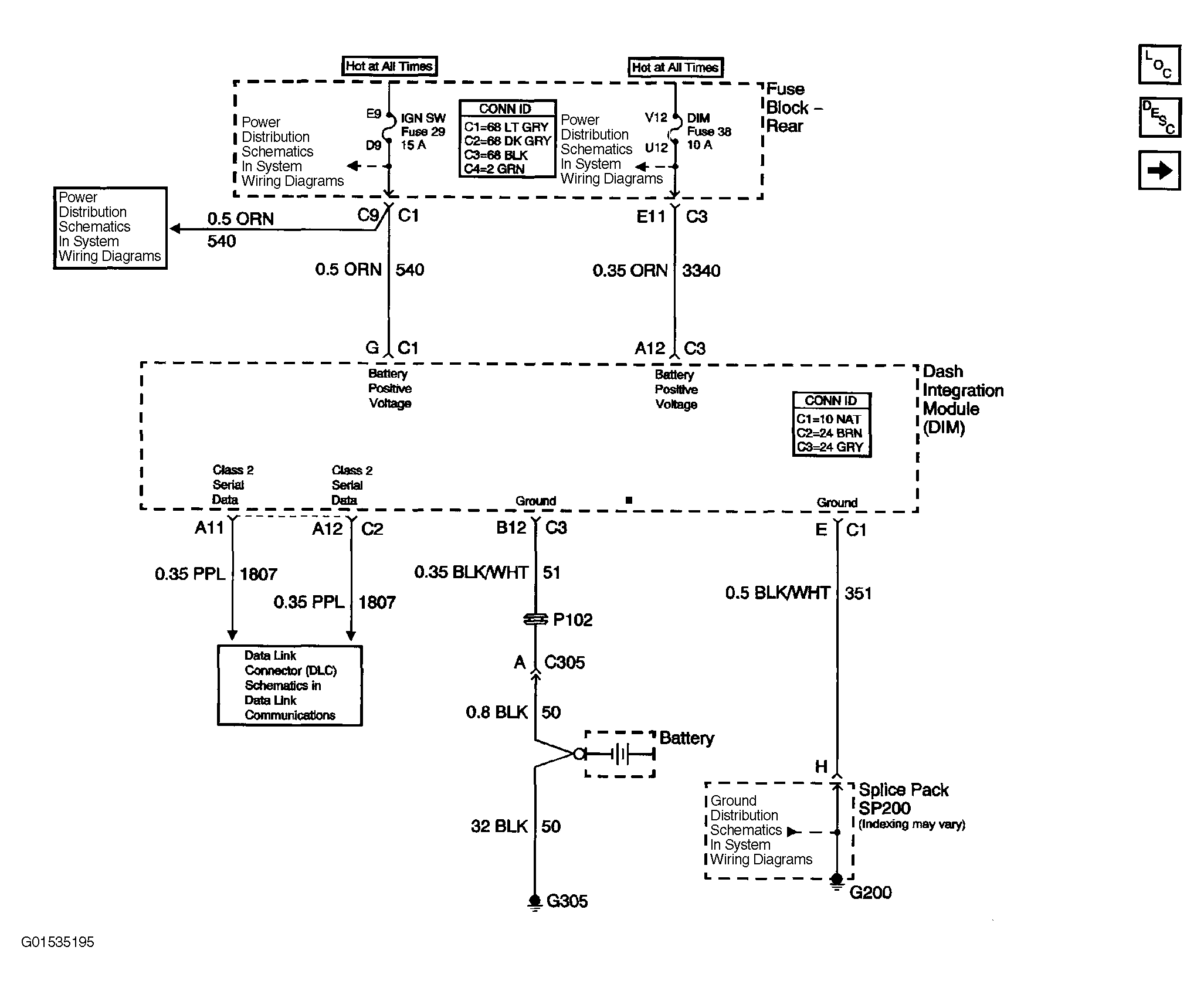

Fig 1: Body Control System Schematics (DIM Power And Grounds)
G01535195Courtesy of GENERAL MOTORS CORP.

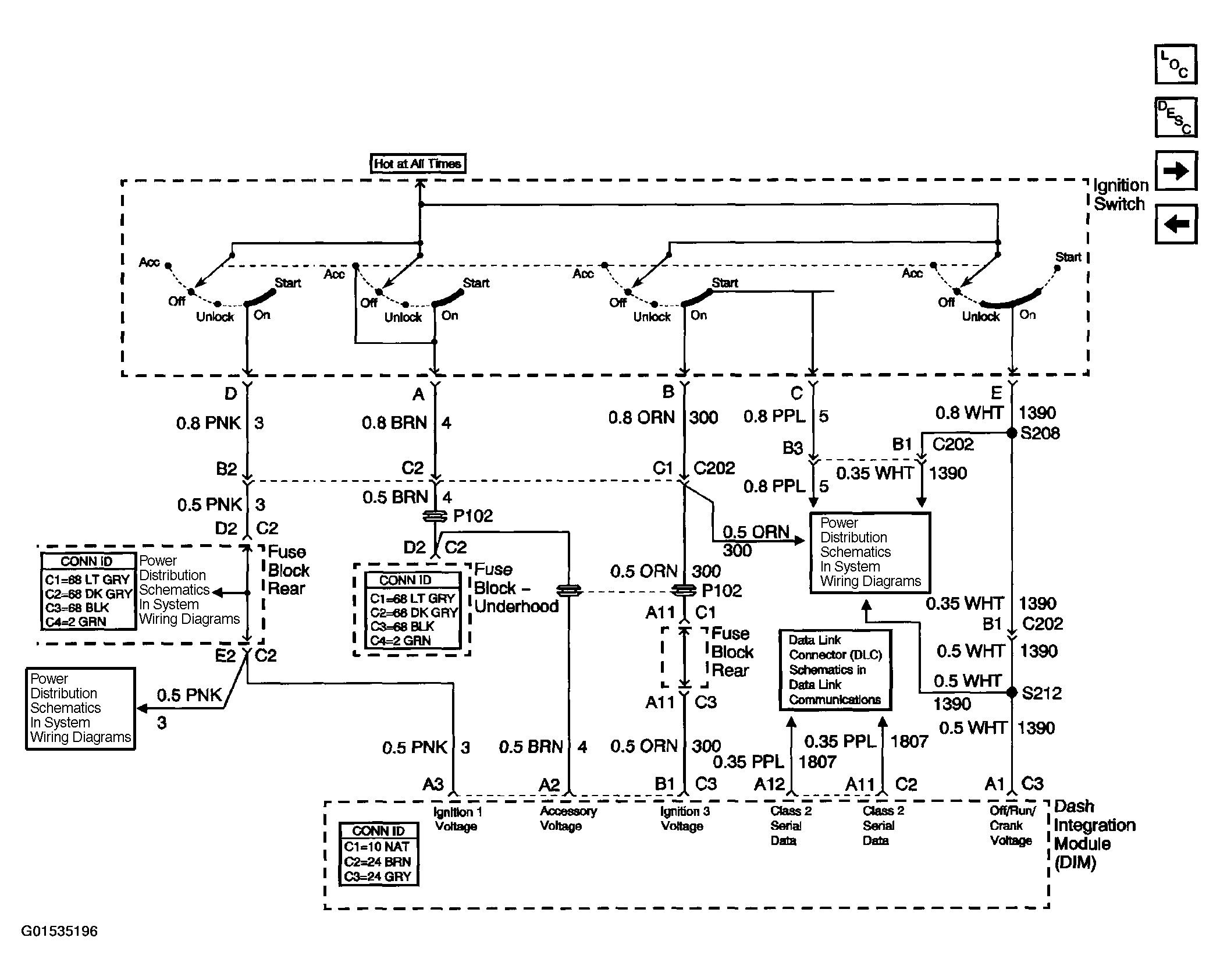

Fig 2: Body Control System Schematics (DIM Ignition Inputs)
G01535196Courtesy of GENERAL MOTORS CORP.

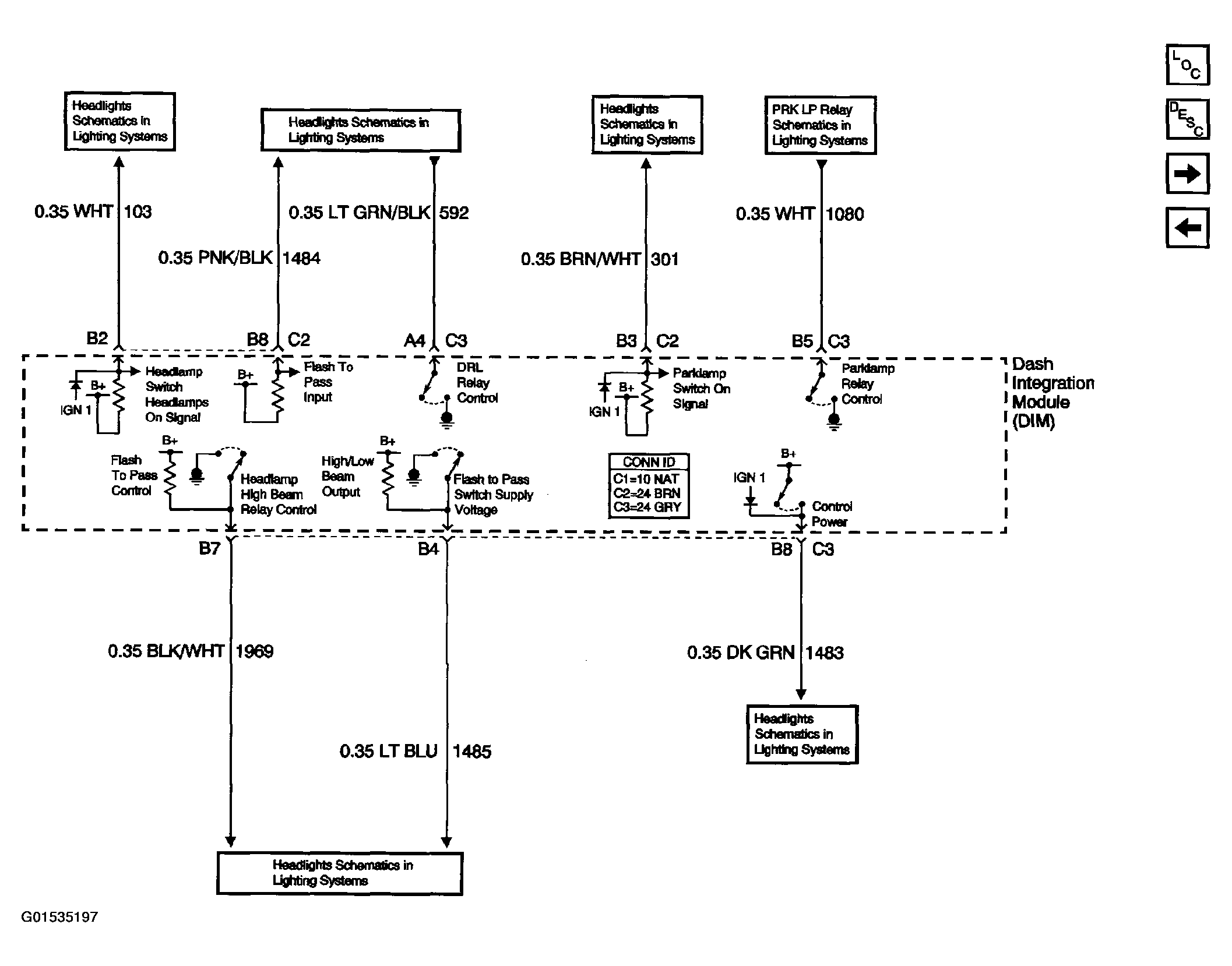

Fig 3: Body Control System Schematics - DIM Input/Output (1 Of 2)
G01535197Courtesy of GENERAL MOTORS CORP.

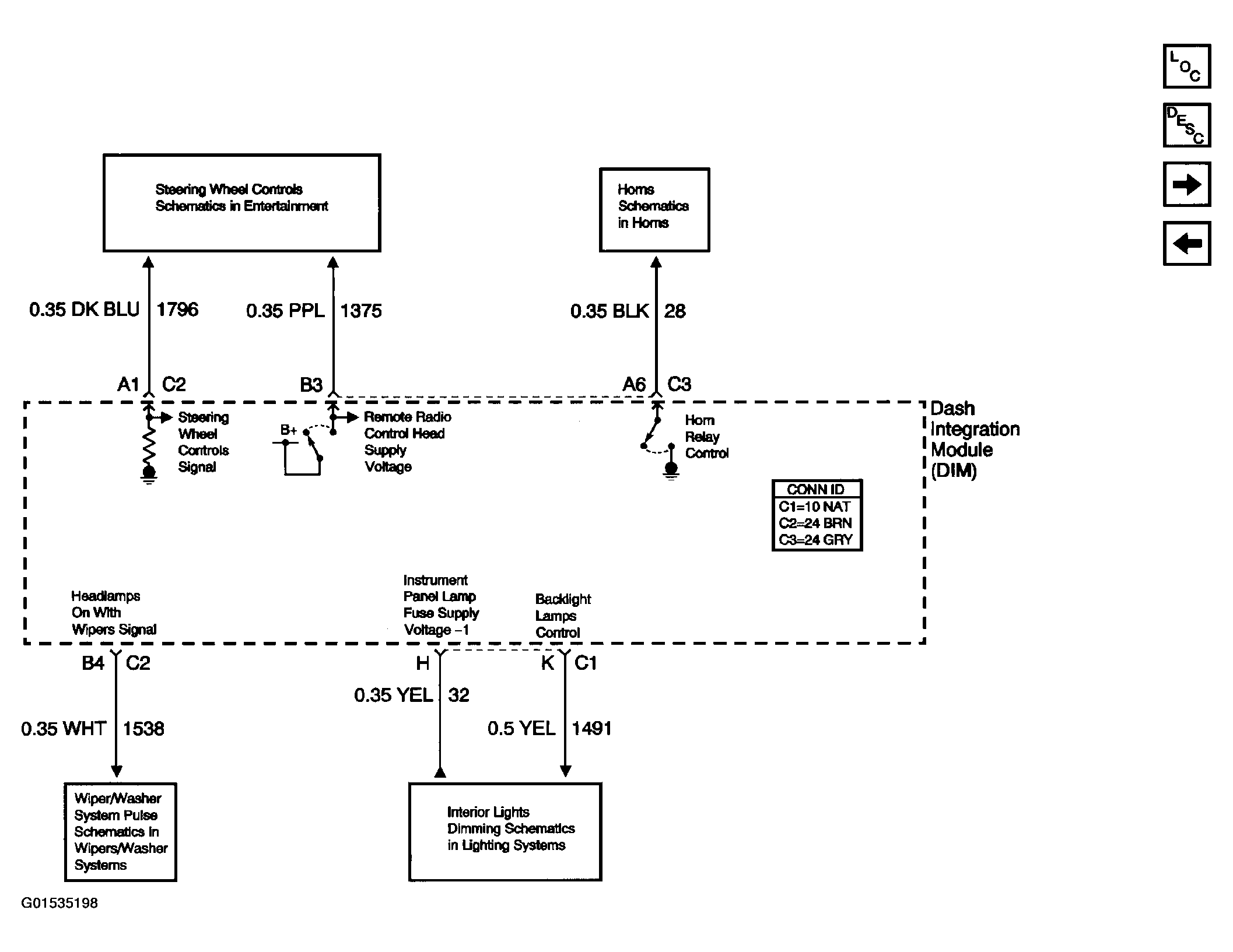

Fig 4: Body Control System Schematics - DIM Input/Output (2 Of 2)
G01535198Courtesy of GENERAL MOTORS CORP.

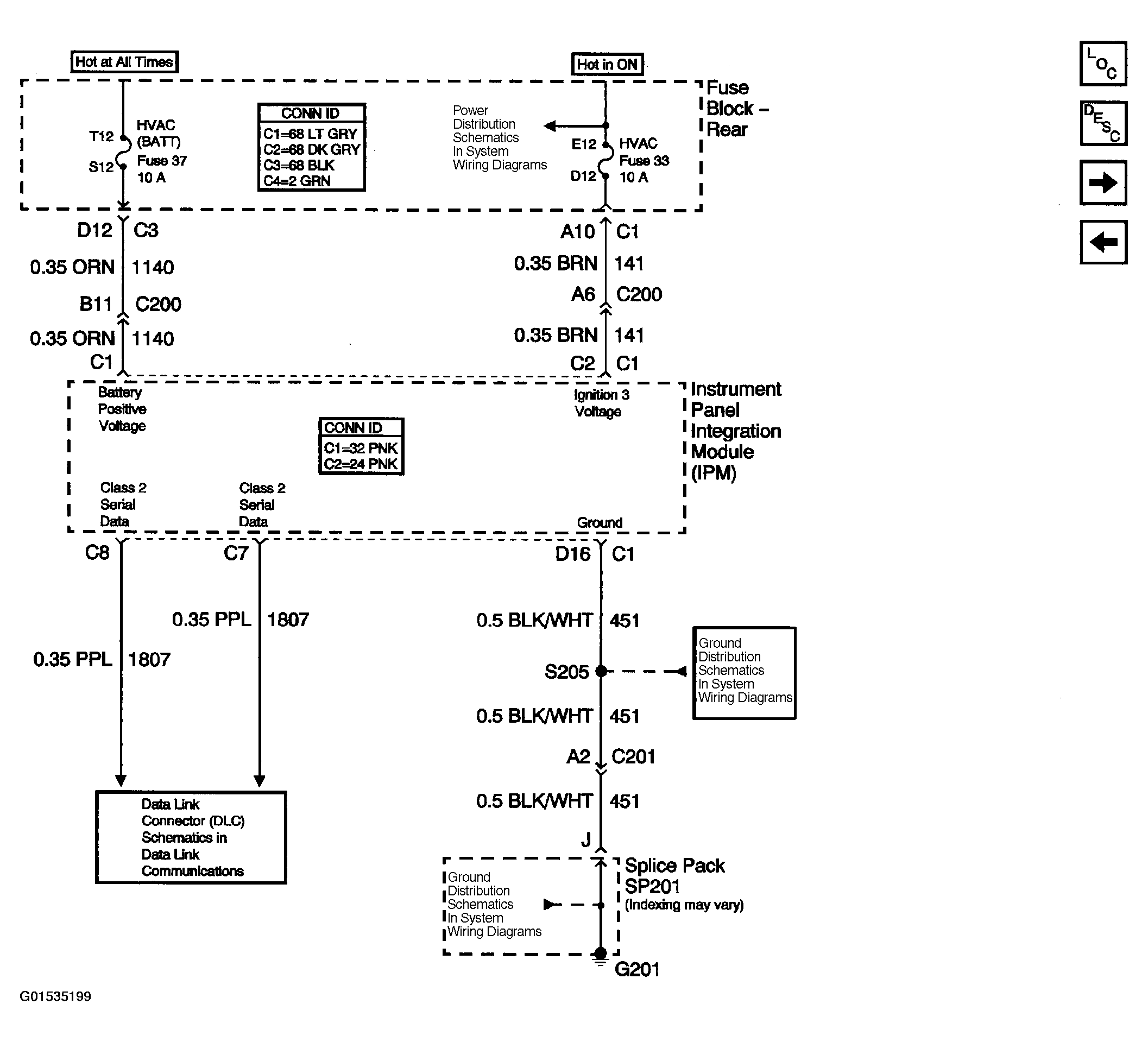

Fig 5: Body Control System Schematics (IPM Power And Grounds)
G01535199Courtesy of GENERAL MOTORS CORP.

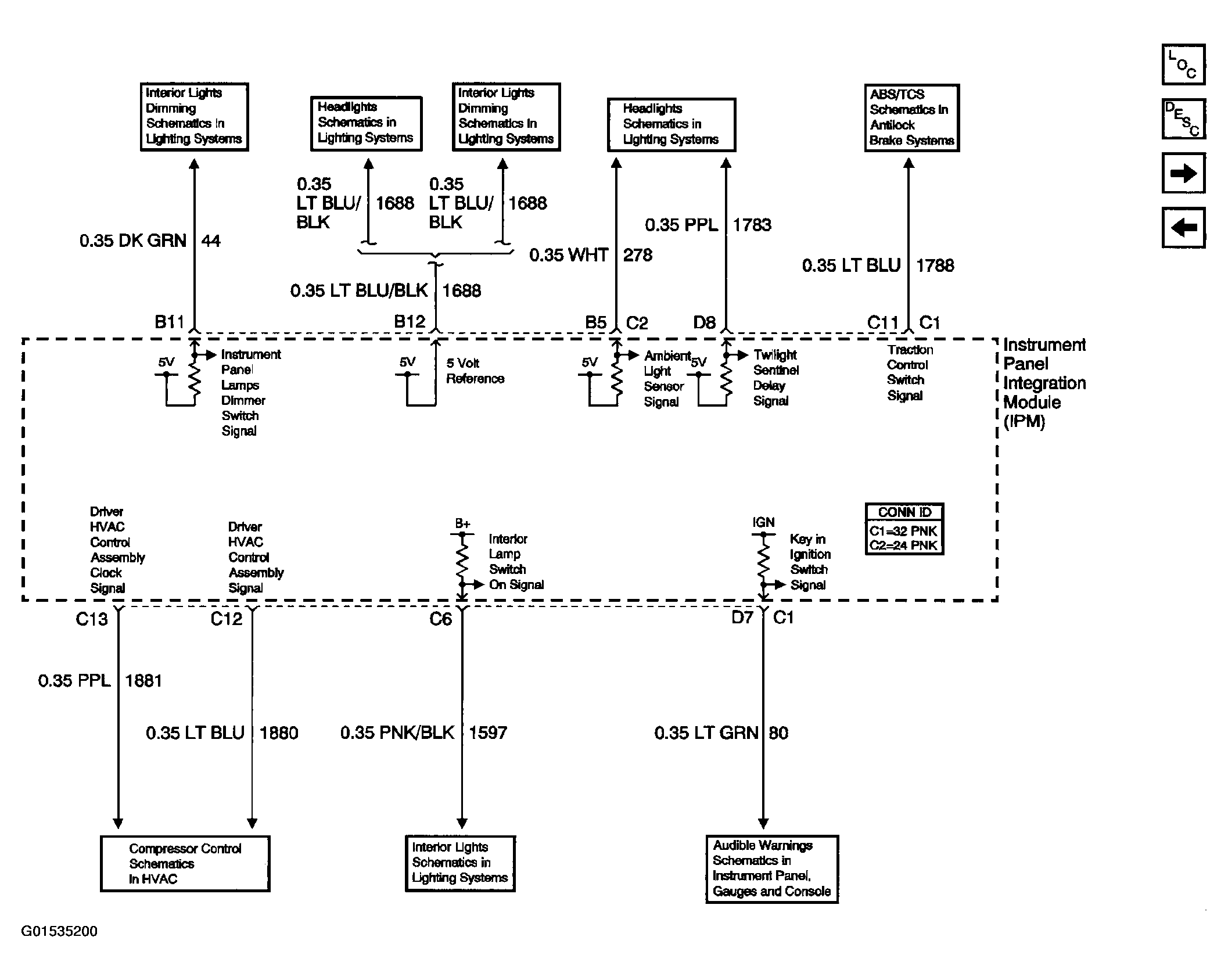

Fig 6: Body Control System Schematics - IPM Input/Output (1 Of 2)
G01535200Courtesy of GENERAL MOTORS CORP.

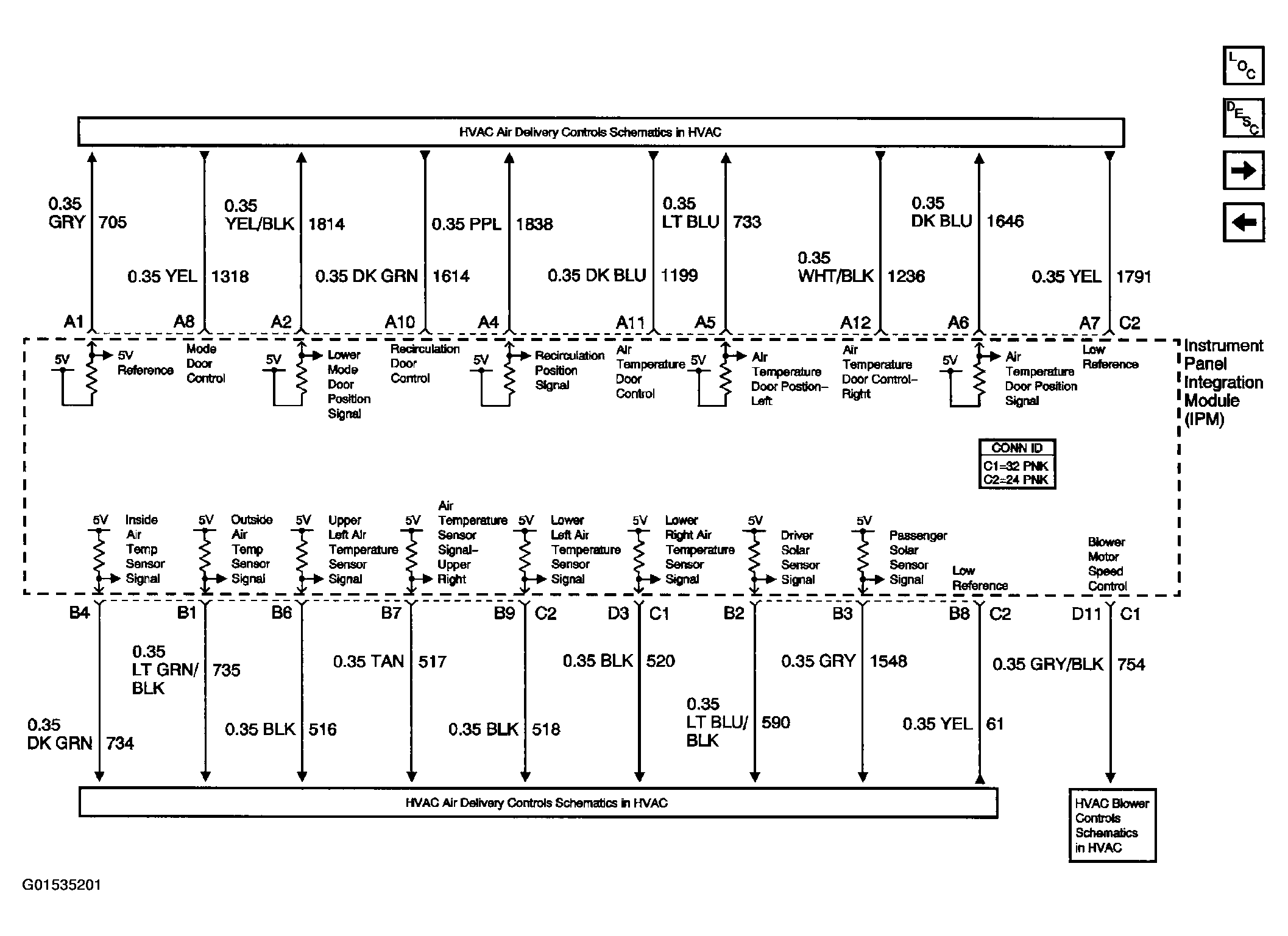

Fig 7: Body Control System Schematics - IPM Input/Output (2 Of 2))
G01535201Courtesy of GENERAL MOTORS CORP.

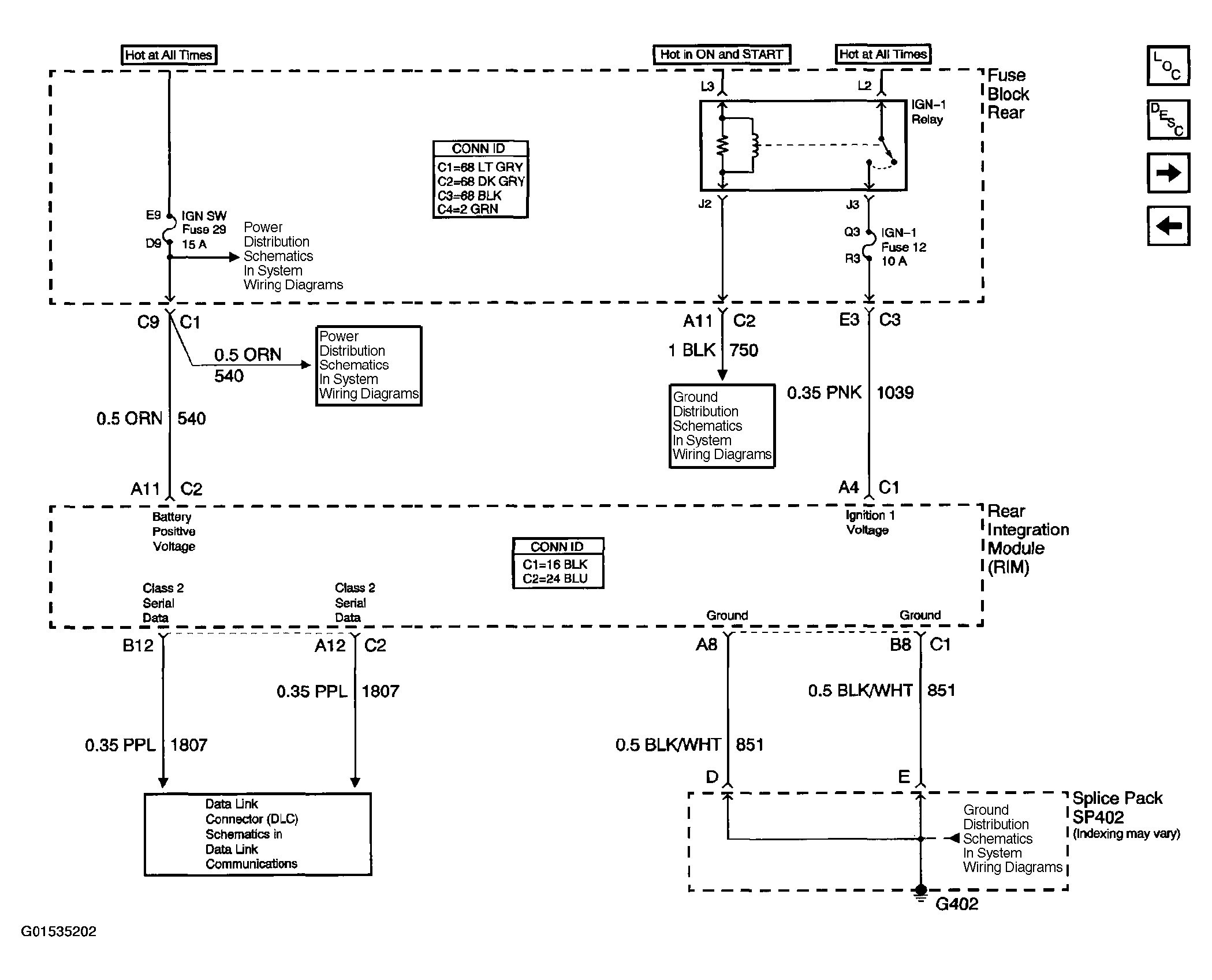

Fig 8: Control System Schematics (RIM Power And Grounds)
G01535202Courtesy of GENERAL MOTORS CORP.

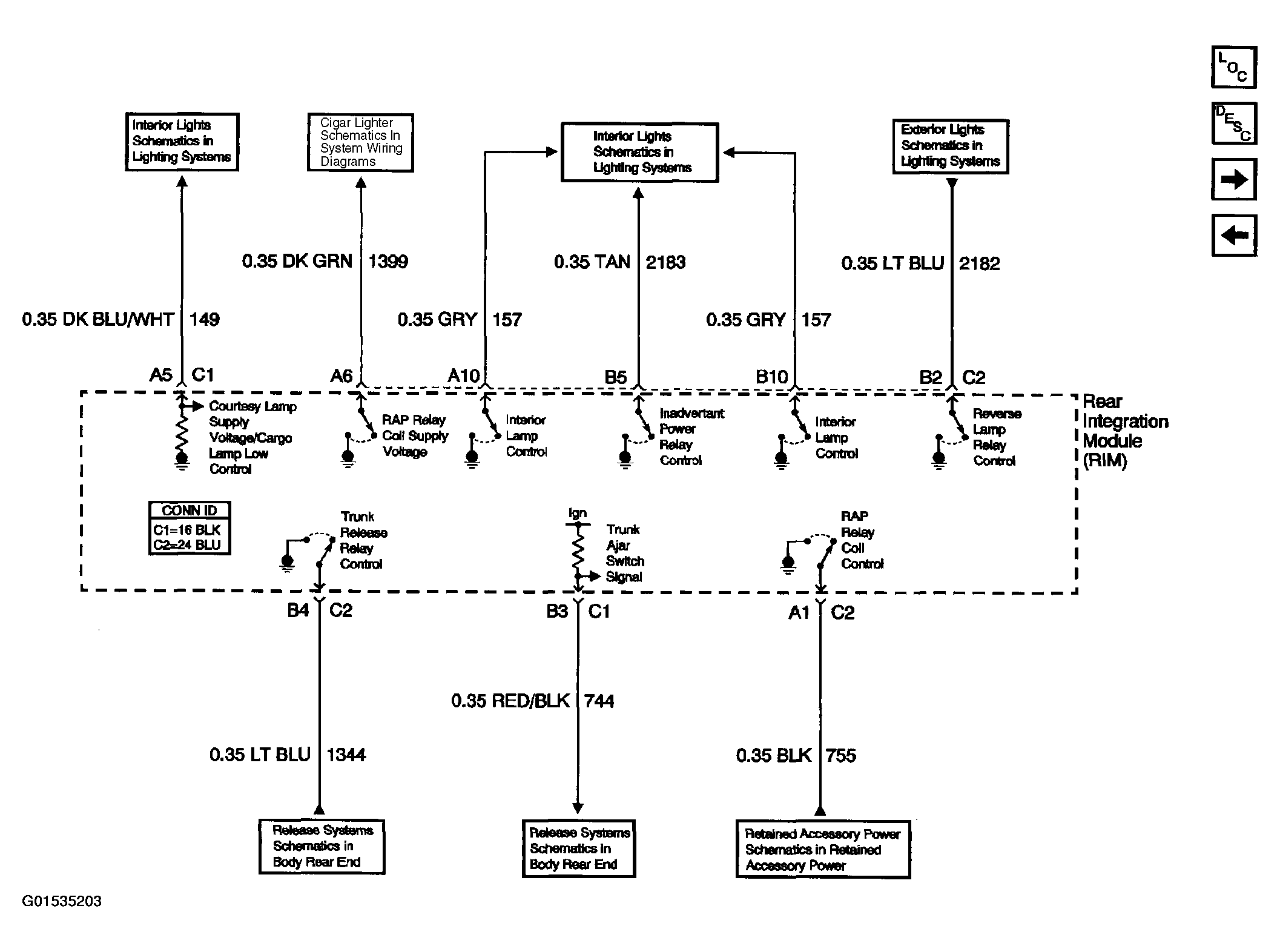

Fig 9: Body Control System Schematics - RIM Input/Output (1 Of 2)
G01535203Courtesy of GENERAL MOTORS CORP.

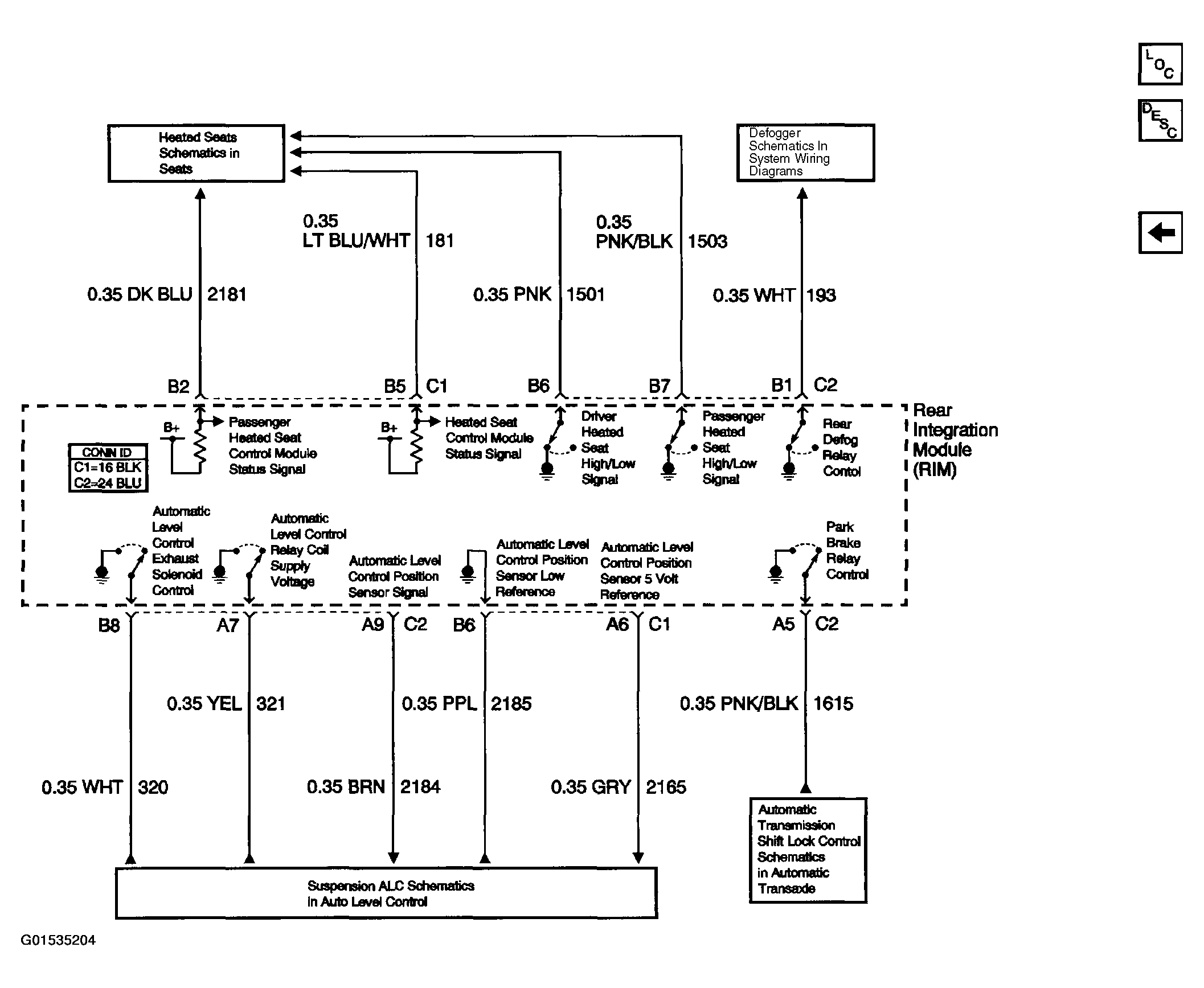

Fig 10: Body Control System Schematics - RIM Input/Output (2 Of 2)
G01535204Courtesy of GENERAL MOTORS CORP.
