Sunload Sensor Assembly Connector End View

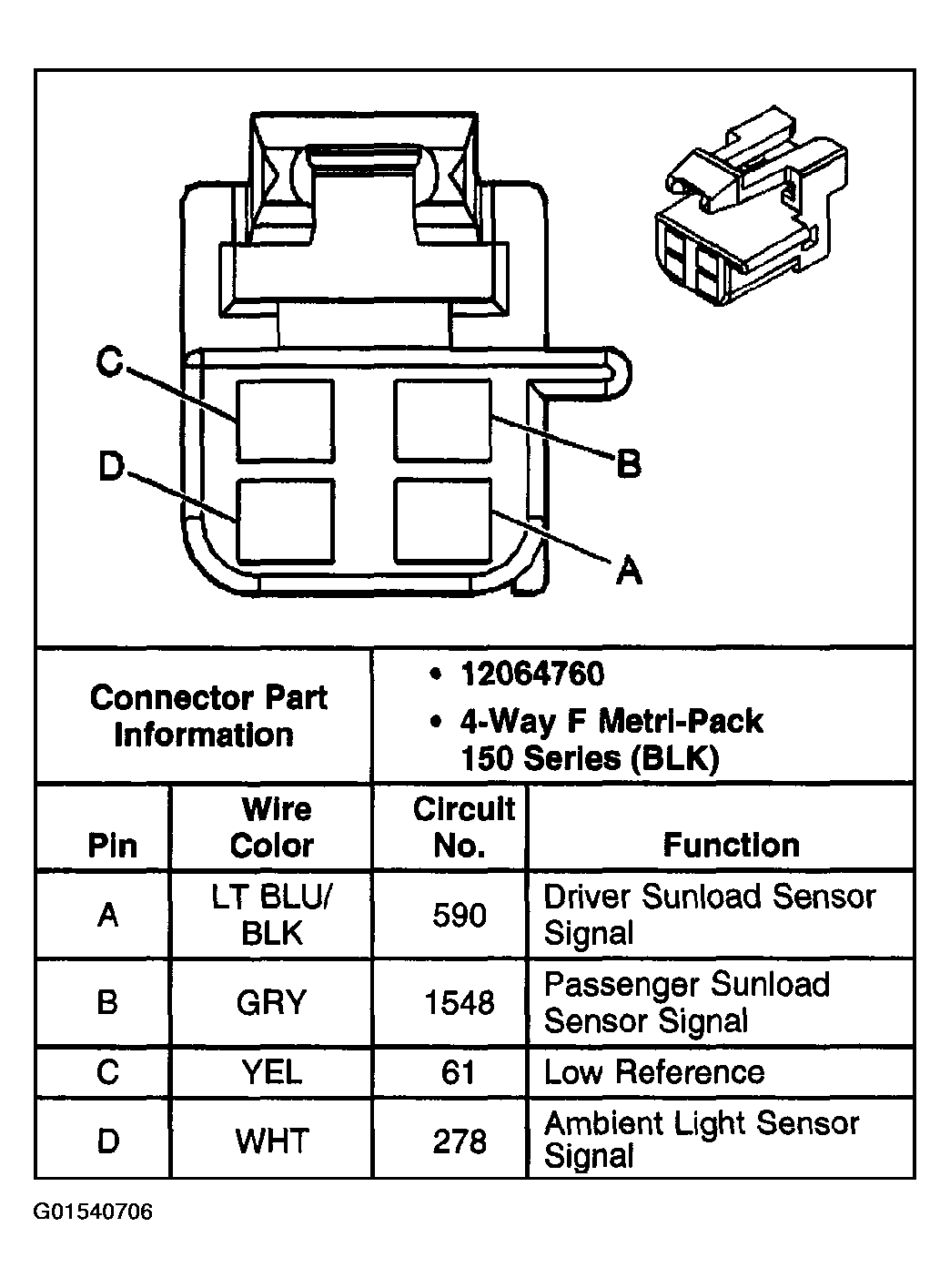

Fig 1: Sunload Sensor Assembly

G01540706

Courtesy of GENERAL MOTORS CORP.

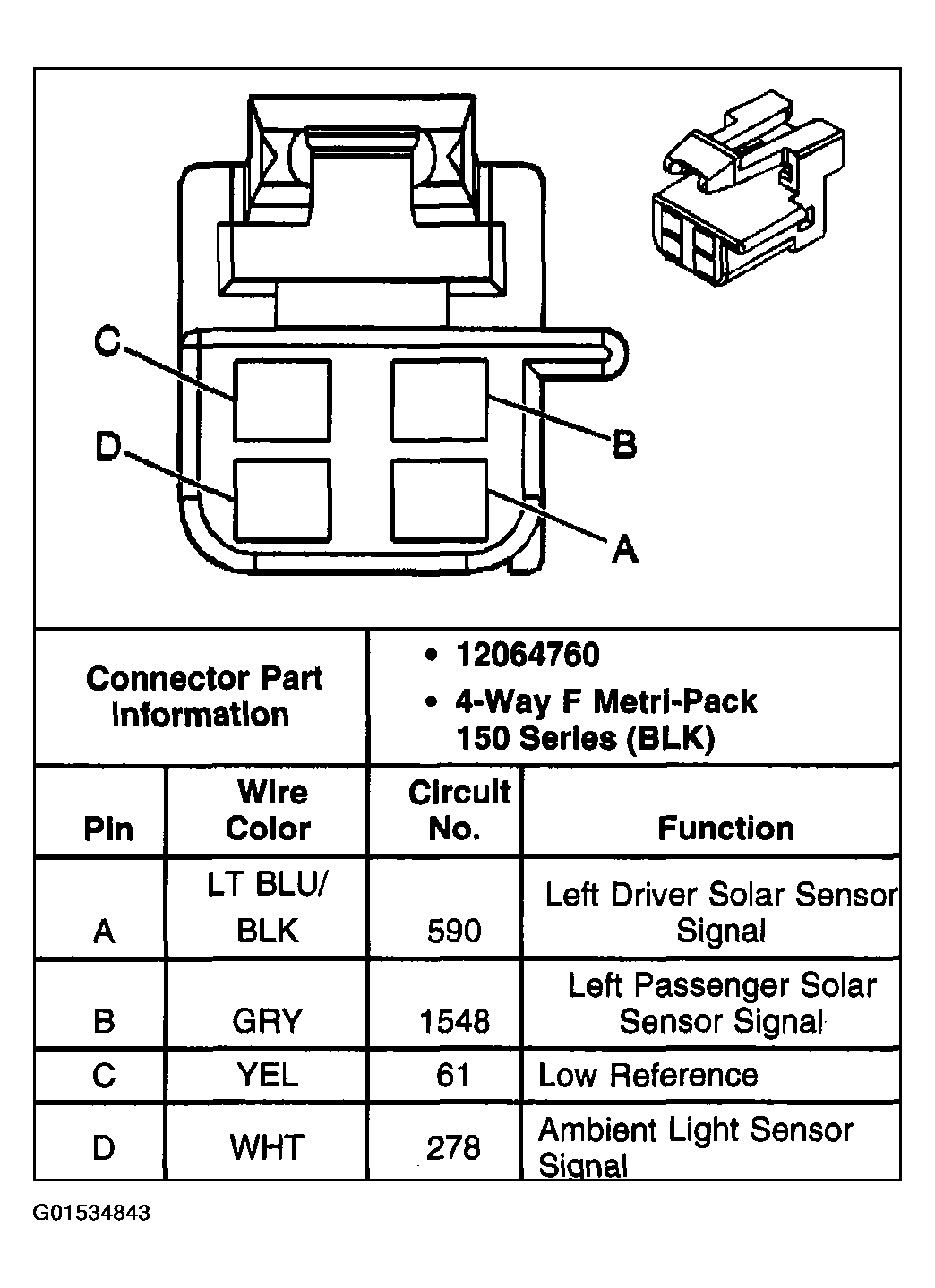

Fig 1: Sunload Sensor Assembly

G01534843

Courtesy of GENERAL MOTORS CORP.
