Body Control System Connector End View - Rear Integration Module (RIM) C2

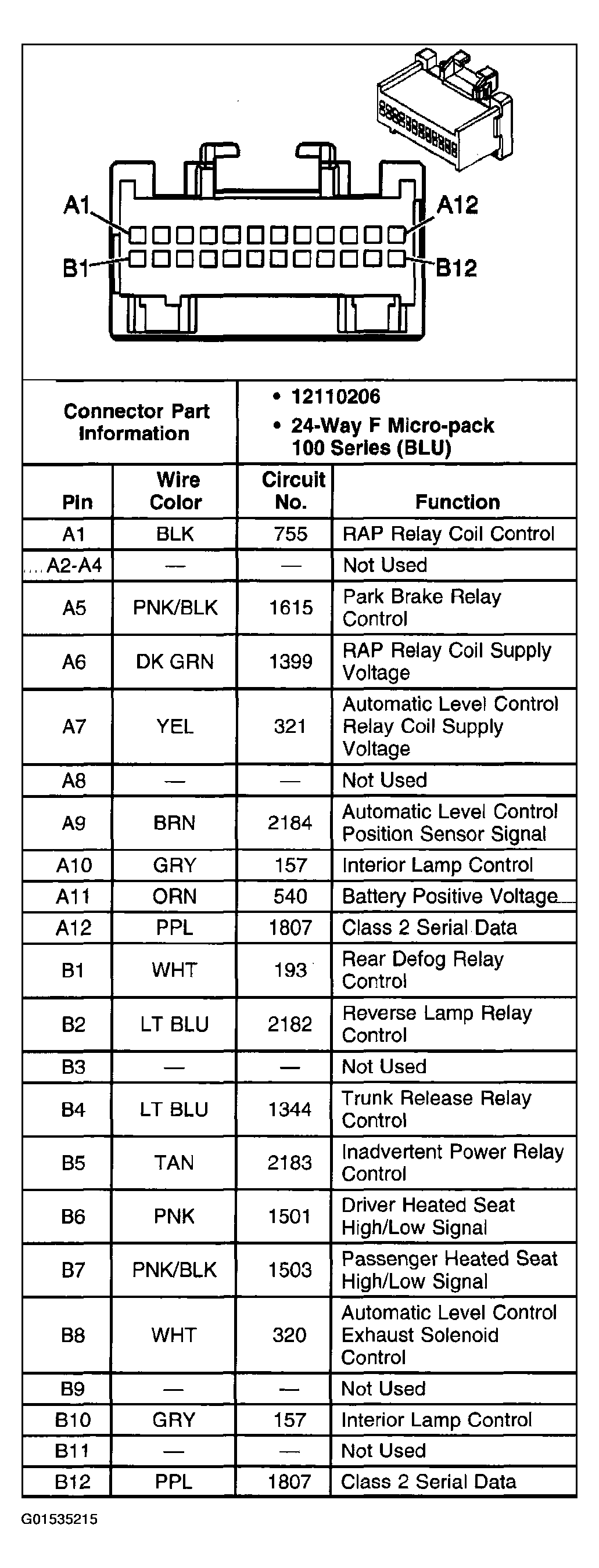

Fig 1: Body Control System - Rear Integration Module (RIM) C2

G01535215

Courtesy of GENERAL MOTORS CORP.
