Automatic Level Control (ALC) Sensor Connector End View

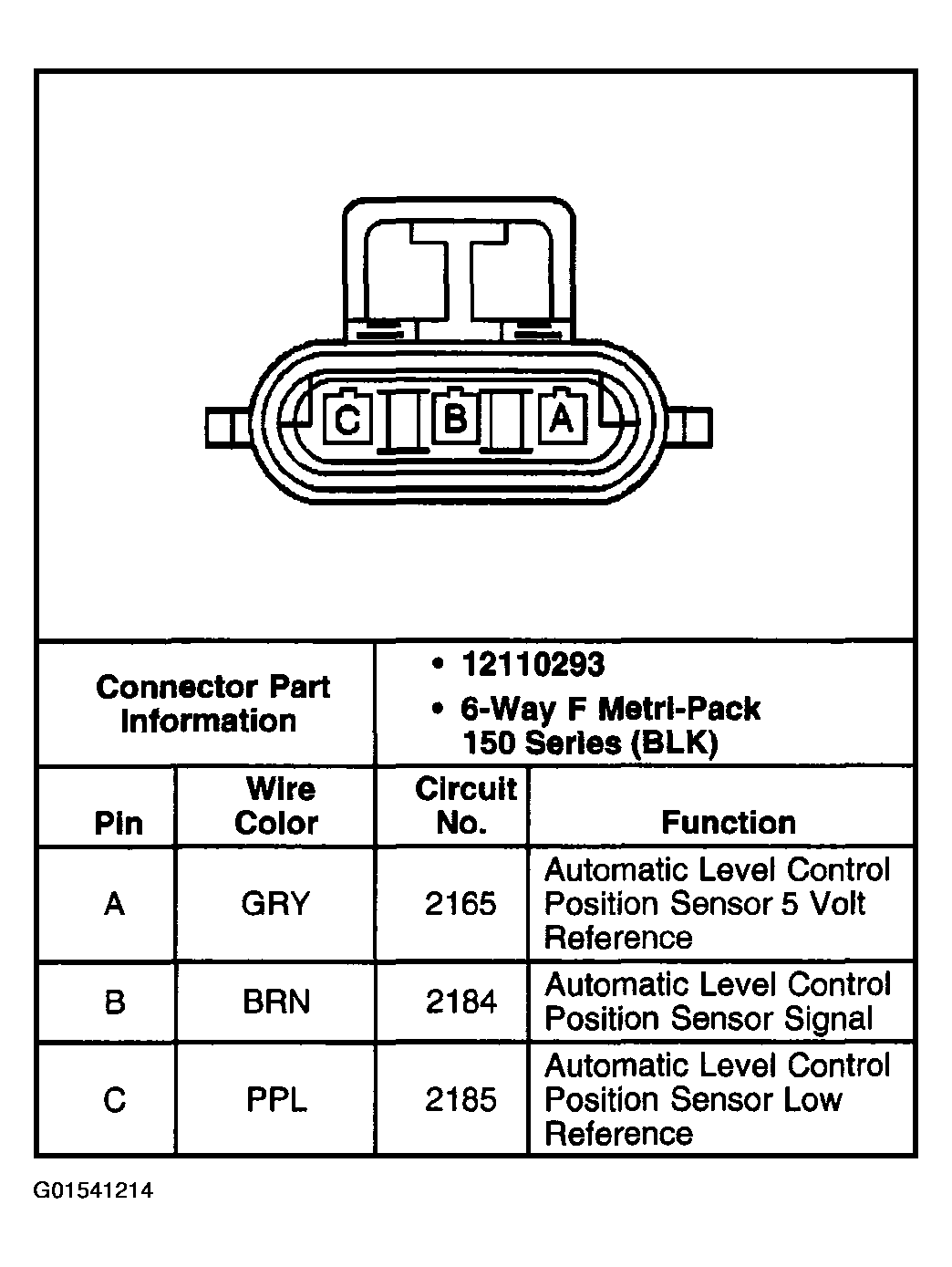

Fig 1: Automatic Level Control (ALC) Sensor

G01541214

Courtesy of GENERAL MOTORS CORP.
