Automatic Level Control (ALC) Compressor Connector End View

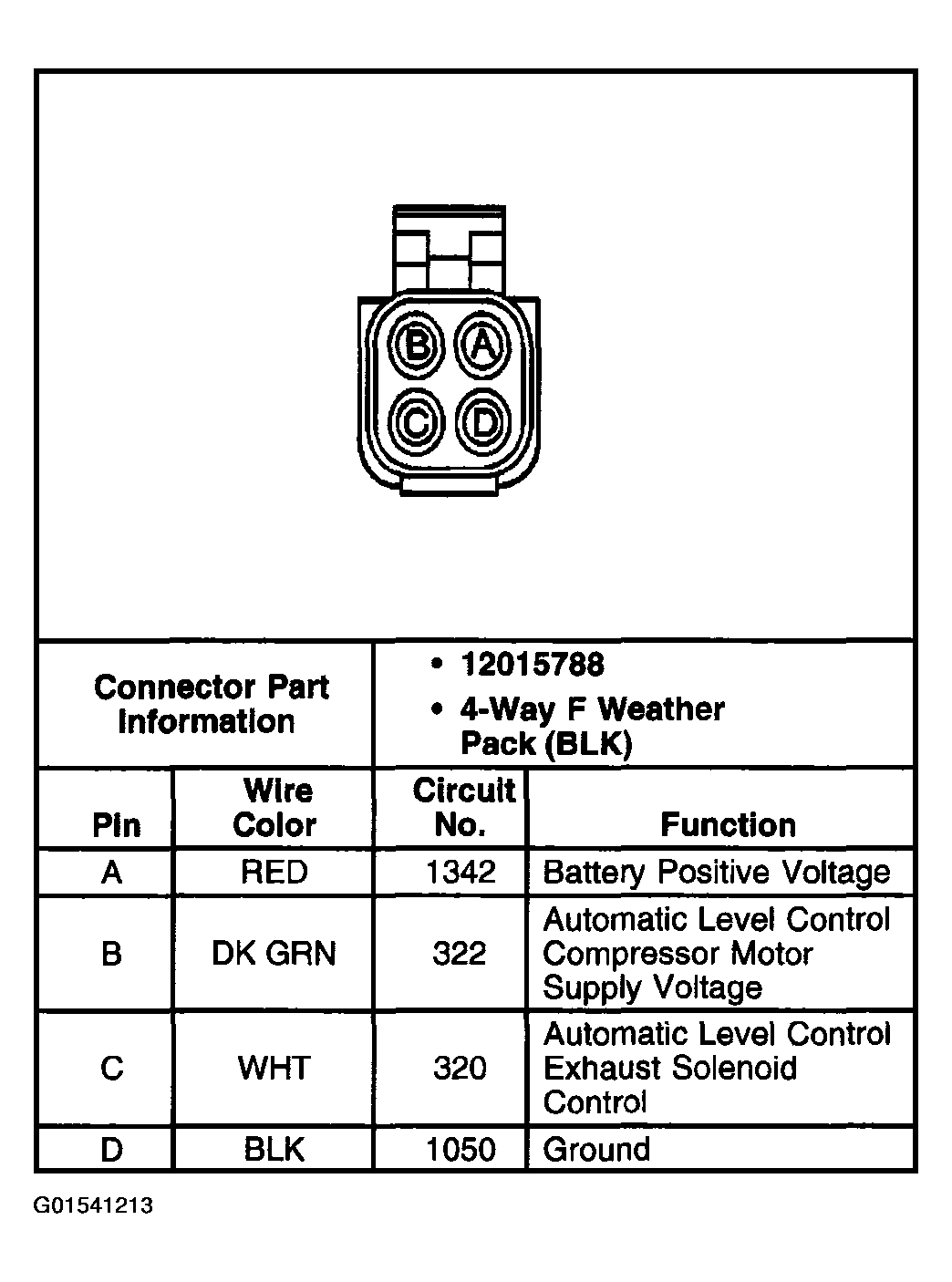

Fig 1: Automatic Level Control (ALC) Compressor

G01541213

Courtesy of GENERAL MOTORS CORP.
