Power Roof Systems Connector End View C2 - Sunroof Module (1 Of 2)

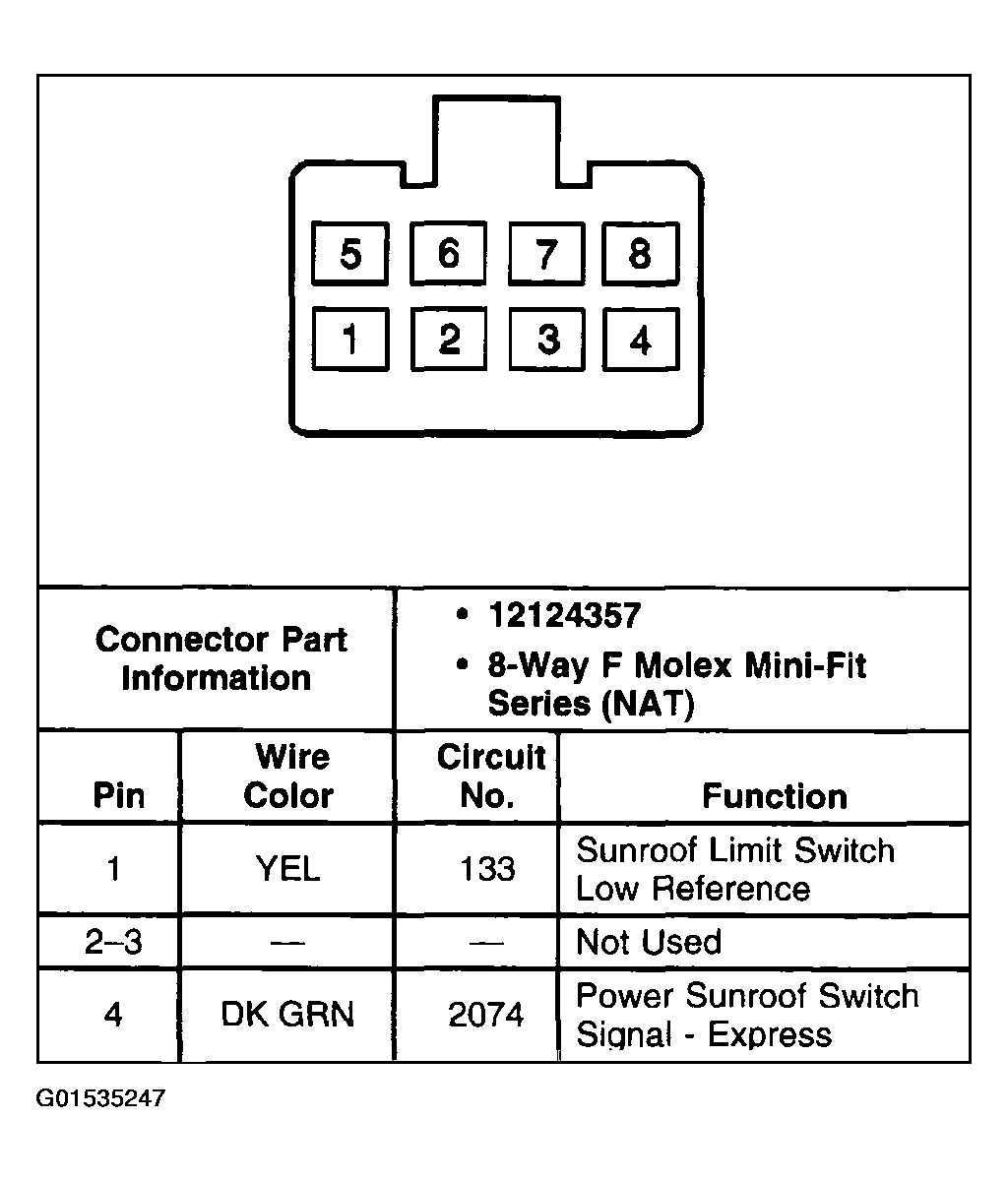

Fig 1: Power Roof Systems C2 - Sunroof Module (1 Of 2)

G01535247

Courtesy of GENERAL MOTORS CORP.
