Power Window Schematics

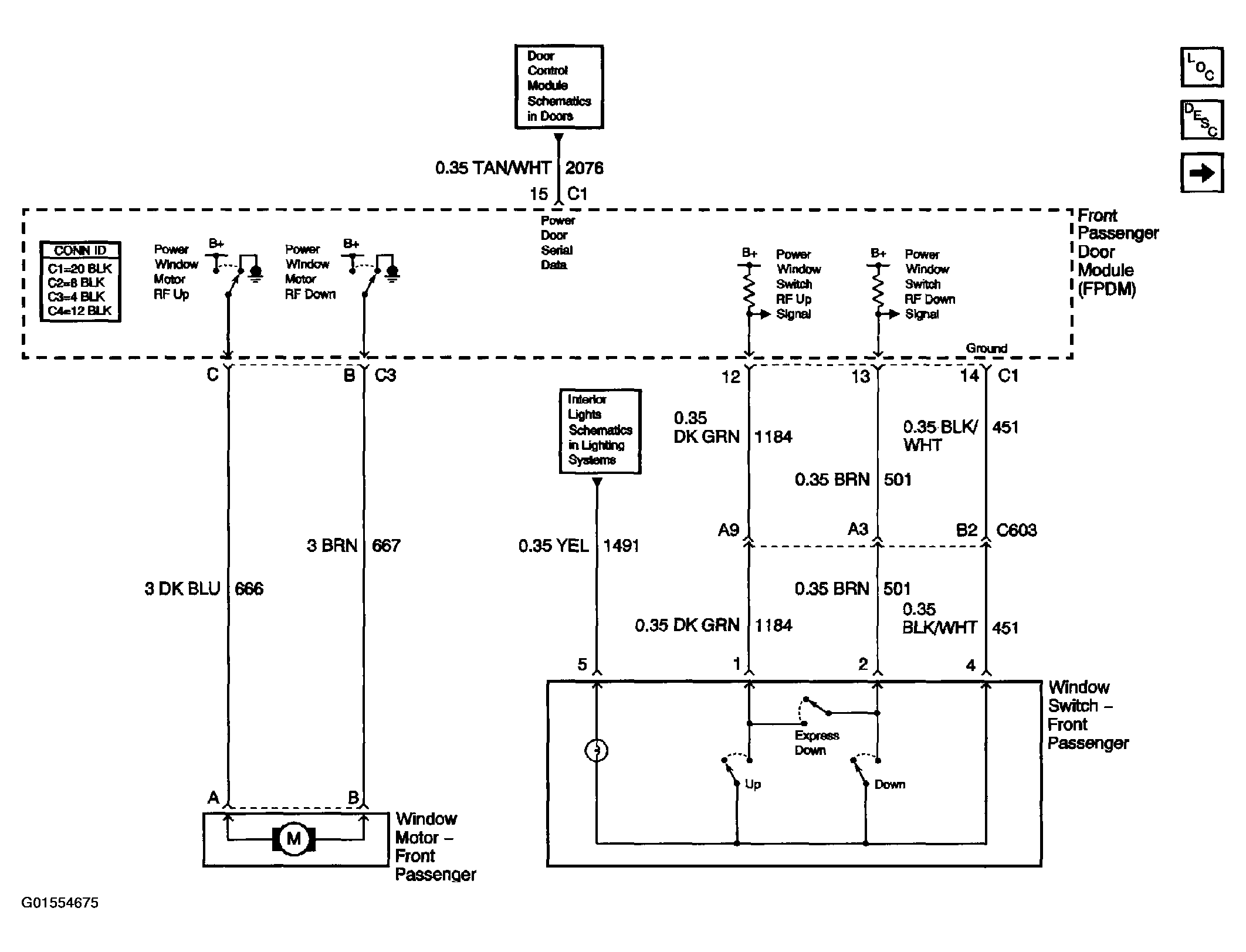

Fig 1: Power Window Schematic (Front Passenger Door)
G01554675Courtesy of GENERAL MOTORS CORP.

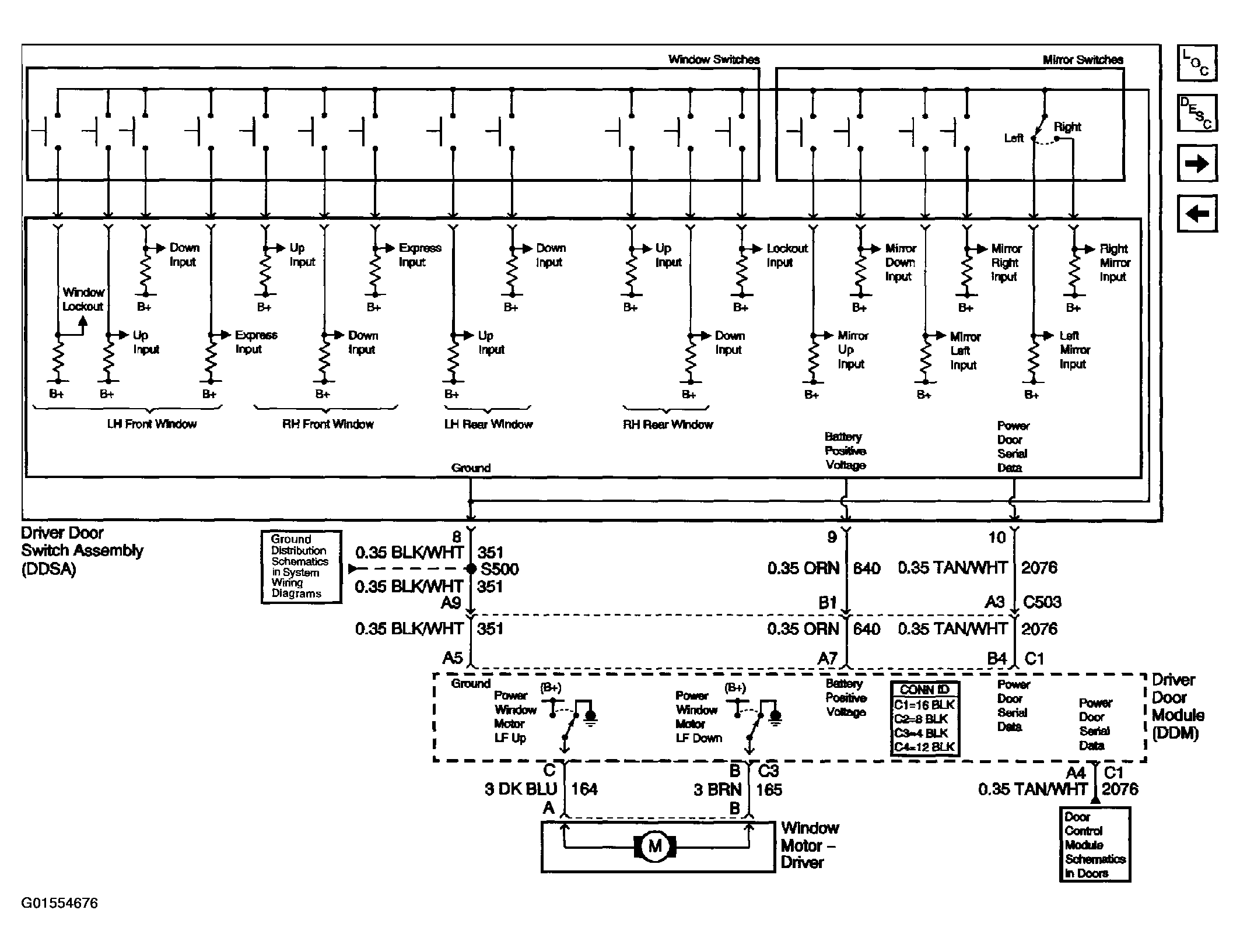

Fig 2: Power Window Schematic (Driver Door)
G01554676Courtesy of GENERAL MOTORS CORP.

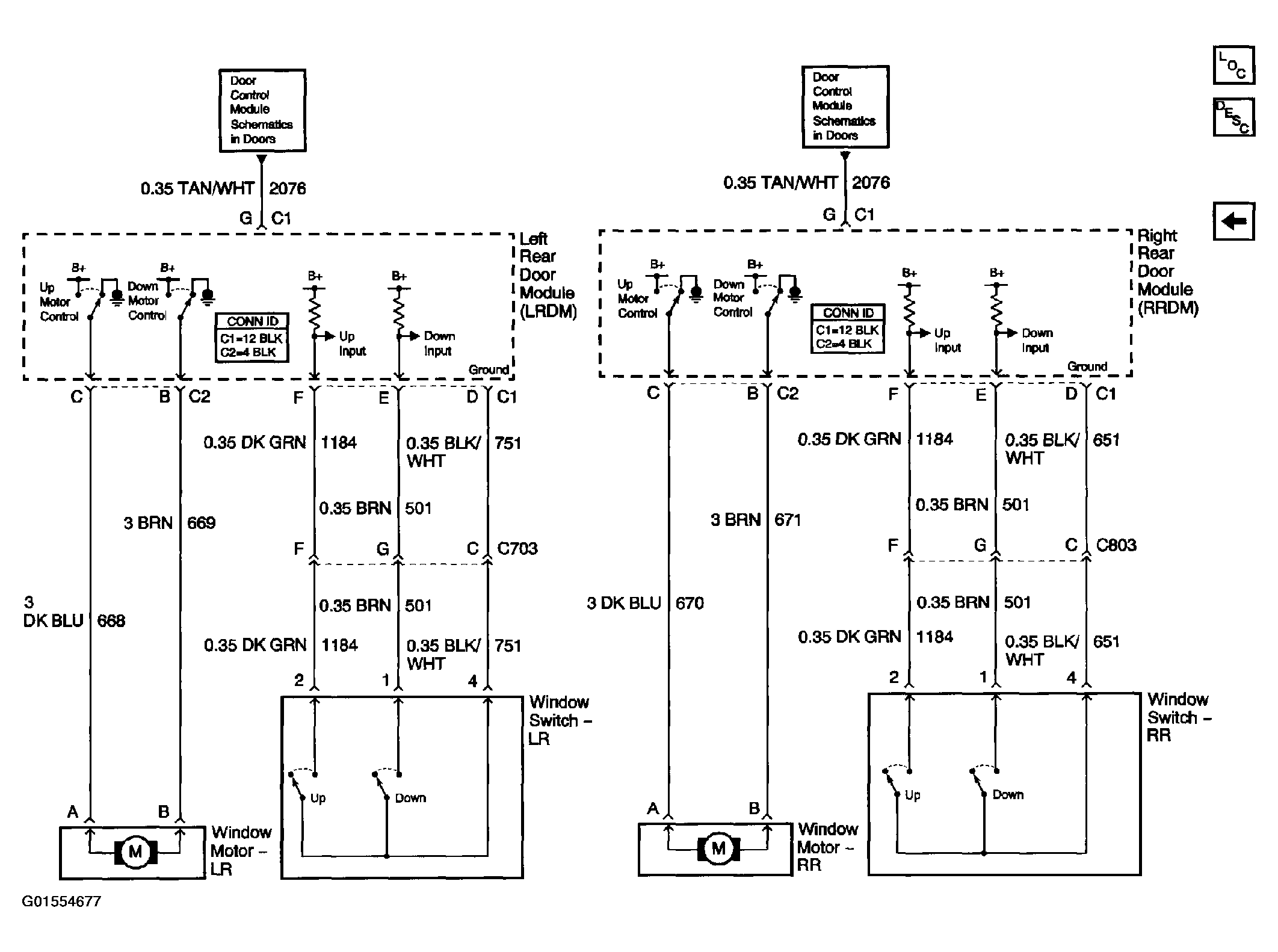

Fig 3: Power Window Schematics (Left Rear Door & Right Rear Door)
G01554677Courtesy of GENERAL MOTORS CORP.
