Test Description

The numbers below refer to the step numbers on the diagnostic table.

3. This step determines if the DDM receives the lockout switch request from the driver door switch assembly (DDSA).

4. This step determines if the indicator is operating properly.

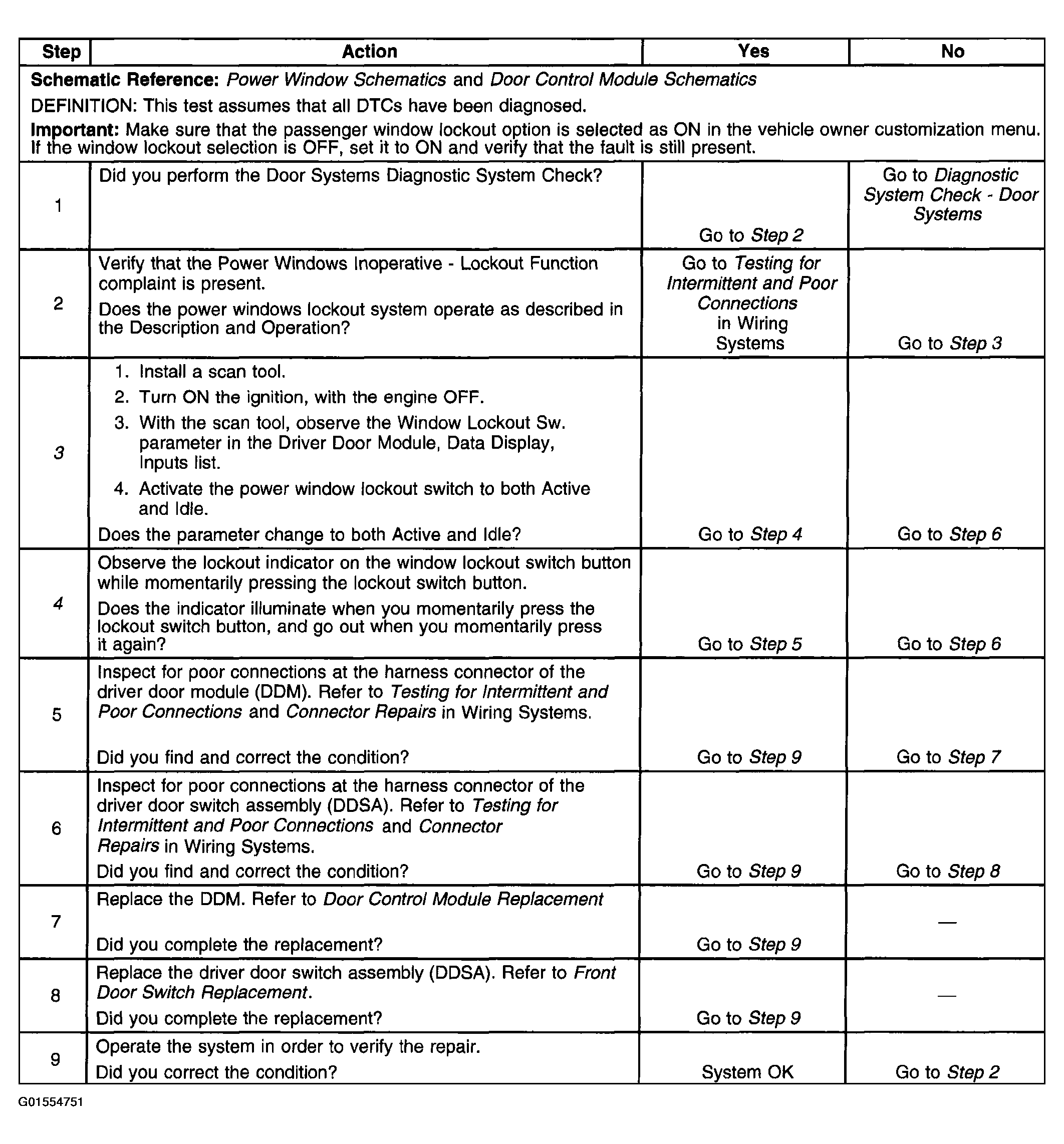

Fig 1: Diagnostic System Check - Power Windows Inoperative - Lockout Function
G01554751Courtesy of GENERAL MOTORS CORP.
