Cruise Control Schematics (Cruise Control Switch, Cruise Control Module (CCM), Power & Grounds)

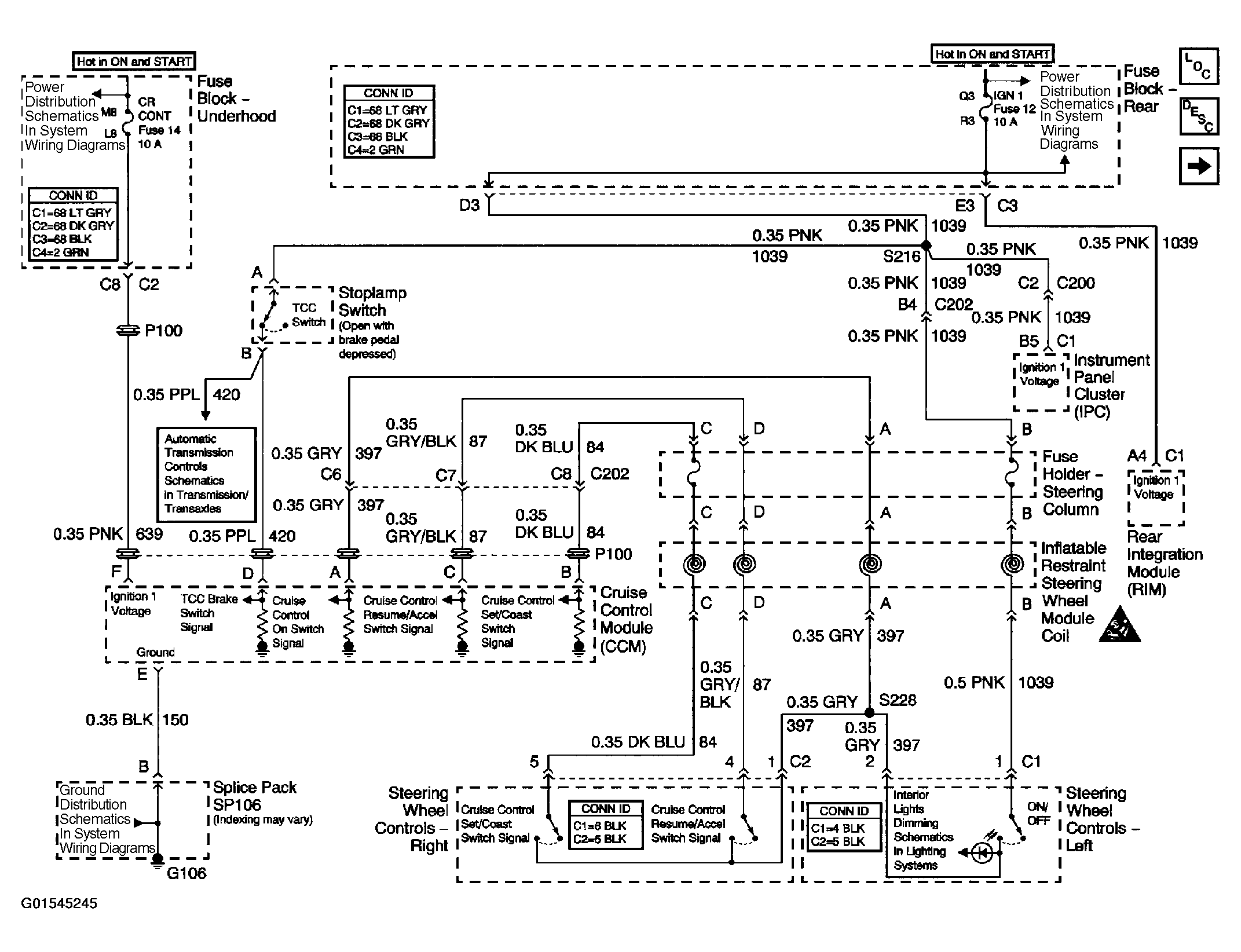

Fig 1: Cruise Control Schematics (Cruise Control Switch, CCM, Power & Grounds)
G01545245Courtesy of GENERAL MOTORS CORP.

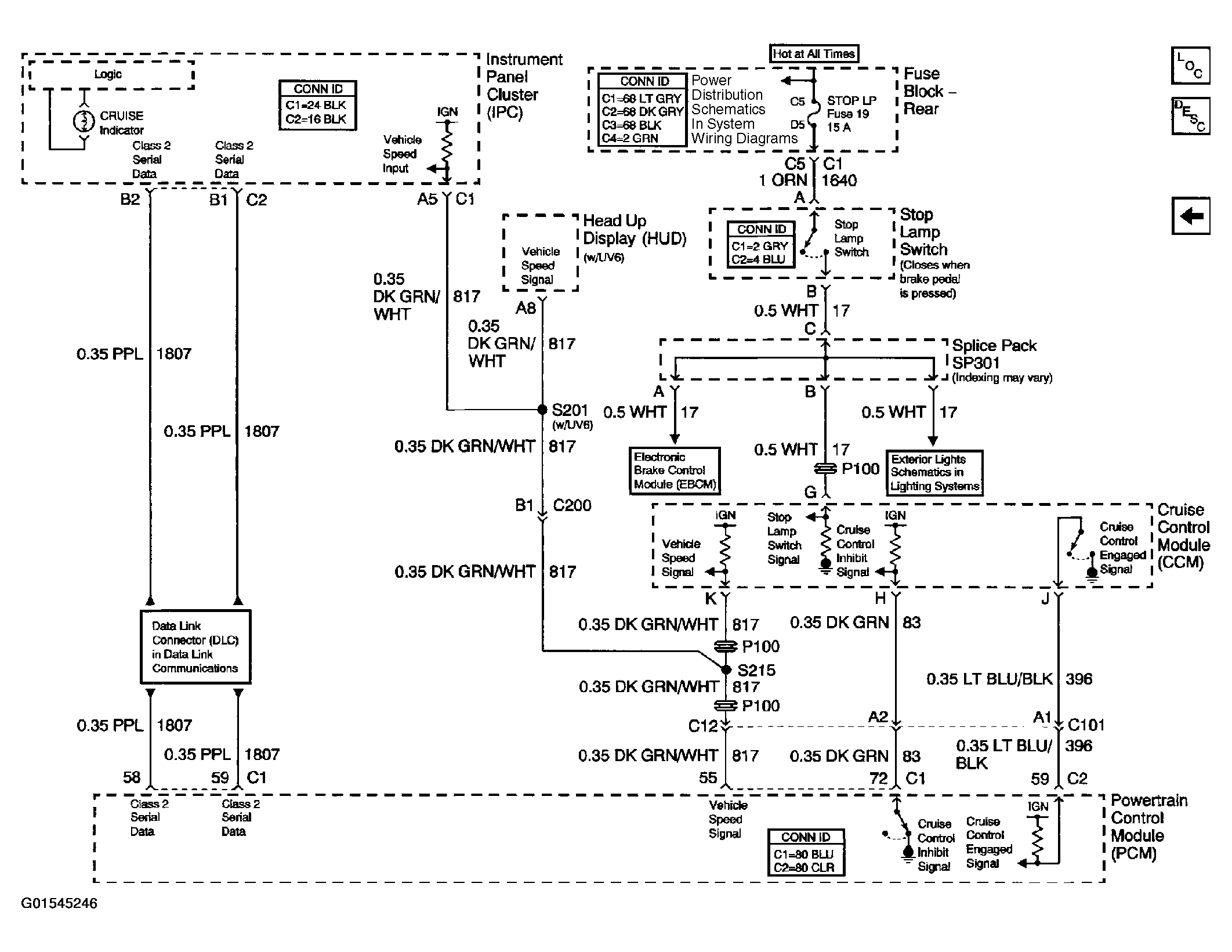

Fig 2: Cruise Control Schematics (CCM, PCM Controls & Vehicle Speed Input)
G01545246Courtesy of GENERAL MOTORS CORP.
