Installation Procedure

  1. Install the seat belt buckle to the left front seat.
  2. Connect the electrical connector.
  3. Install the seat belt buckle nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

  4. Position the left front seat to the original position.

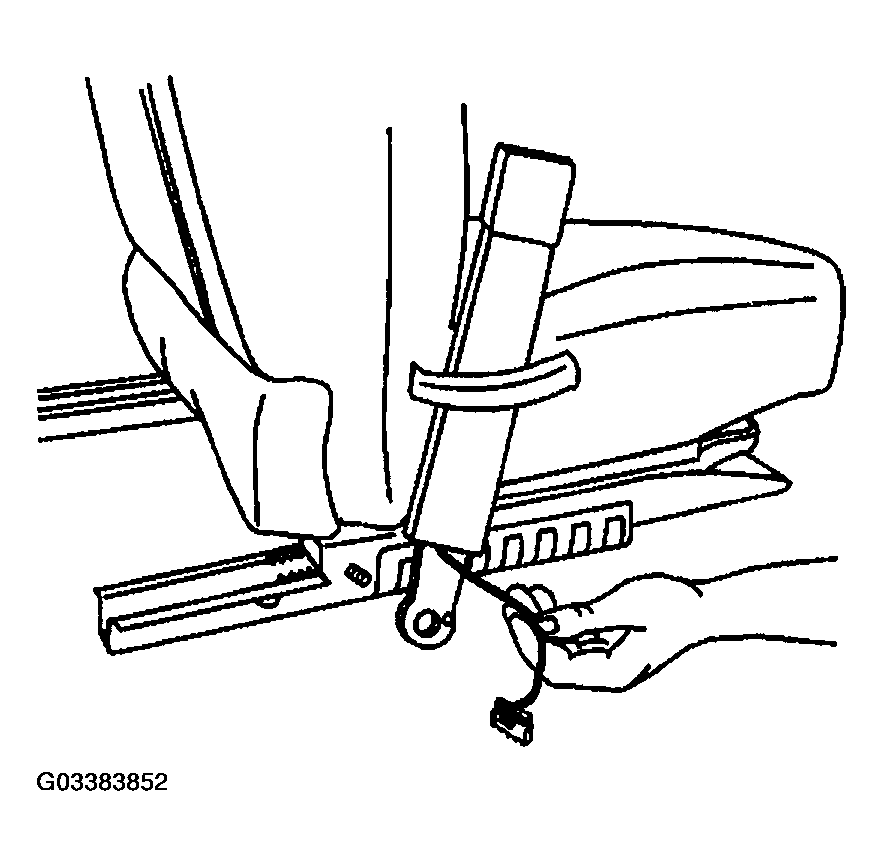

    Fig 1: Installing Seat Belt Buckle To Left Front Seat
    G03383852Courtesy of GENERAL MOTORS CORP.
