Home >> Buick >> 2003 >> Century Base >> Repair and Diagnosis >> Steering >> Steering Wheel And Steering Column >> Component Locator >> Steering Column Disassembled View (Floor Shift)

Steering Column Disassembled View (Floor Shift)

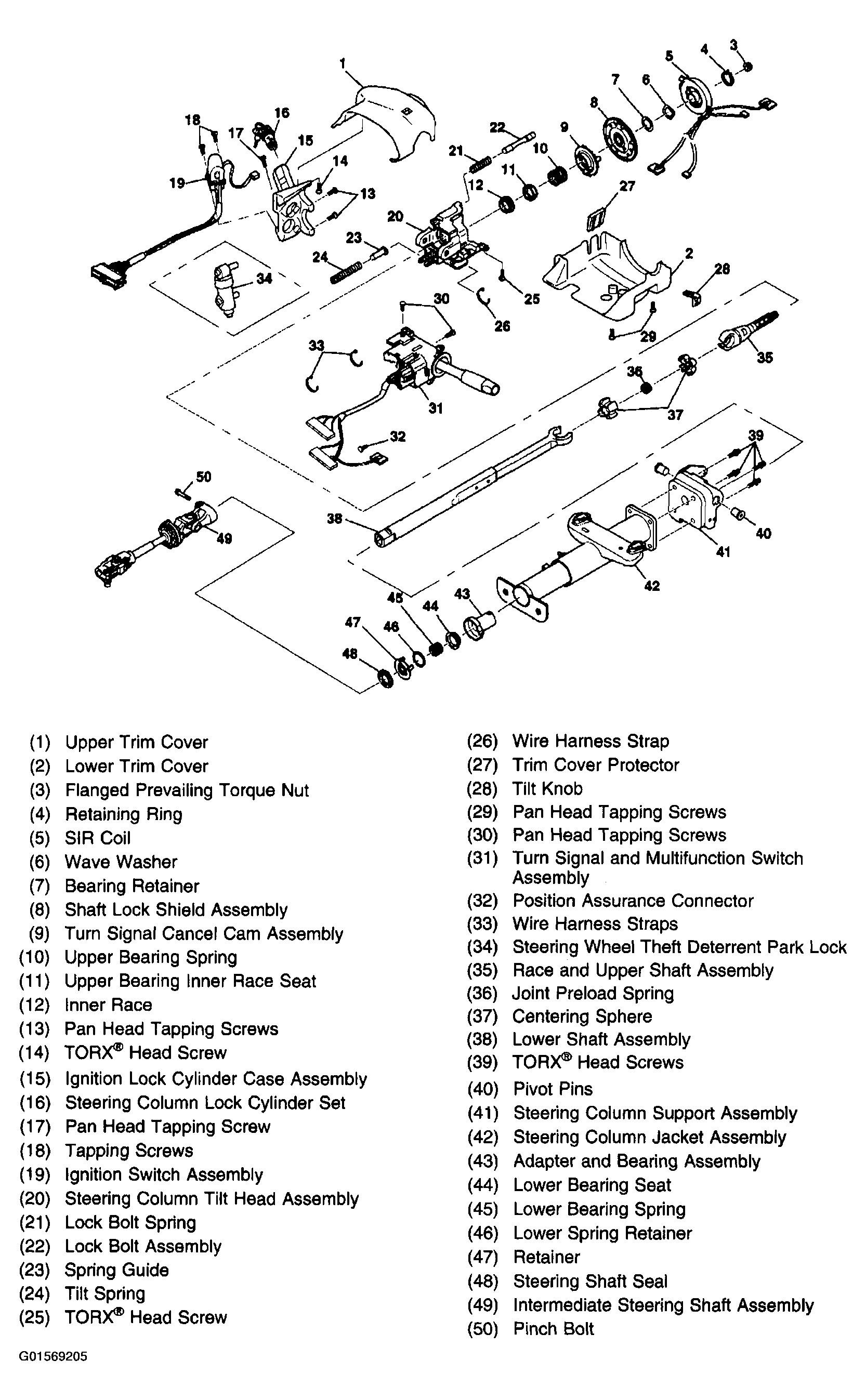

Fig 1: Exploded View Of Tilt Steering Column, Floor Shift

G01569205

Courtesy of GENERAL MOTORS CORP.
