Installation Procedure

  1. Position the seat belt buckle to the right front seat.
  2. Install the seat belt buckle nut.

    Tighten

    Tighten the seat belt buckle nut to 42 N.m (31 lb ft).

  3. Position the right front seat to the original position.

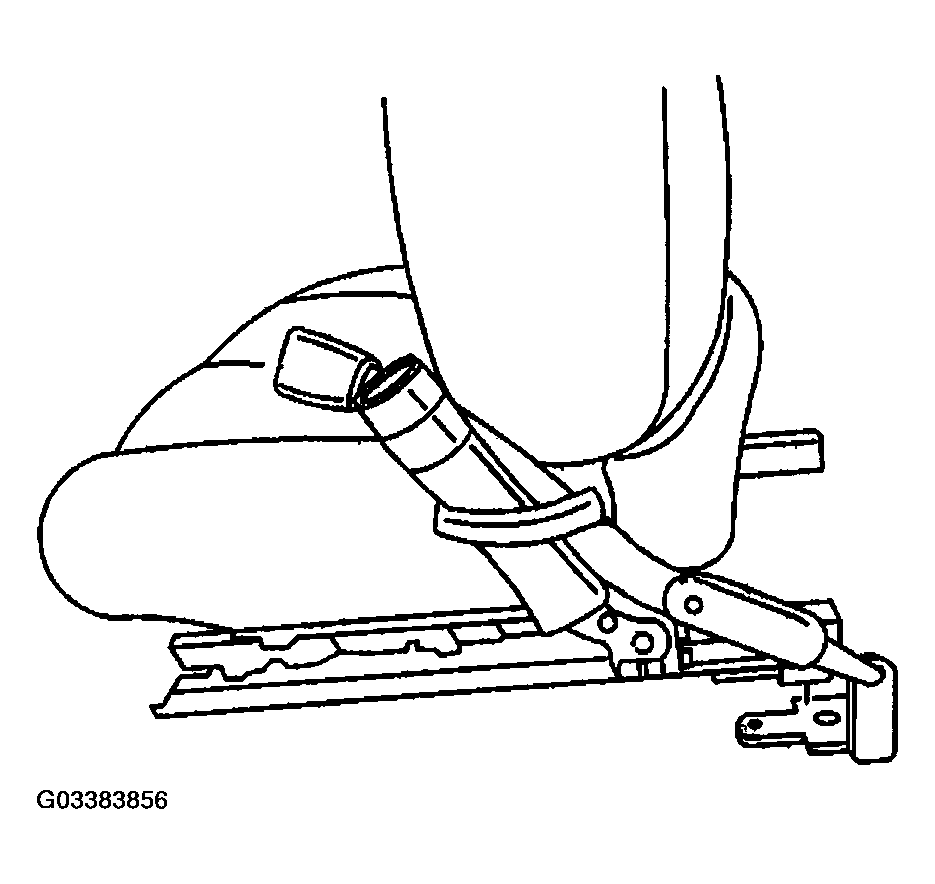

    Fig 1: Positioning Right Front Seat To Original Position
    G03383856Courtesy of GENERAL MOTORS CORP.
