Home >> Buick >> 2003 >> Century Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Repair Instructions >> Child Shoulder Belt Guide Rerouter Replacement - Rear >> Installation Procedure

Installation Procedure

  1. Push back the rear seat back.
  2. Align the rear shoulder belt guide to the lower rear quarter trim panel.
  3. Install the push-pin retainer to the rear shoulder belt guide.

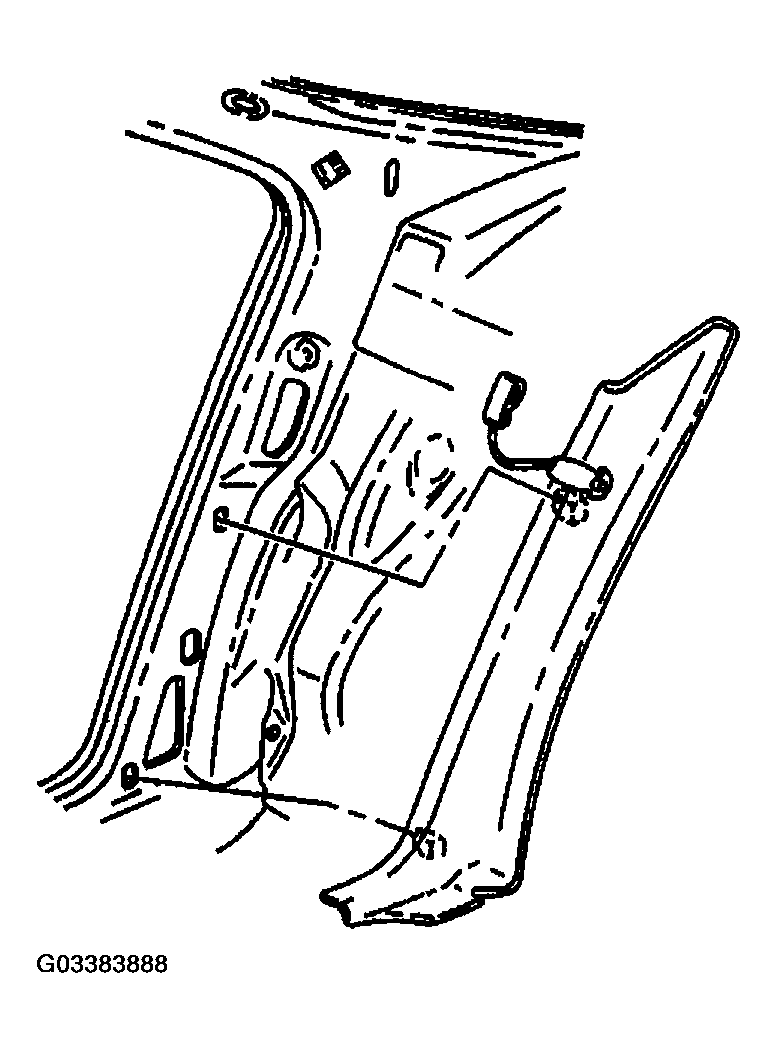

    Fig 1: Installing Child Shoulder Belt Guide Rerouter
    G03383888Courtesy of GENERAL MOTORS CORP.
