Engine Oil Level Sensor Connector End View (If Equipped)

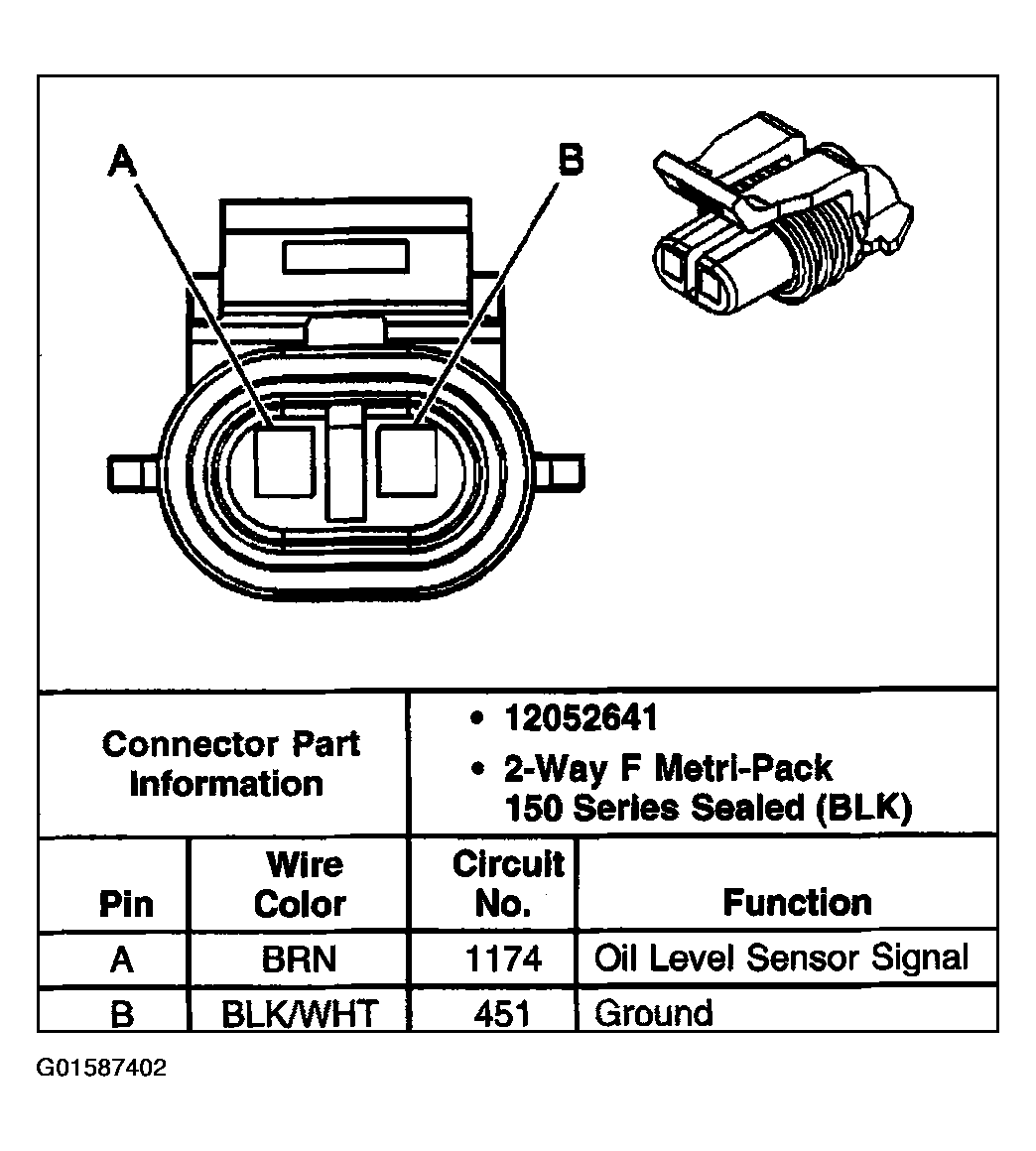

Fig 1: Engine Oil Level Sensor Connector End View (If Equipped)

G01587402

Courtesy of GENERAL MOTORS CORP.
