A/C Refrigerant Pressure Sensor Connector End View Terminal

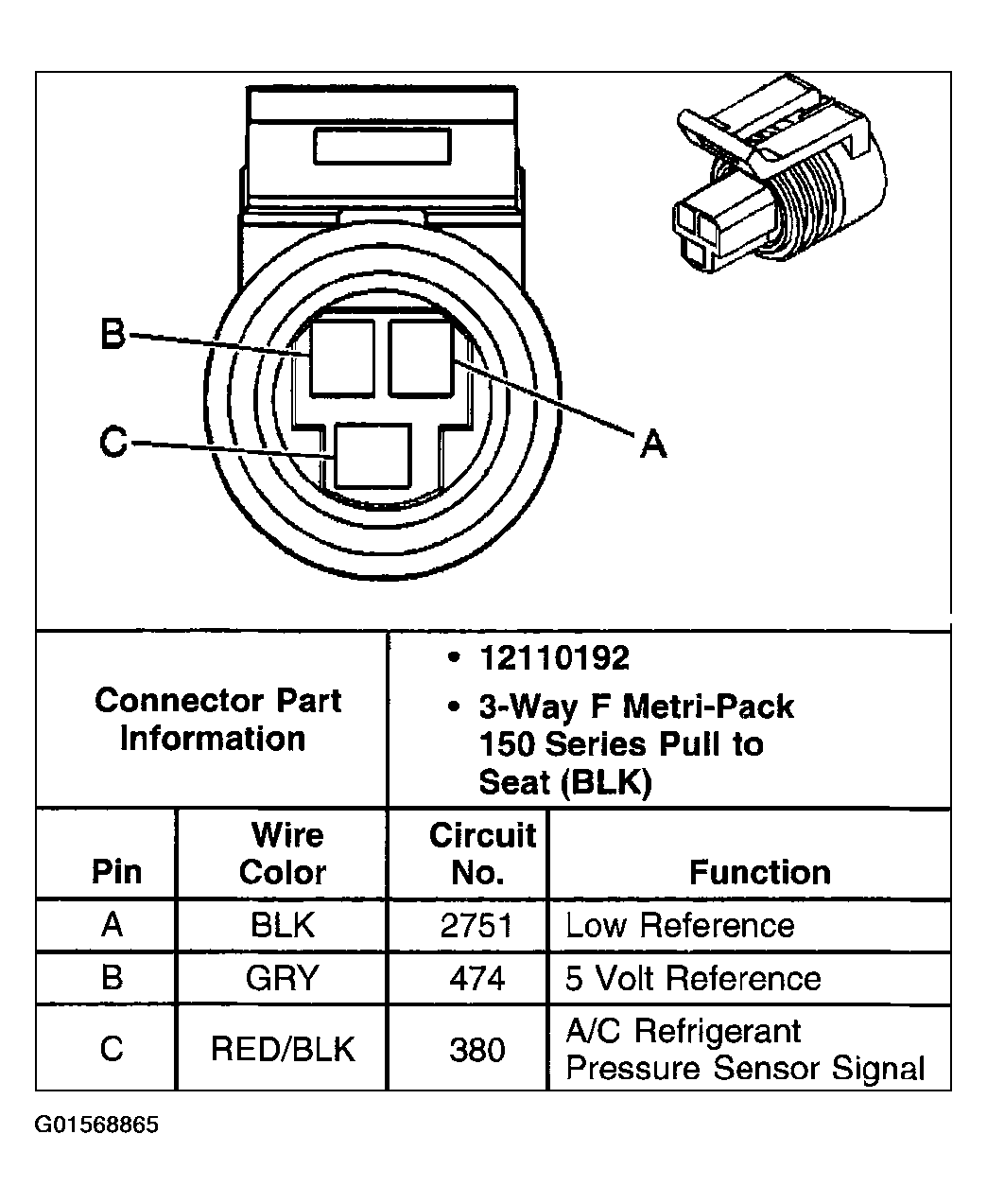

Fig 1: A/C Refrigerant Pressure Sensor Connector End View Terminal

G01568865

Courtesy of GENERAL MOTORS CORP.
