Retained Accessory Power (RAP) Component Views

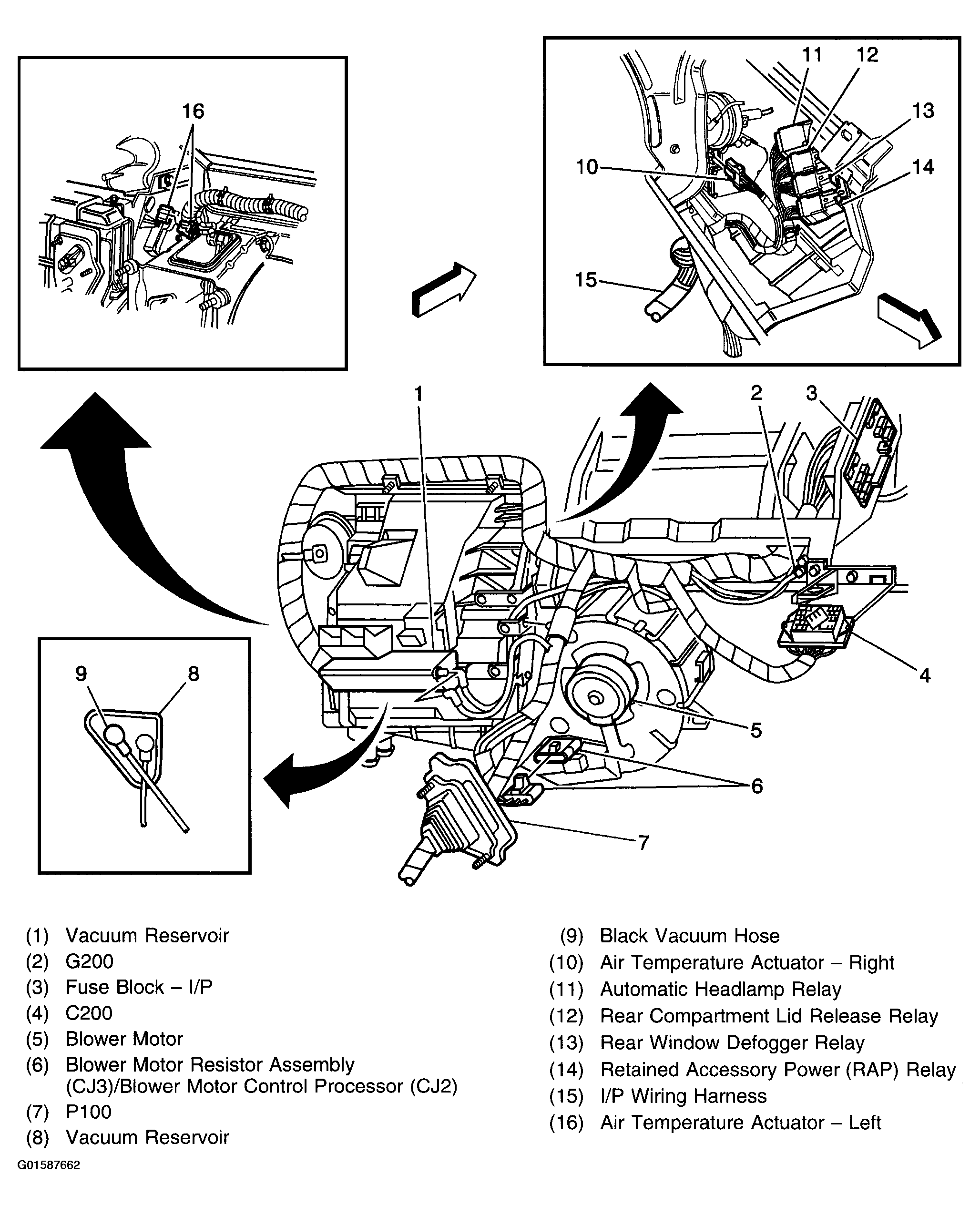

Fig 1: Identifying Behind the Right Side of the I/P Component View

G01587662

Courtesy of GENERAL MOTORS CORP.
