Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  3. Remove the inner energy absorber. Refer to ENERGY ABSORBER PAD REPLACEMENT - REAR DOOR  .
  4. Remove the inner sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT INNER  .
  5. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  6. Remove the rear door frame molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR FRAME  .
  7. Remove the window mounting bolts (1, 2).

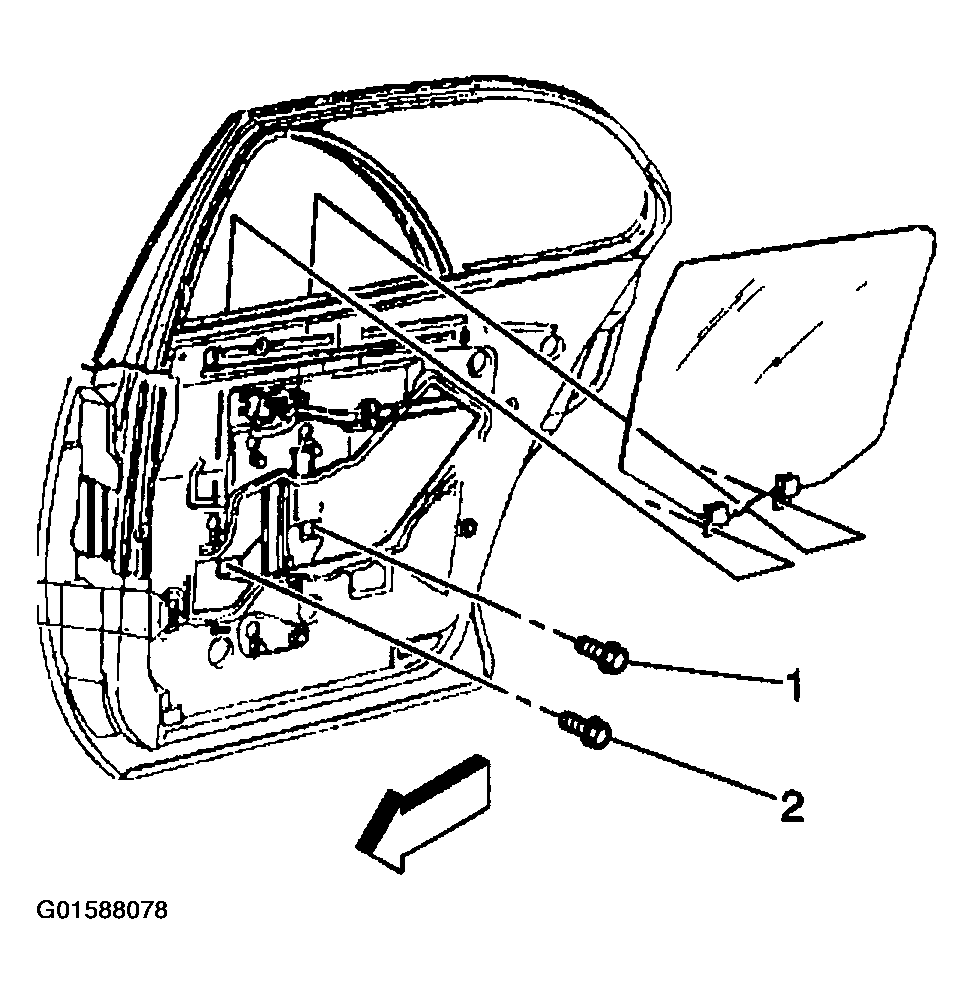

    8. Fig 1: Removing Rear Door Window
    G01588078Courtesy of GENERAL MOTORS CORP.
  8. Remove the window.
