Removal Procedure

  1. Open the front door.
  2. Using the J 38778, remove the lower half of the front door weatherstrip and retainers from the front door.
  3. Pull the upper half of the front door weatherstrip from the front door weatherstrip track.
  4. Remove the front door weatherstrip from the front door.

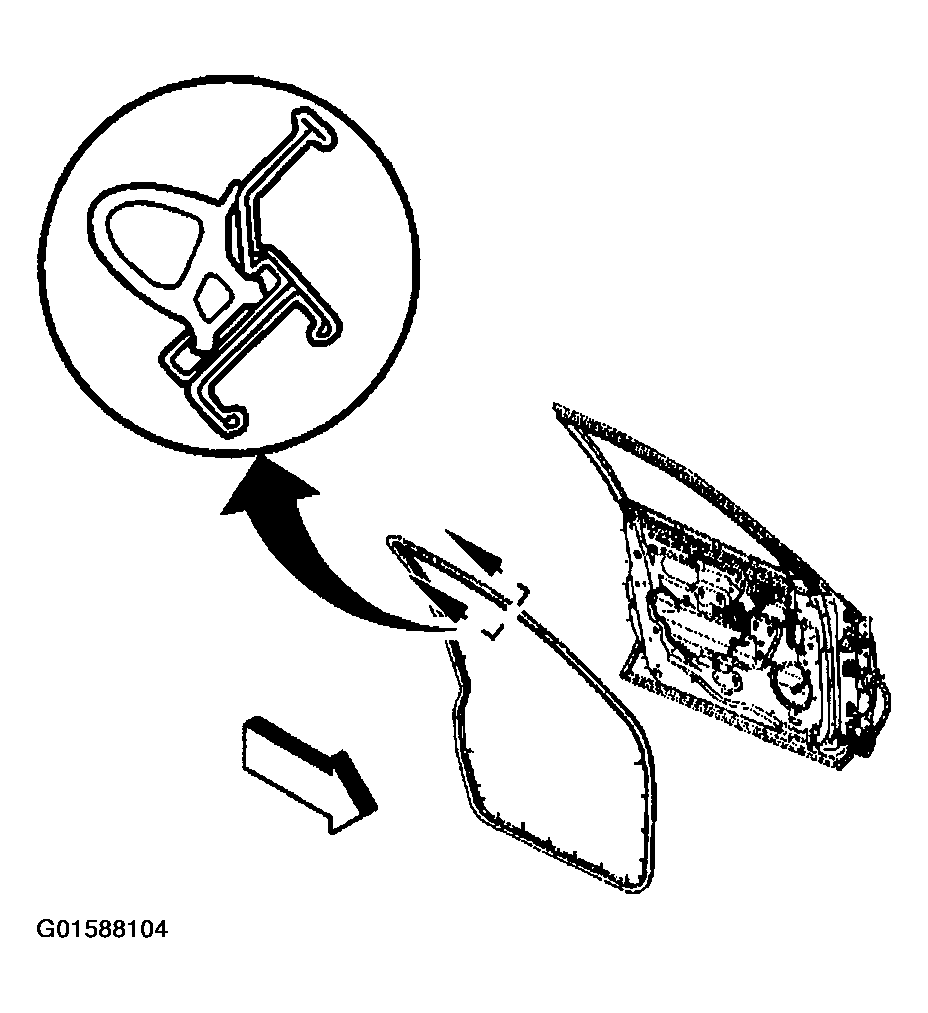

    5. Fig 1: Removing Front Door Weatherstrip
    G01588104Courtesy of GENERAL MOTORS CORP.
