Removal Procedure

  1. Remove the outside mirror. Refer to MIRROR REPLACEMENT - REMOTE  or MIRROR REPLACEMENT - POWER  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door inner sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  4. Remove the front door outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER - FRONT  .
  5. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  6. Remove the front door window weatherstrip from the front door.

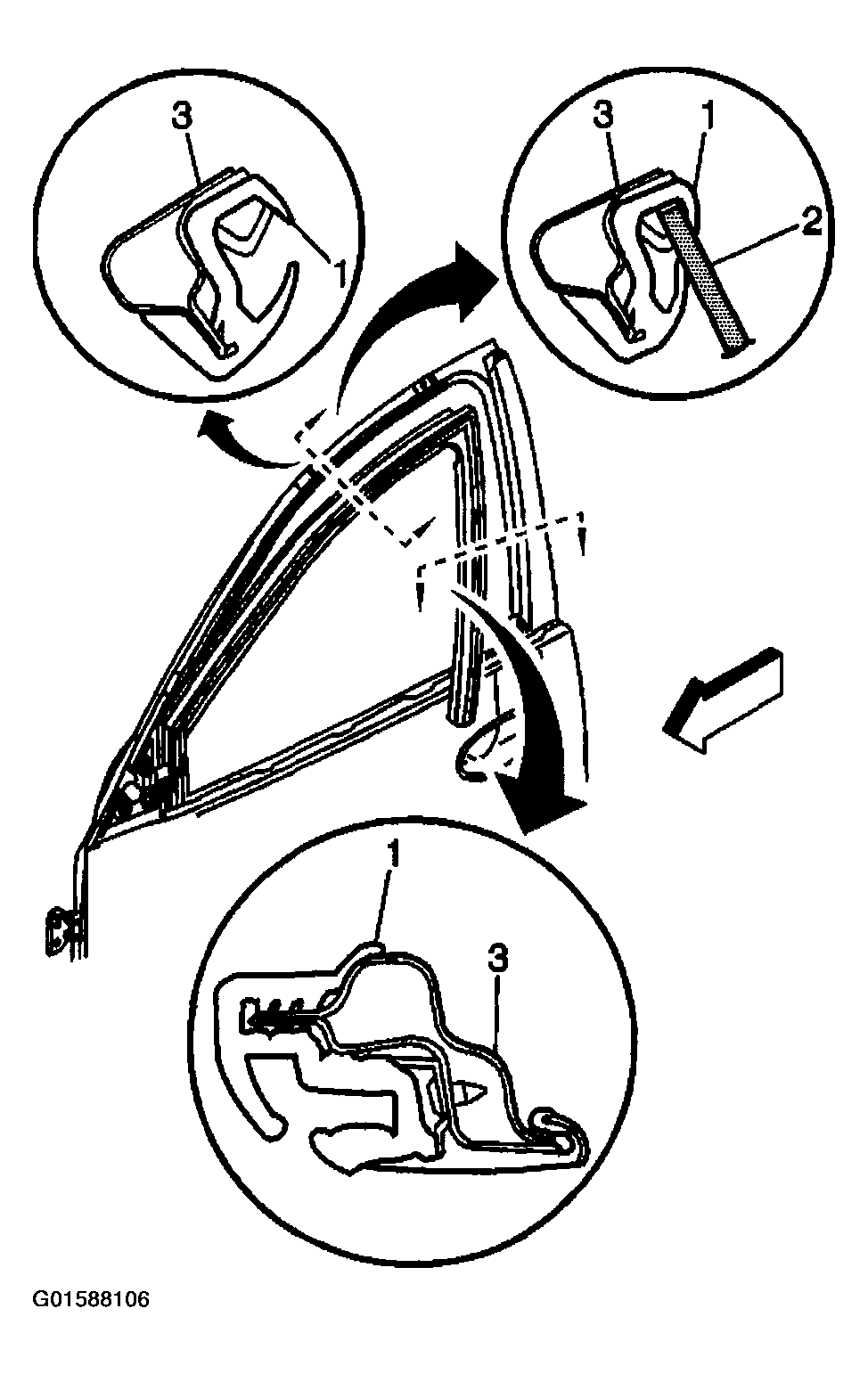

    7. Fig 1: Removing Front Door Window Weatherstrip
    G01588106Courtesy of GENERAL MOTORS CORP.
