Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door radio speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR .
  3. Disconnect the power mirror electrical connector.
  4. Remove the front door water deflector from the front door.

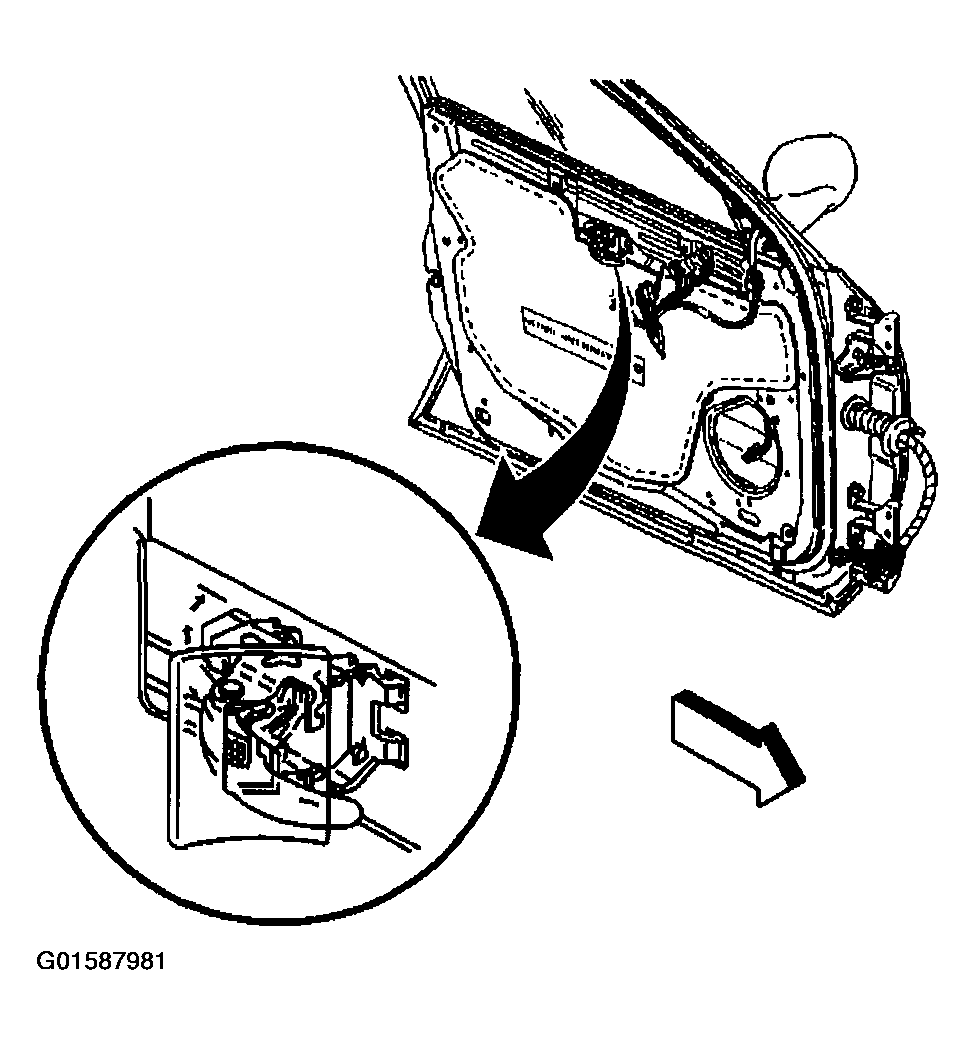

    5. Fig 1: Removing Front Door Water Deflector
    G01587981Courtesy of GENERAL MOTORS CORP.
