Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. From inside the trim panel, press the reflector retaining tabs in toward the center of the reflector.
  3. Remove the reflector (2) from the door trim.

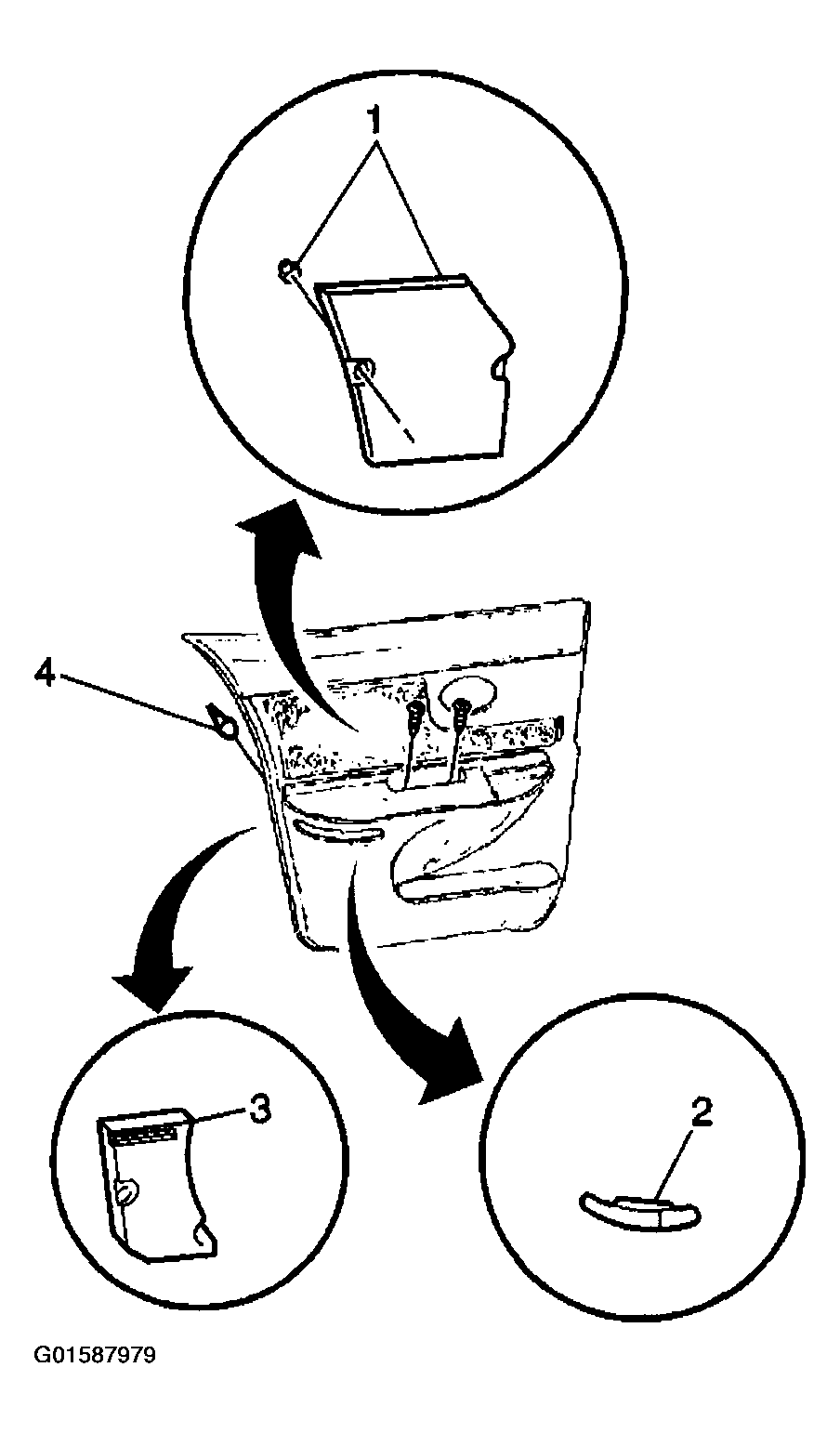

    4. Fig 1: Removing Rear Door Warning Reflector
    G01587979Courtesy of GENERAL MOTORS CORP.
