Installation Procedure

  1. Install the heated seat switch in the switch assembly.

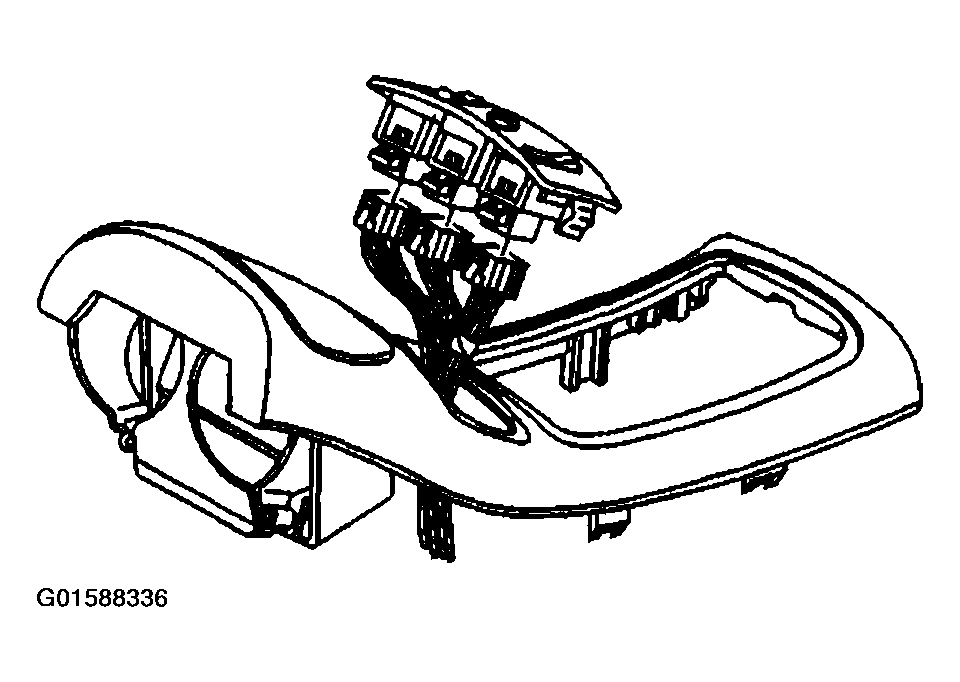

    2. Fig 1: Installing Front Heated Seat Switch
    G01588336Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the appropriate heated seat switch:
    • The natural connector to the driver switch
    • The black connector to the passenger switch
  3. Align the switch assembly to the console trim plate and snap the assembly into position to secure.
