Data Link Communications Component Views

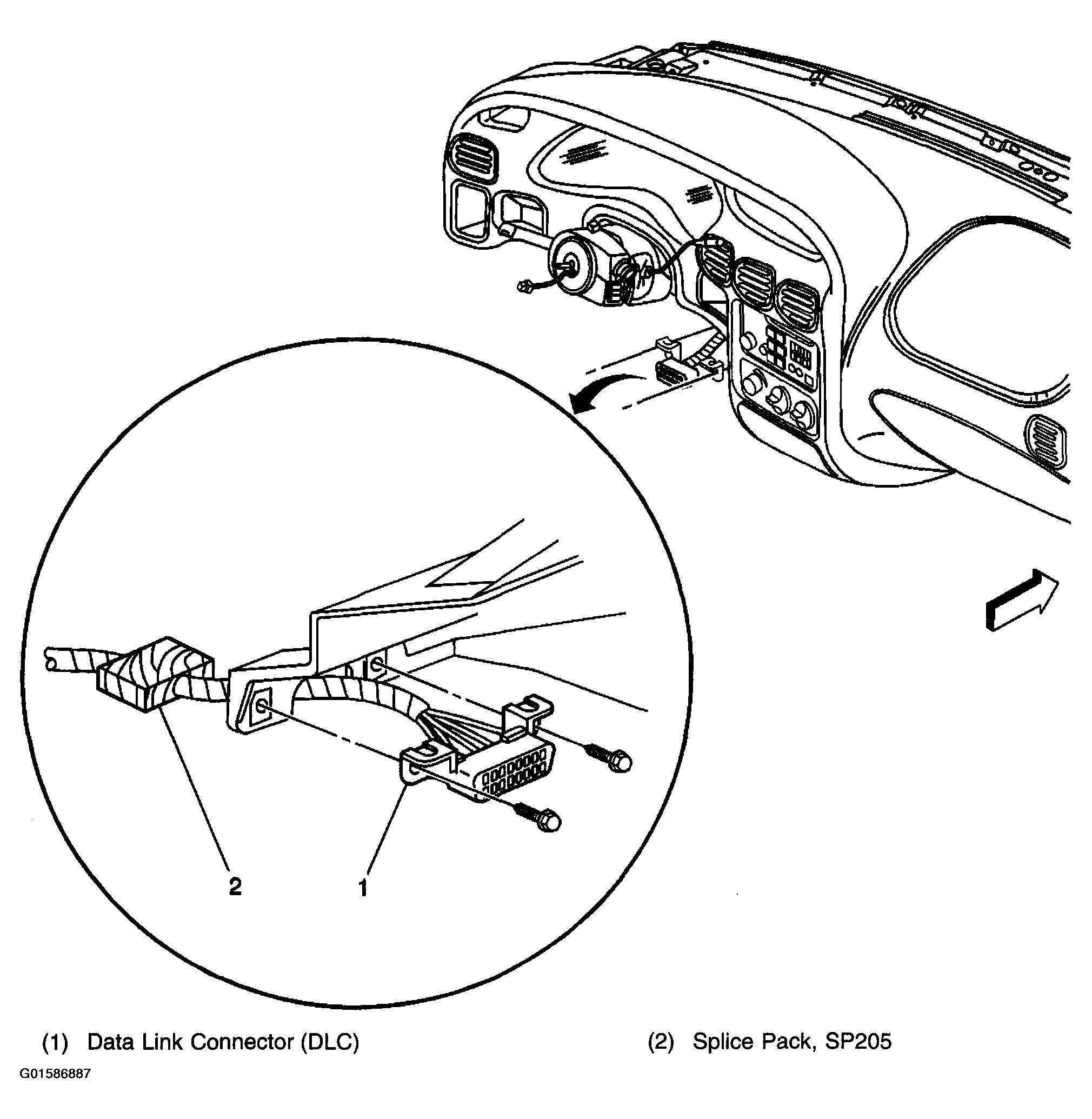

Fig 1: Data Link Connector & Splice Pack Component View

G01586887

Courtesy of GENERAL MOTORS CORP.
