Installation Procedure

  1. Install the seat belt to the front seat track.

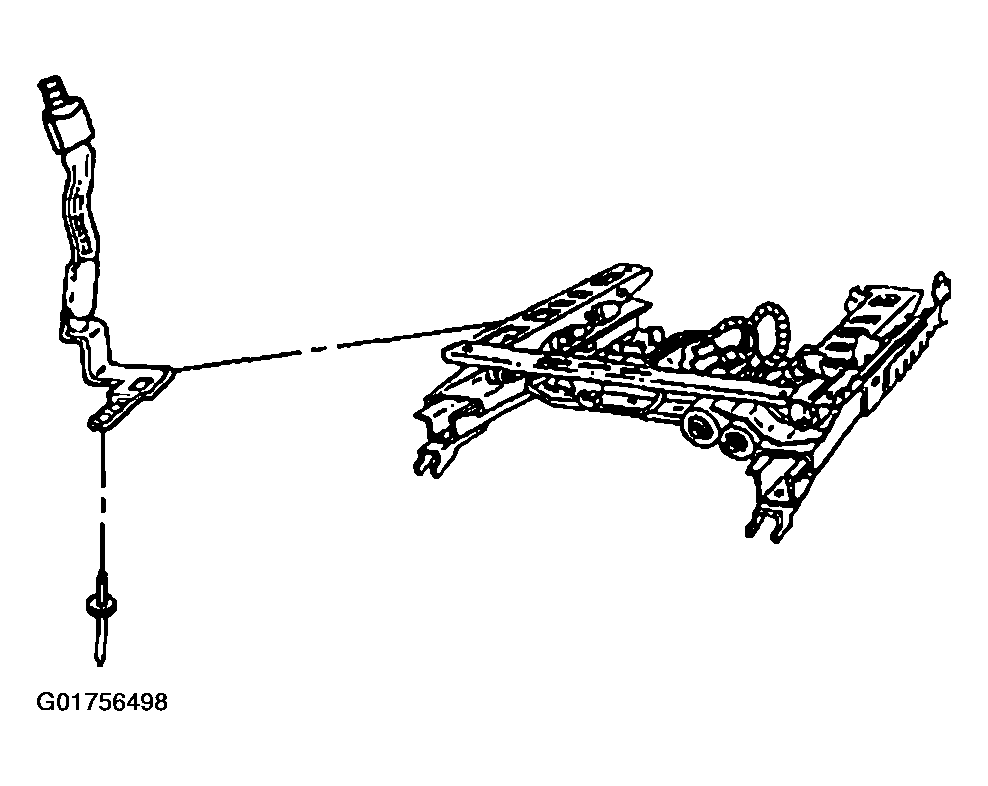

    Fig 1: Identifying Center Front Seat Belt
    G01756498Courtesy of GENERAL MOTORS CORP.

    Important:  The rivet is only used for installation alignment.

  2. Install the new rivet to secure the seat belt to the rear of the front seat track.
  3. Install the front seat. Refer to SEAT REPLACEMENT - SPLIT BENCH .
