Magnasteer Actuator Connector End View

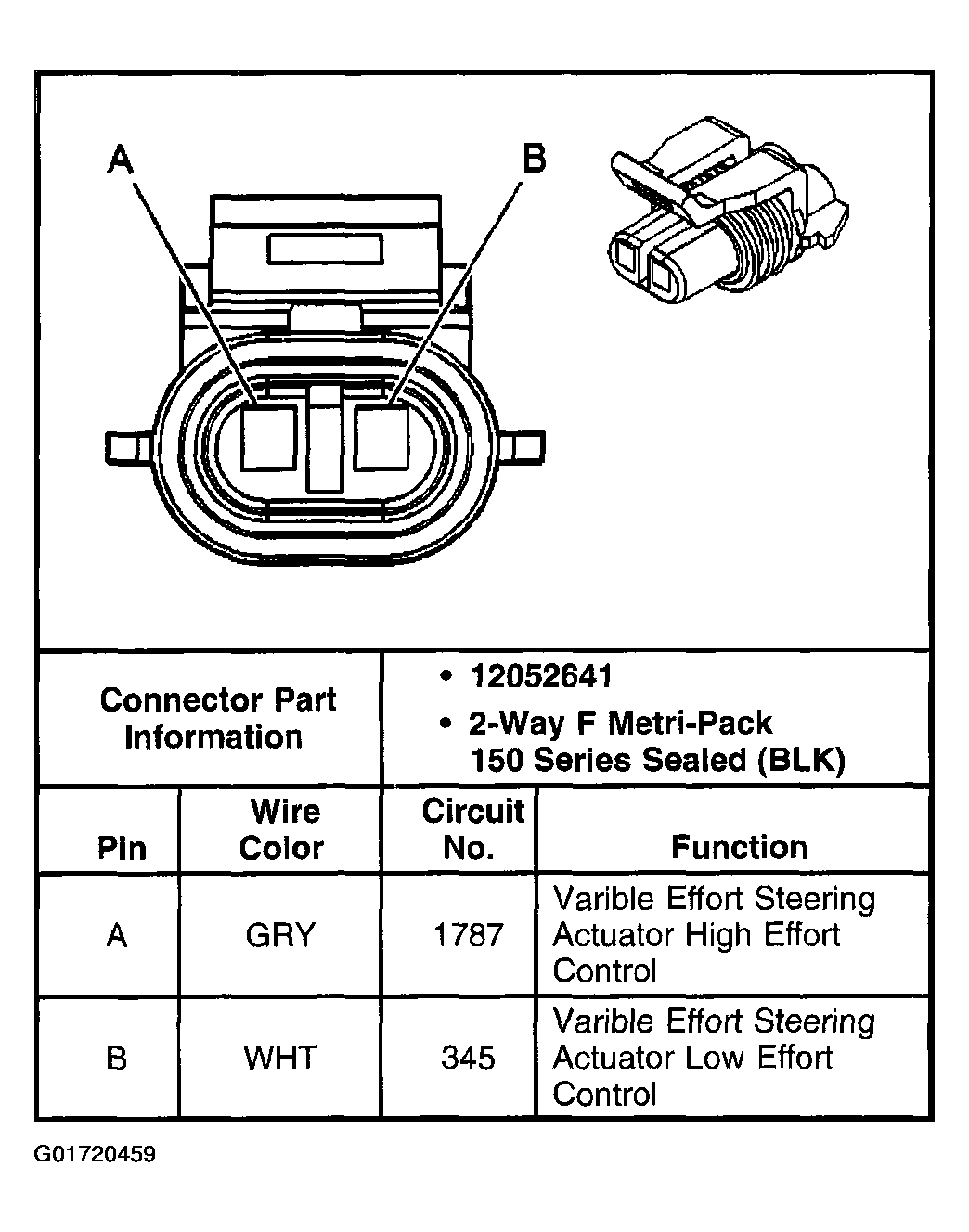

Fig 1: Magnasteer Actuator

G01720459

Courtesy of GENERAL MOTORS CORP.
