Engine Oil Level Sensor Connector End View

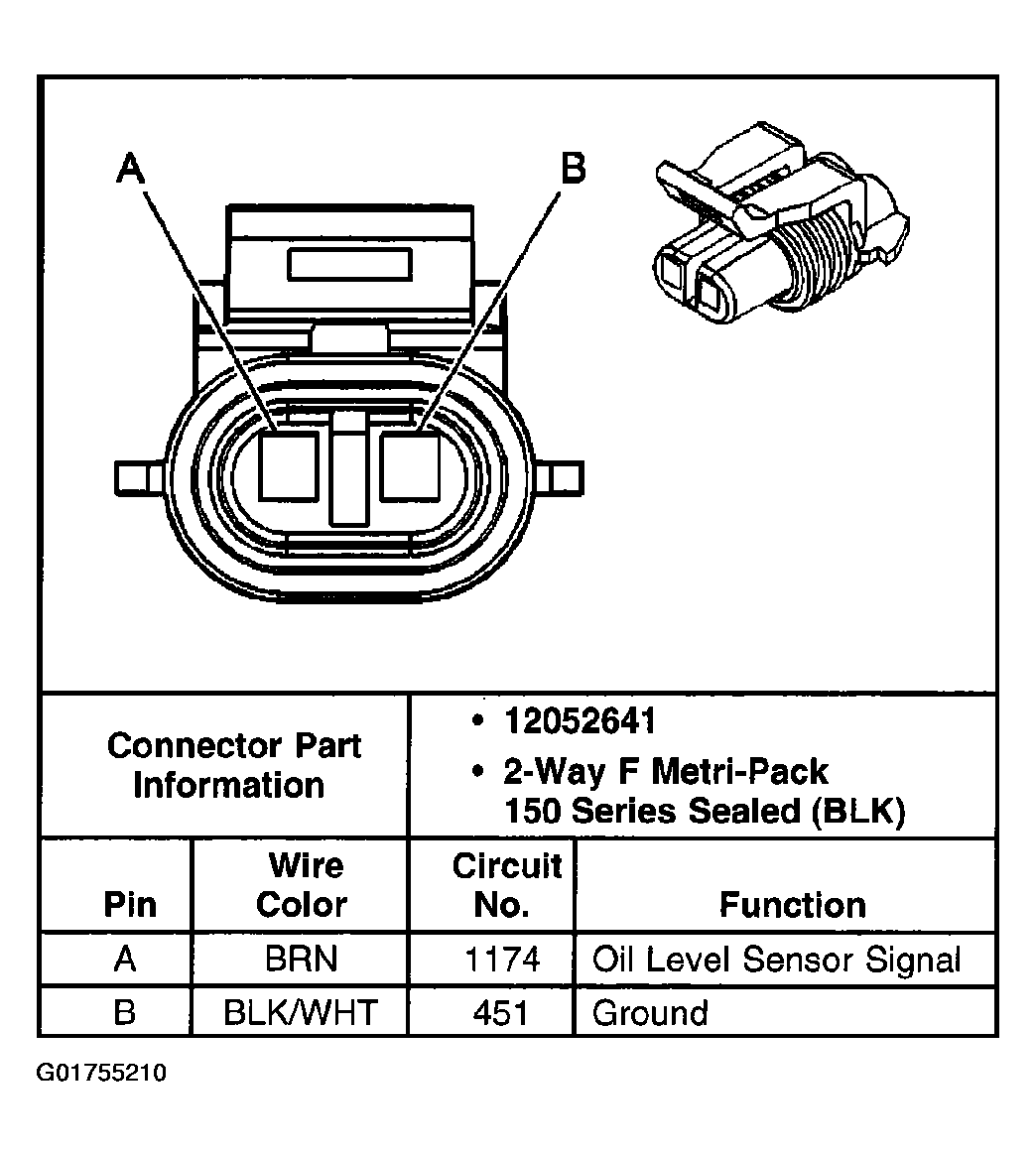

Fig 1: Engine Oil Level Sensor

G01755210

Courtesy of GENERAL MOTORS CORP.
