Scan Tool Data List

Fig 1: Memory Seat Module (MSM) Scan Tool Data List

G01798974

Courtesy of GENERAL MOTORS CORP.

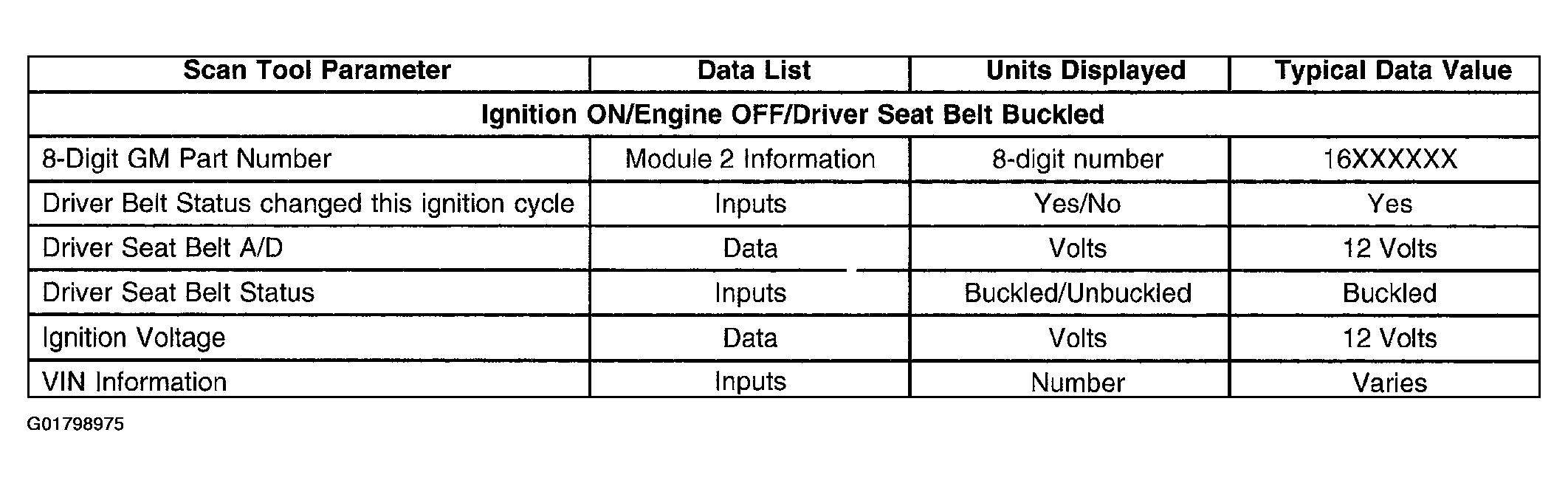

Fig 2: SIR Scan Tool Data List

G01798975

Courtesy of GENERAL MOTORS CORP.
