Stop Lamp/AT Shift Lock Control Switch C2 Connector End View

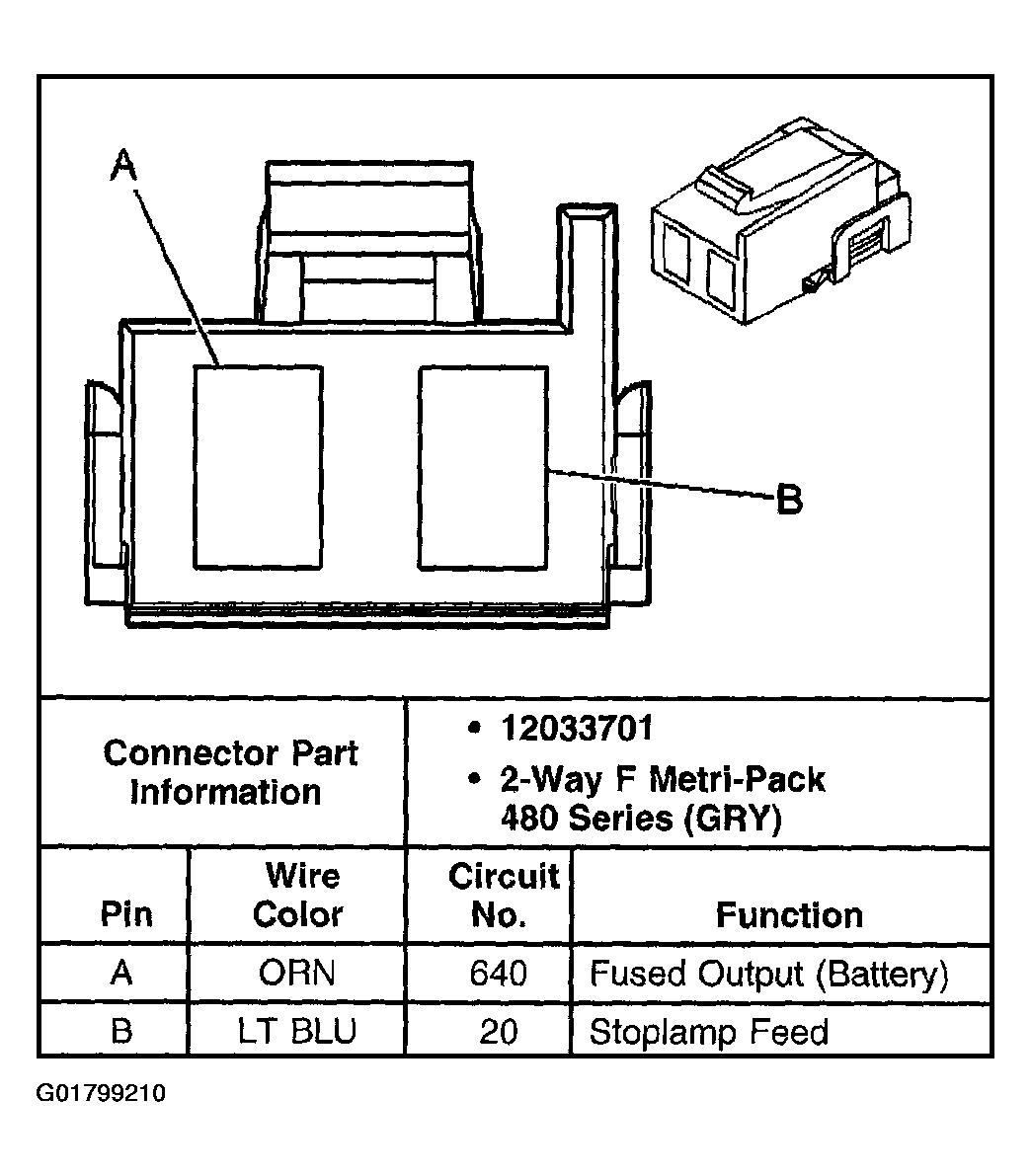

Fig 1: Stop Lamp/AT Shift Lock Control Switch C2 Connector End View

G01799210

Courtesy of GENERAL MOTORS CORP.
