Object Sensor - LR Middle Connector End View

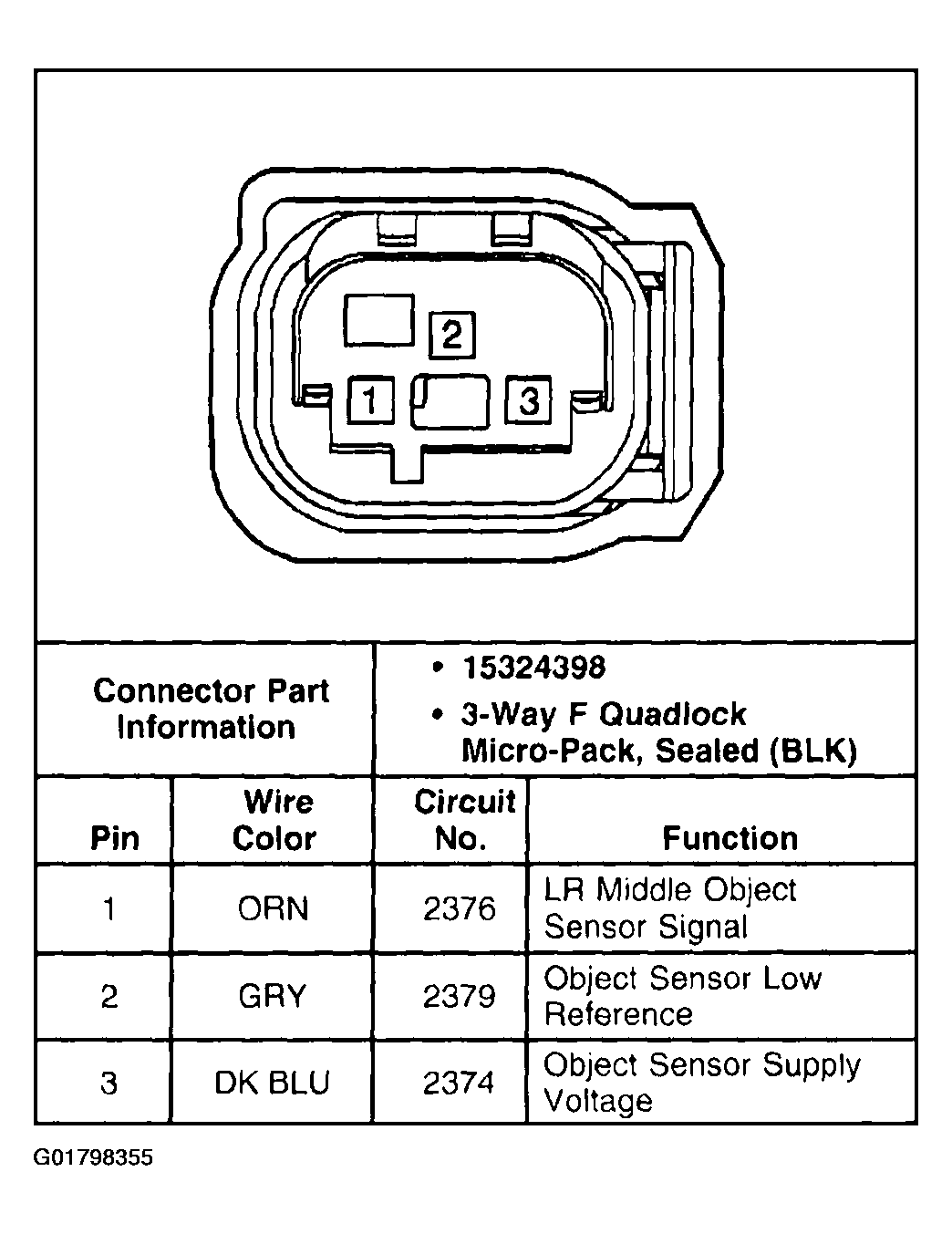

Fig 1: Object Sensor - LR Middle Connector End View

G01798355

Courtesy of GENERAL MOTORS CORP.
