Memory Seat Module (MSM) Connector End View C2

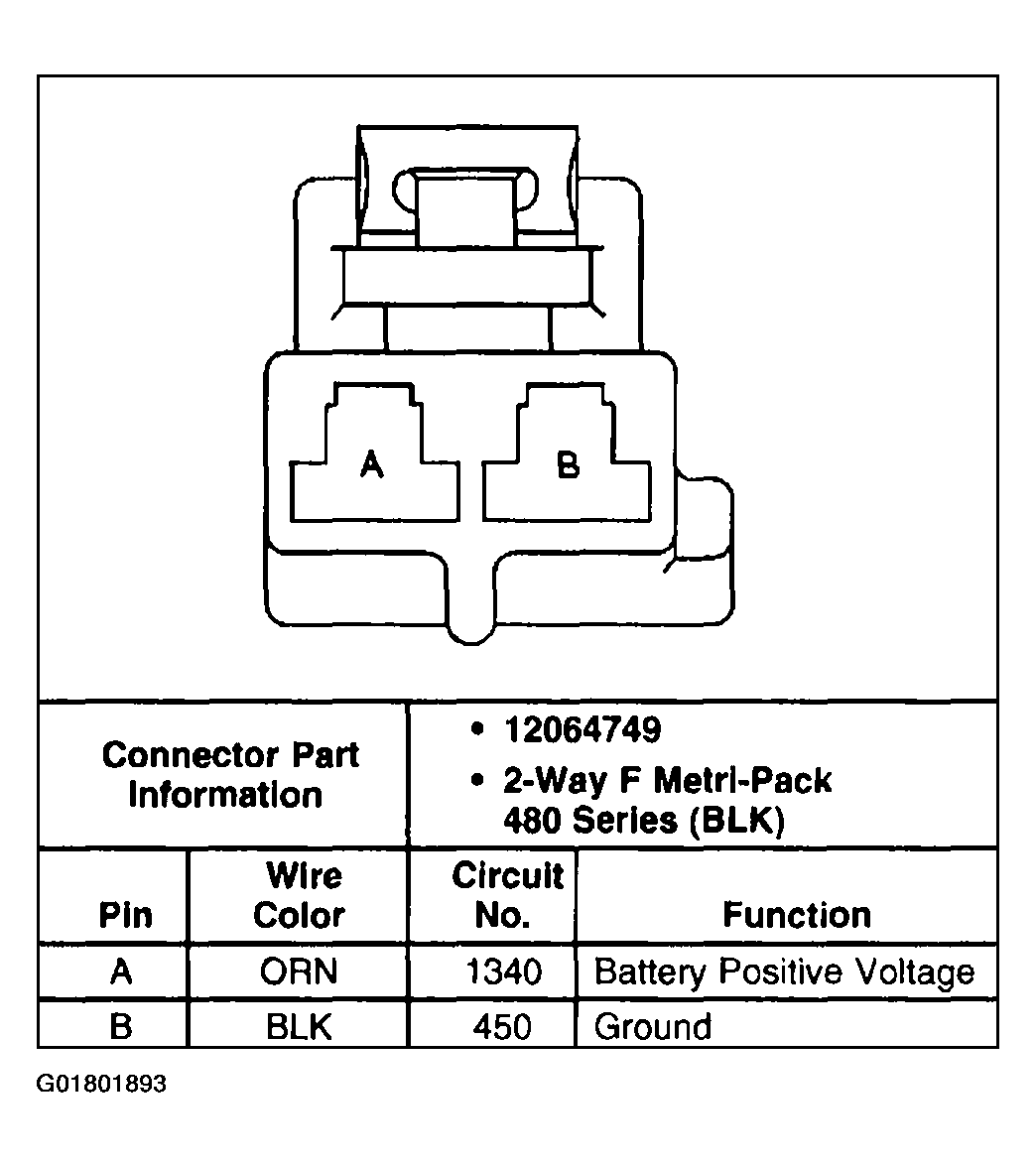

Fig 1: Memory Seat Module (MSM) Connector End View C2

G01801893

Courtesy of GENERAL MOTORS CORP.
