IPM Module Connector End View (C2)

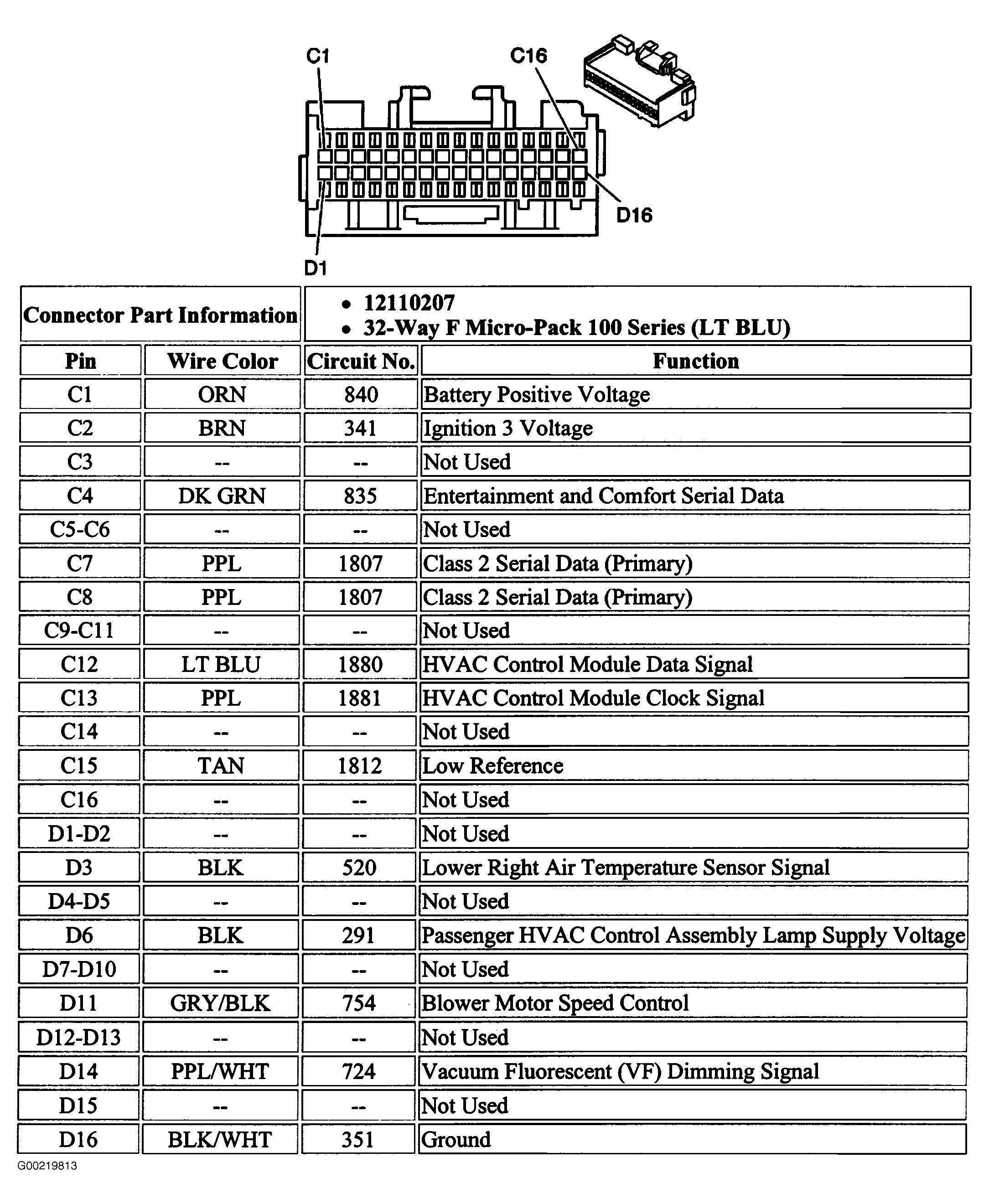

Fig 1: IPM Module Connector End View (C2)

G00219813

Courtesy of GENERAL MOTORS CORP.
