I/P Dimming Module Connector End View

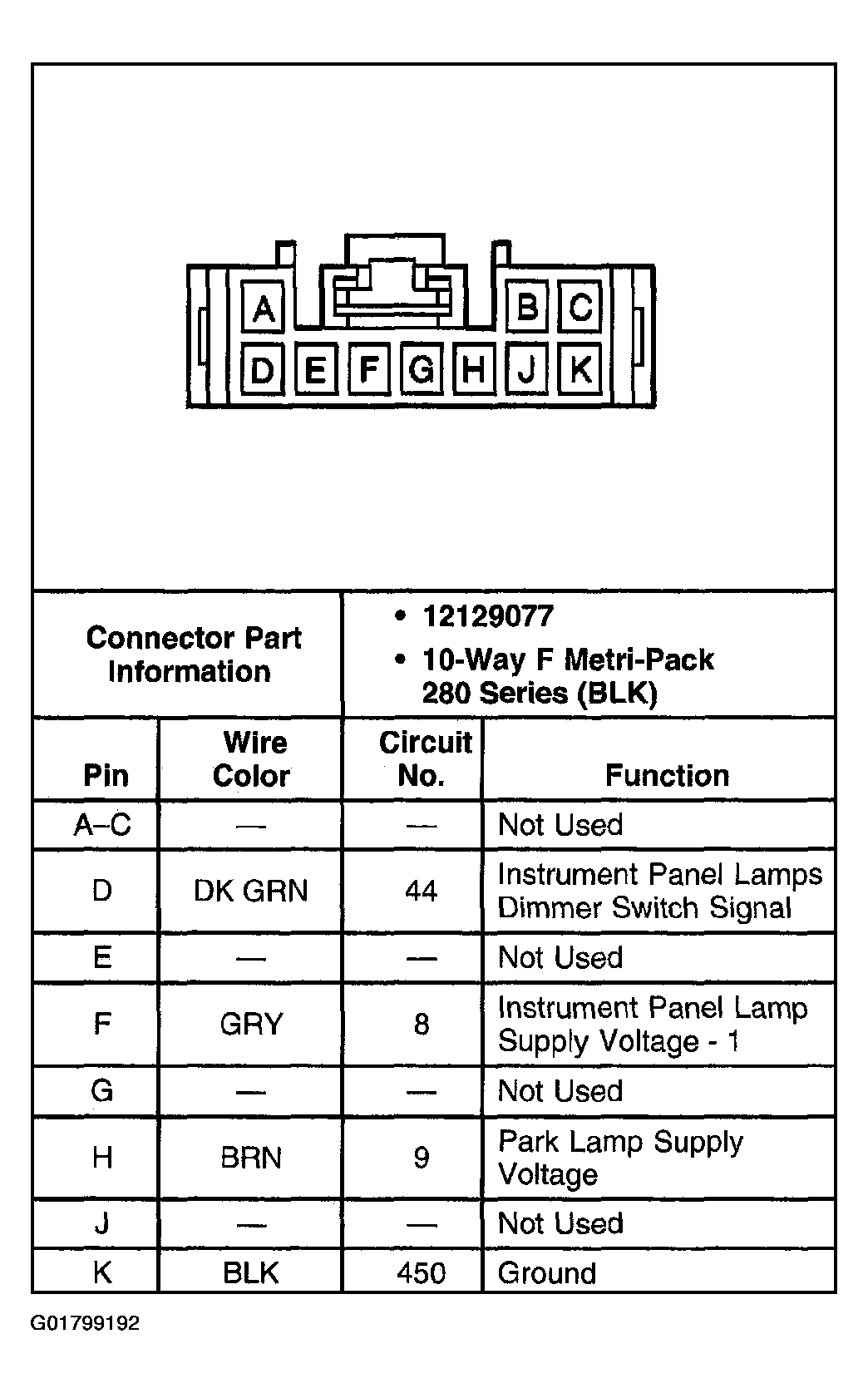

Fig 1: I/P Dimming Module Connector End View

G01799192

Courtesy of GENERAL MOTORS CORP.
