Home >> Buick >> 2002 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Suspension >> Electronic Suspension System - Automatic Level Control >> Diagnostic Information & Procedures >> Automatic Level Control System Leak Test

Automatic Level Control System Leak Test

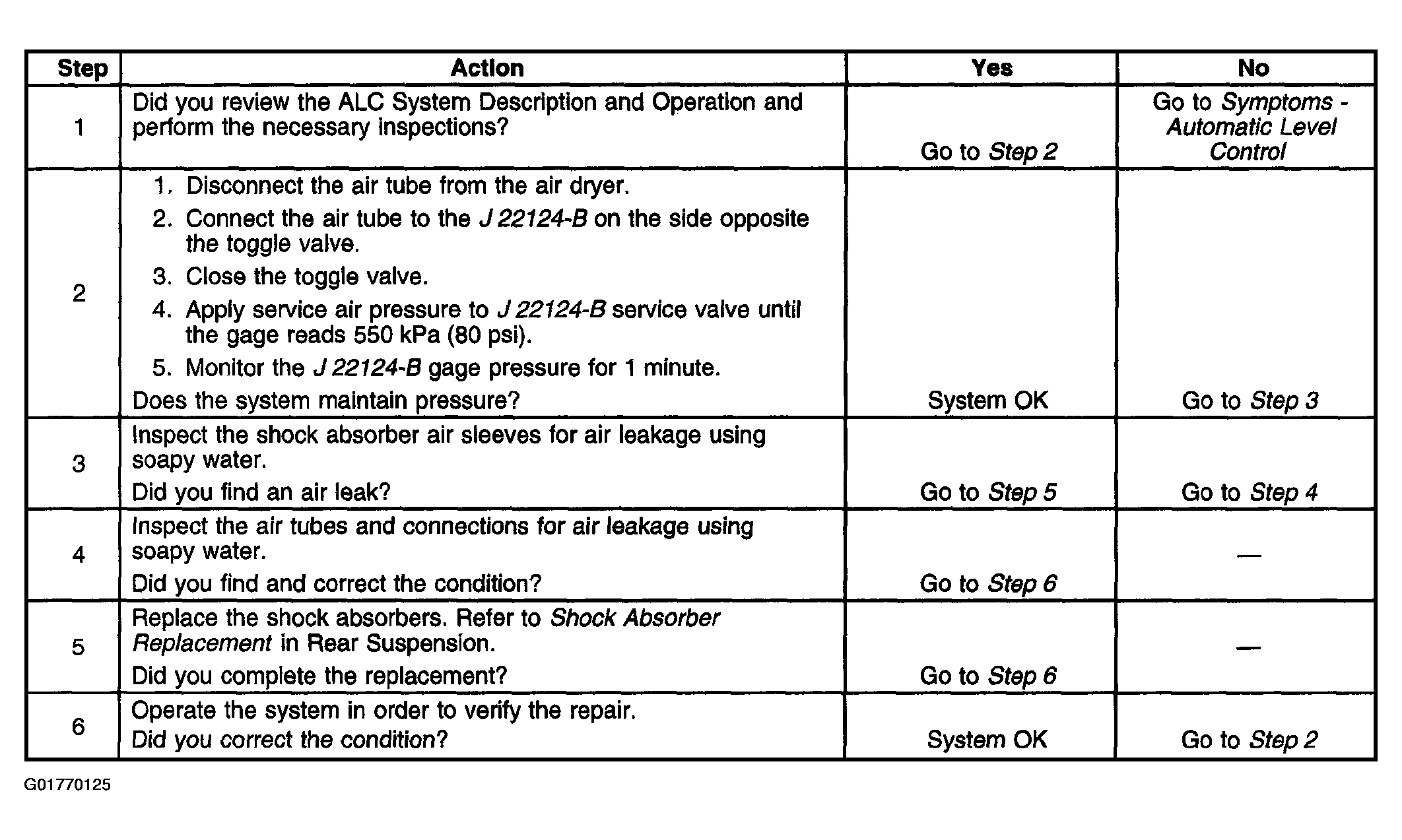

Fig 1: Automatic Level Control System Leak Test

G01770125

Courtesy of GENERAL MOTORS CORP.
