Installation Procedure

  1. Install the lap retractor over the stud. Align the tab on the retractor with the notch in the seat frame.
  2. Install the lap retractor fastener.

    Tighten:

    Tighten the fastener to 35 N.m (26 ft lbs)

  3. Install the lap belt retractor cover.
    Fig 1: Retractor Cover
    G01744121Courtesy of GENERAL MOTORS CORP.
  4. Install the shoulder belt retractor.
  5. Install the shoulder belt retractor fastener.

    Tighten:

    Tighten the fasteners to 35 N.m (26 ft lbs)

  6. Install the tower front trim cover fasteners (1).

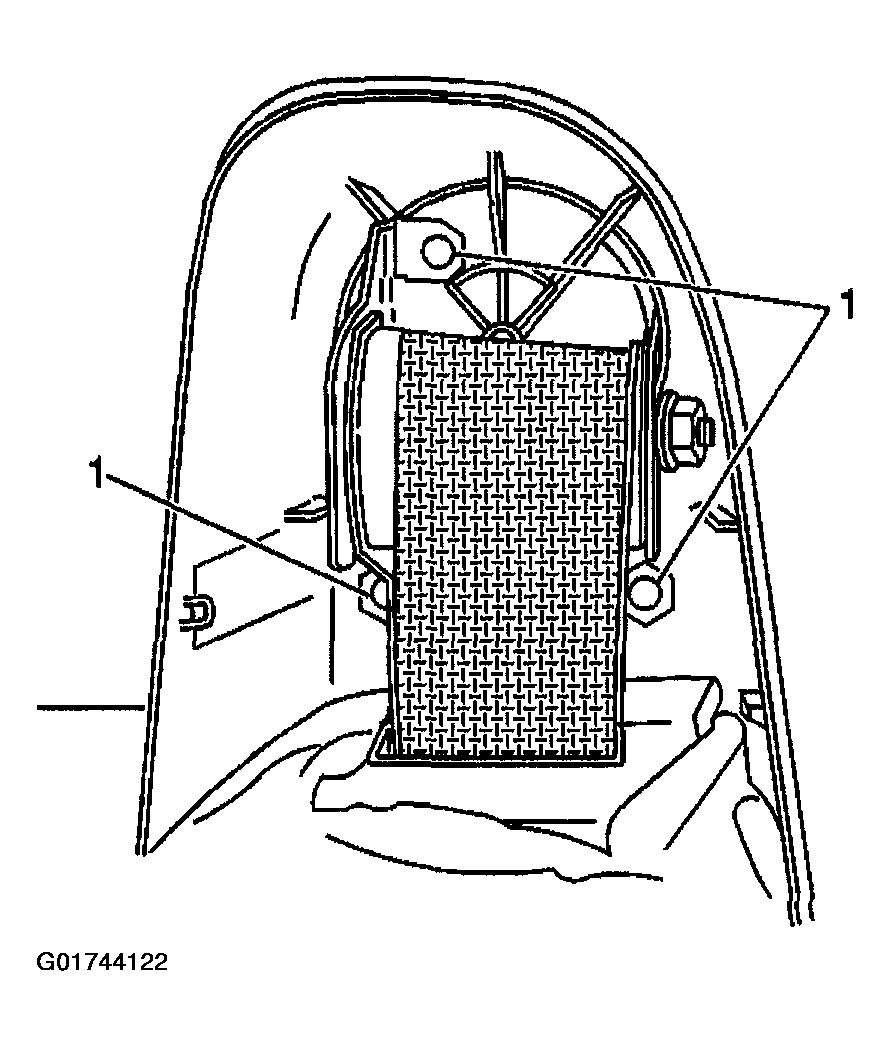

    Fig 2: Front Trim Cover Fasteners
    G01744122Courtesy of GENERAL MOTORS CORP.
  7. Install the seat back cover. Refer to SEAT BACK COVER REPLACEMENT in SEATS .
  8. Install the seat belt tower rear cover.

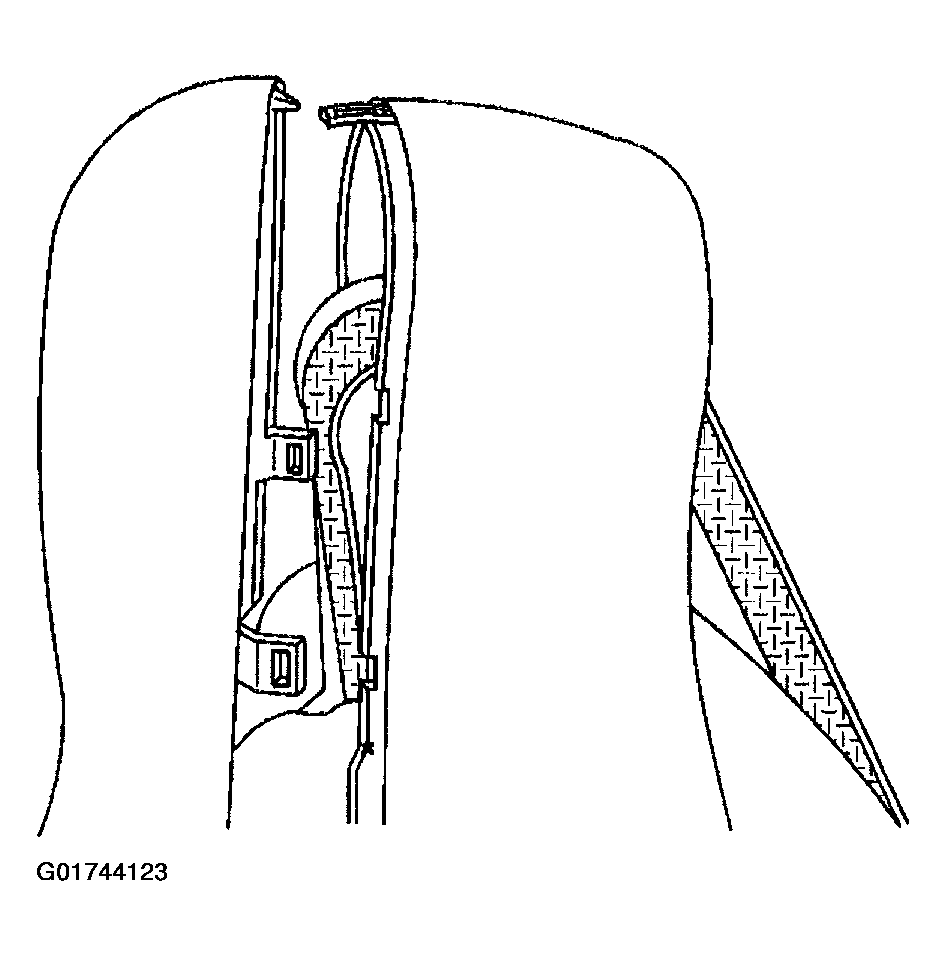

    Fig 3: Seat Belt Tower Rear Cover
    G01744123Courtesy of GENERAL MOTORS CORP.
