Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

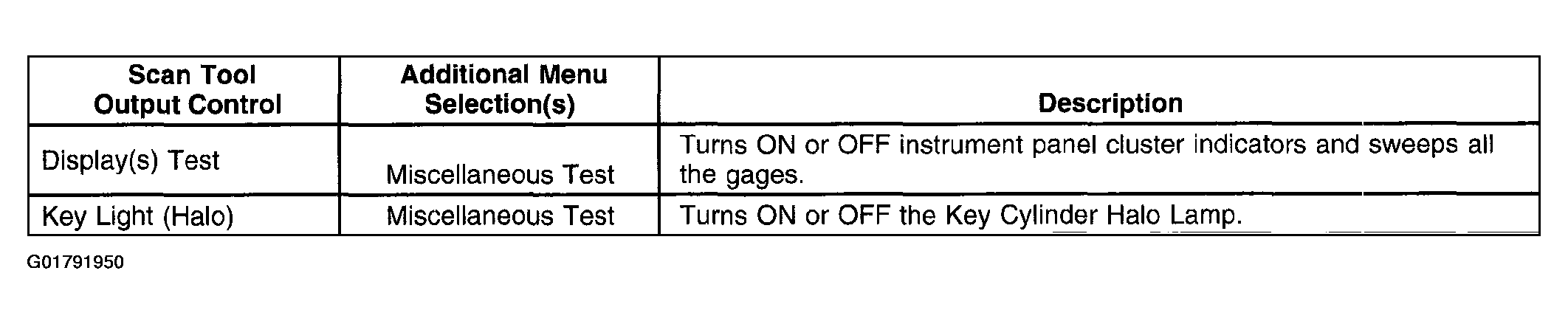

Fig 1: Identifying Climate Control Panel (CCP)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

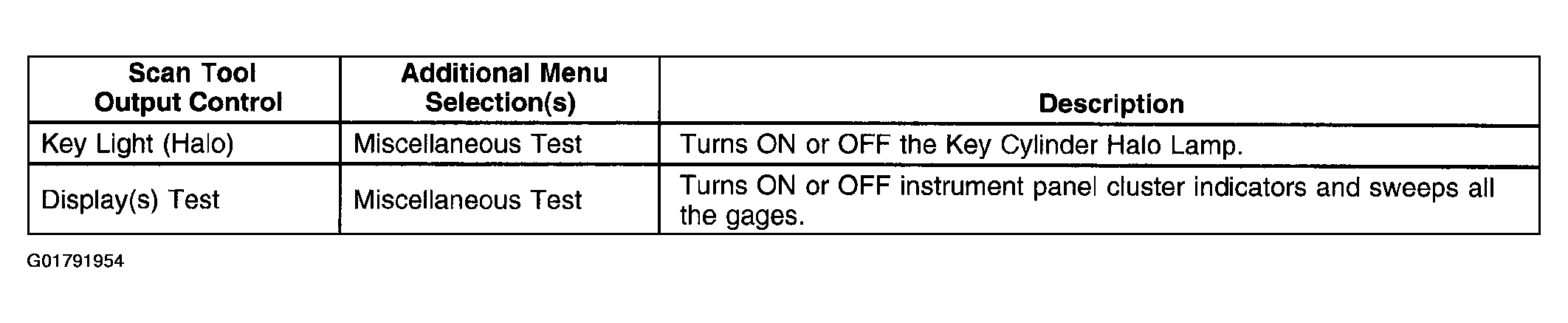

Fig 3: Identifying Head Up Display (HUD) Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

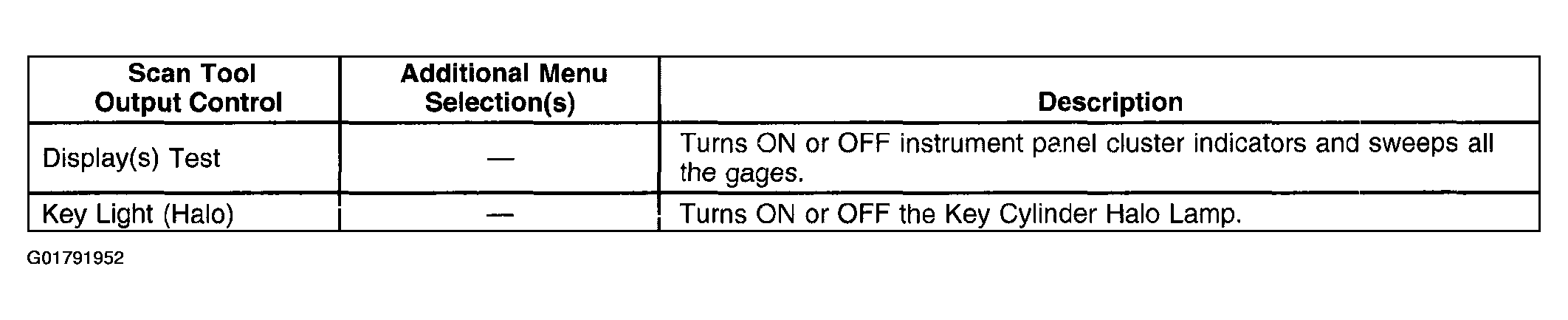

Fig 4: Identifying Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

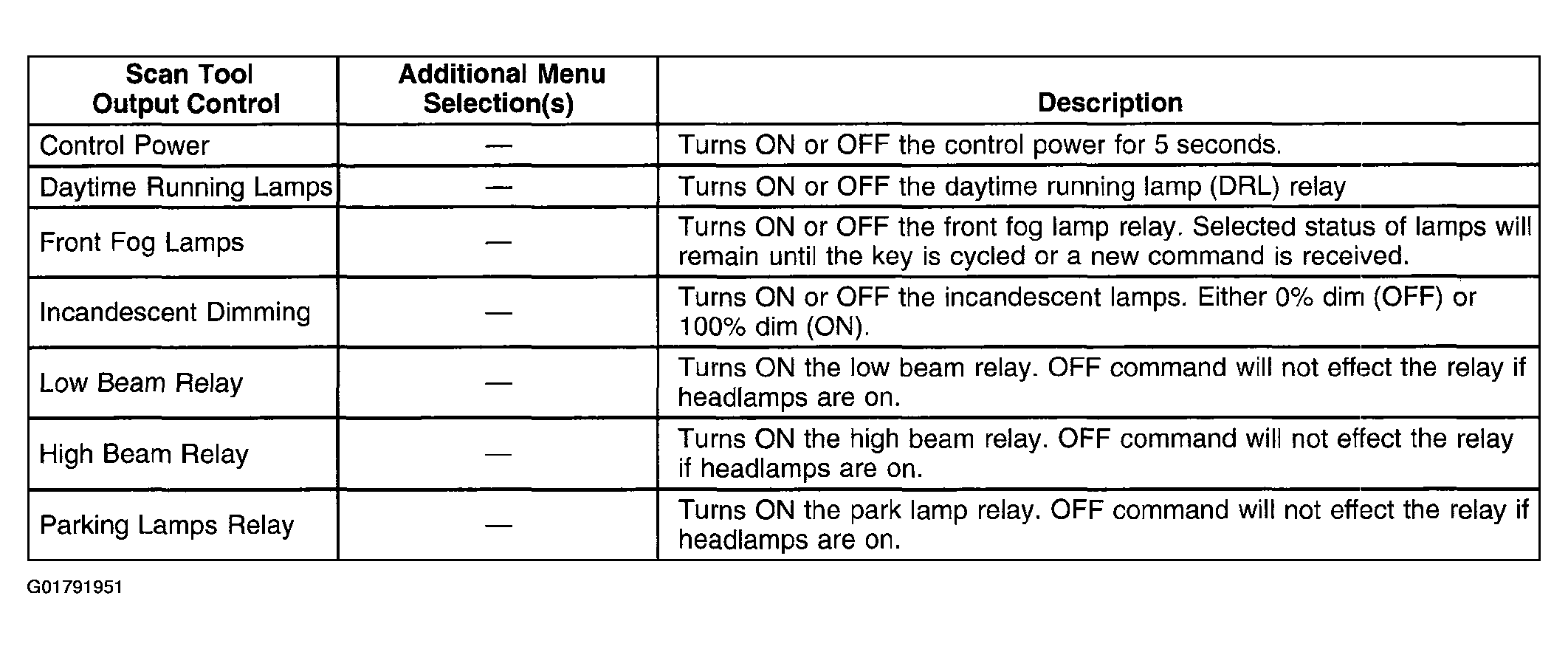

Fig 5: Instrument Panel Module (IPM)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.
