Section 54 (Lighting Systems)
>>
Component Locator
>>
Lighting Systems Connector End Views
Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

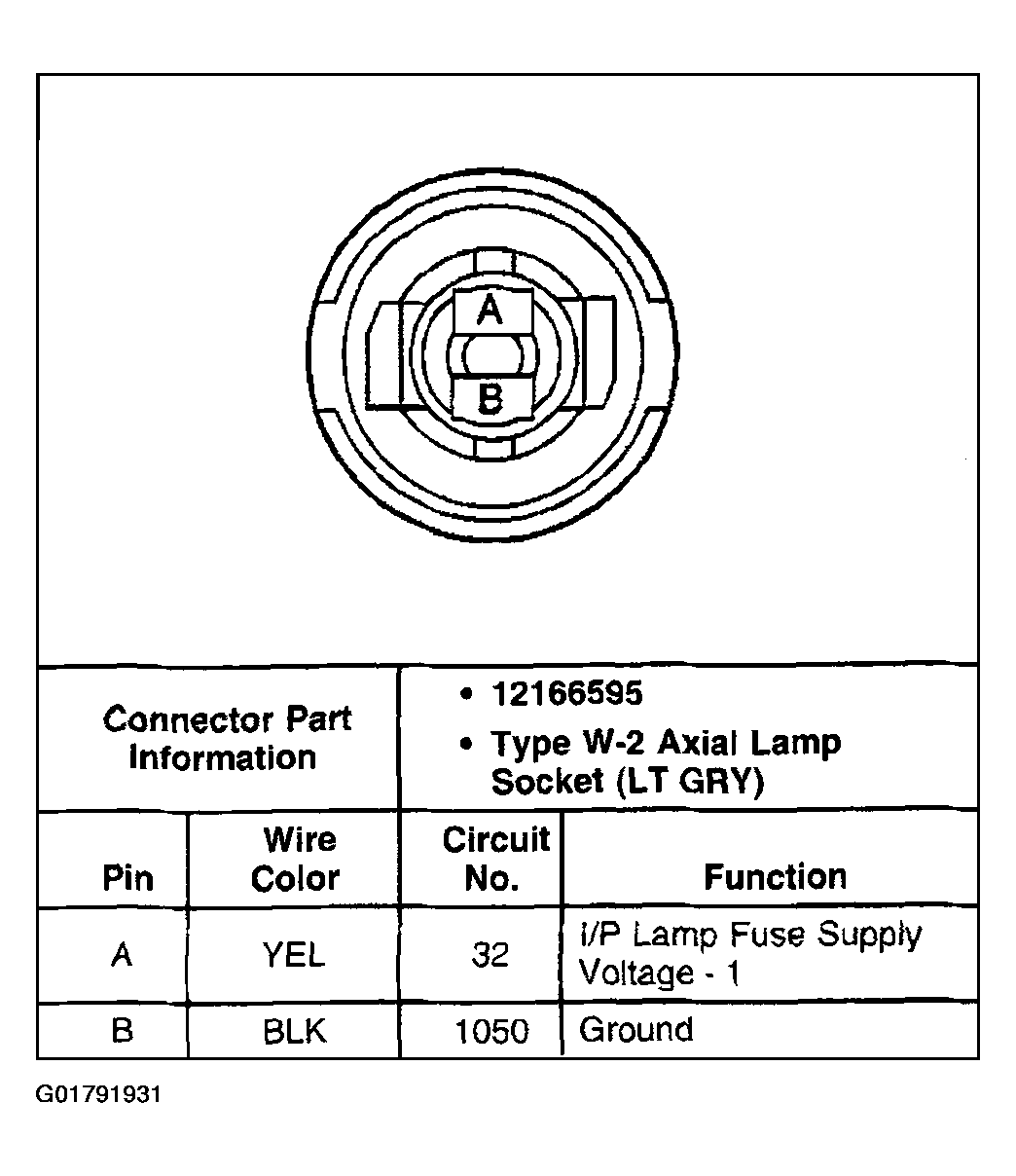

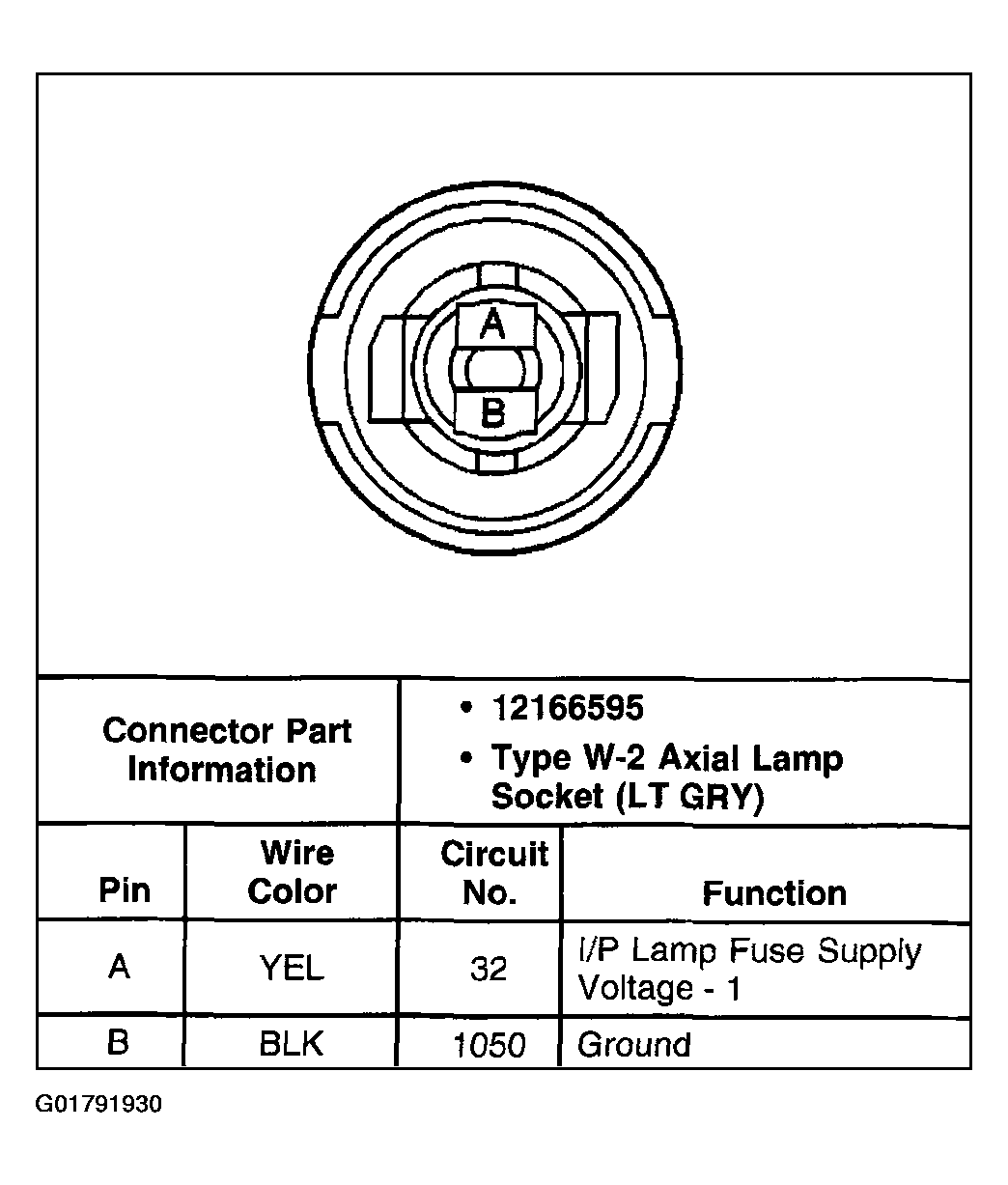

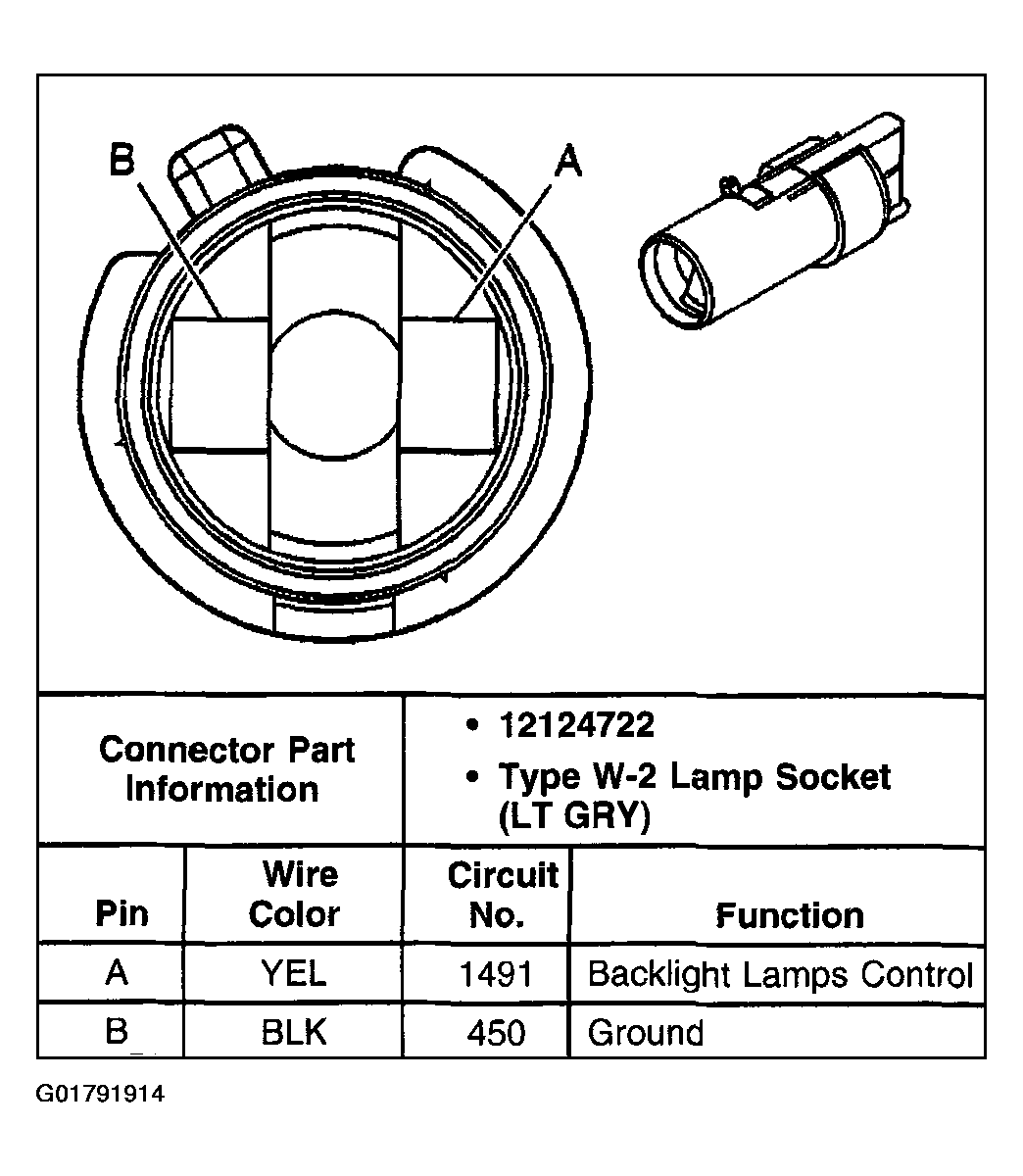

Fig 1: Ashtray Lamp
Courtesy of GENERAL MOTORS CORP.

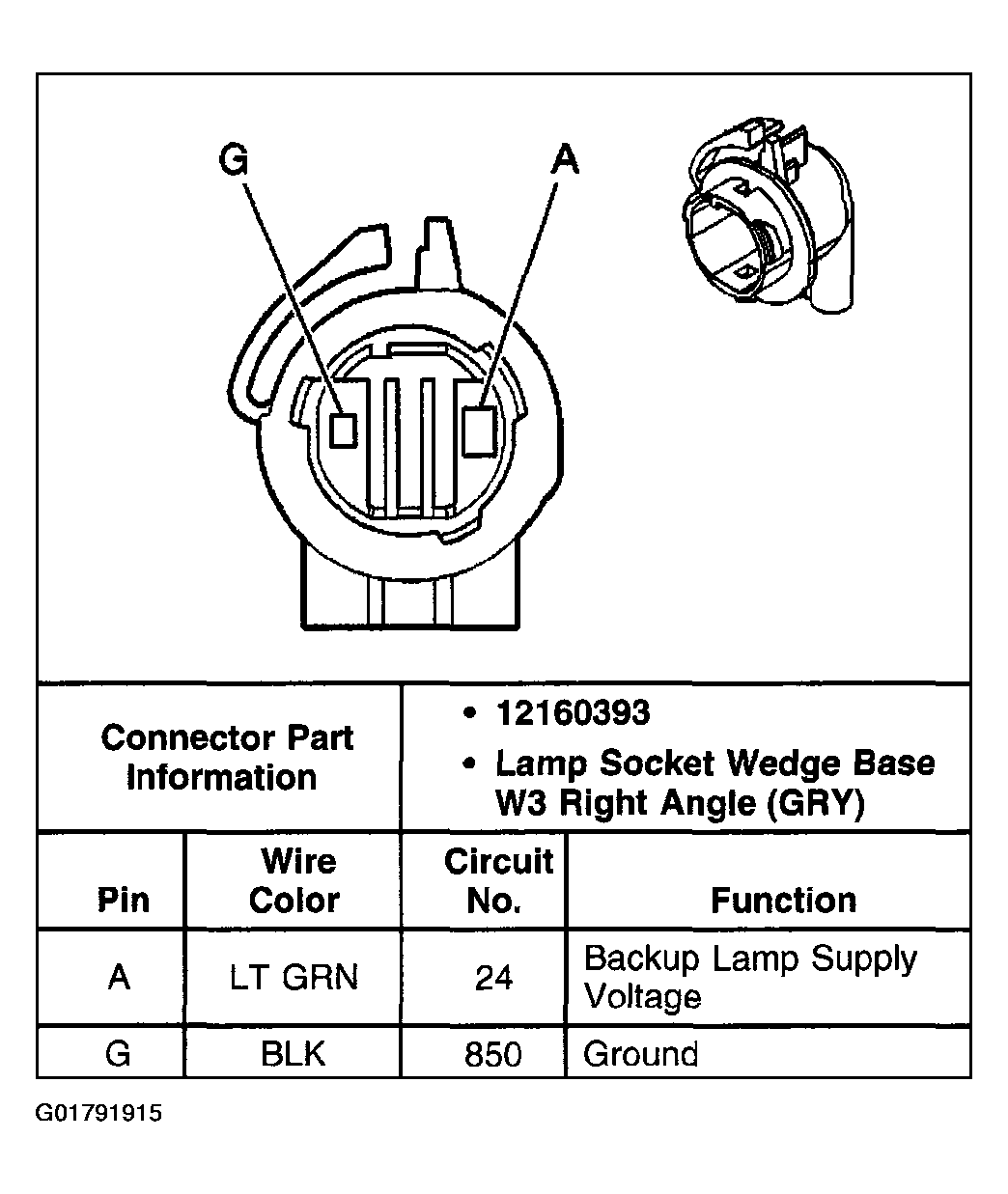

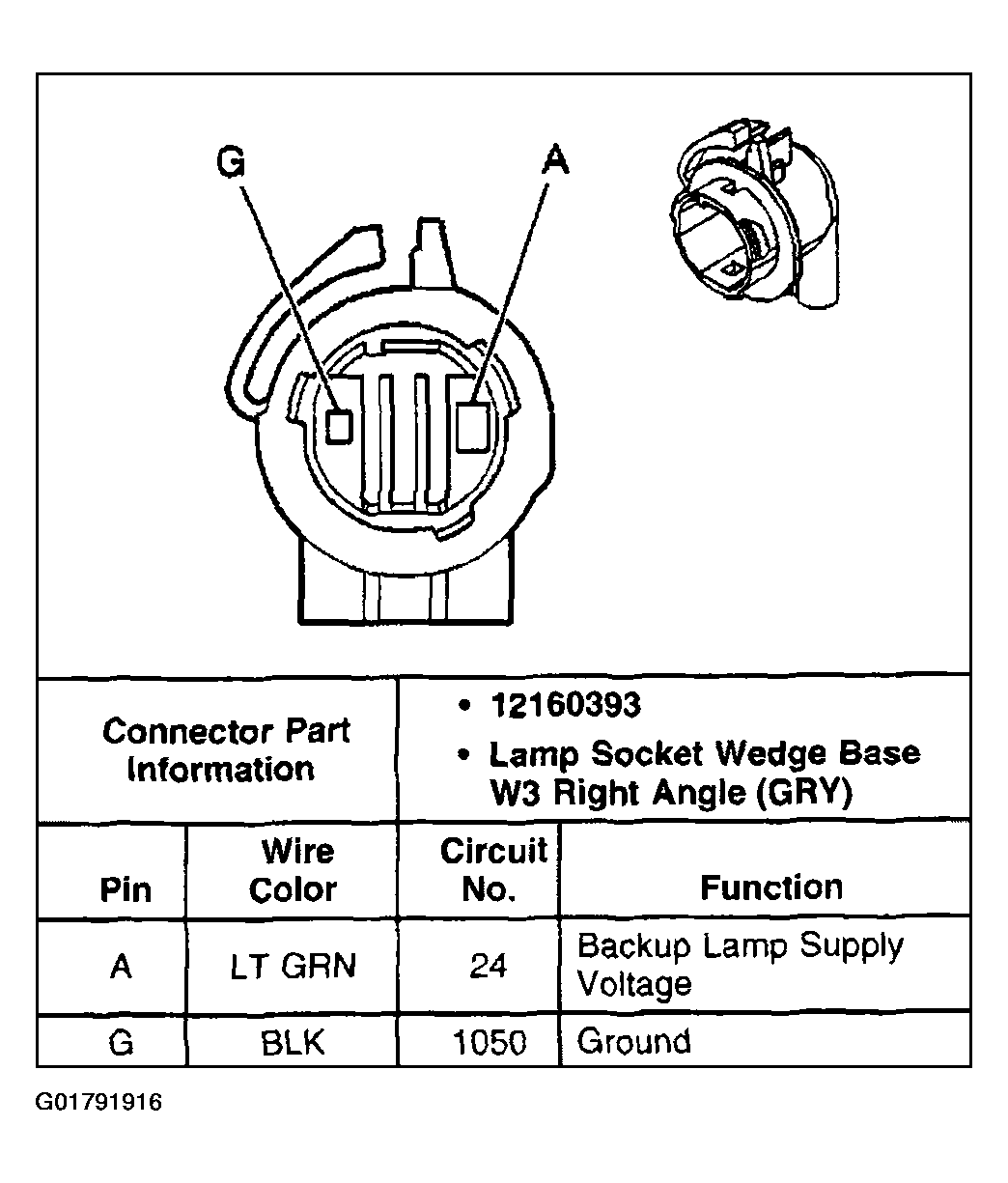

Fig 2: Backup Lamp - Left
Courtesy of GENERAL MOTORS CORP.
Fig 3: Backup Lamp - Right
Courtesy of GENERAL MOTORS CORP.
Fig 4: Center High Mounted Stop Lamp (CHMSL)
Courtesy of GENERAL MOTORS CORP.

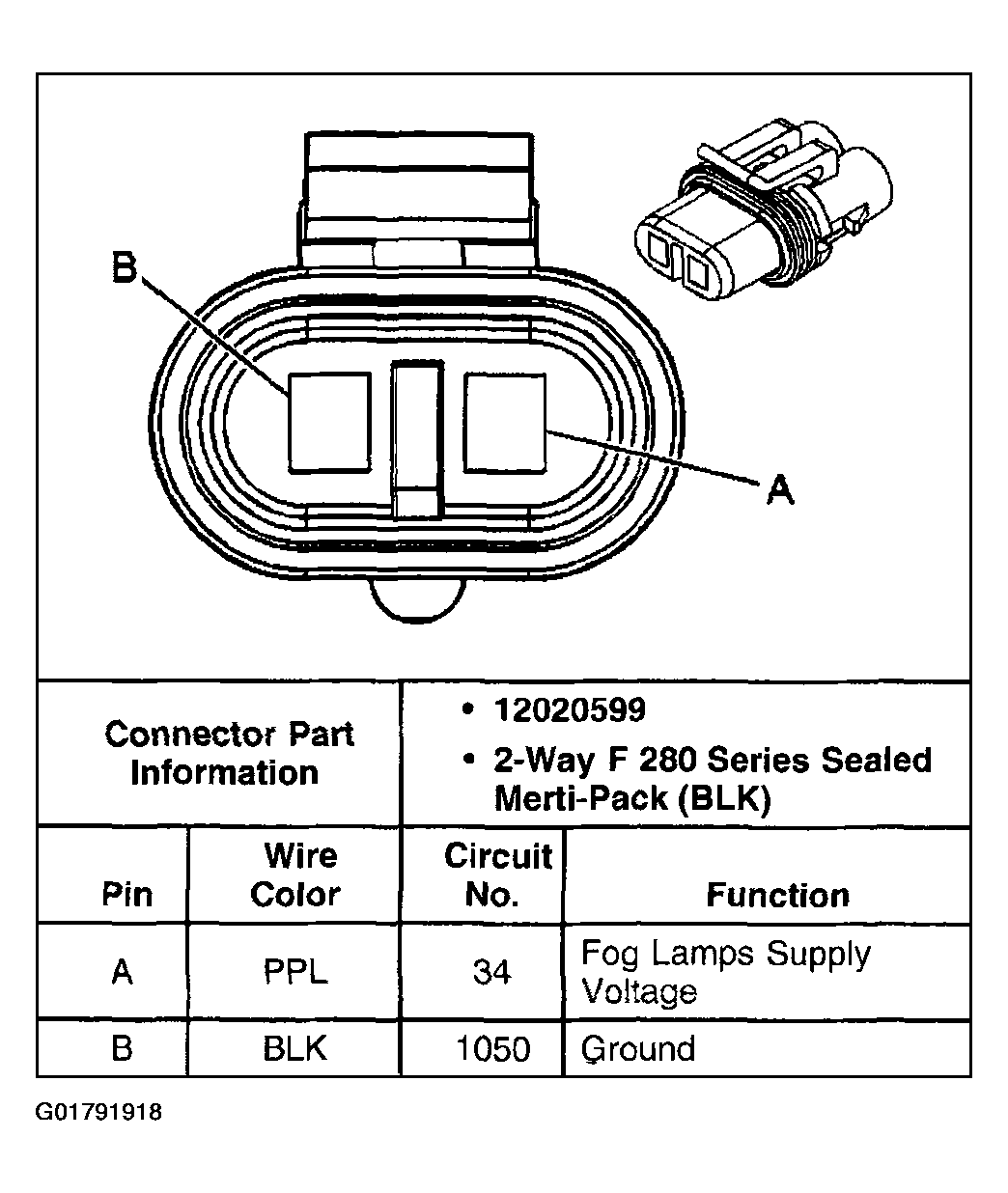

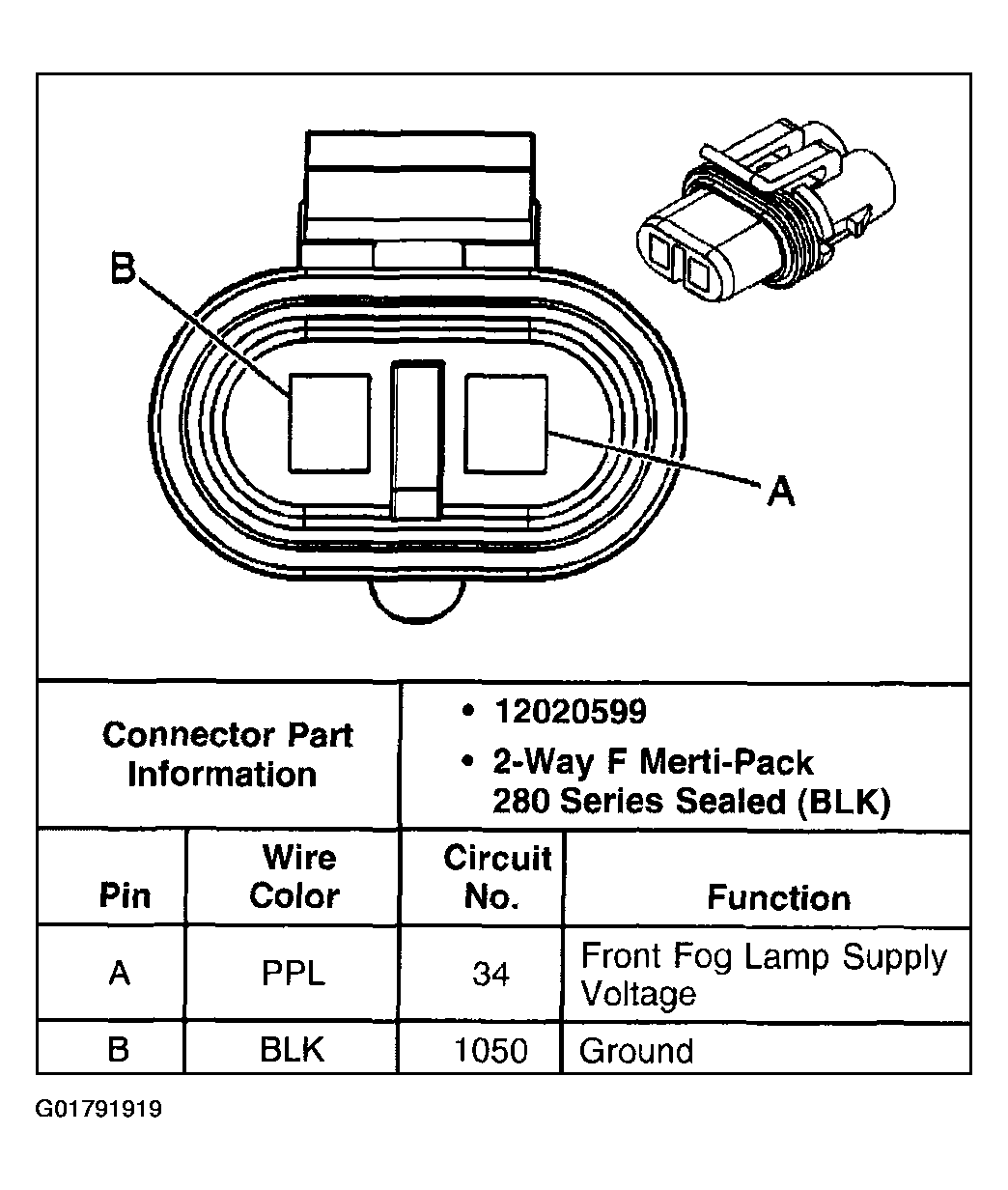

Fig 5: Fog Lamp - Left
Courtesy of GENERAL MOTORS CORP.
Fig 6: Fog Lamp - Right
Courtesy of GENERAL MOTORS CORP.
Fig 7: Fog Lamp Switch

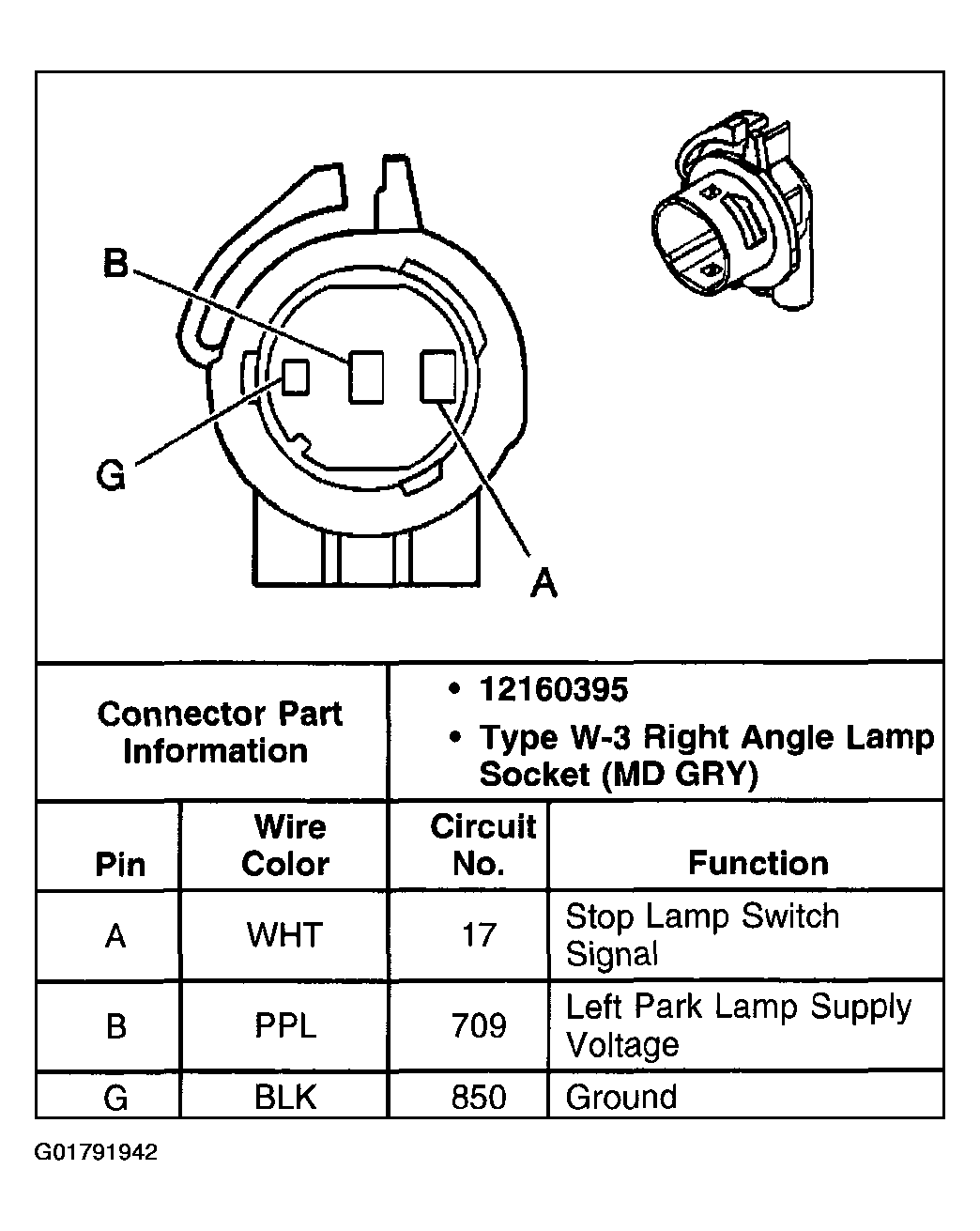

Courtesy of GENERAL MOTORS CORP.

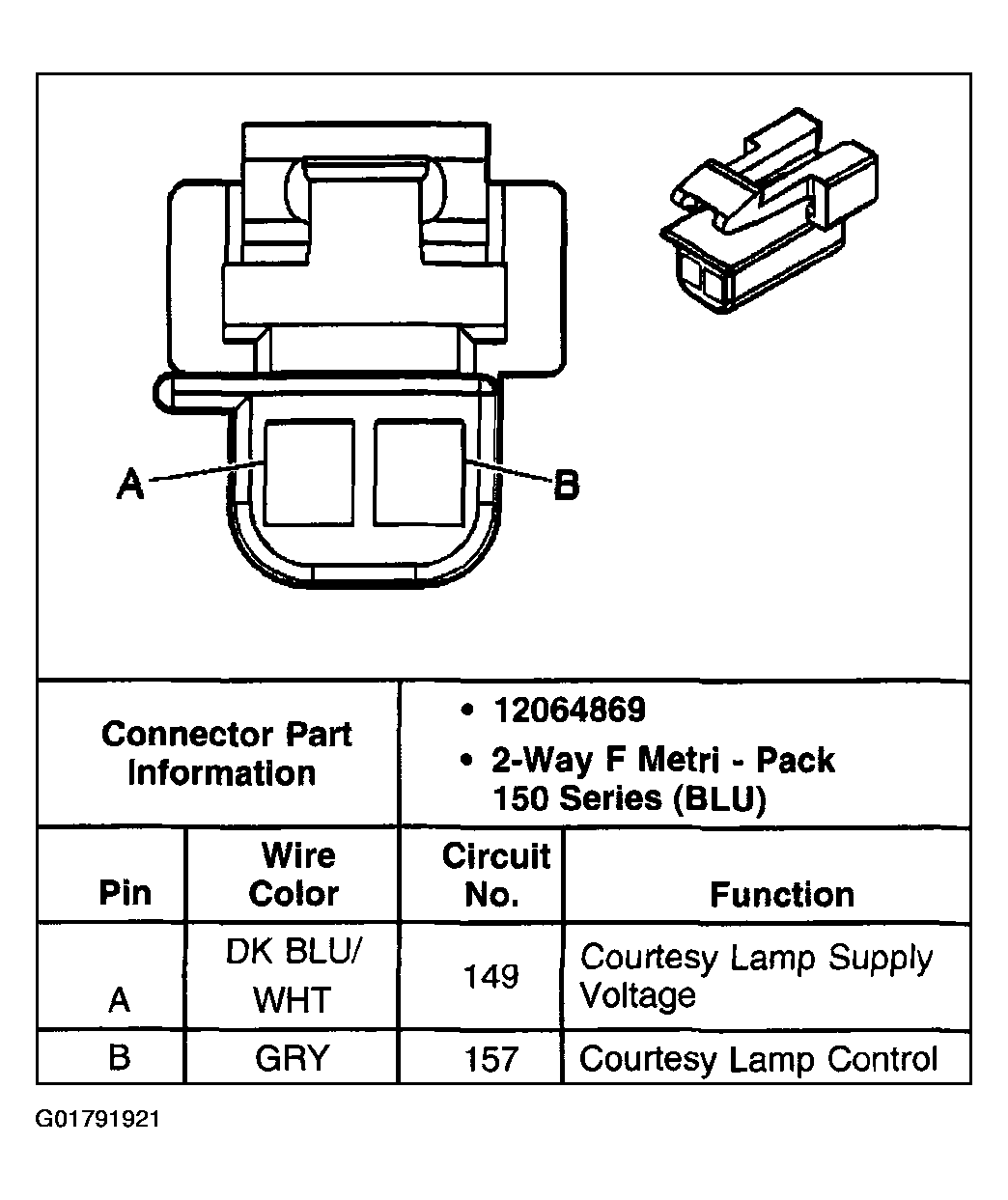

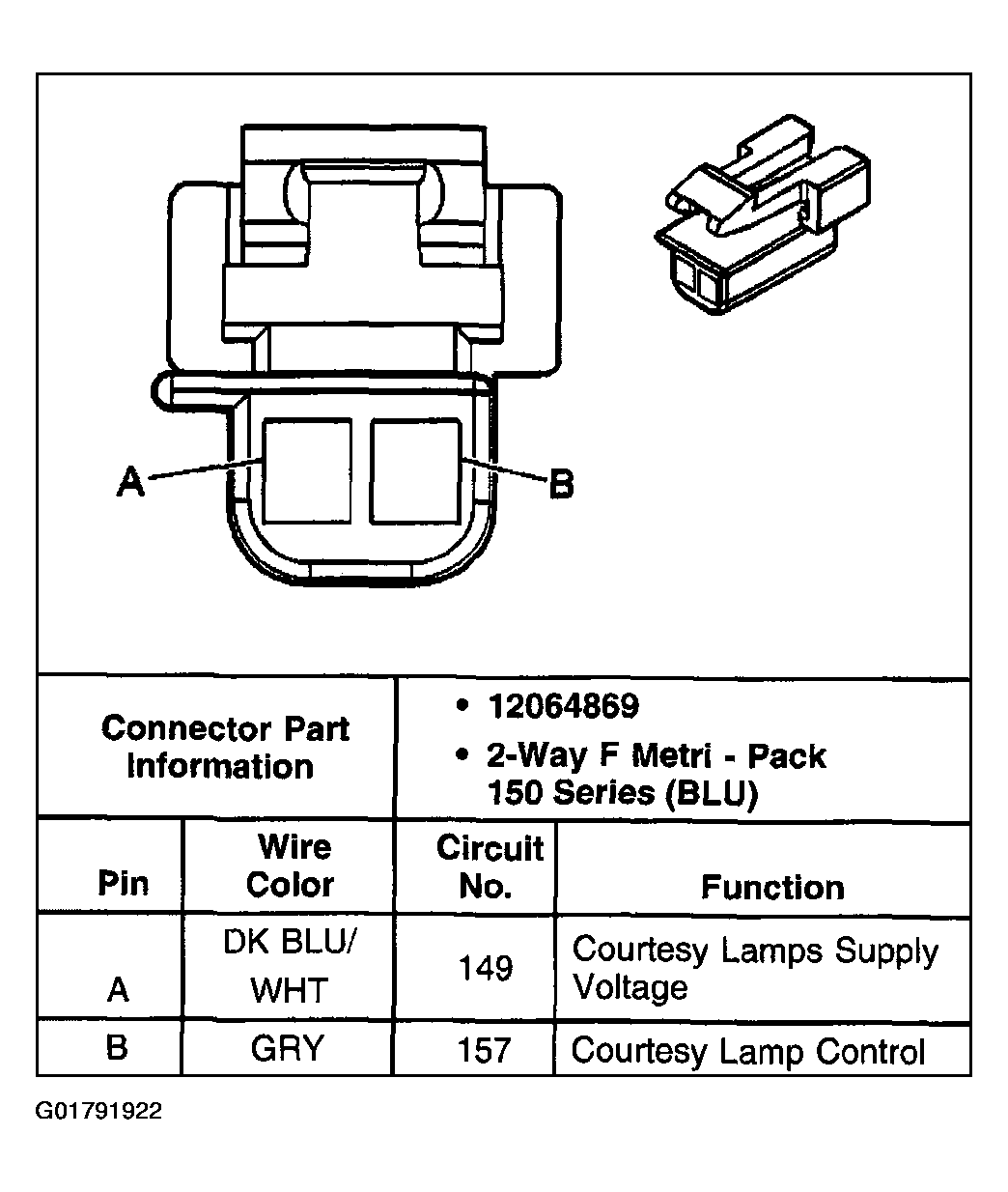

Fig 8: Footwell Courtesy Lamp - Left
Courtesy of GENERAL MOTORS CORP.
Fig 9: Footwell Courtesy Lamp - Right
Courtesy of GENERAL MOTORS CORP.

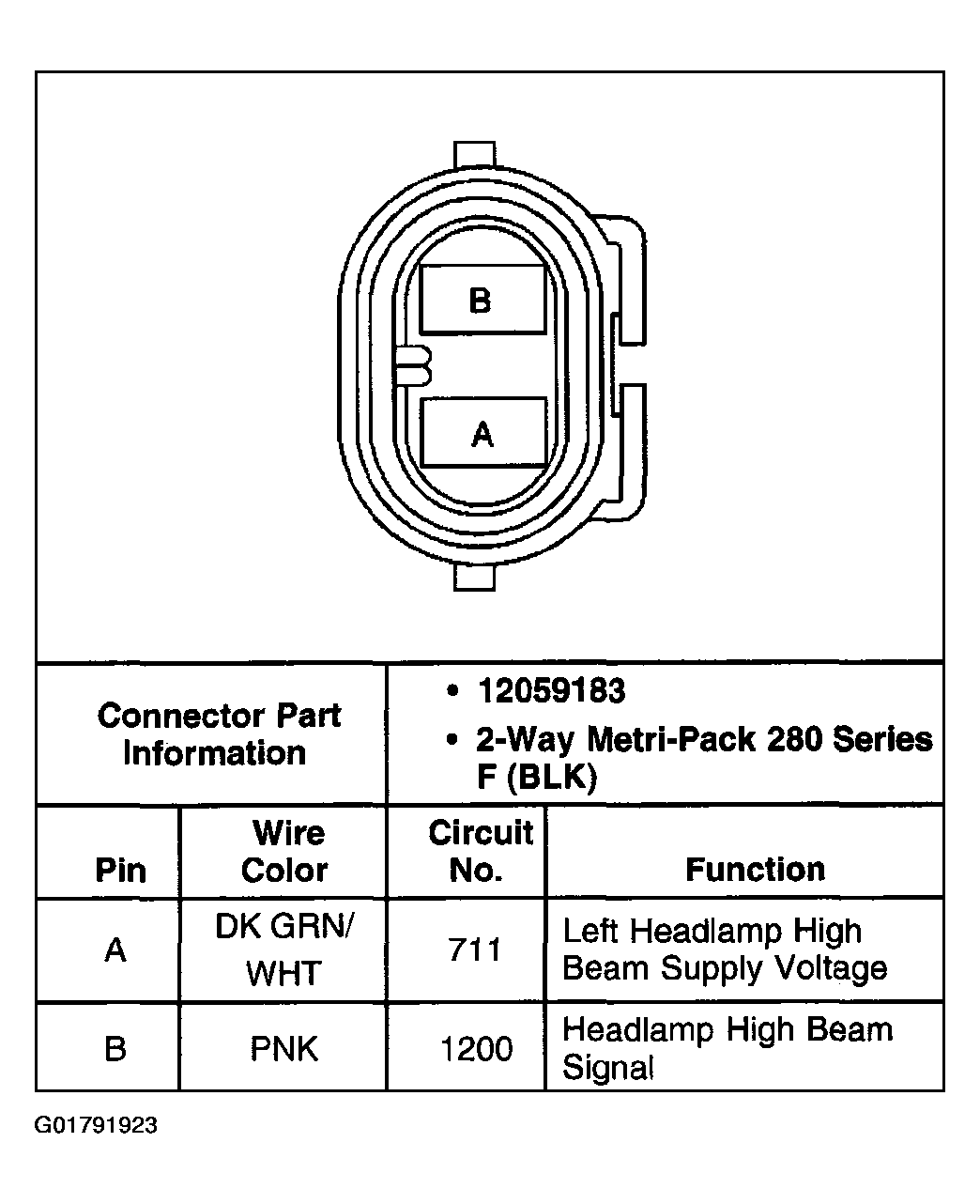

Fig 10: Headlamp - High Beam, Left
Courtesy of GENERAL MOTORS CORP.

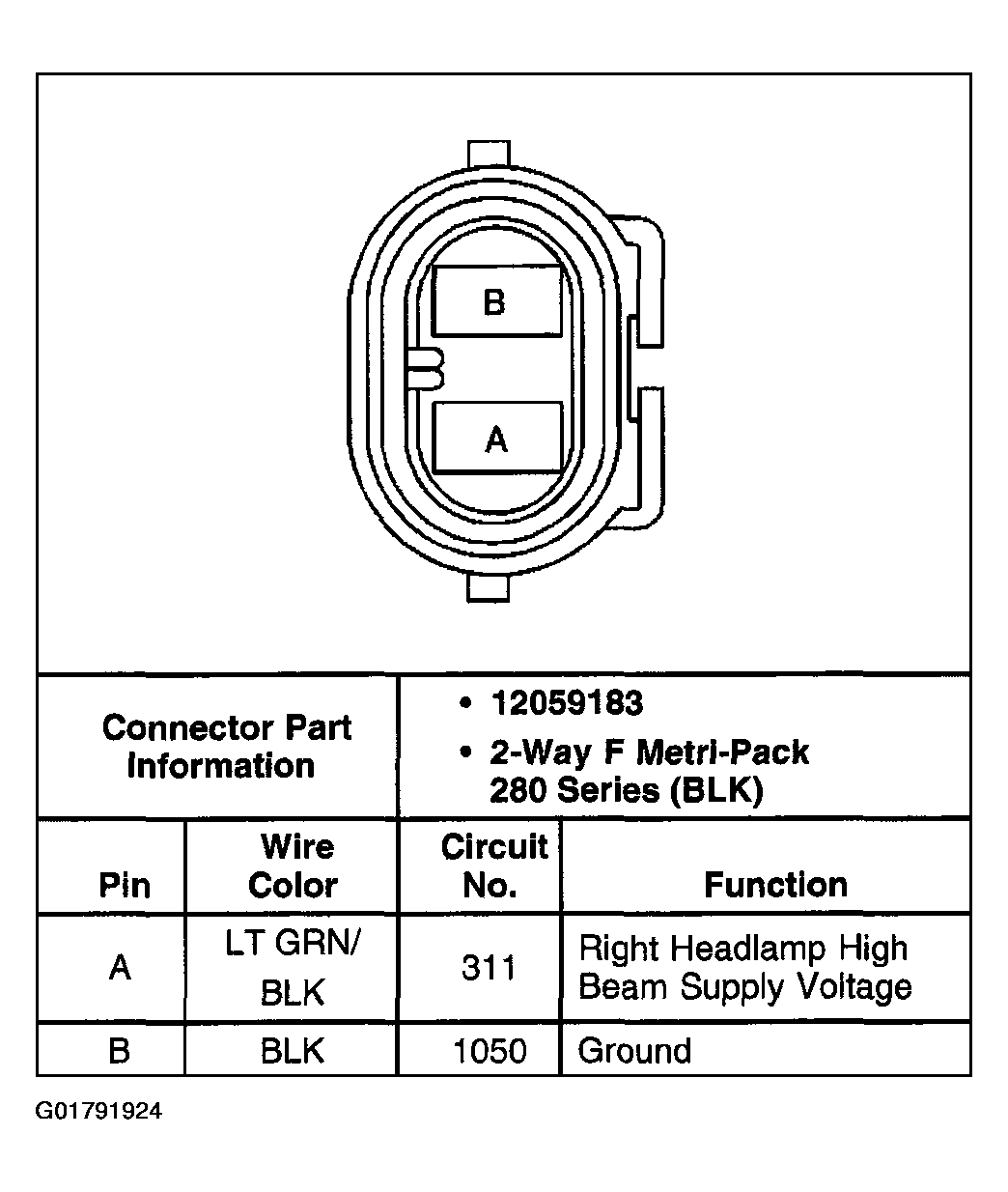

Fig 11: Headlamp - High Beam, Right
Courtesy of GENERAL MOTORS CORP.

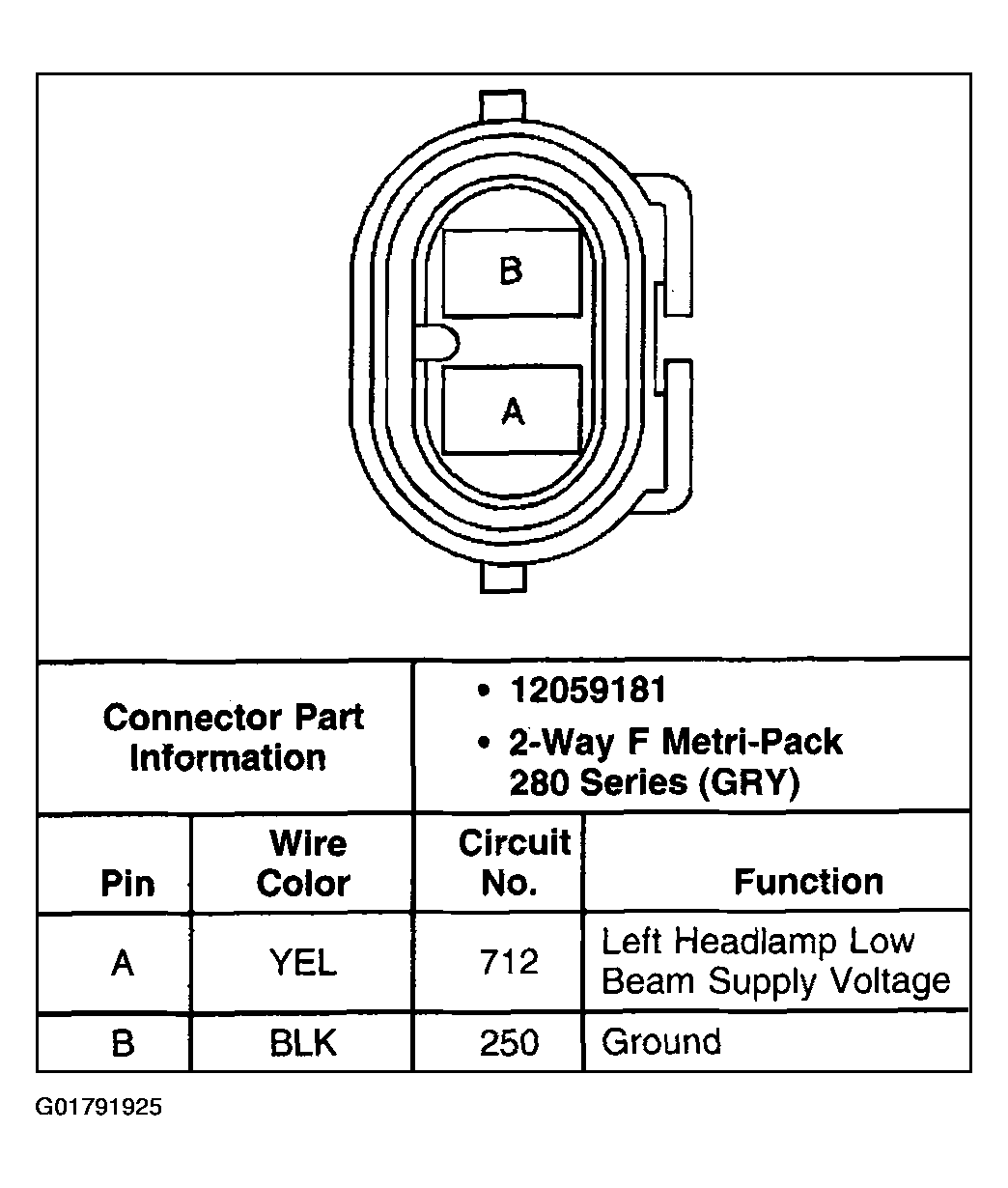

Fig 12: Headlamp - Low Beam, Left
Courtesy of GENERAL MOTORS CORP.

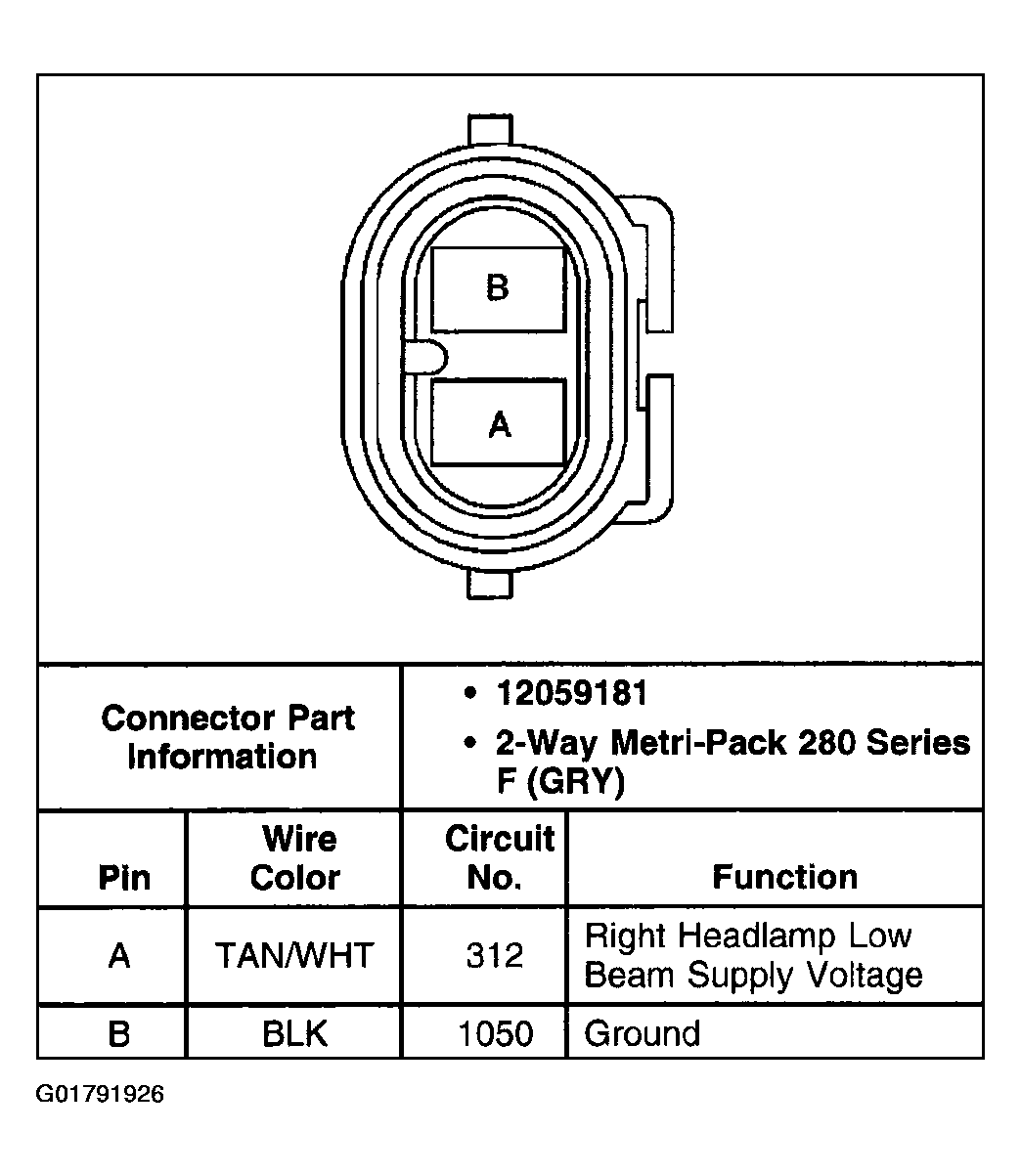

Fig 13: Headlamp - Low Beam, Right
Courtesy of GENERAL MOTORS CORP.

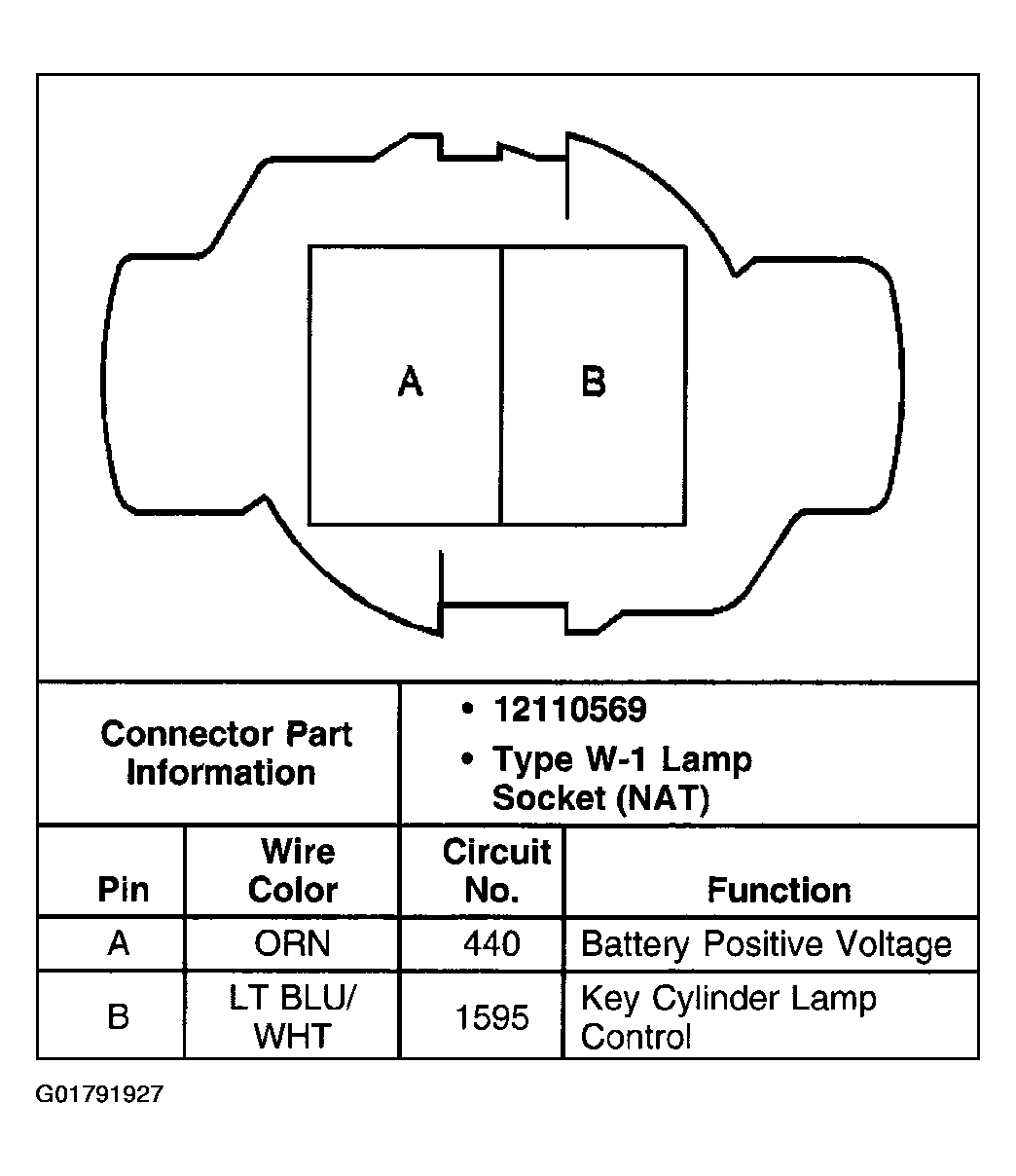

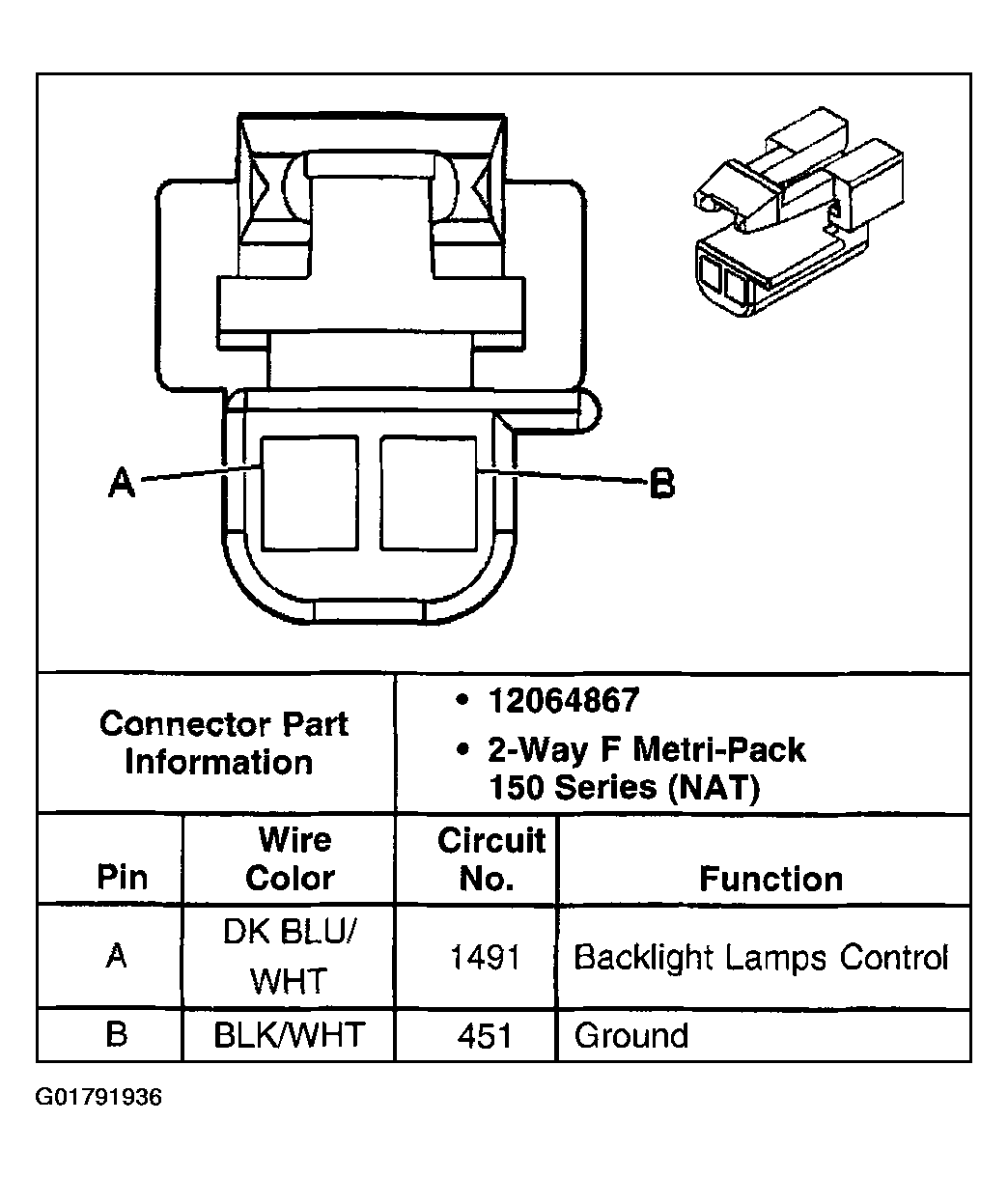

Fig 14: Ignition Key Cylinder Lamp
Courtesy of GENERAL MOTORS CORP.

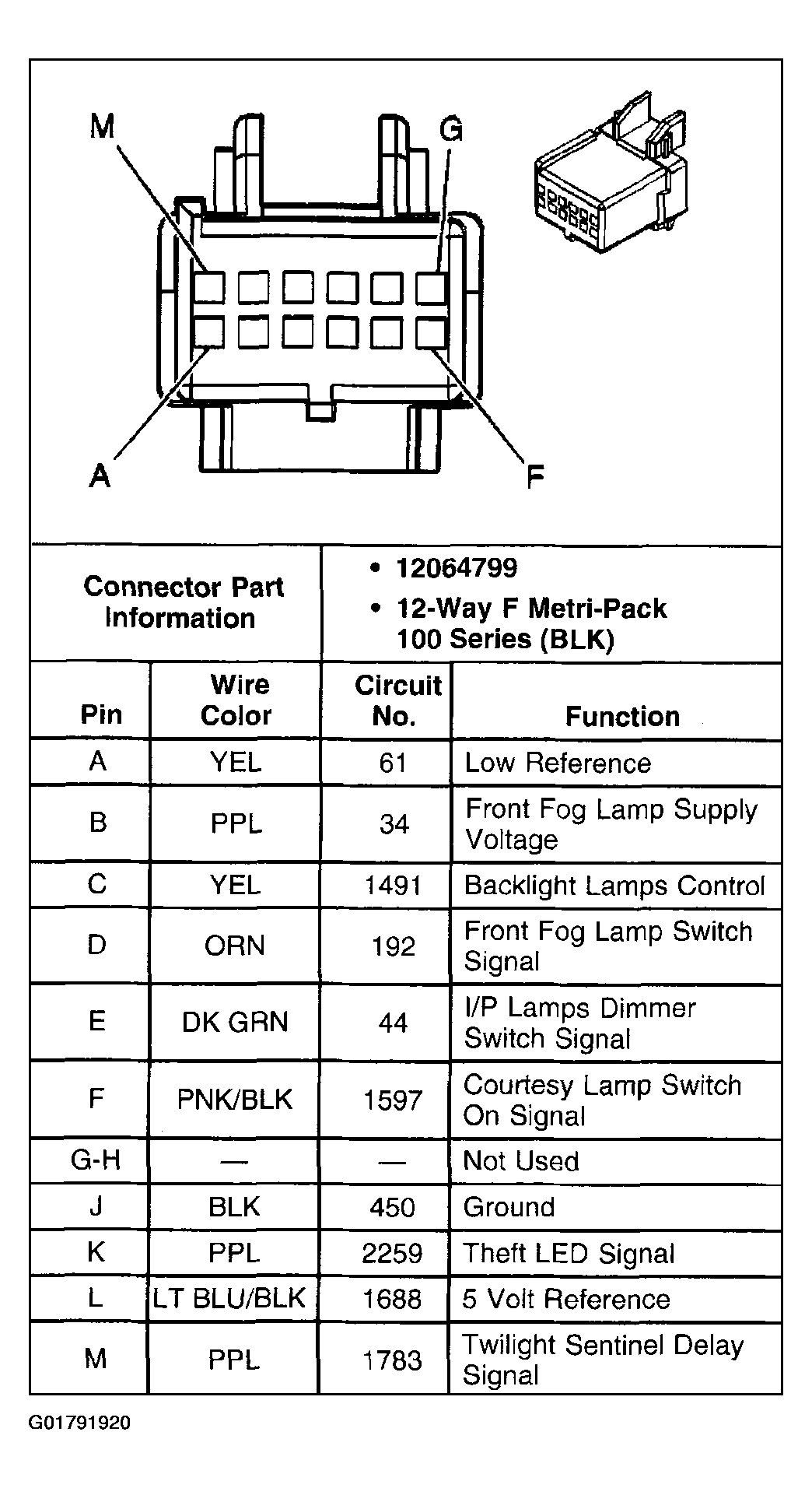

Fig 15: Interior Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Fig 16: I/P Compartment Lamp and Switch
Courtesy of GENERAL MOTORS CORP.
Fig 17: License Lamp
Courtesy of GENERAL MOTORS CORP.
Fig 18: License Lamp
Courtesy of GENERAL MOTORS CORP.
Fig 19: Marker Lamp - LR
Courtesy of GENERAL MOTORS CORP.
Fig 20: Marker Lamp - RR
Courtesy of GENERAL MOTORS CORP.

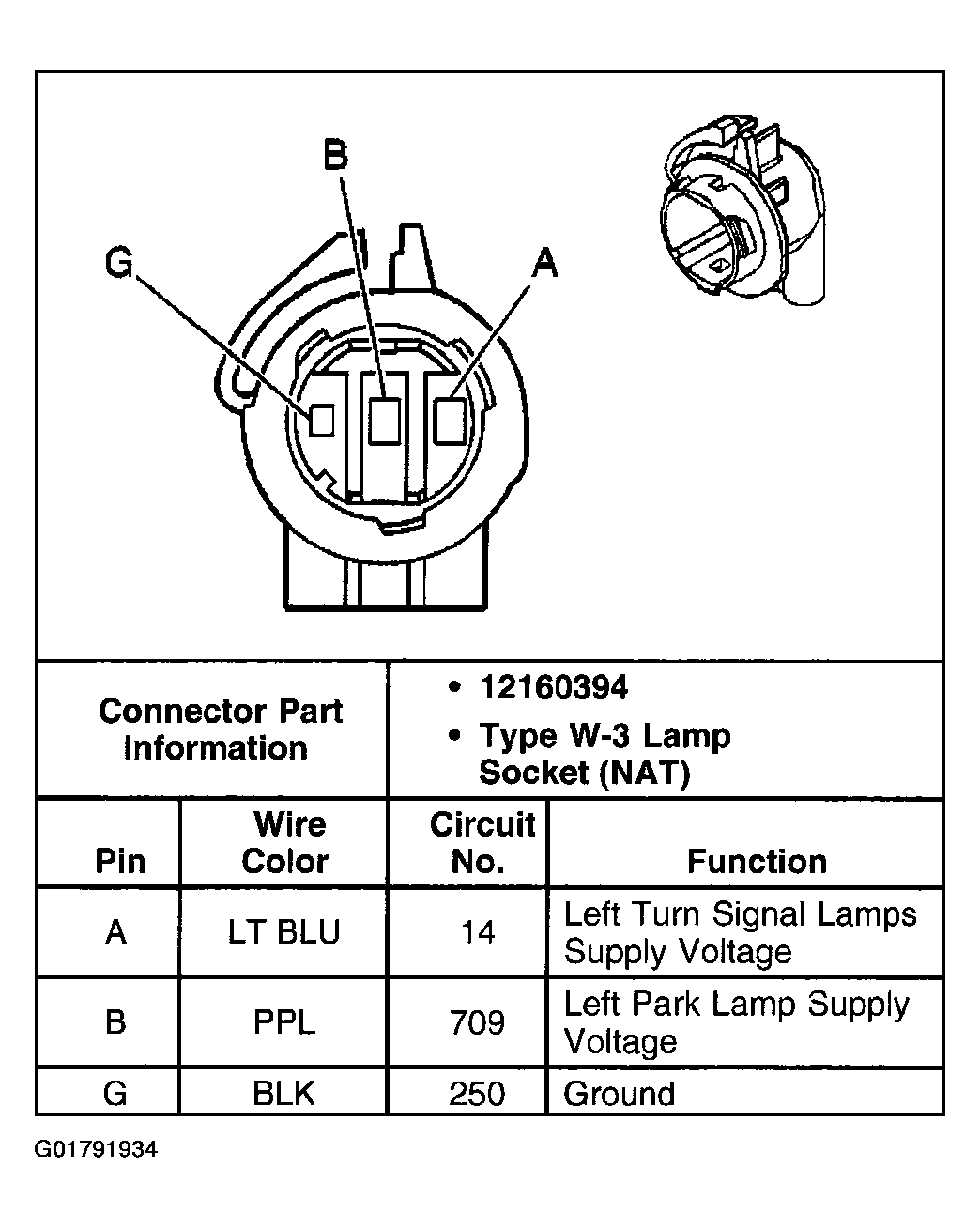

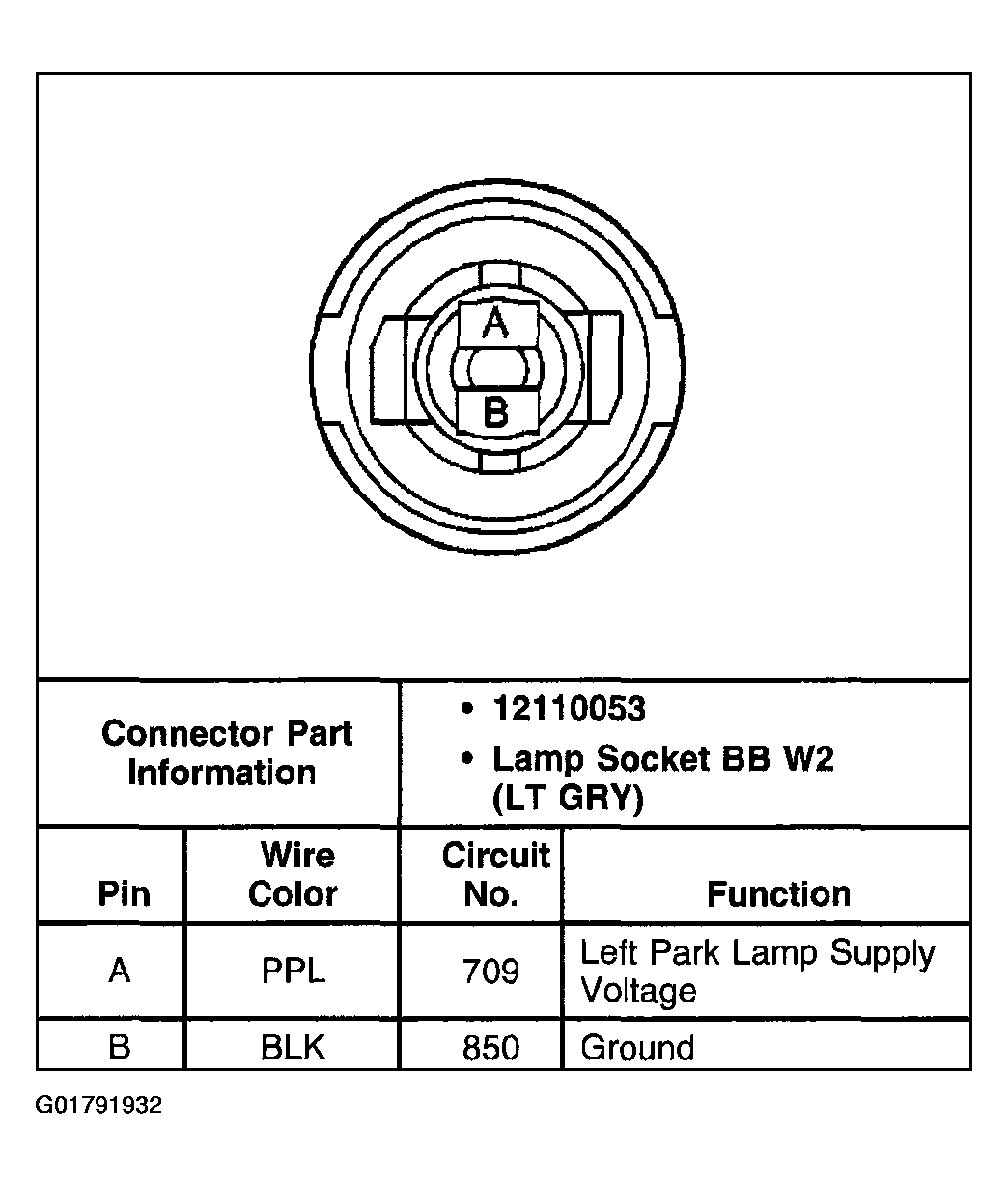

Fig 21: Park/Turn Signal Lamp - LF
Courtesy of GENERAL MOTORS CORP.

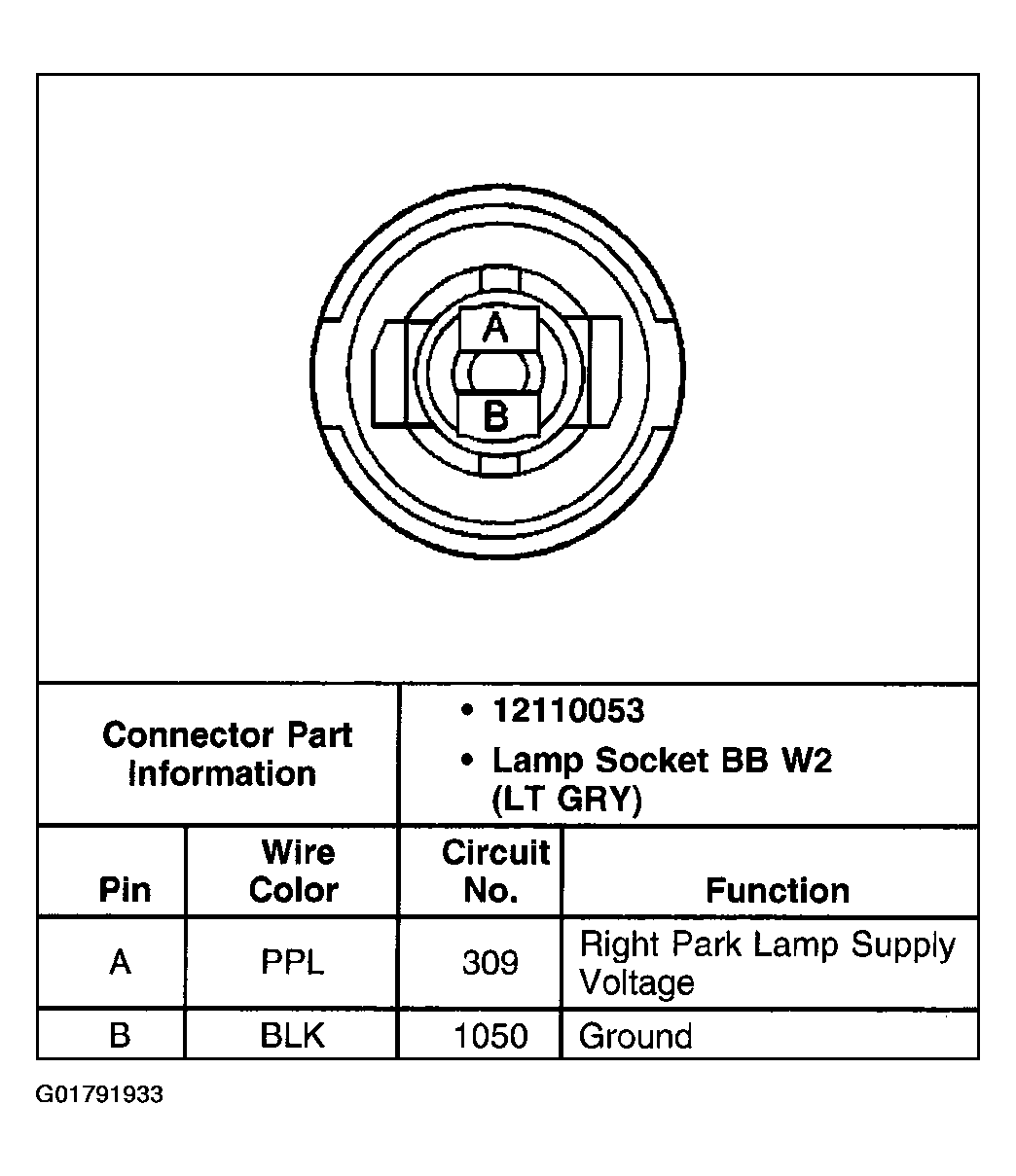

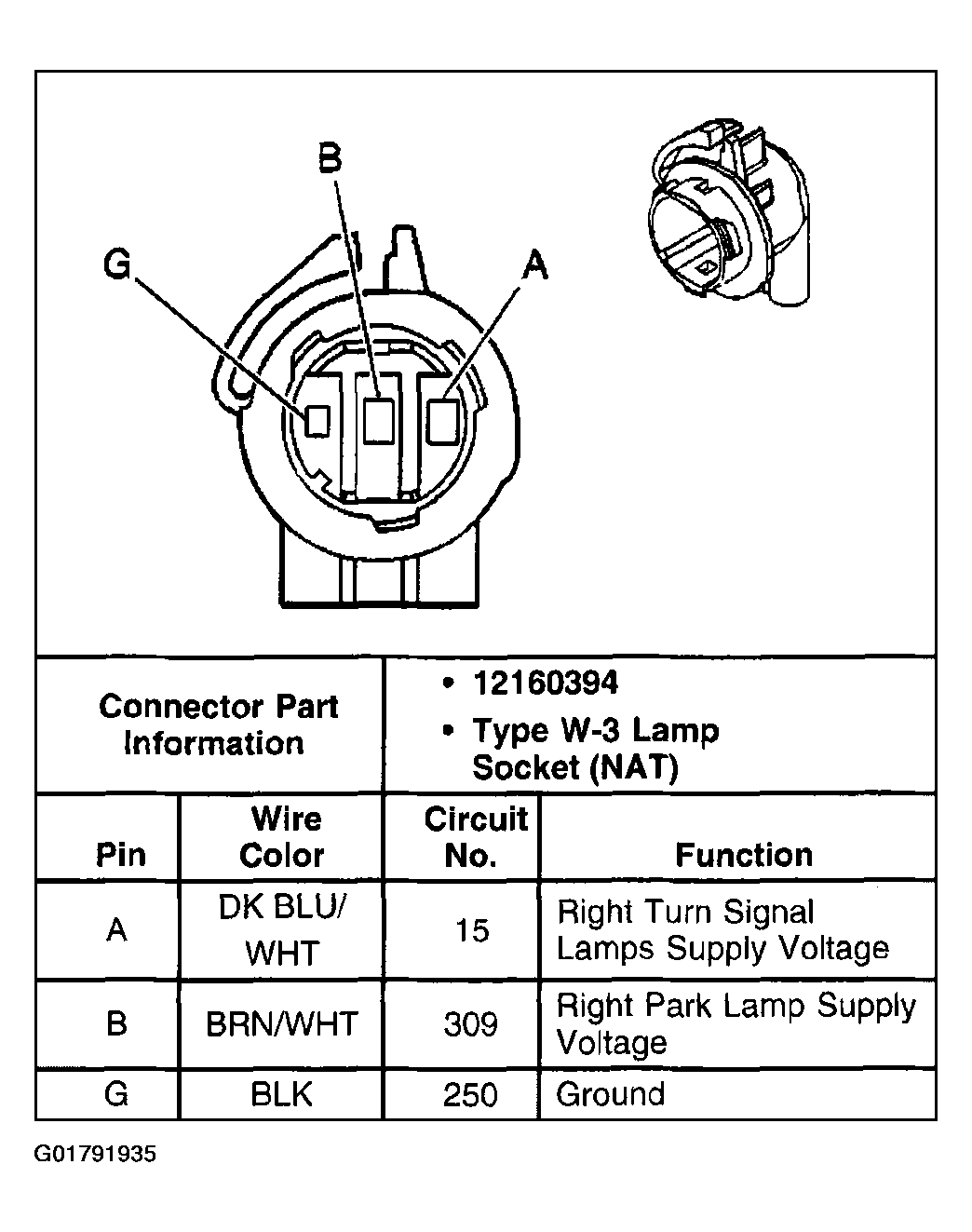

Fig 22: Park/Turn Signal Lamp - RF
Courtesy of GENERAL MOTORS CORP.

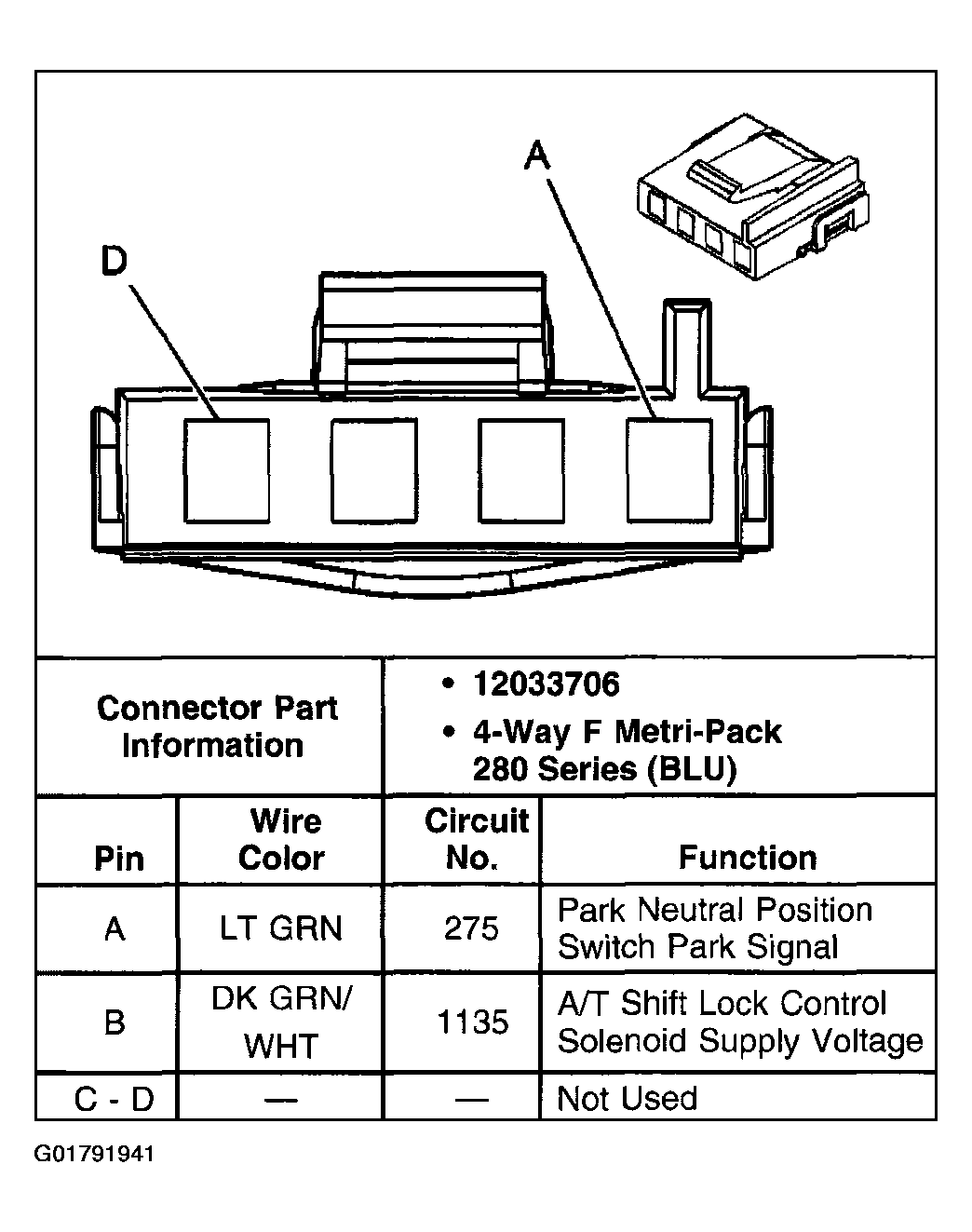

Fig 23: PRNDL Lamp
Courtesy of GENERAL MOTORS CORP.

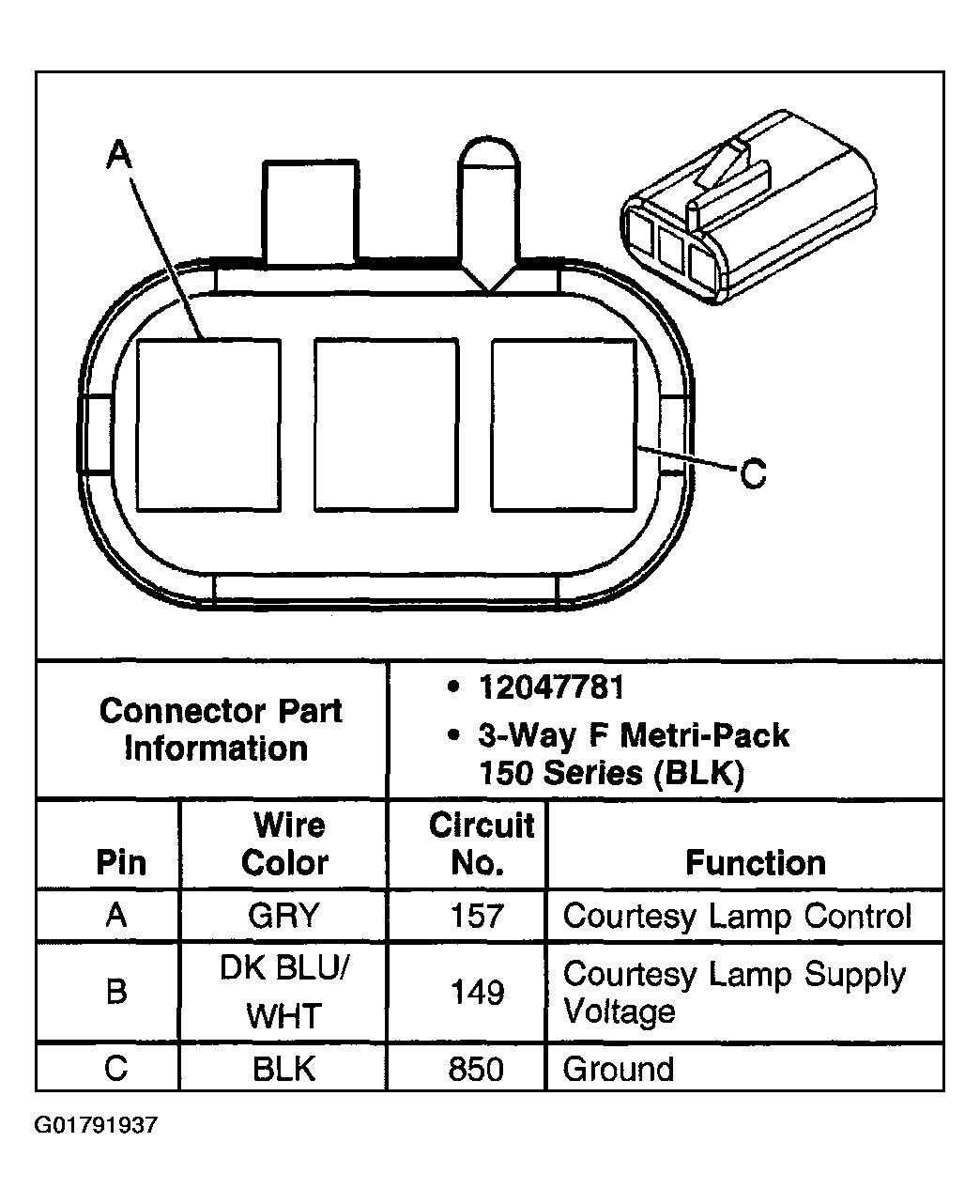

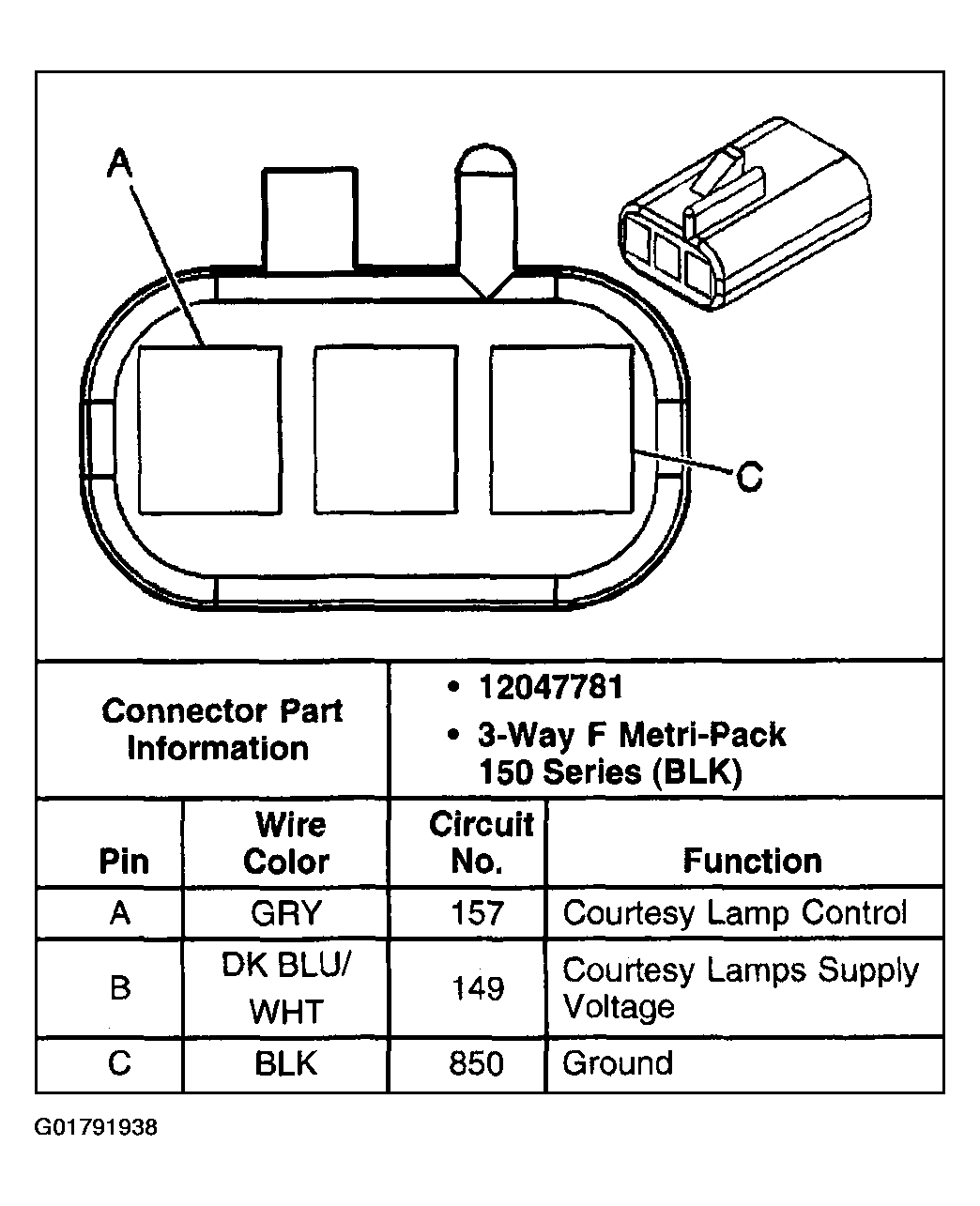

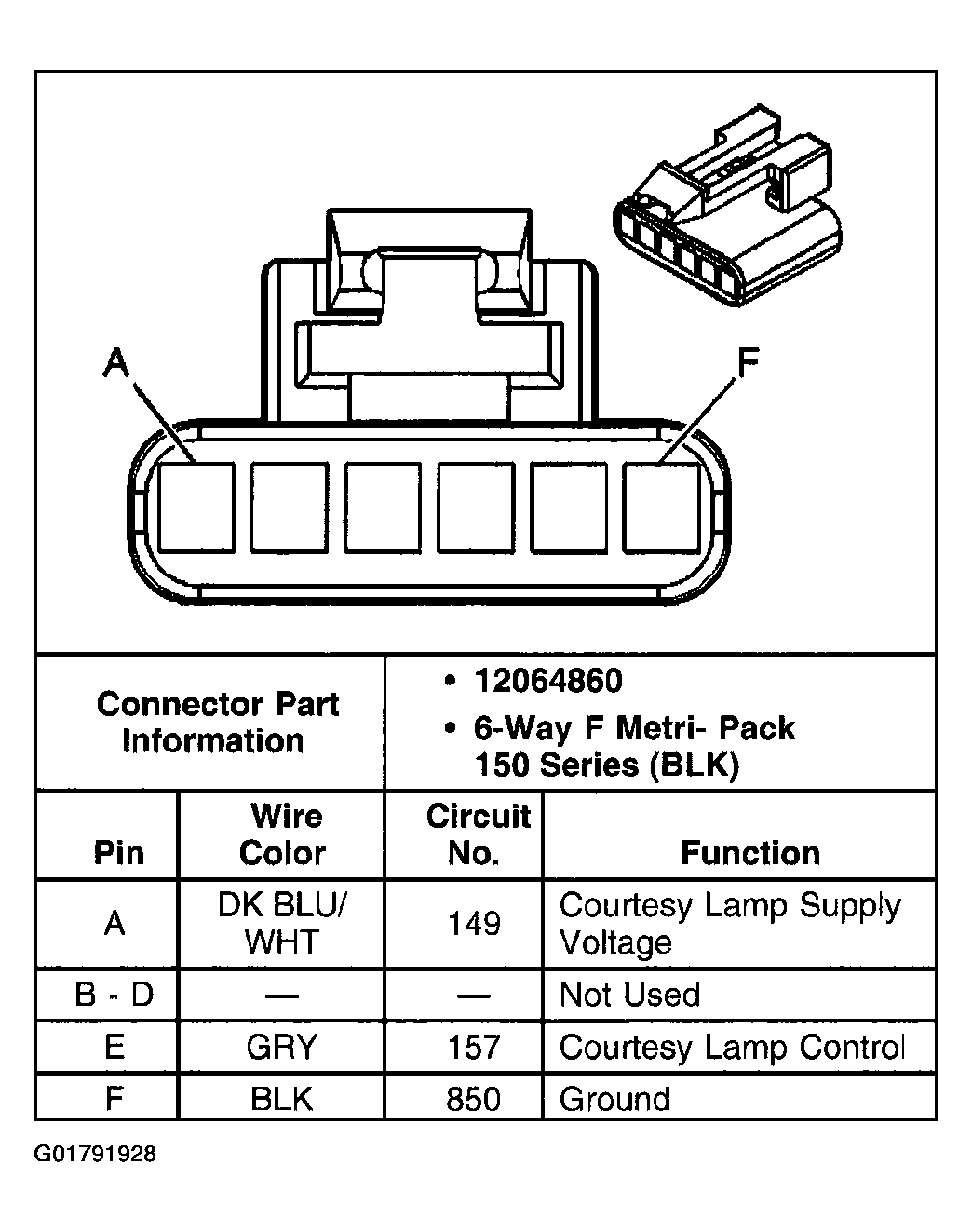

Fig 24: Reading/Courtesy Lamp - Left
Courtesy of GENERAL MOTORS CORP.
Fig 25: Reading/Courtesy Lamp - Right
Courtesy of GENERAL MOTORS CORP.

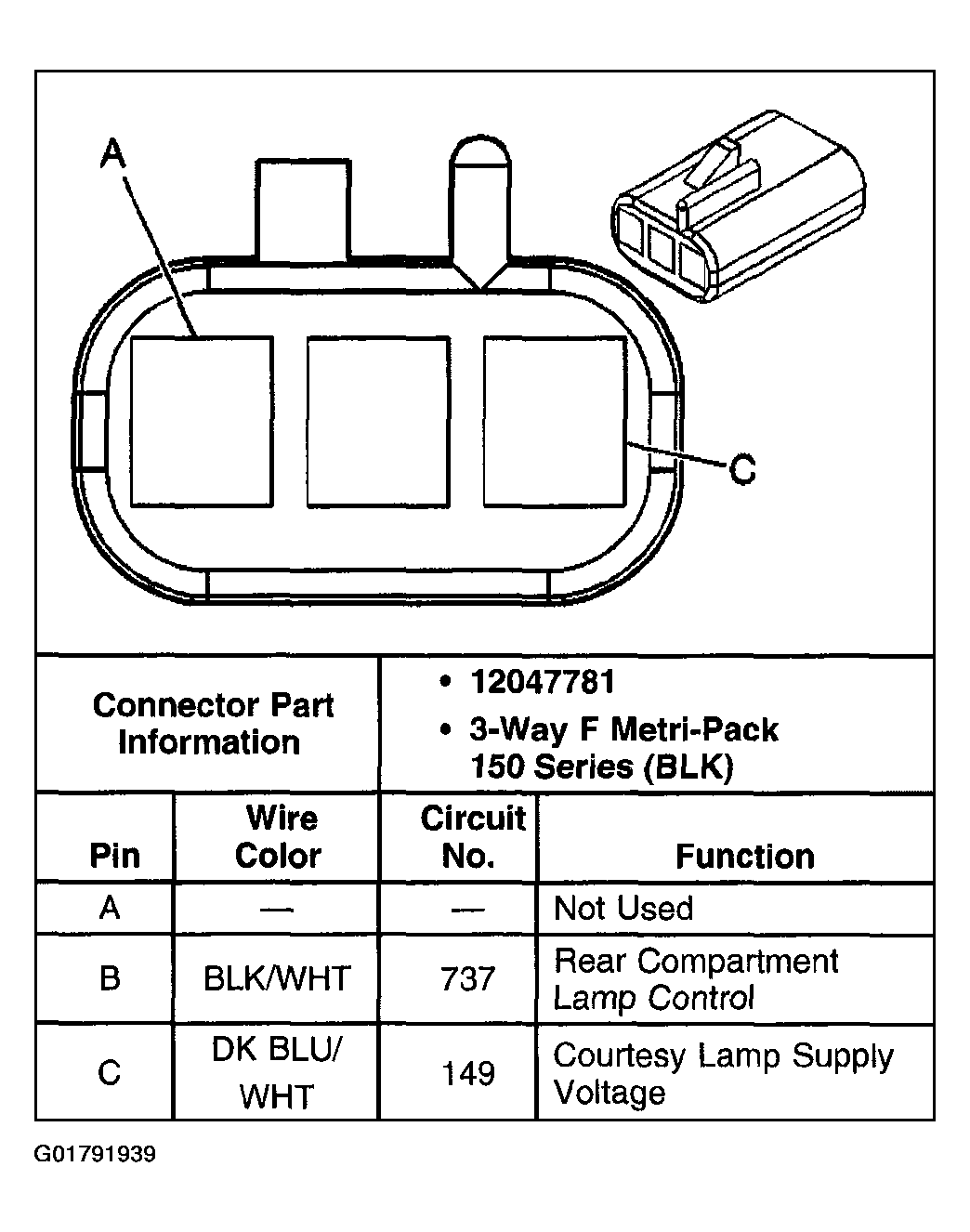

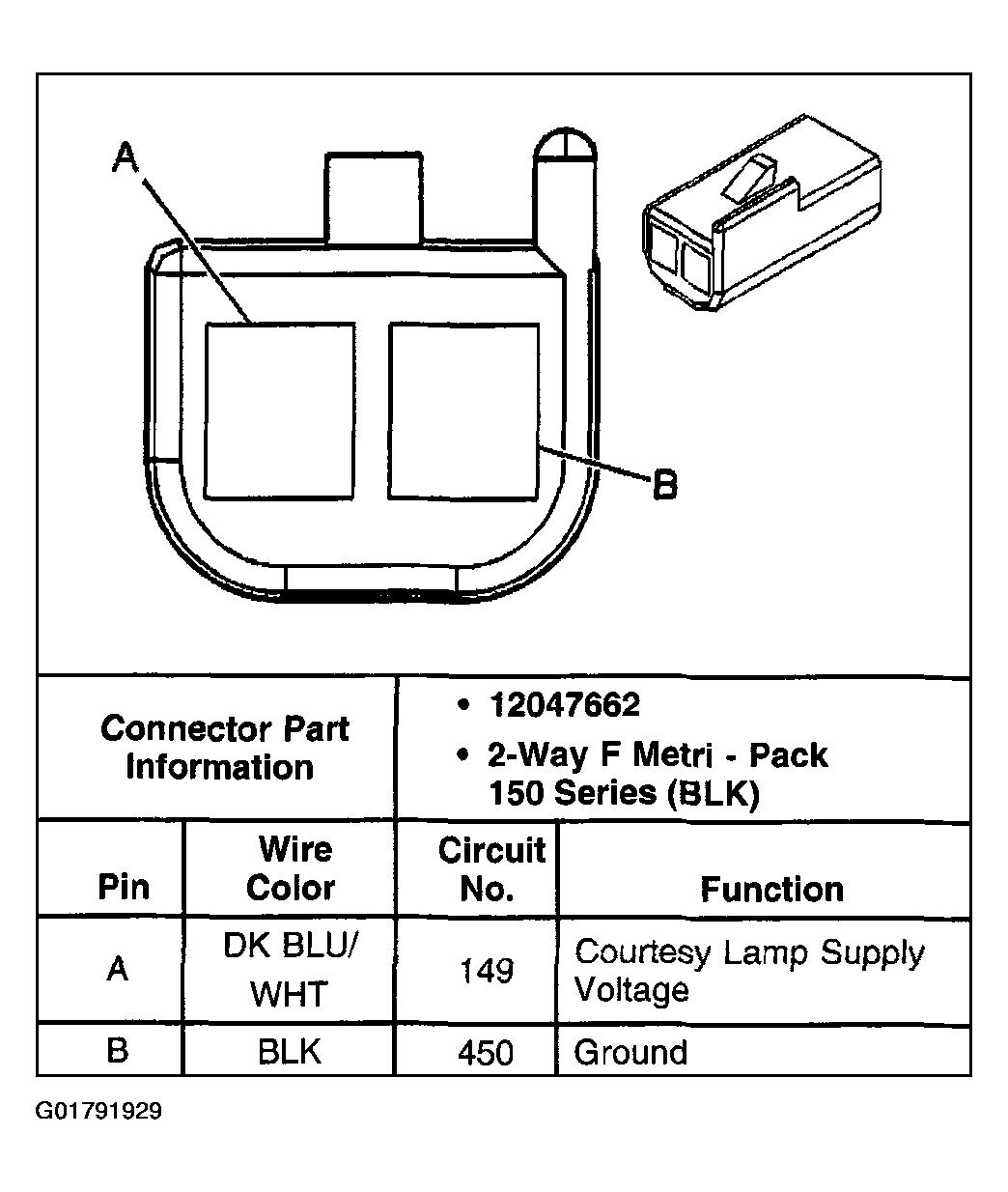

Fig 26: Rear Compartment Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

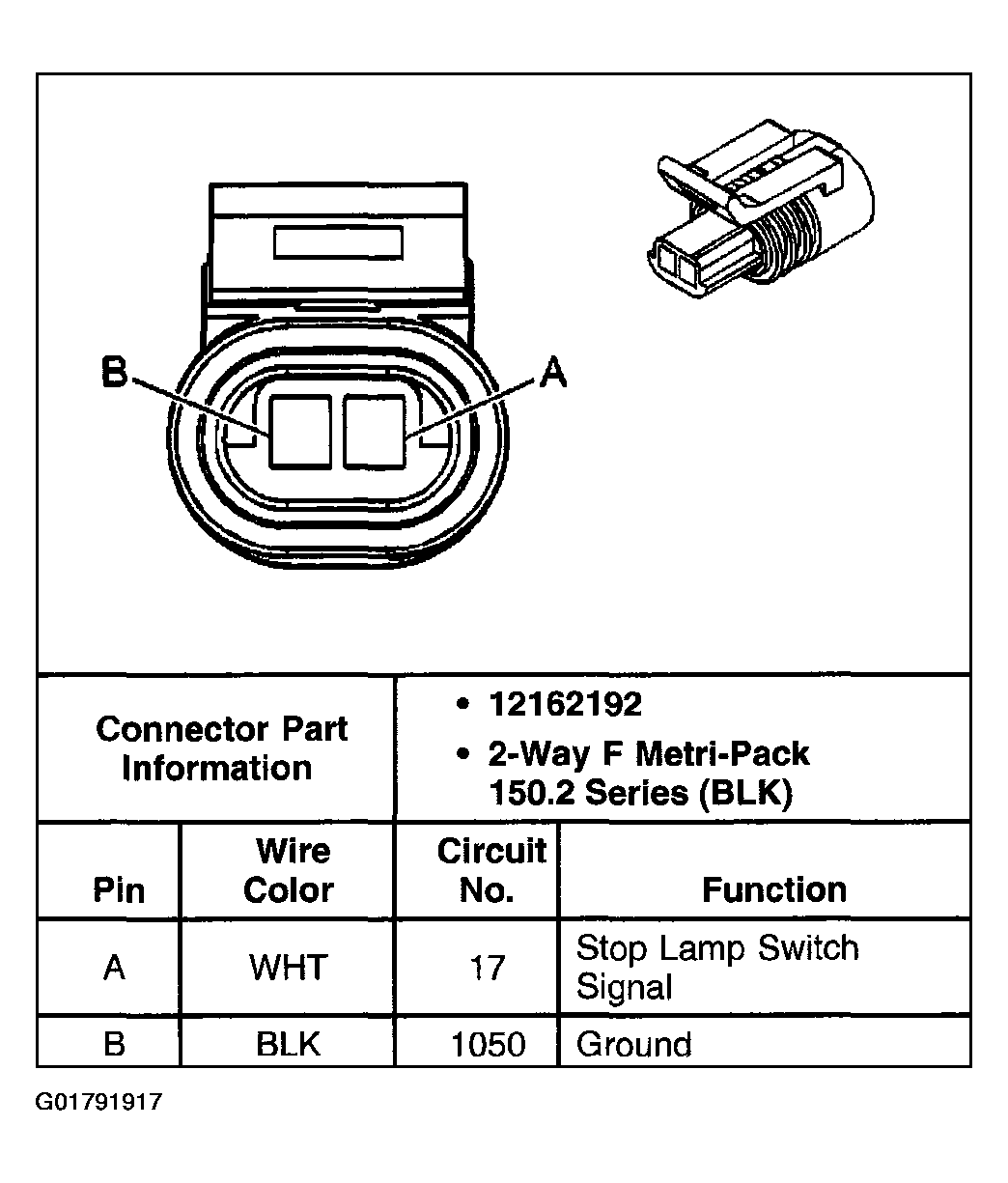

Fig 27: Stop Lamp Switch C1
Courtesy of GENERAL MOTORS CORP.

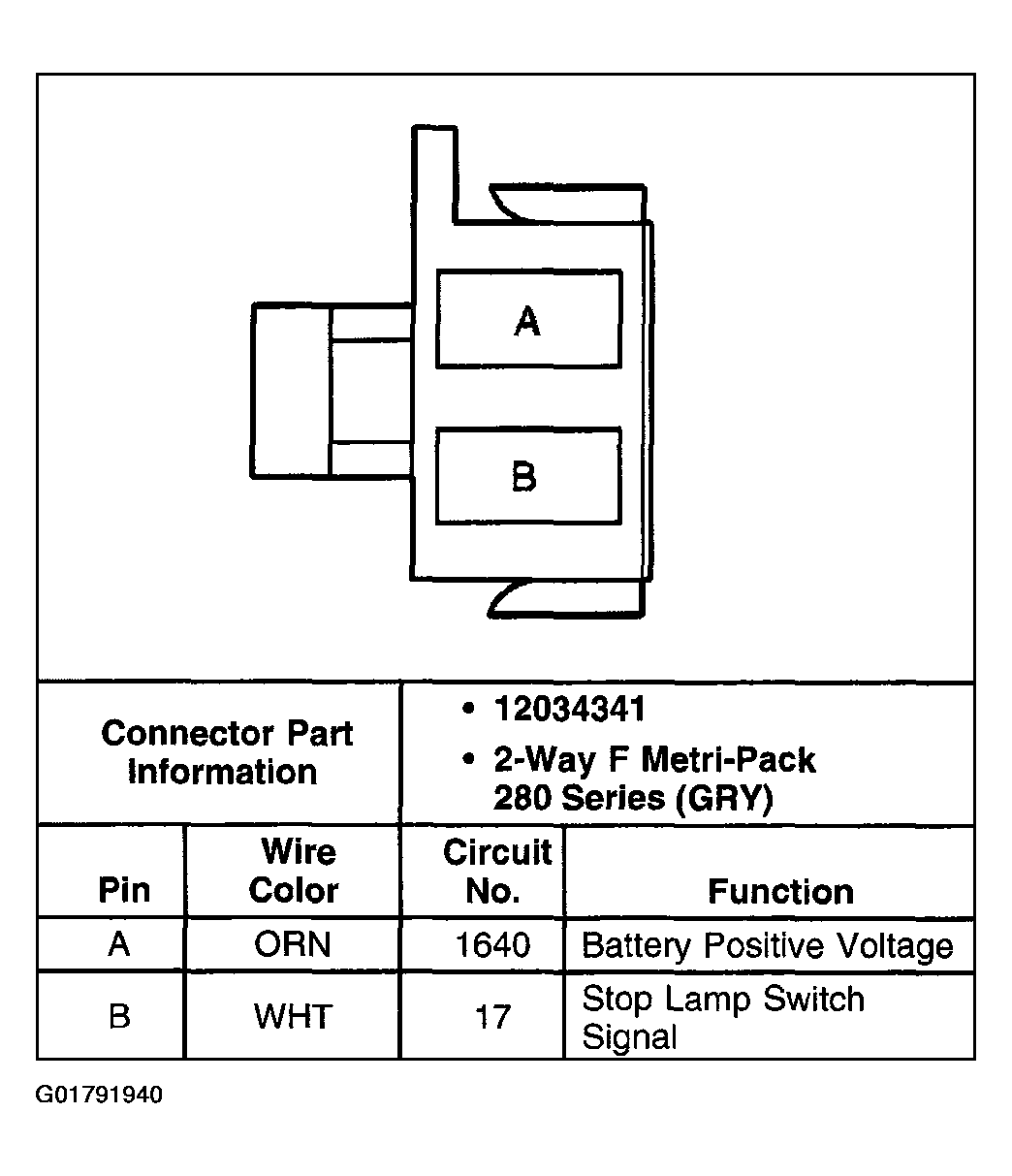

Fig 28: Stop Lamp Switch C2
Courtesy of GENERAL MOTORS CORP.
Fig 29: Tail/Stop Lamp - Left
Courtesy of GENERAL MOTORS CORP.

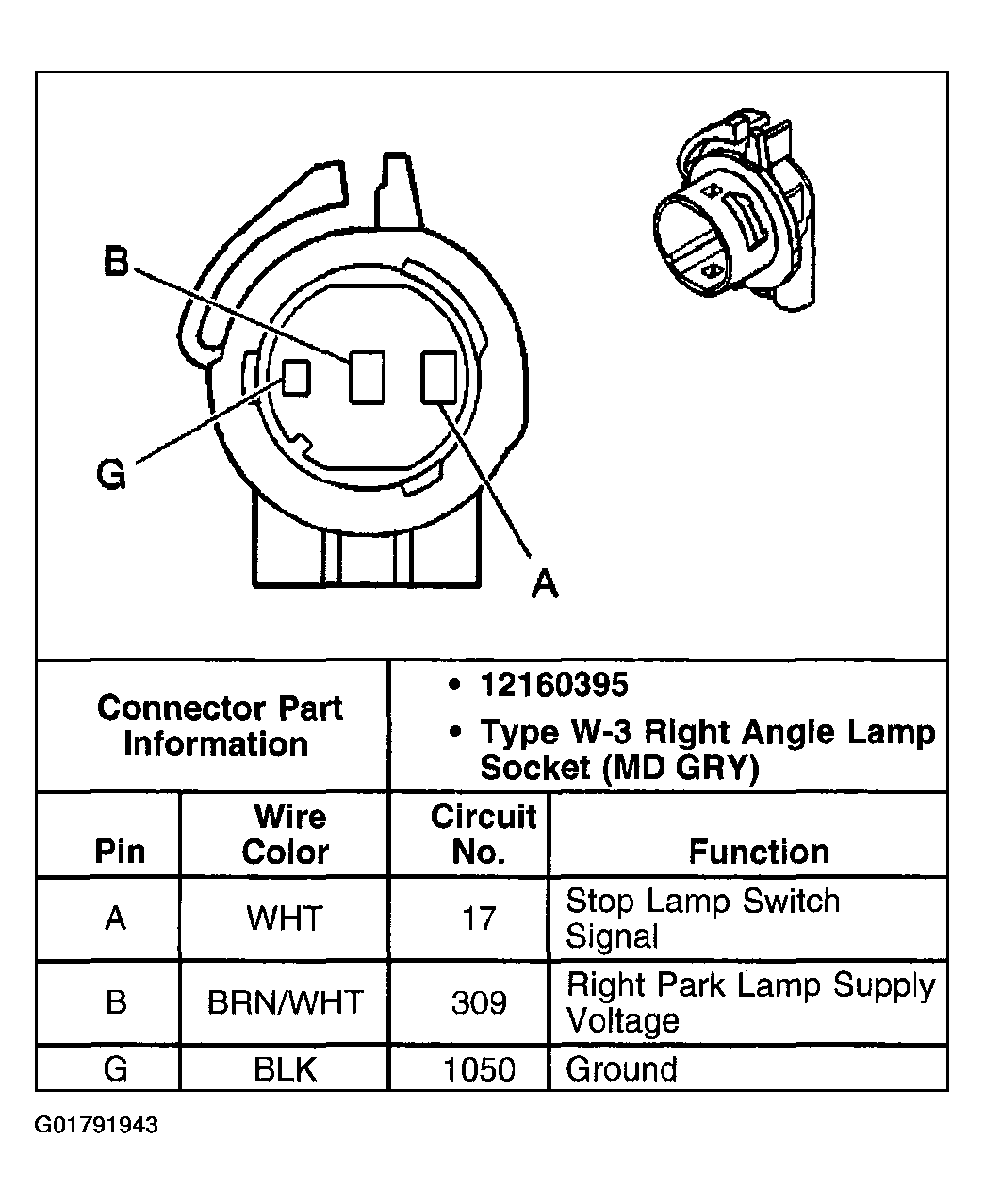

Fig 30: Tail/Stop lamp - Right
Courtesy of GENERAL MOTORS CORP.

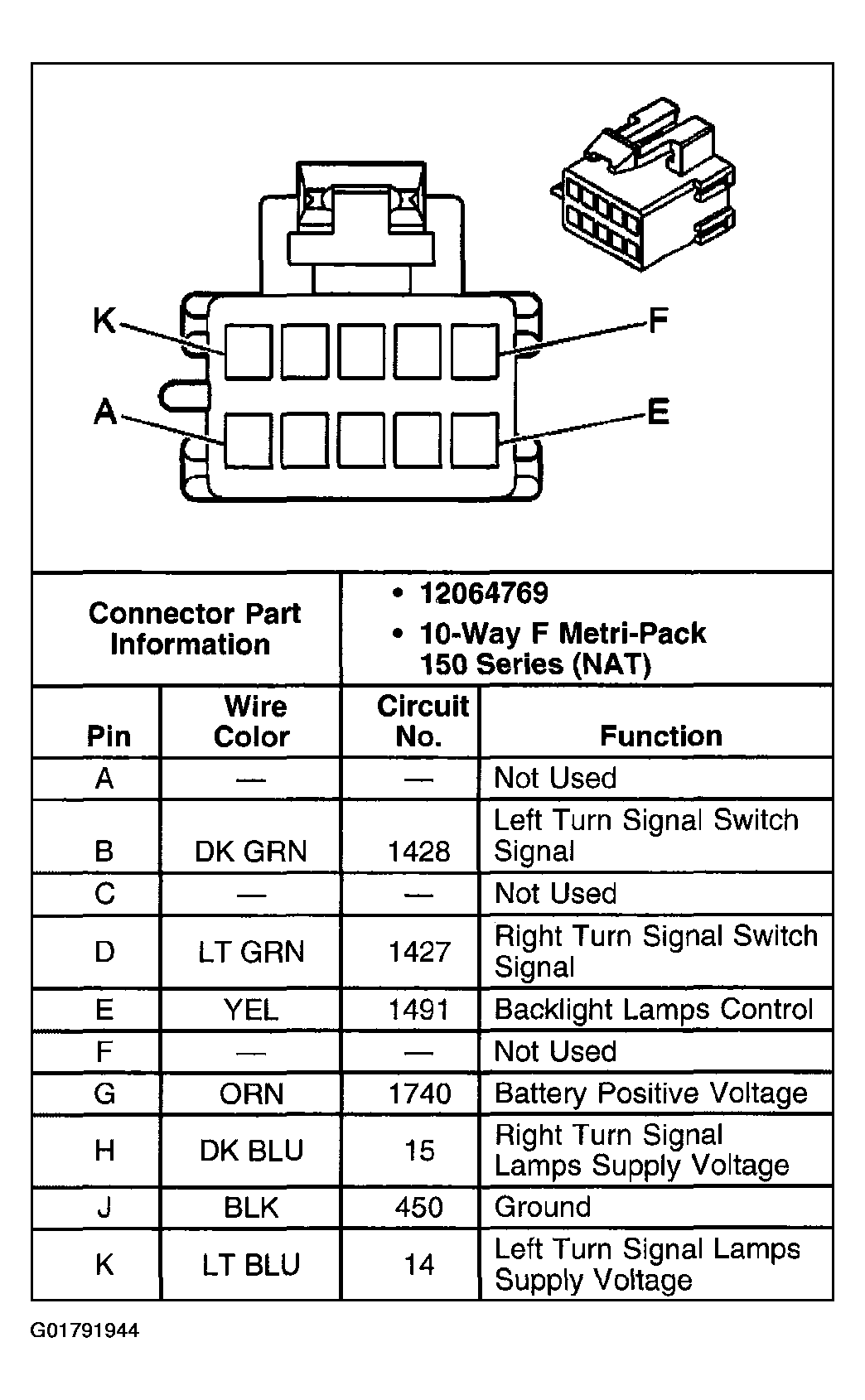

Fig 31: Turn Signal/Hazard Flasher Module
Courtesy of GENERAL MOTORS CORP.

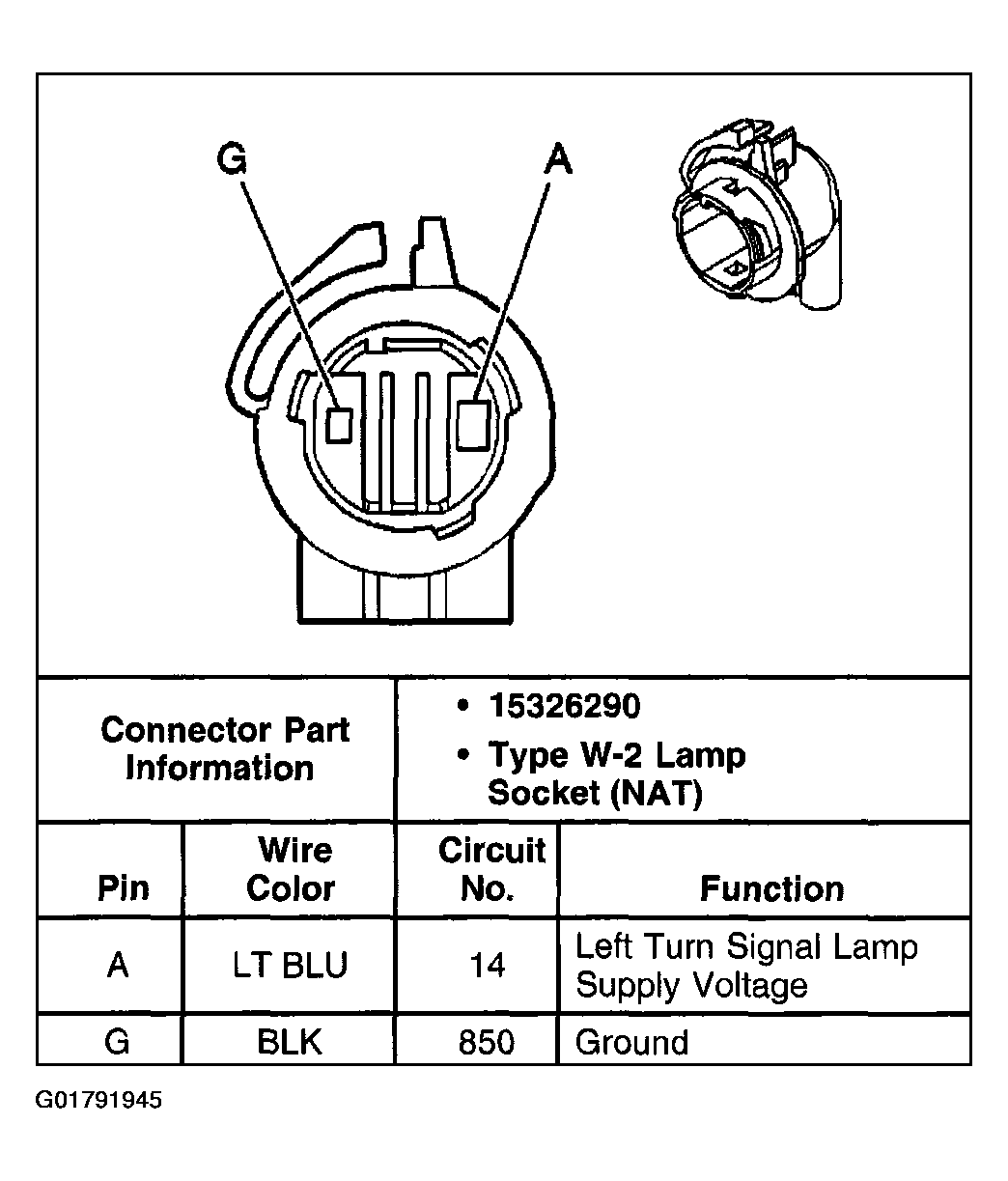

Fig 32: Turn Signal Lamp - LR
Courtesy of GENERAL MOTORS CORP.
Fig 33: Turn Signal Lamp - RR
Courtesy of GENERAL MOTORS CORP.
Fig 34: Vanity Mirrors
Courtesy of GENERAL MOTORS CORP.
