Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

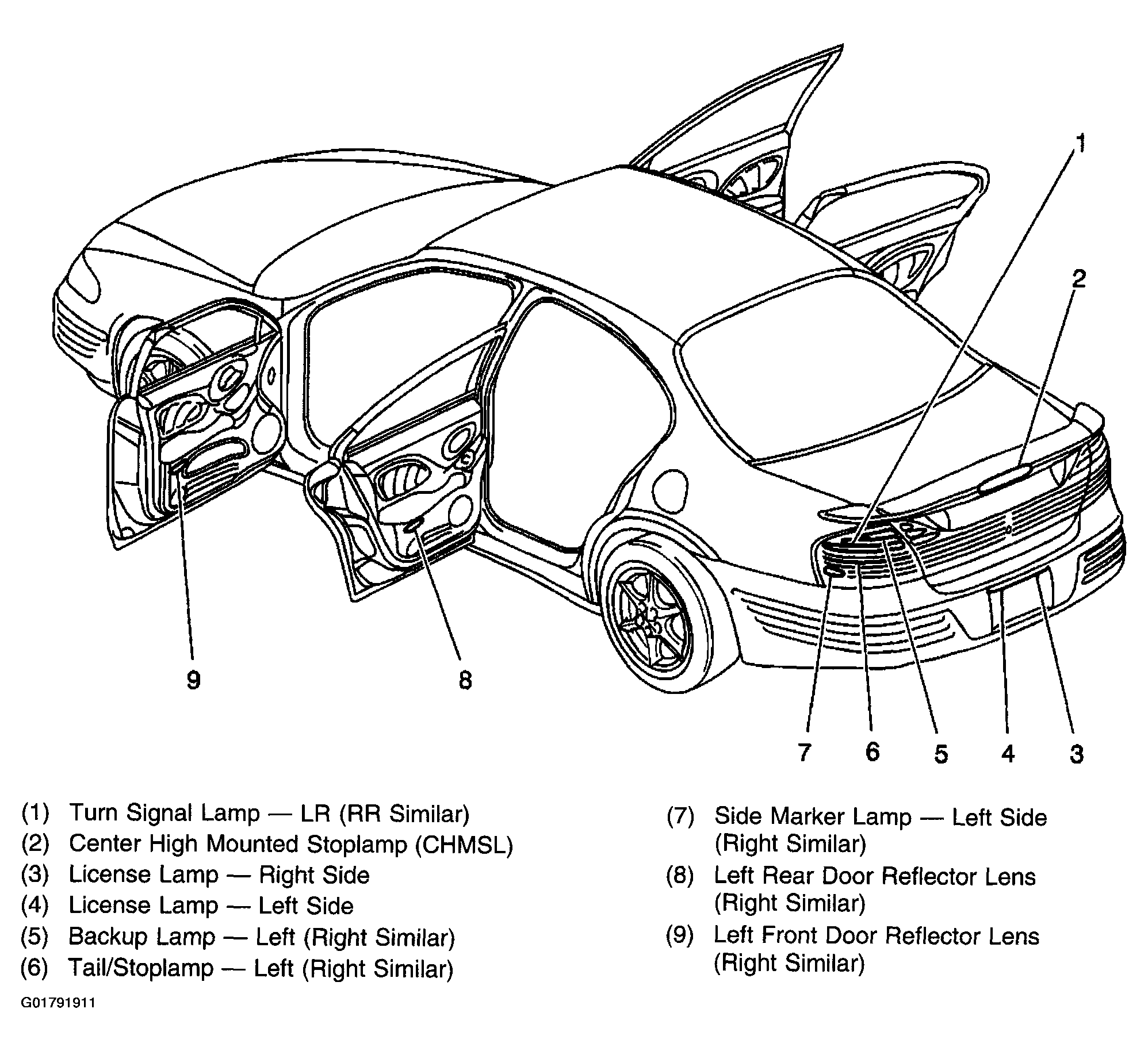

Fig 1: Rear Exterior Lighting Components
G01791911Courtesy of GENERAL MOTORS CORP.

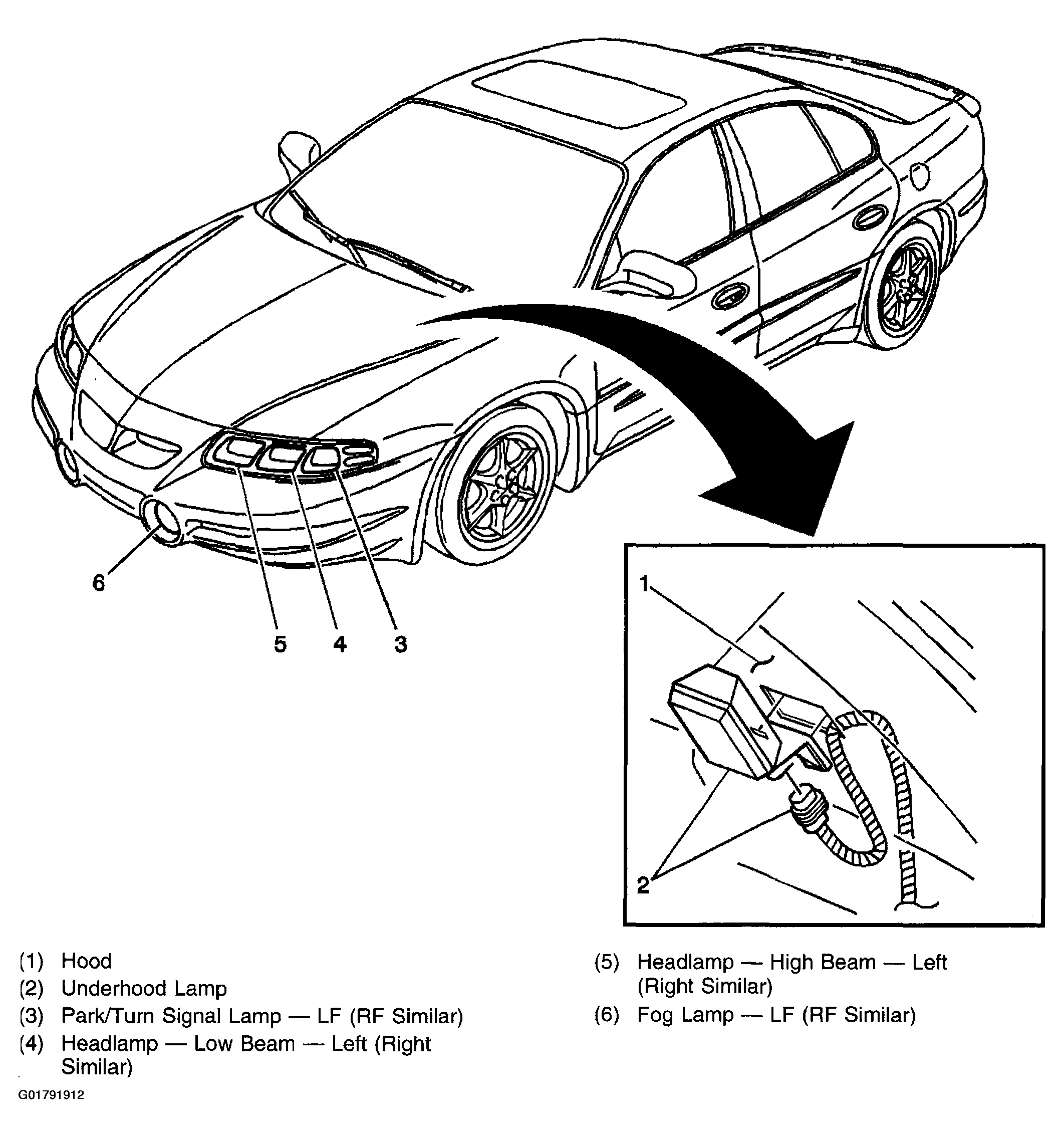

Fig 2: Front Exterior Lighting Components
G01791912Courtesy of GENERAL MOTORS CORP.

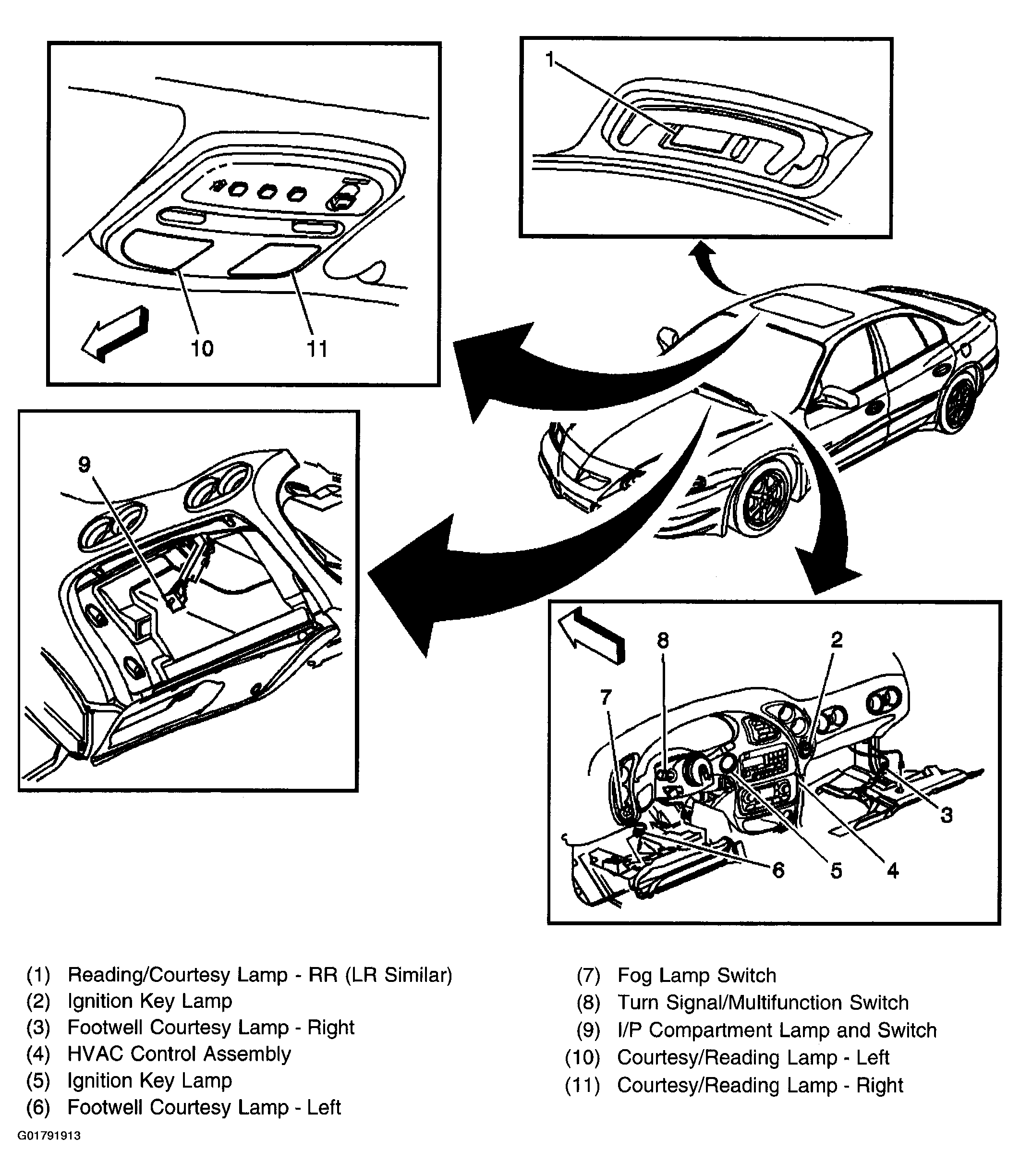

Fig 3: Interior Lighting Components
G01791913Courtesy of GENERAL MOTORS CORP.
