Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Important: Note the cable routing for replacement.

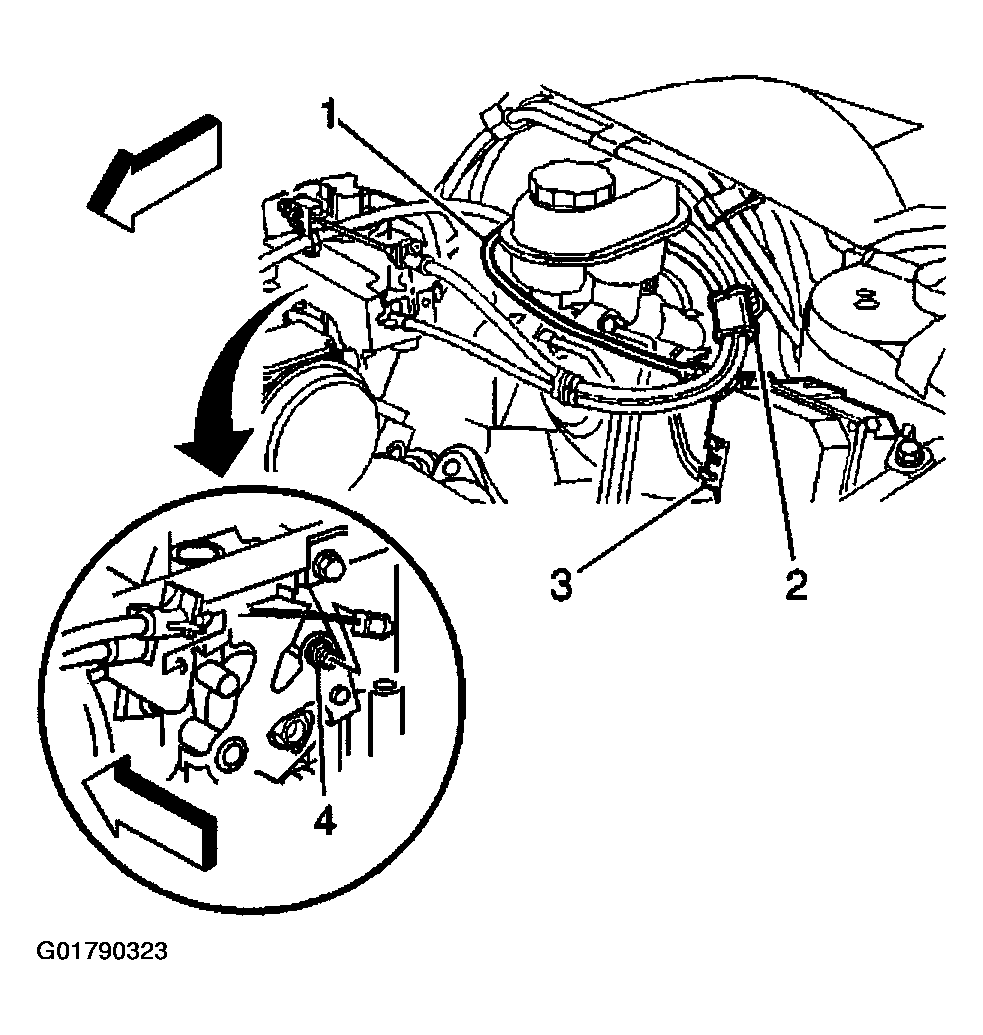

Disconnect the cruise control cable from the throttle body fuel injection cam (4).

Fig 1: Disconnecting Cruise Control Cable From Throttle Body Fuel Injection Cam
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the throttle body bracket.

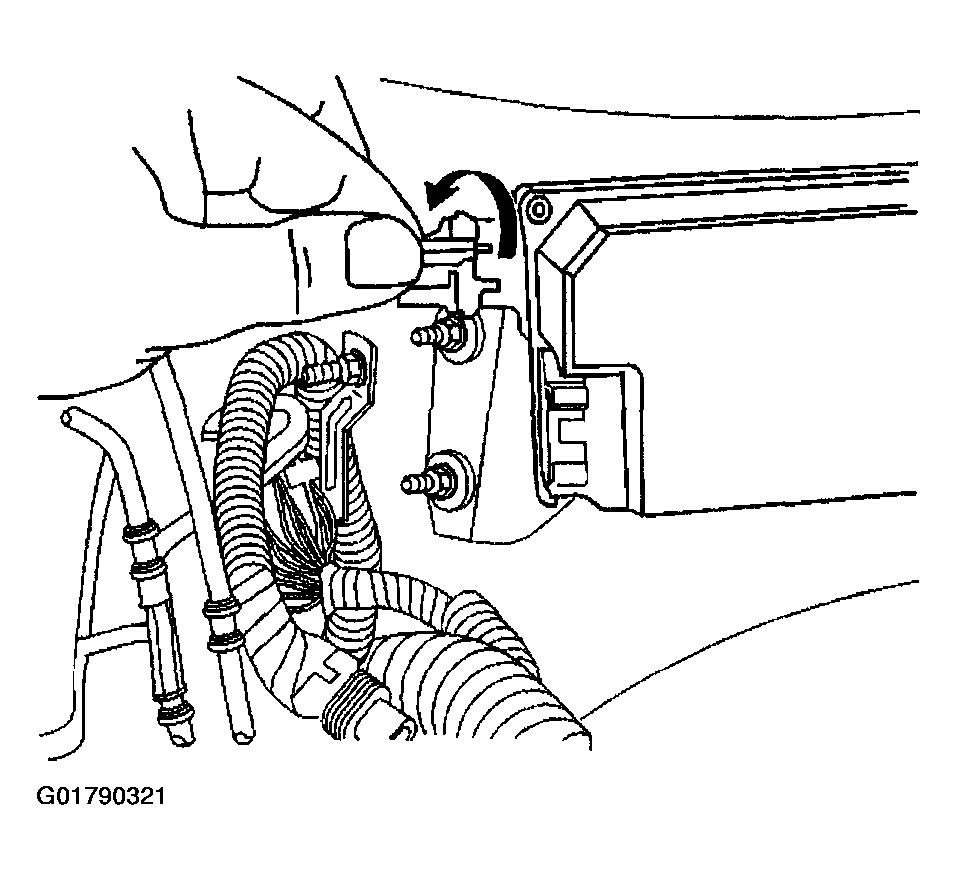

Twist the cruise control cable housing counterclockwise in order to release the cable housing from the module.

Fig 2: Releasing Cable Housing From Module
Courtesy of GENERAL MOTORS CORP.

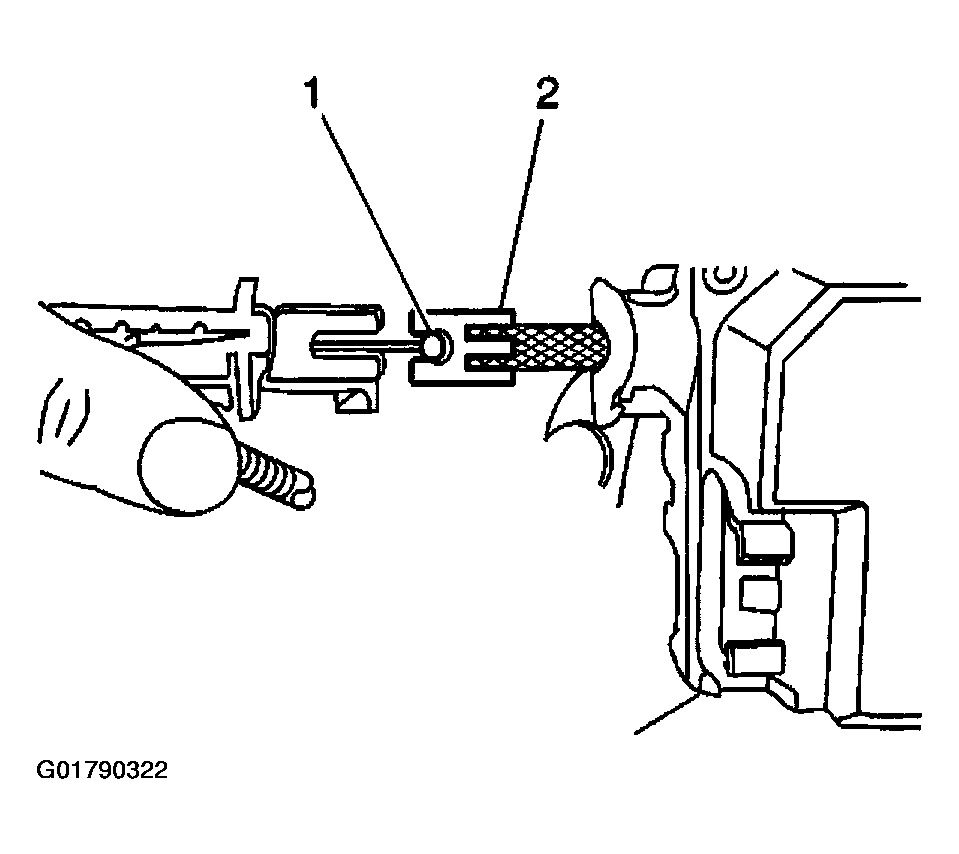

Disconnect the cruise control cable ball stud (1) from the actuator strip (2) on the cruise control module.

Fig 3: Disconnecting Cruise Control Cable Ball Stud
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the retainers (2).

Fig 4: Removing Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
