WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

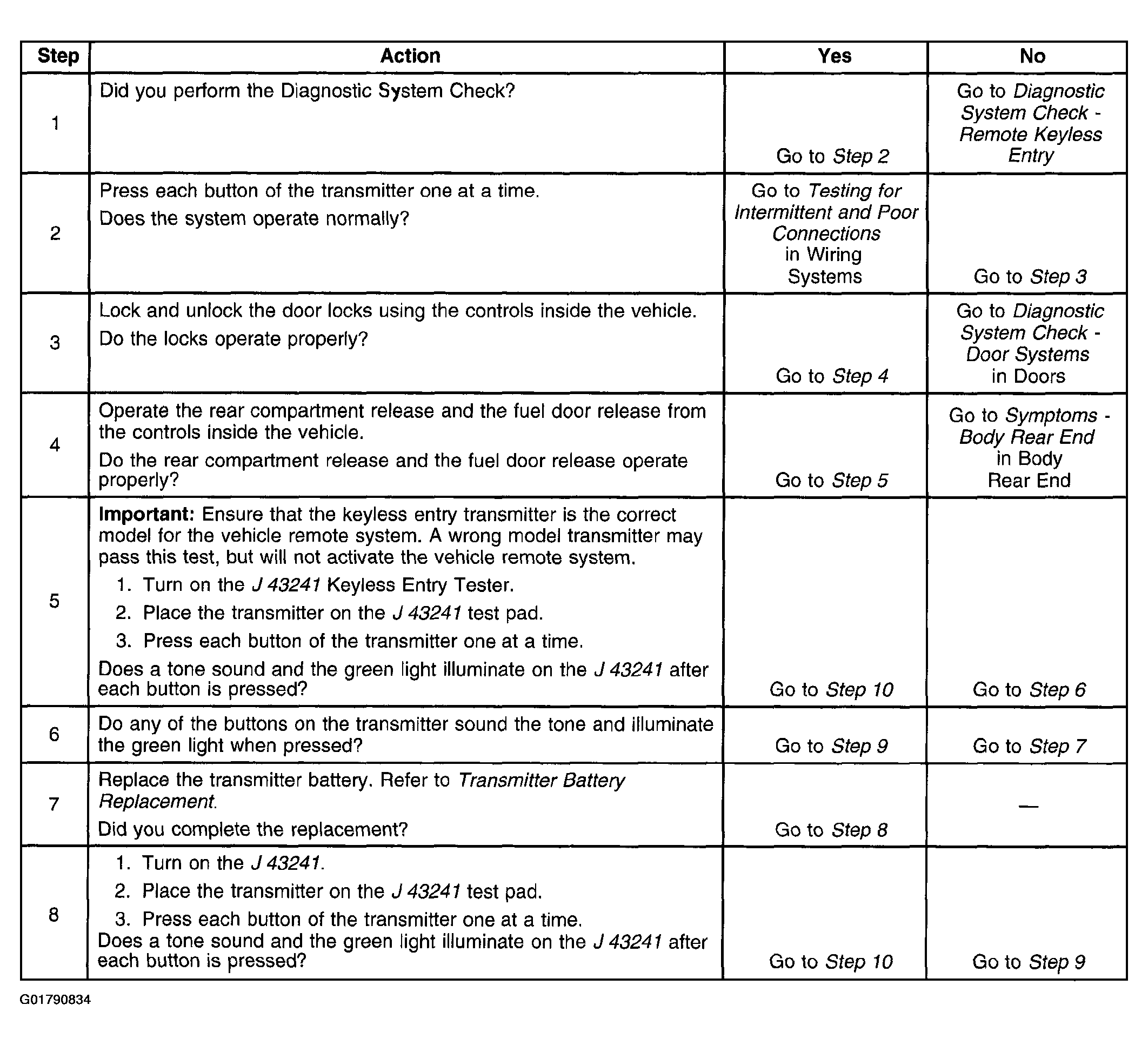

Fig 1: Keyless Entry System Inoperative Diagnostic Table (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

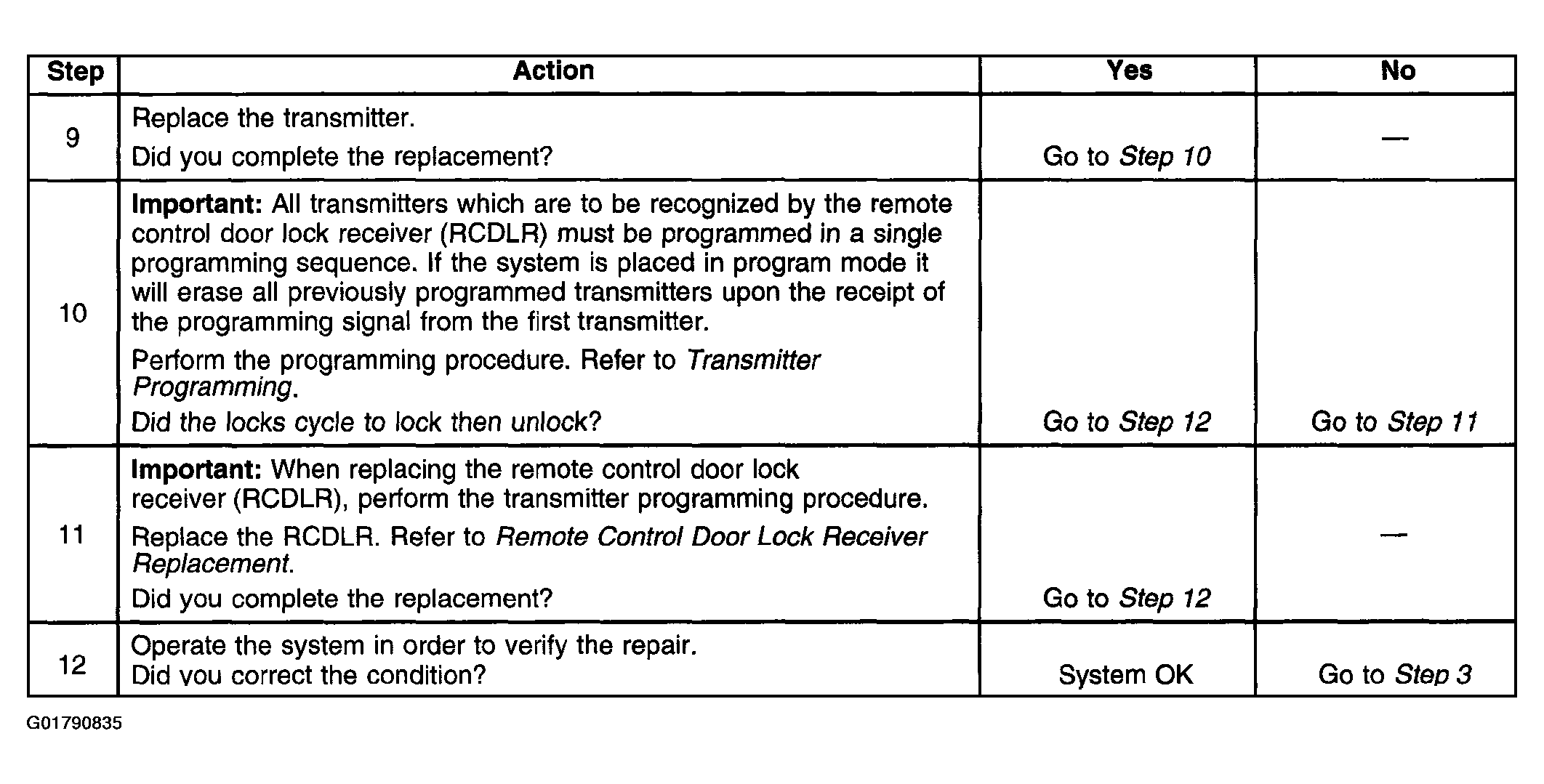

Fig 2: Keyless Entry System Inoperative Diagnostic Table (2 Of 2)
