Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the CD player into the mounting bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners.

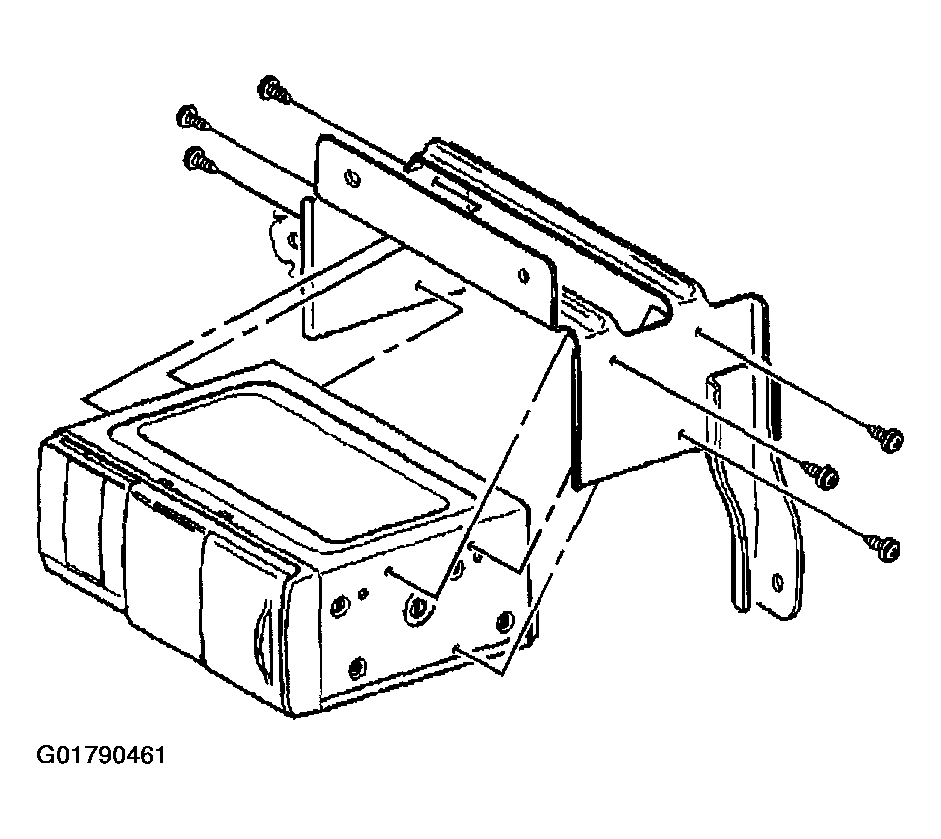

    Fig 1: Installing CD Player To Mounting Bracket Fasteners
    G01790461Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the CD player and bracket into the rear compartment.
  4. Connect the electrical connectors.

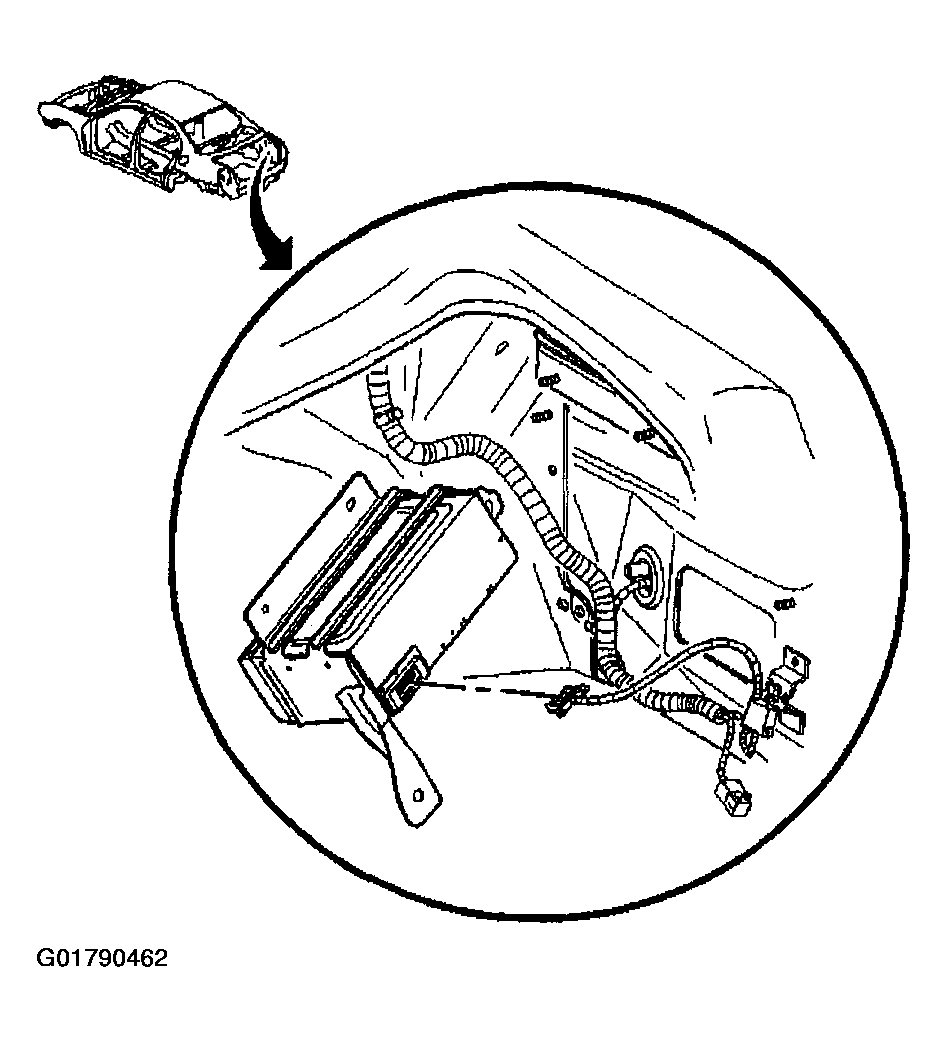

    Fig 2: Connecting Electrical Connectors
    G01790462Courtesy of GENERAL MOTORS CORP.
  5. Install the fasteners to the rear compartment C/D player.

    Tighten

    Tighten the rear compartment CD player fasteners to 9 N.m (80 lb in).

  6. Install the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  7. Close the rear compartment.
