Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

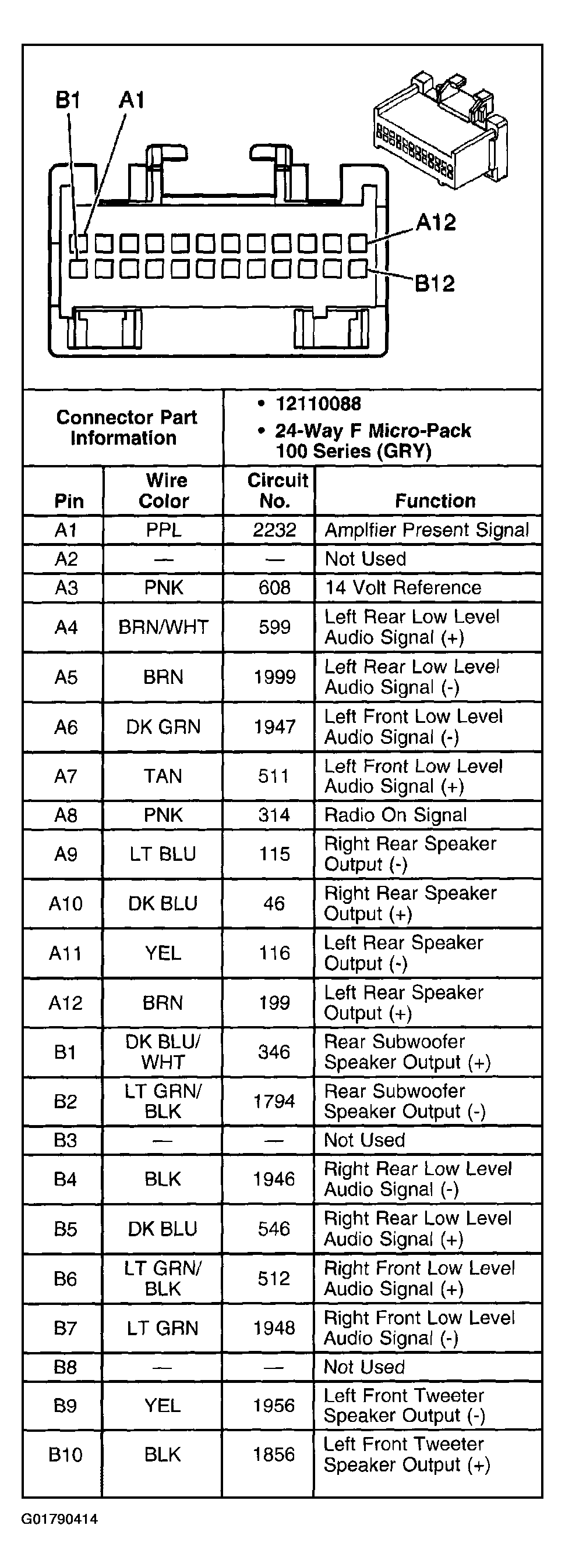

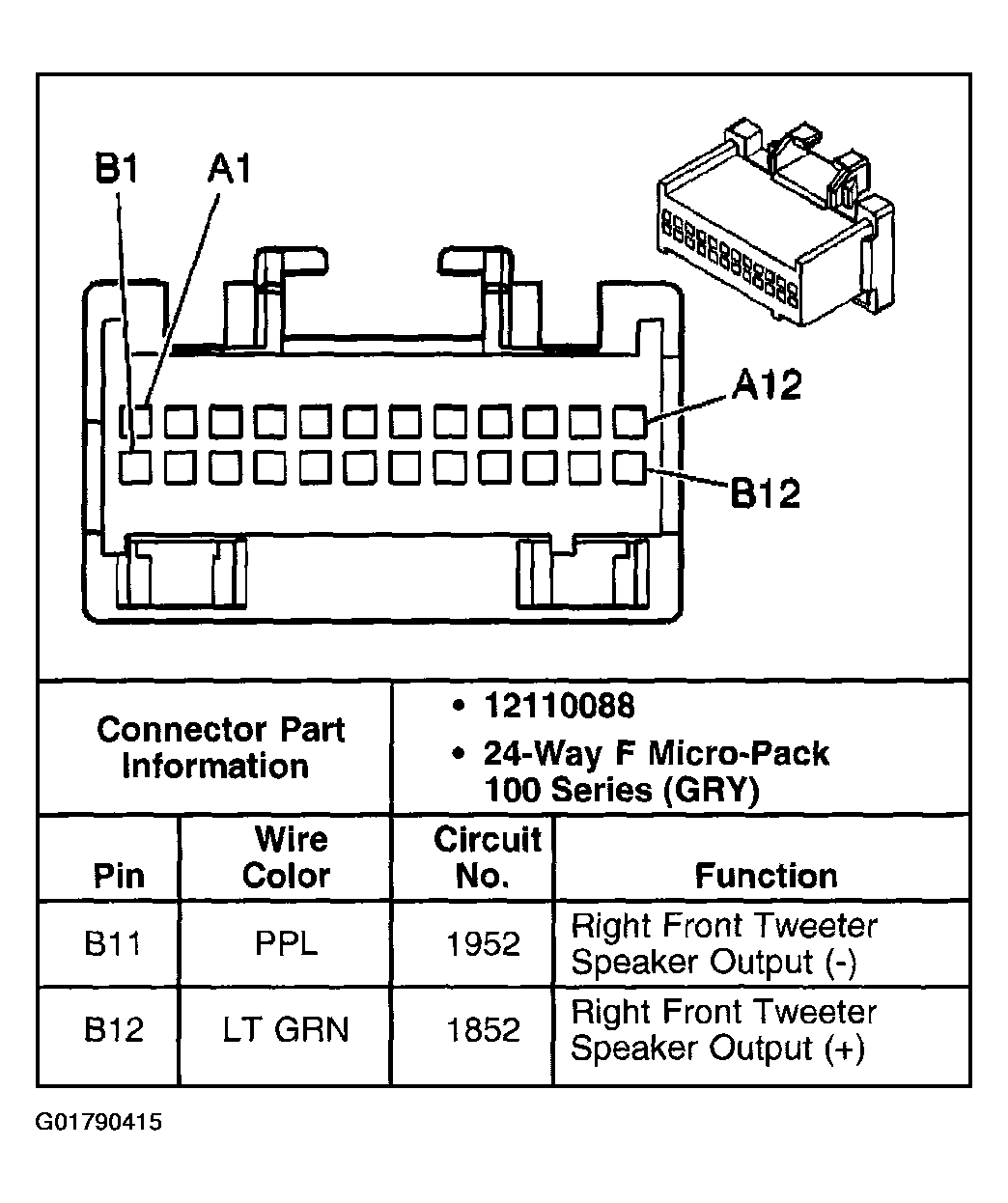

Fig 1: Identifying Audio Amplifier C1 (w/UZ8 RPO Code) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

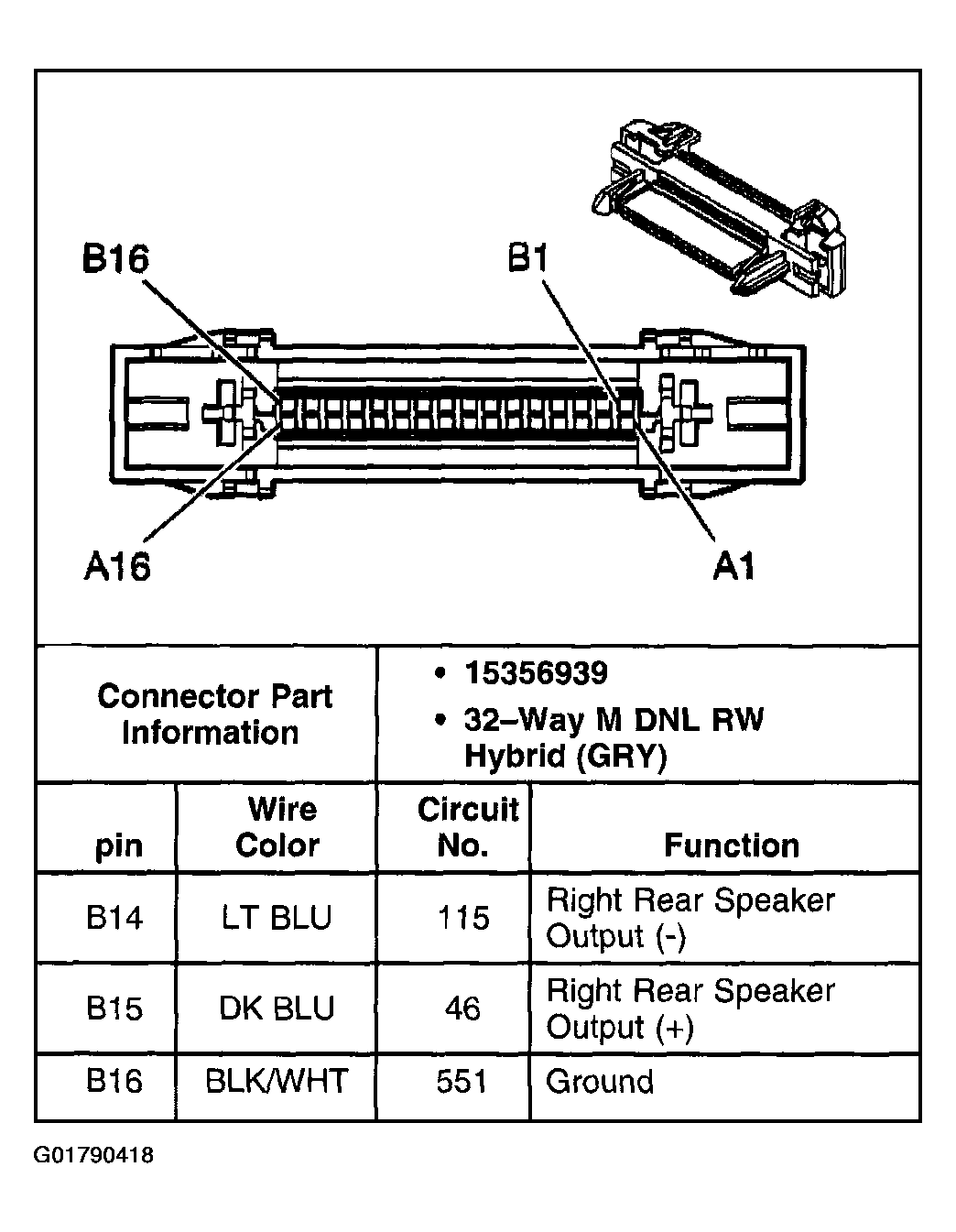

Fig 2: Identifying Audio Amplifier C1 (w/UZ8 RPO Code) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

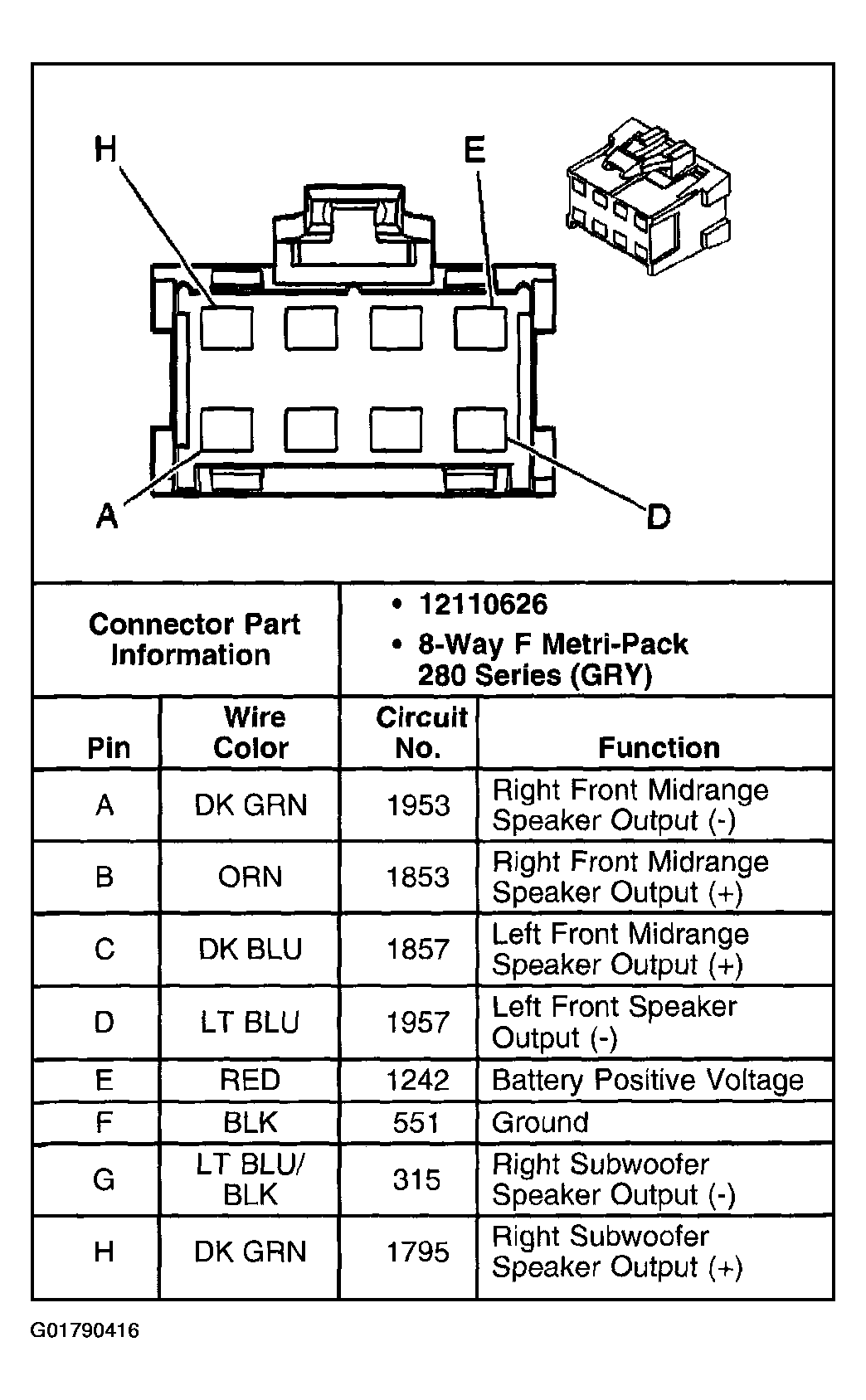

Fig 3: Identifying Audio Amplifier C2 (w/UZ8 RPO Code

Courtesy of GENERAL MOTORS CORP.

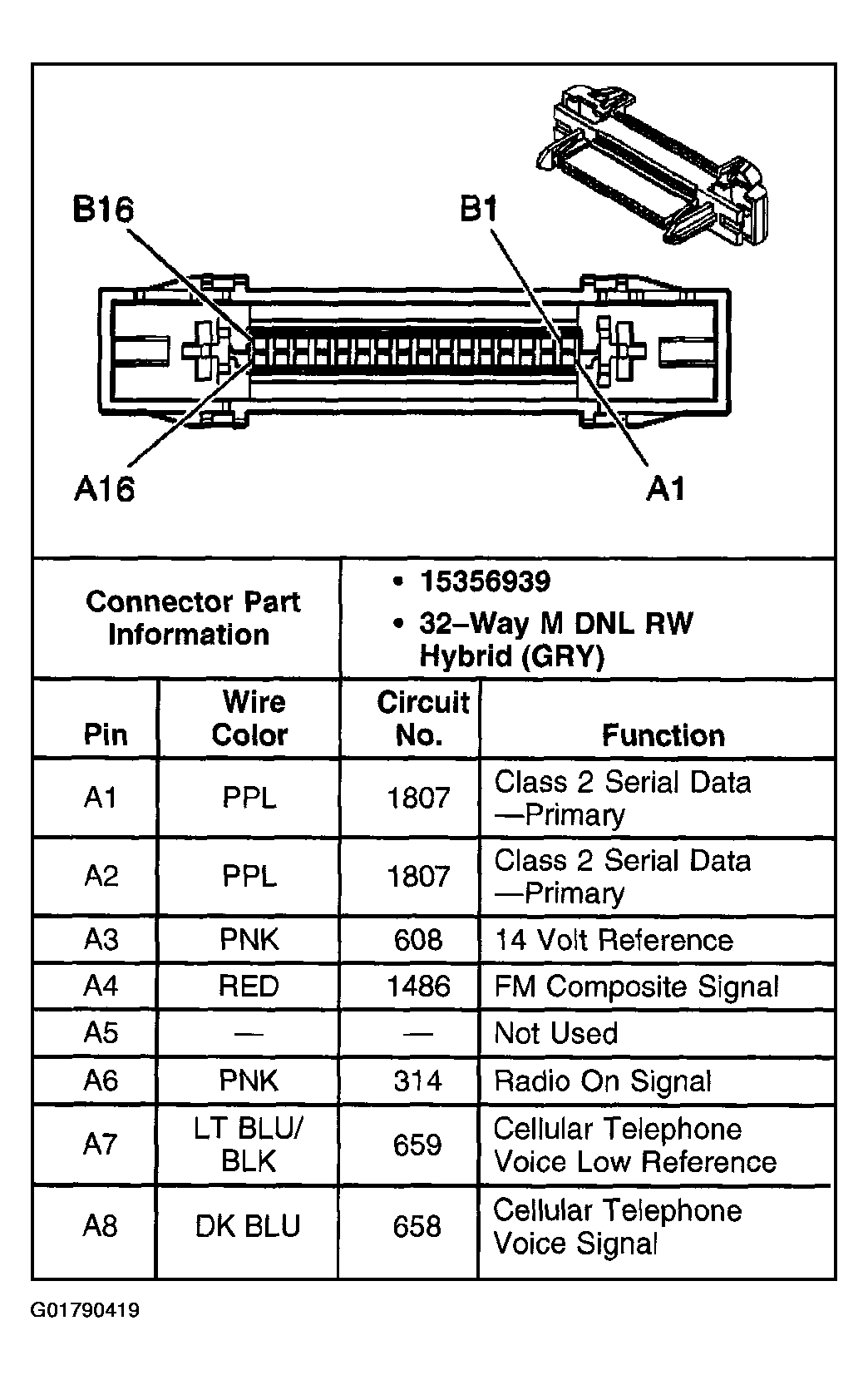

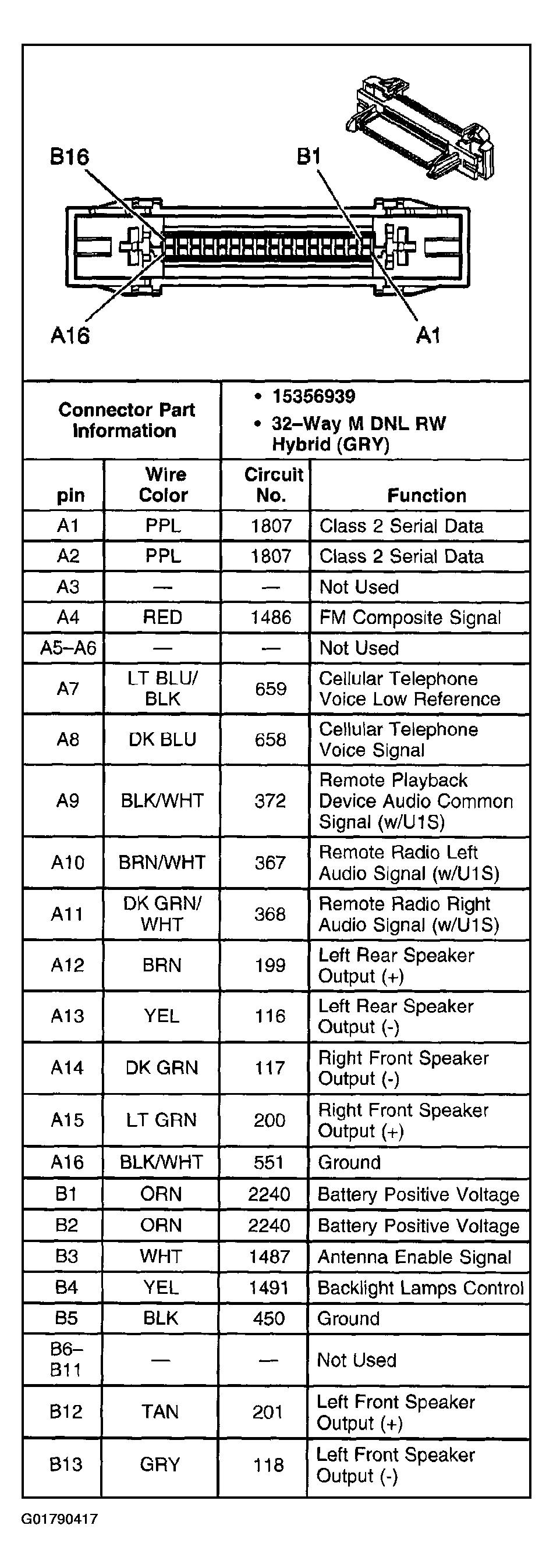

Fig 4: Identifying Radio Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

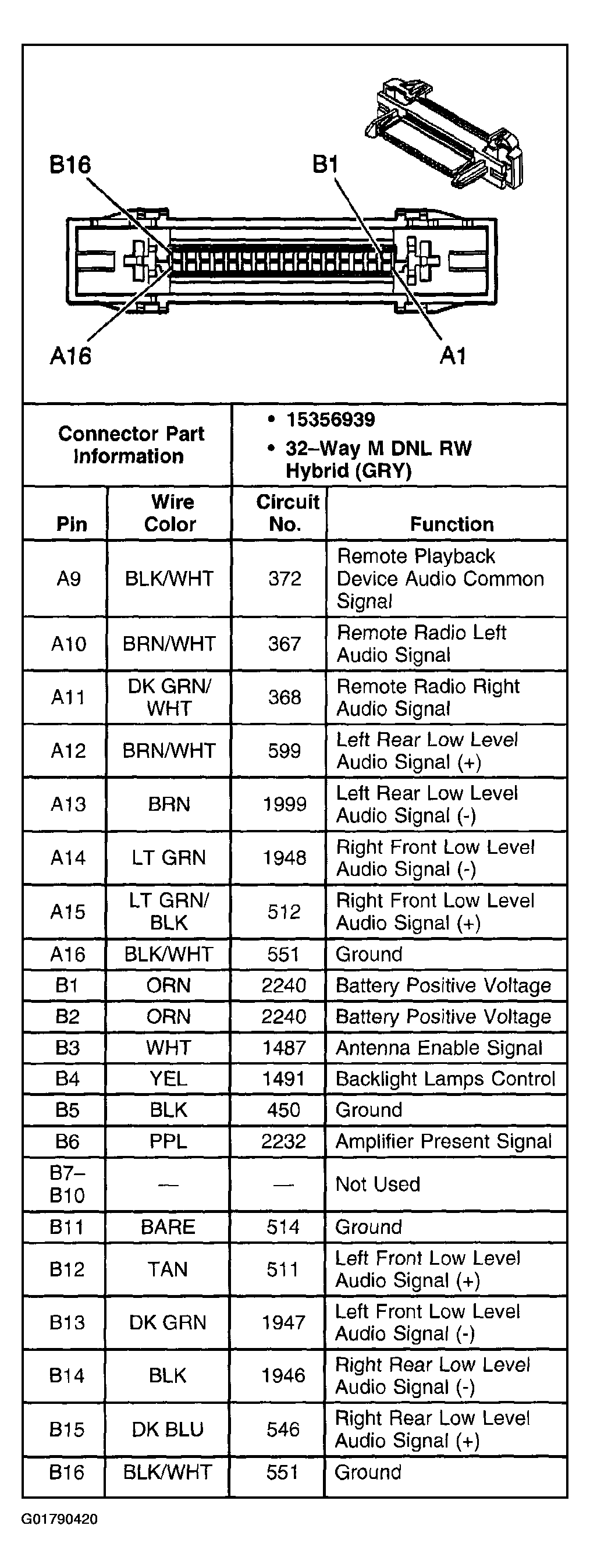

Fig 5: Identifying Radio Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Radio Connector End View (w/UZ8 RPO Code) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Radio Connector End View(w/UZ8 RPO Code) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

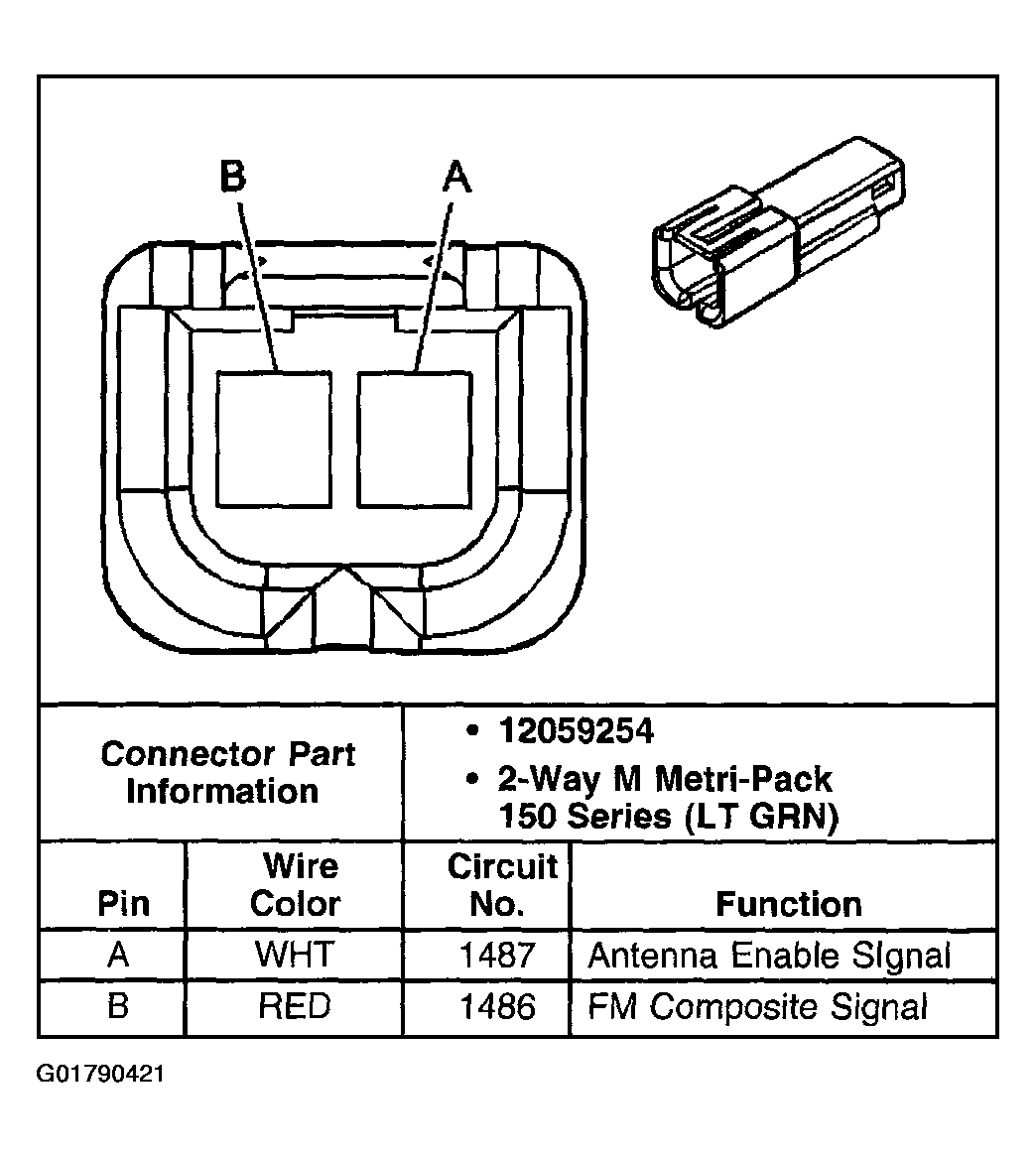

Fig 8: Identifying Radio Antenna Module Connector End View

Courtesy of GENERAL MOTORS CORP.

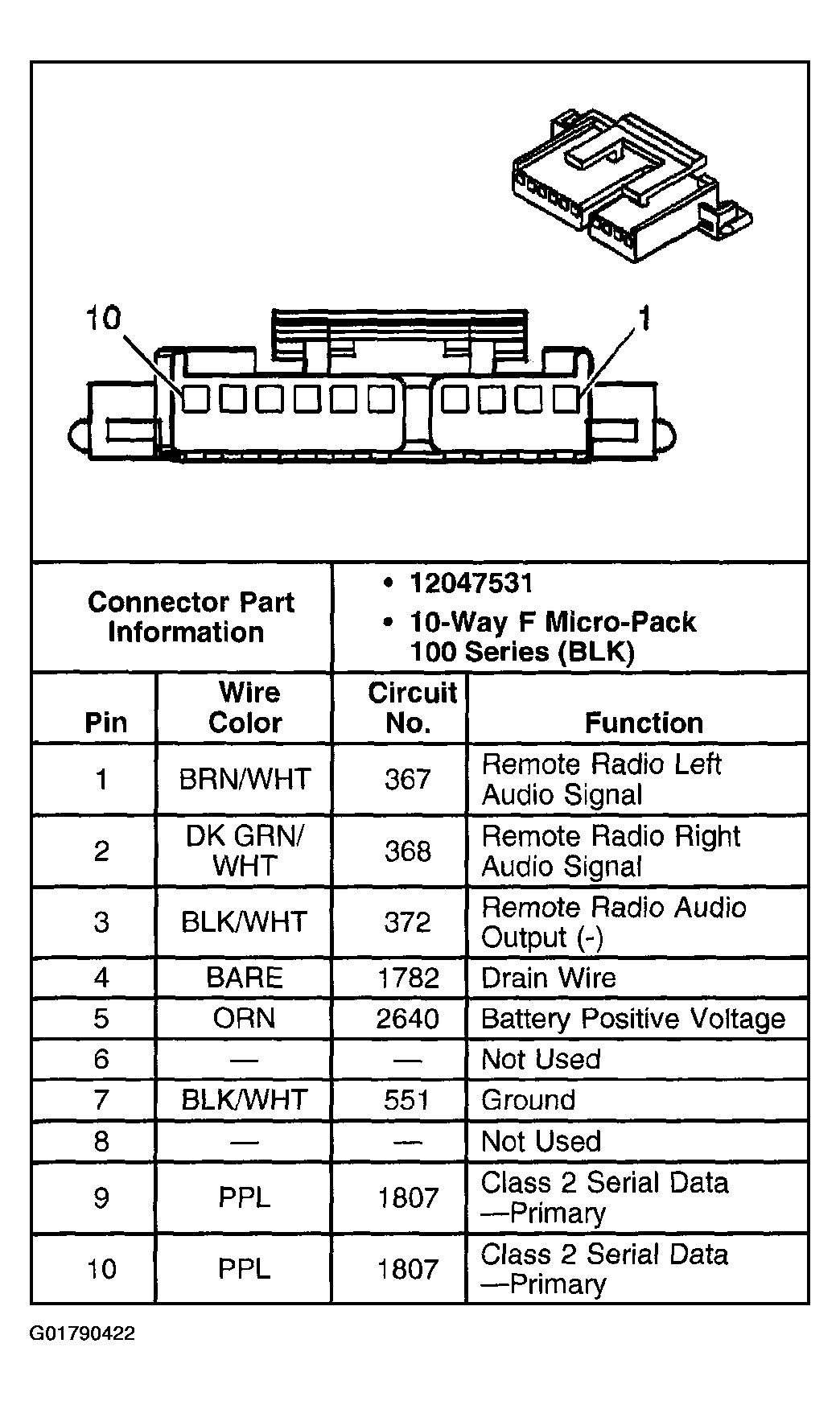

Fig 9: Identifying Remove Playback Device - CD Changer Connector End View (w/U1S RPO Code)

Courtesy of GENERAL MOTORS CORP.

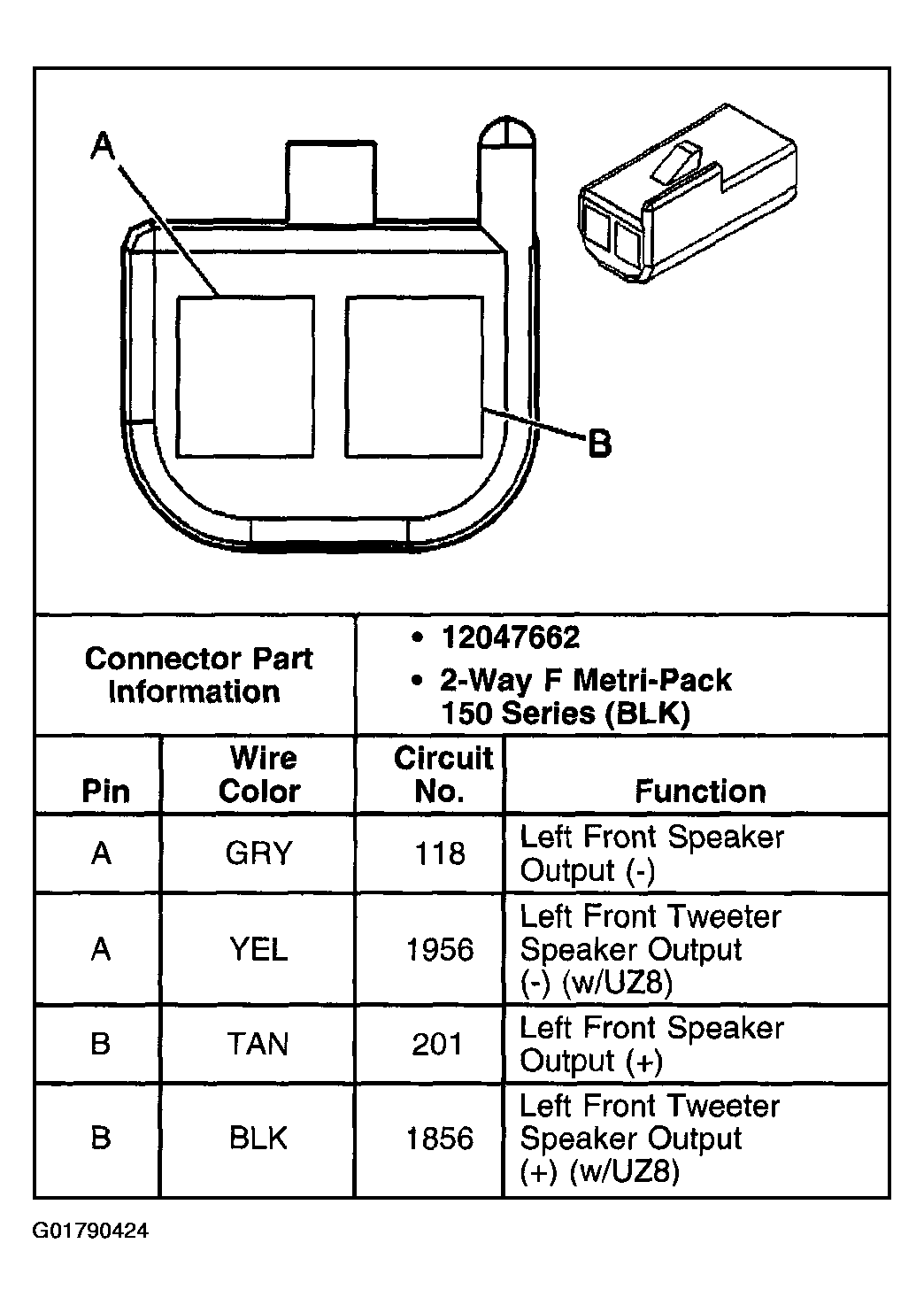

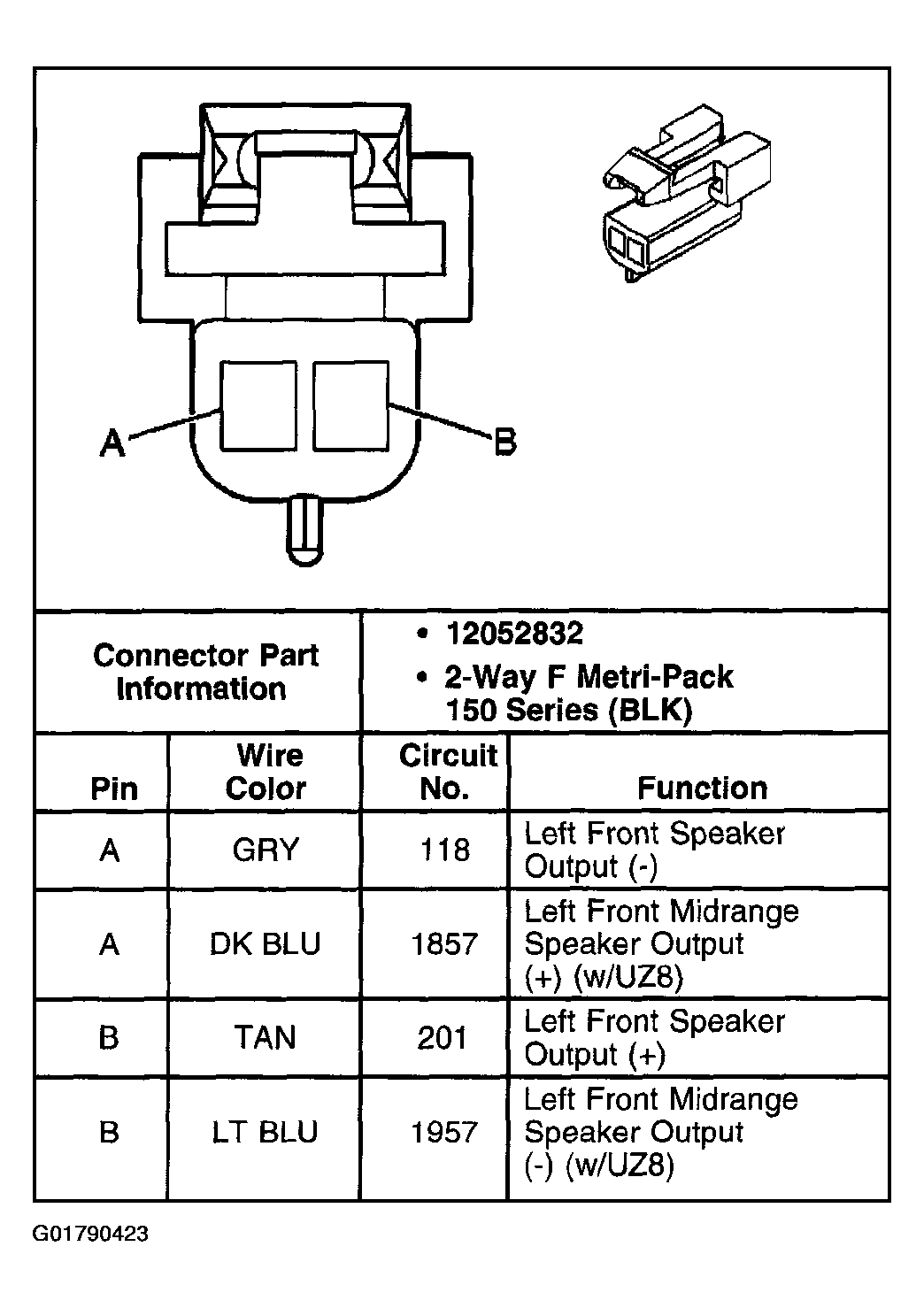

Fig 10: Identifying Speaker Connector End View - LF Door

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Speaker Connector End View - LF Door Tweeter

Courtesy of GENERAL MOTORS CORP.

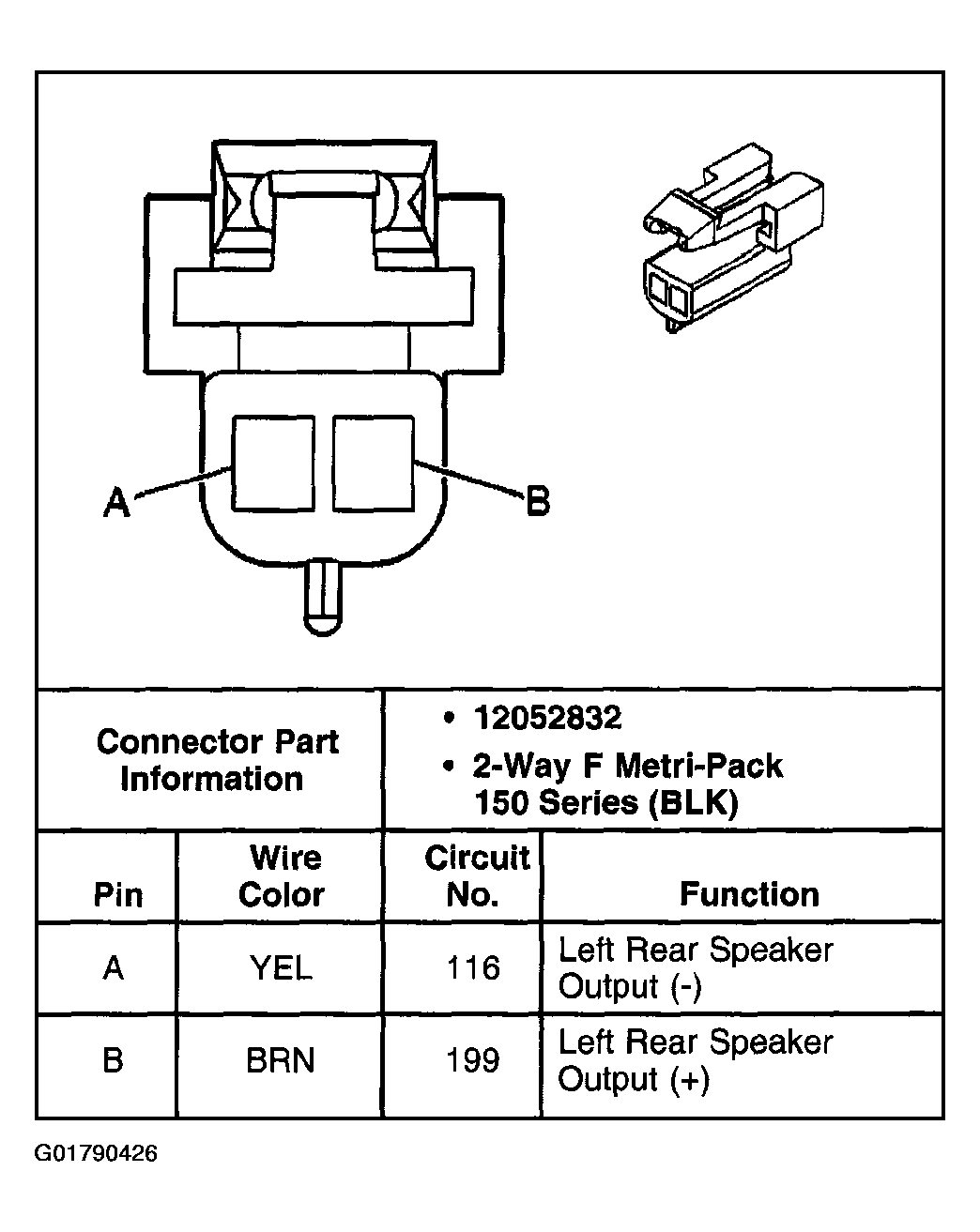

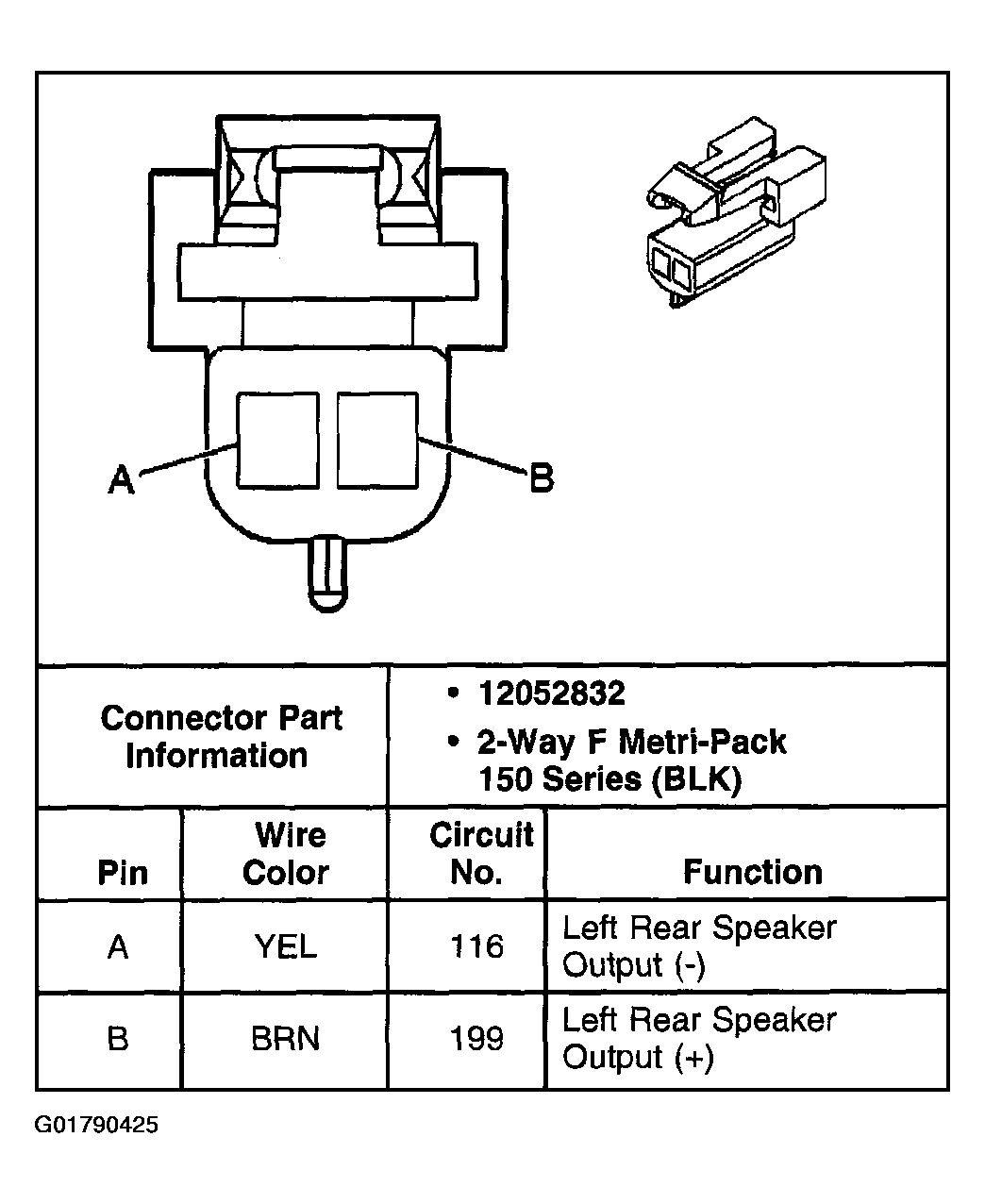

Fig 12: Identifying Speaker Connector End View - LR

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Speaker Connector End View - LR Door (w/UZ8 RPO Code)

Courtesy of GENERAL MOTORS CORP.

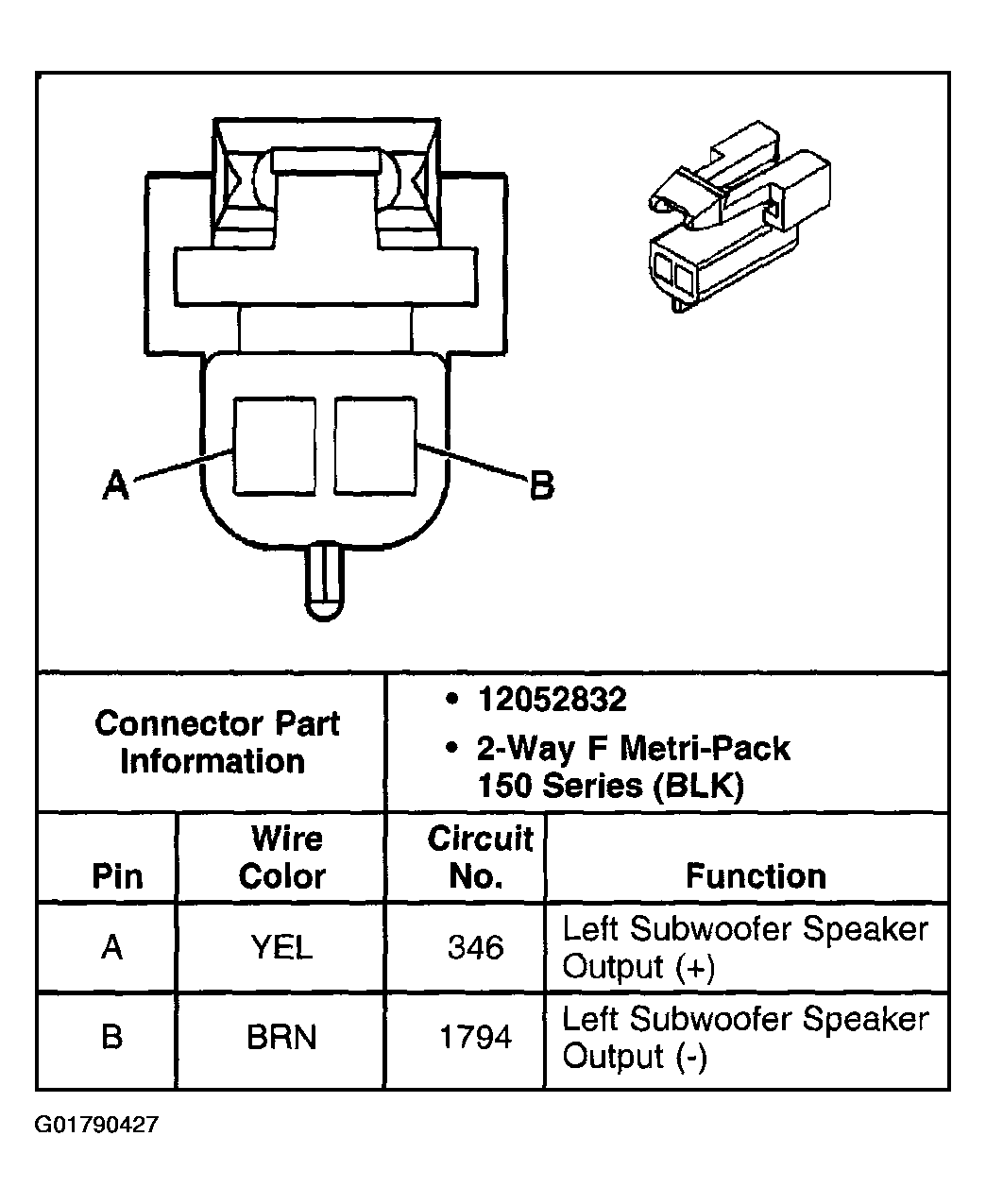

Fig 14: Identifying Speaker Connector End View - LR Subwoofer (w/UZ8 RPO Code)

Courtesy of GENERAL MOTORS CORP.

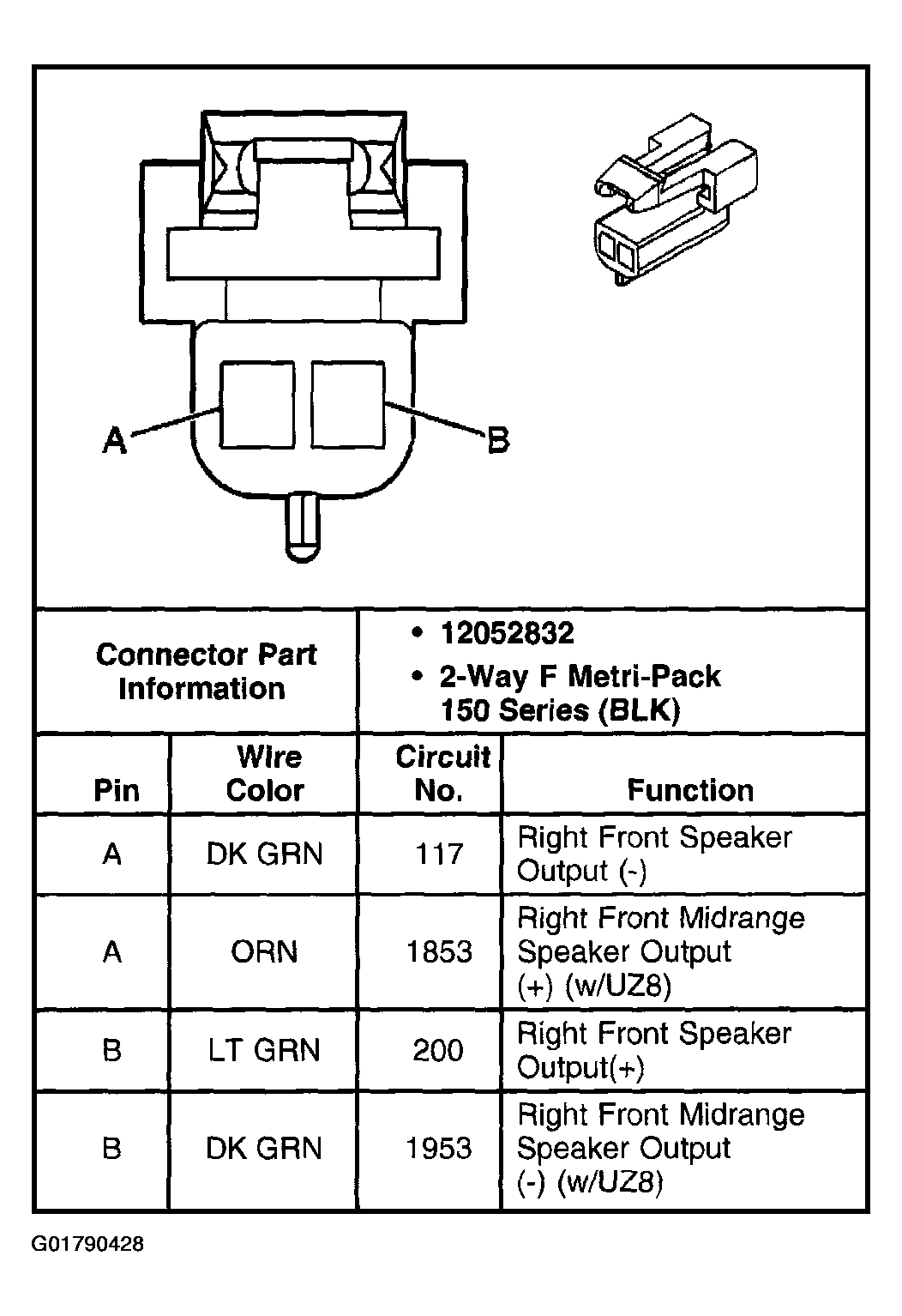

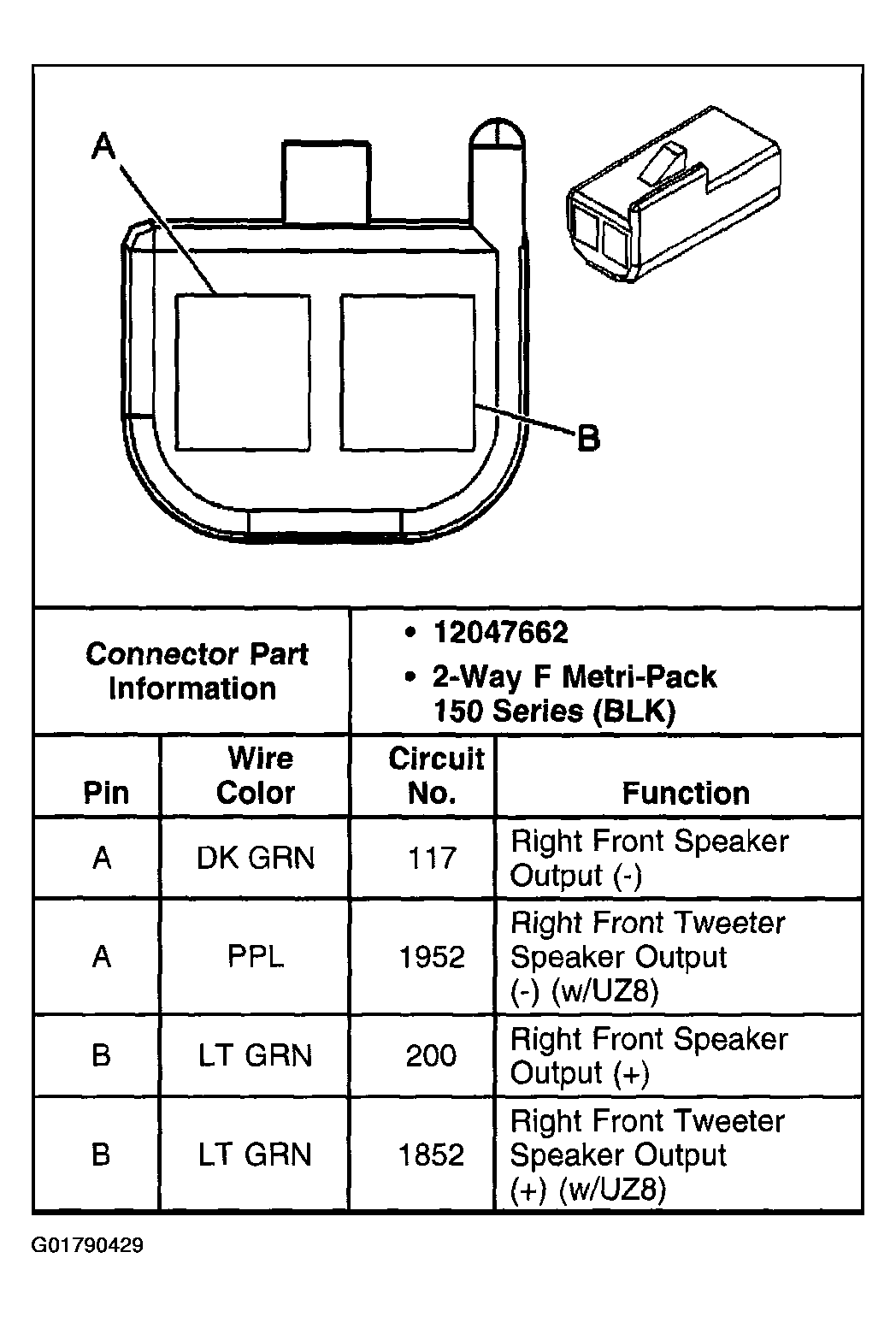

Fig 15: Identifying Speaker Connector End View - RF Door

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Speaker Connector End View - RF Door Tweeter

Courtesy of GENERAL MOTORS CORP.

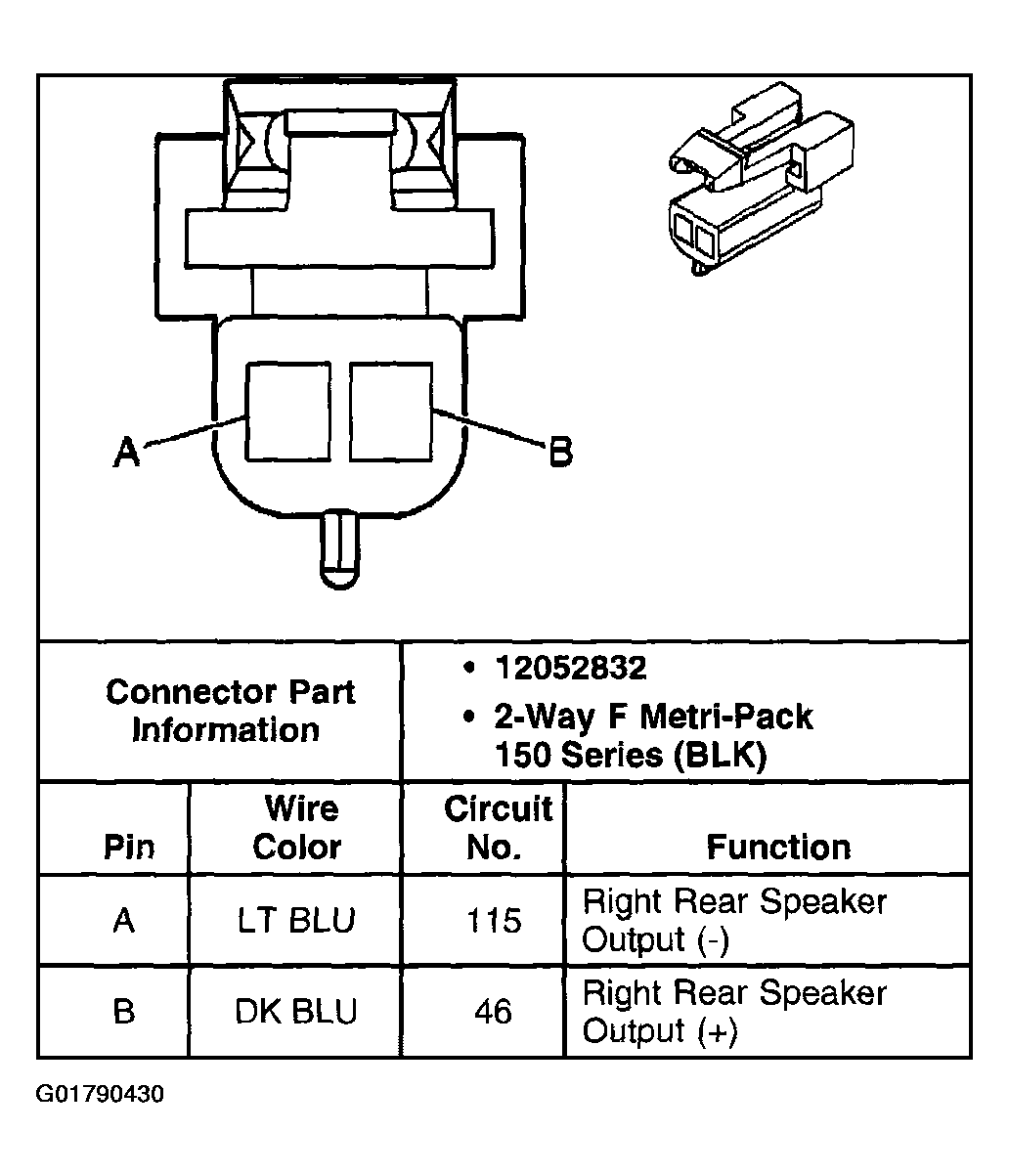

Fig 17: Identifying Speaker Connector End View - RR

Courtesy of GENERAL MOTORS CORP.

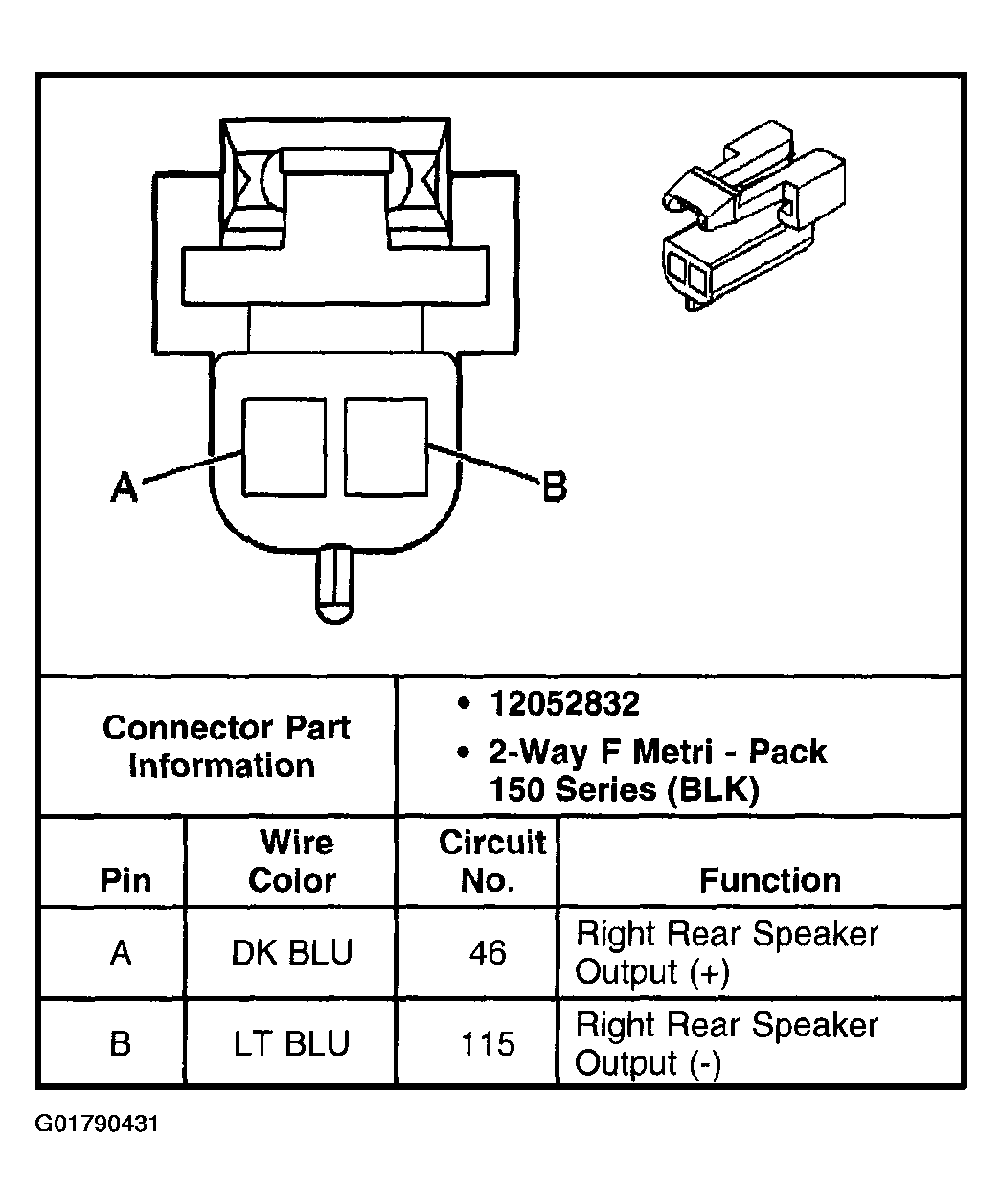

Fig 18: Identifying Speaker Connector End View - RR Door (w/UZ8 RPO Code)

Courtesy of GENERAL MOTORS CORP.

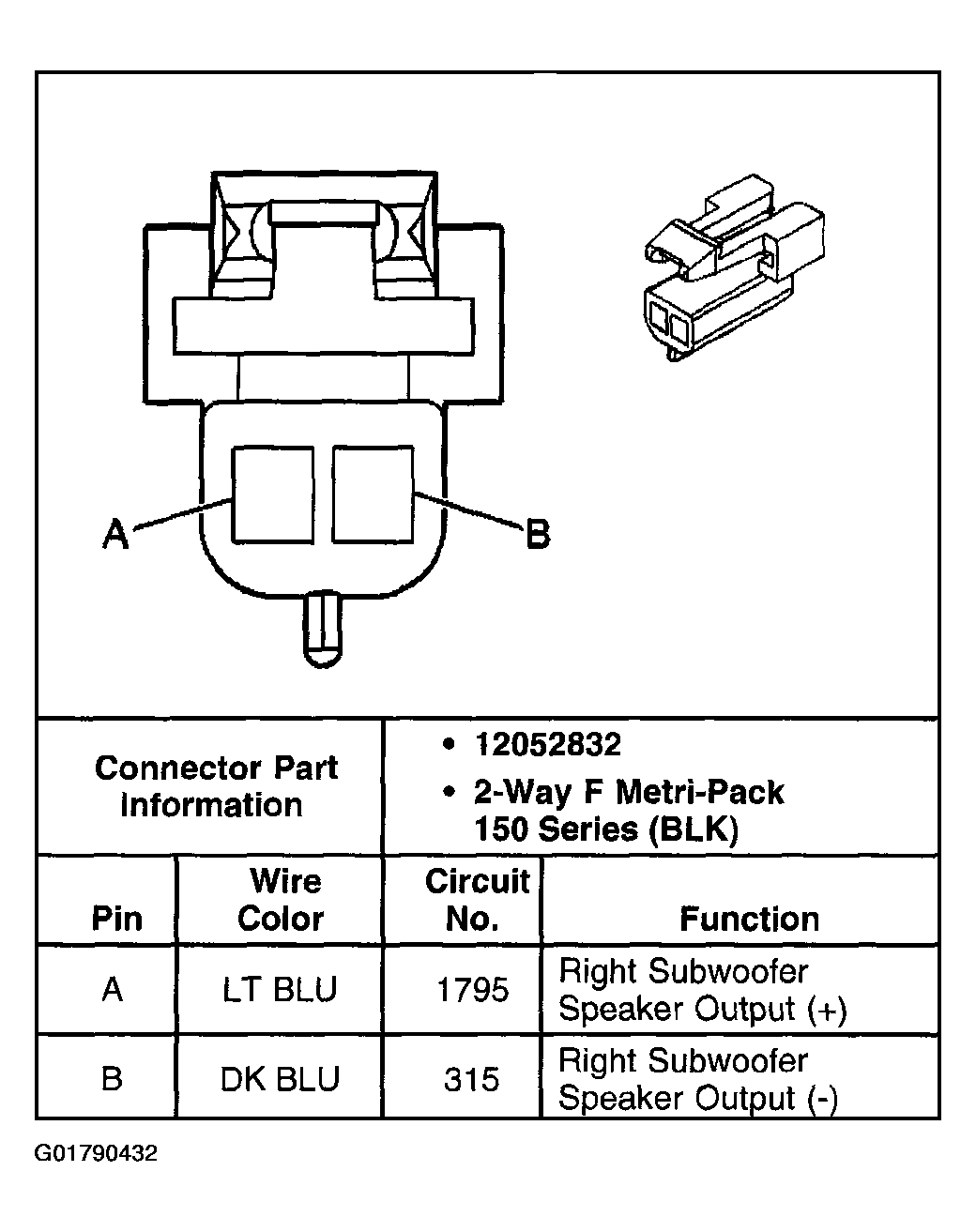

Fig 19: Identifying Speaker Connector End View - RR Subwoofer (w/UZ8 RPO Code)

Courtesy of GENERAL MOTORS CORP.
