Scan Tool Data List

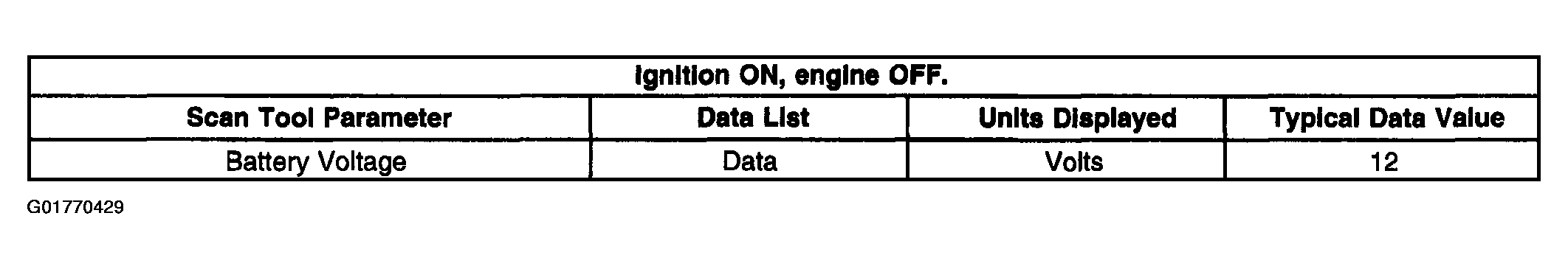

Fig 1: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

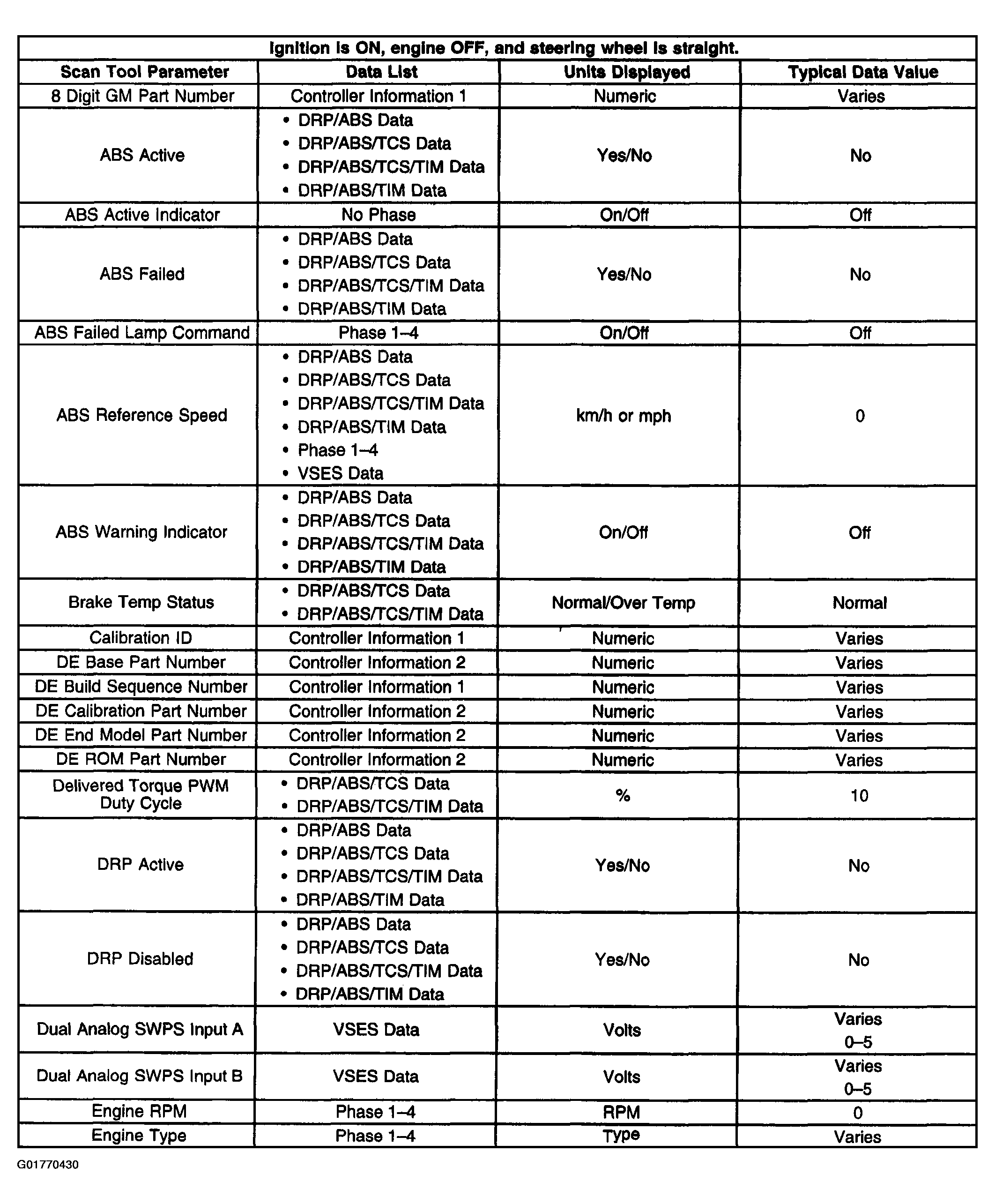

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

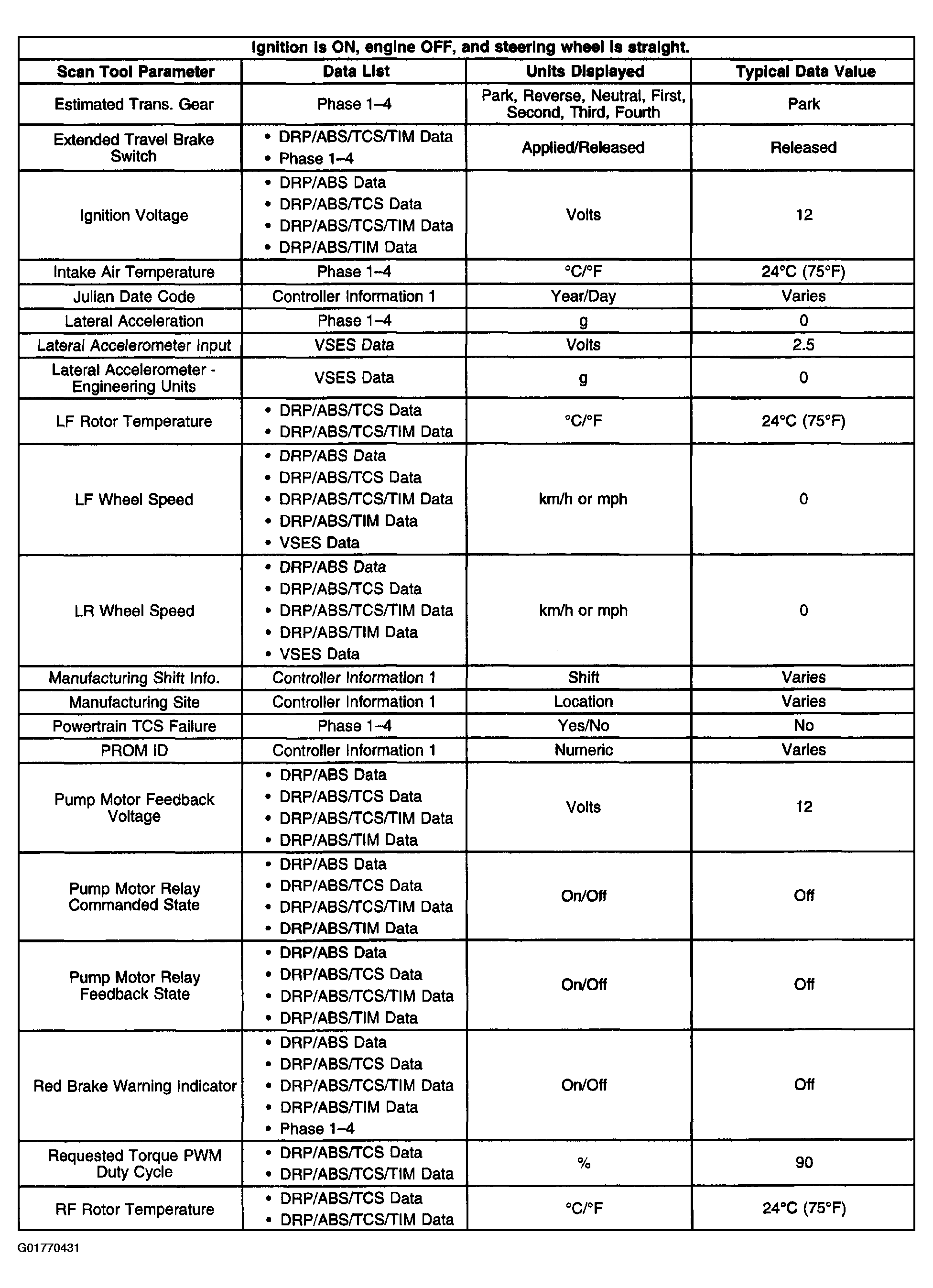

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

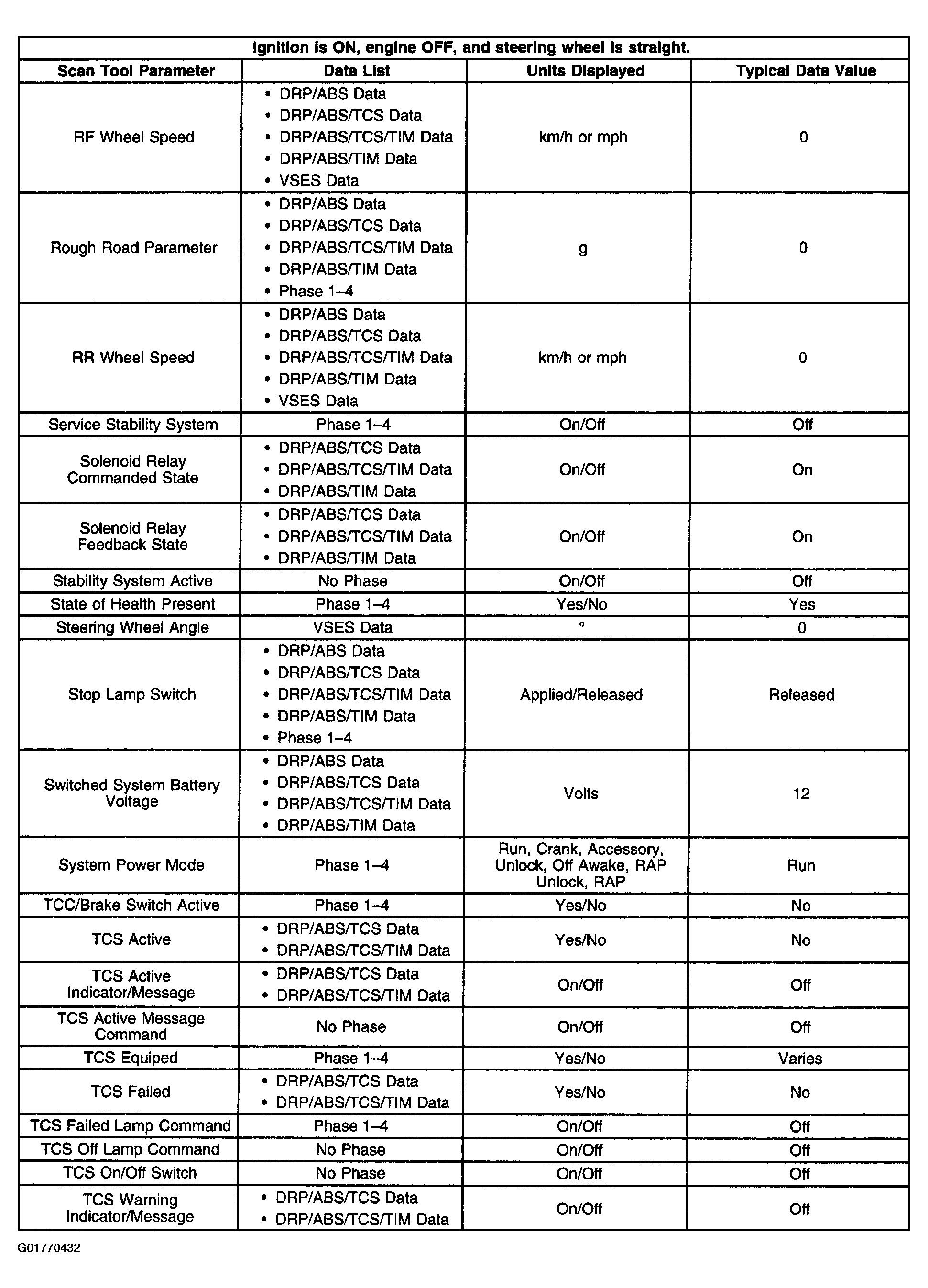

Fig 4: Electronic Brake Control Module (EBCM) (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

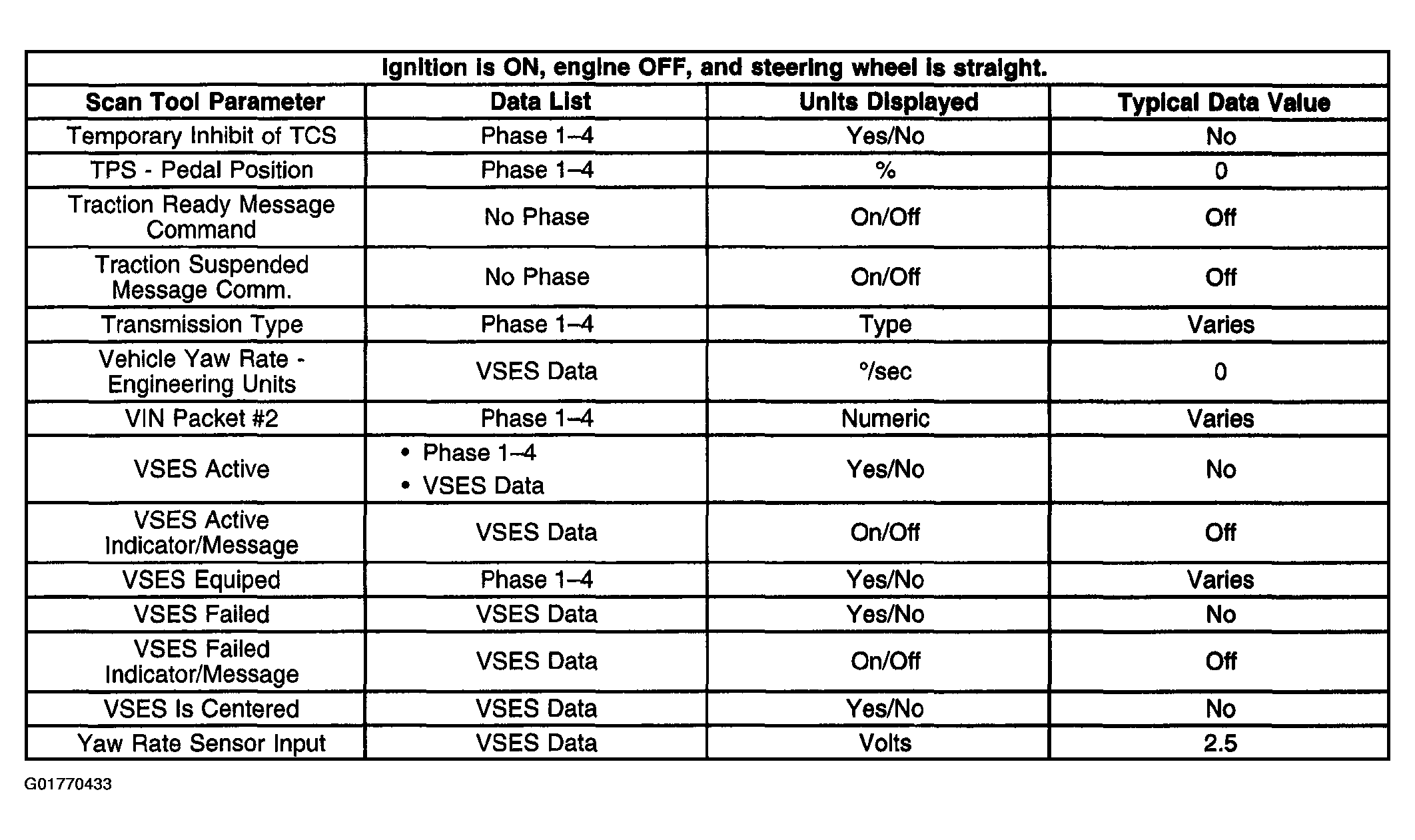

Fig 5: Electronic Brake Control Module (EBCM) (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

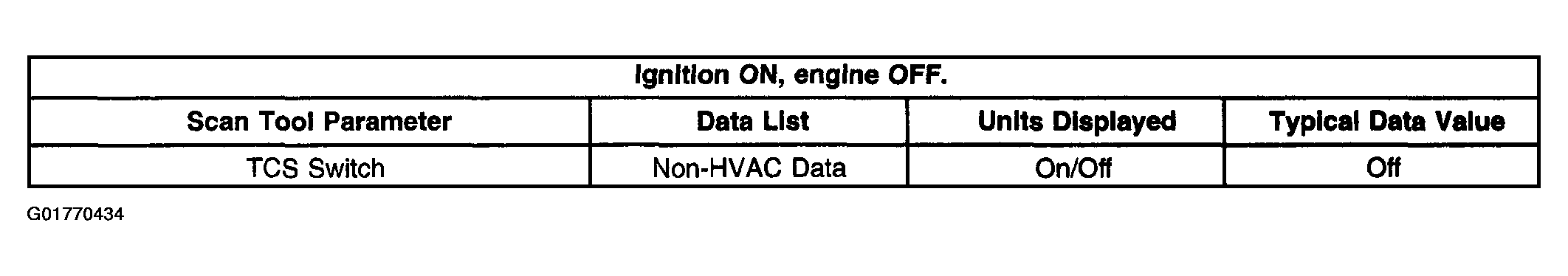

Fig 6: HVAC Control Module (Climate Control Panel) (W/C67)

Courtesy of GENERAL MOTORS CORP.

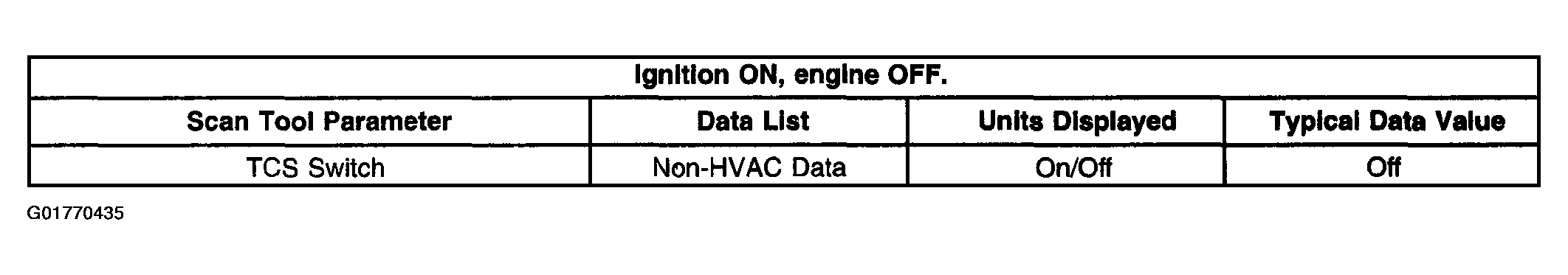

Fig 7: Instrument Panel Integration Module (IPM) (W/CJ2)

Courtesy of GENERAL MOTORS CORP.

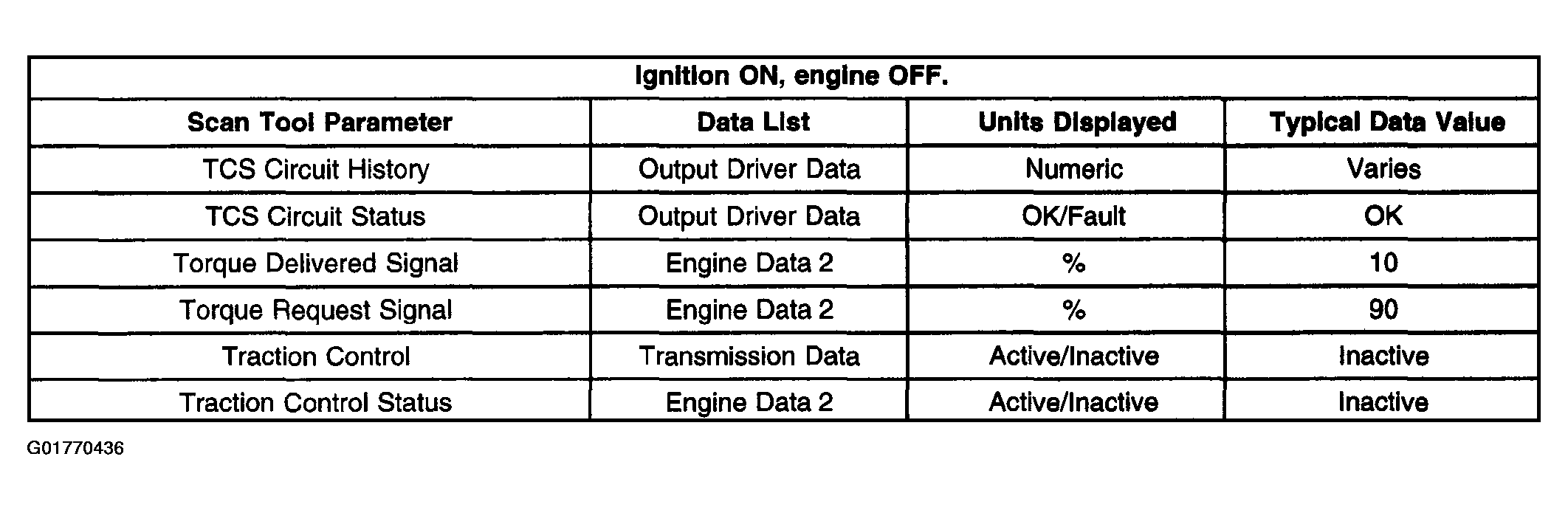

Fig 8: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.
