Defogger Schematics

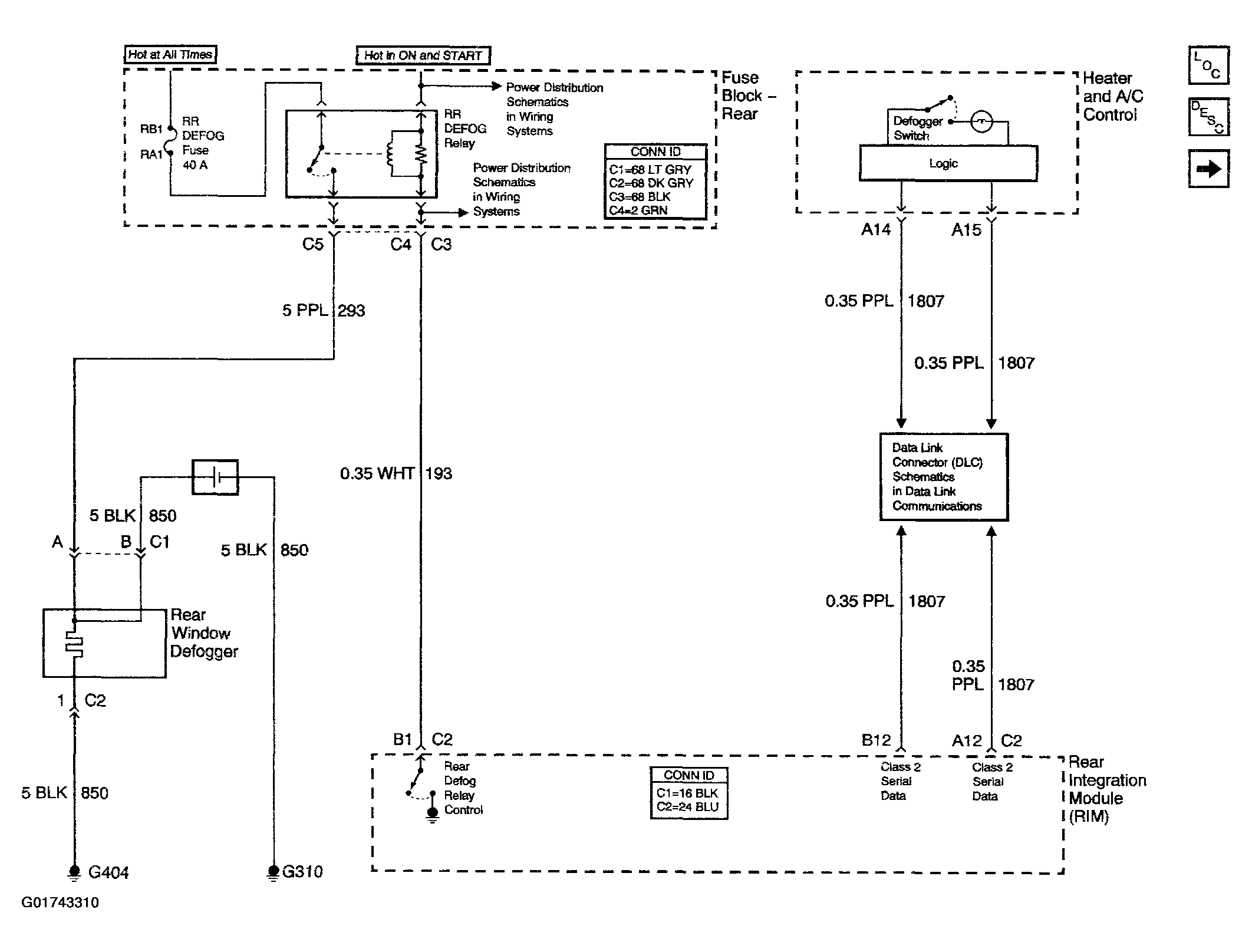

Fig 1: Rear Window Defogger

G01743310

Courtesy of GENERAL MOTORS CORP.

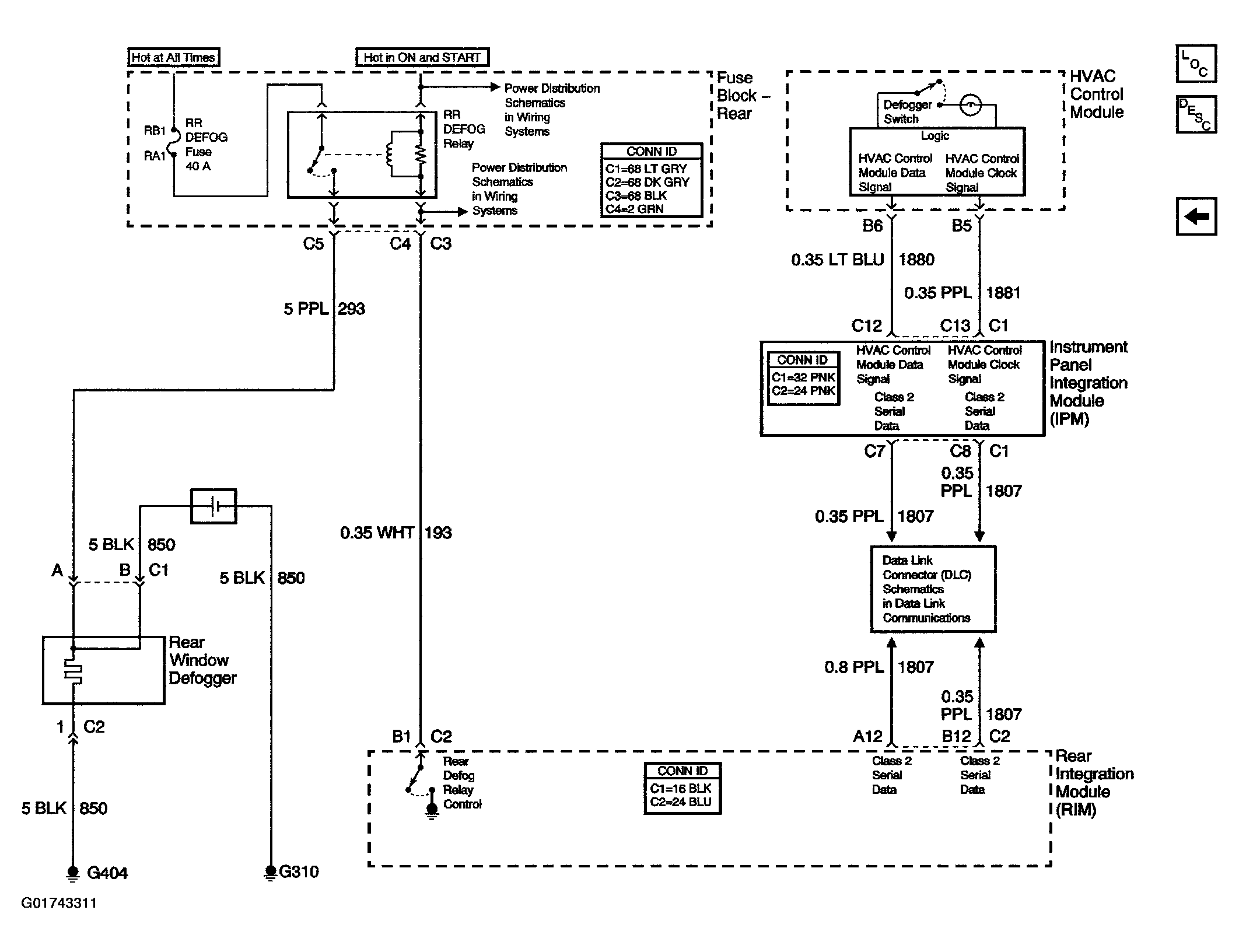

Fig 2: Defogger Schematics (w/CJ2)

G01743311

Courtesy of GENERAL MOTORS CORP.
