Power Window Schematics

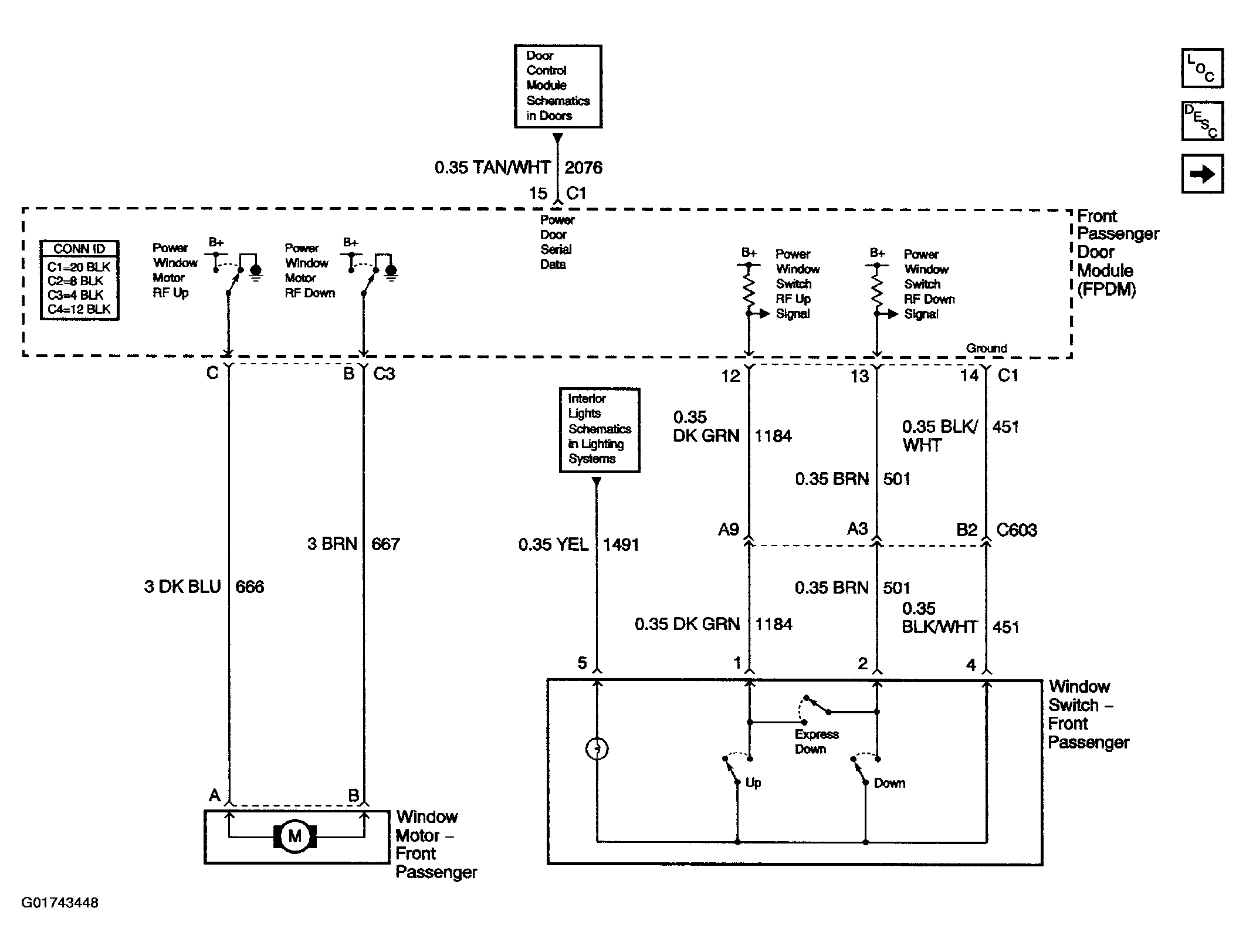

Fig 1: Front Passenger Door
G01743448Courtesy of GENERAL MOTORS CORP.

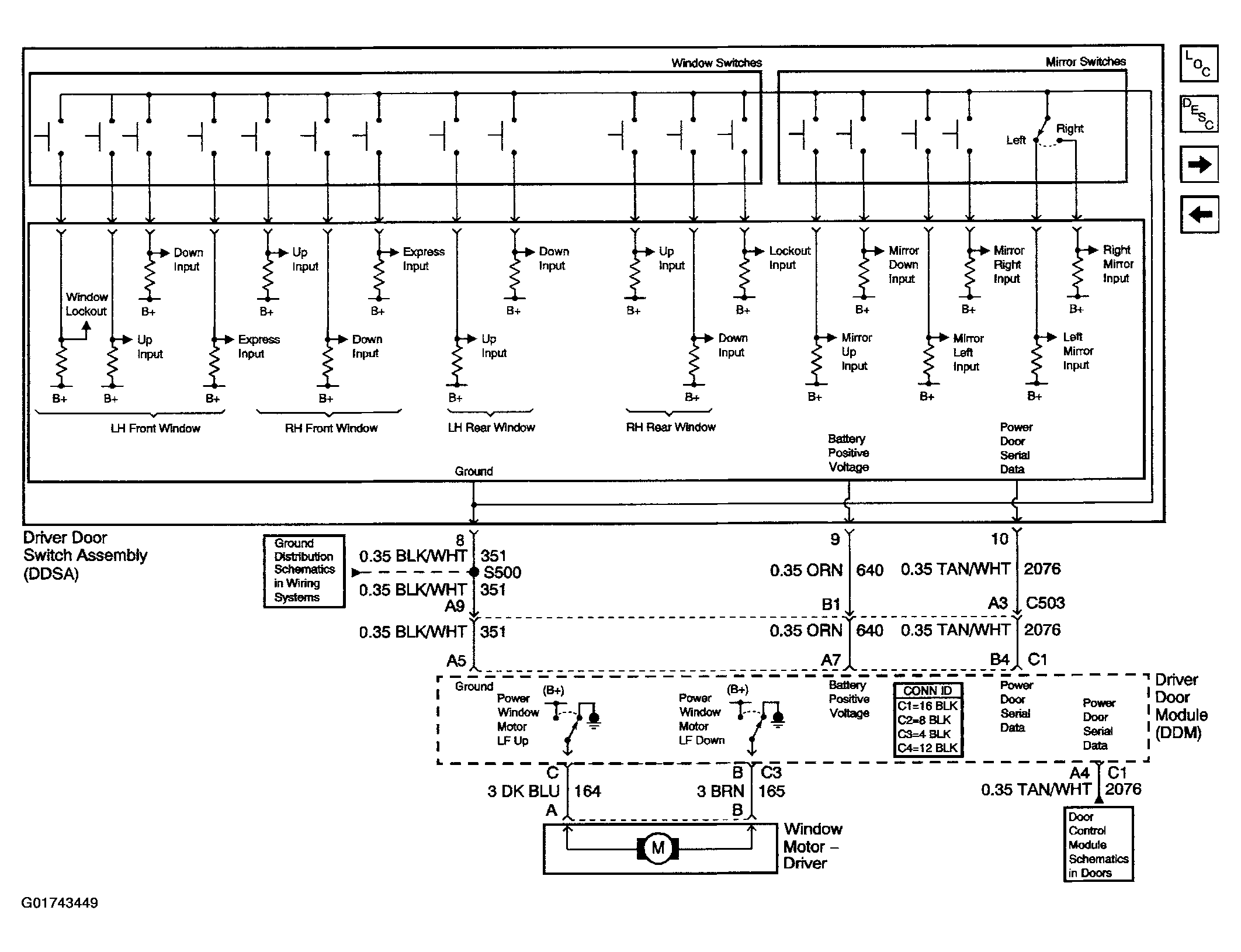

Fig 2: Driver Door
G01743449Courtesy of GENERAL MOTORS CORP.

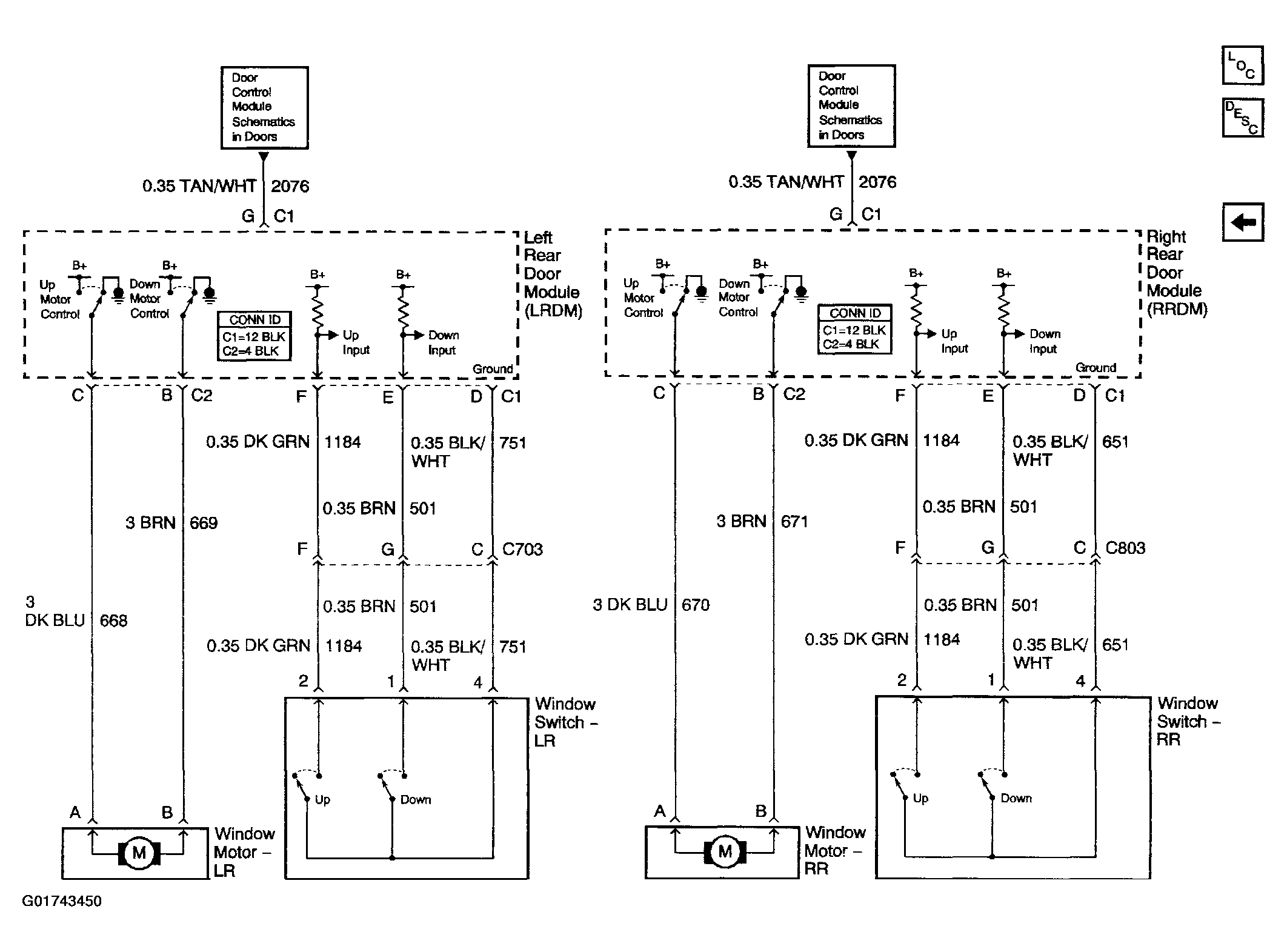

Fig 3: Left Rear Door & Right Rear Door
G01743450Courtesy of GENERAL MOTORS CORP.
