Removal Procedure

  1. Remove the inside door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE .
  2. Disconnect the electrical connector.
  3. Remove the power door lock switch by releasing the lock tabs on the door handle bezel with a small flat bladed tool.

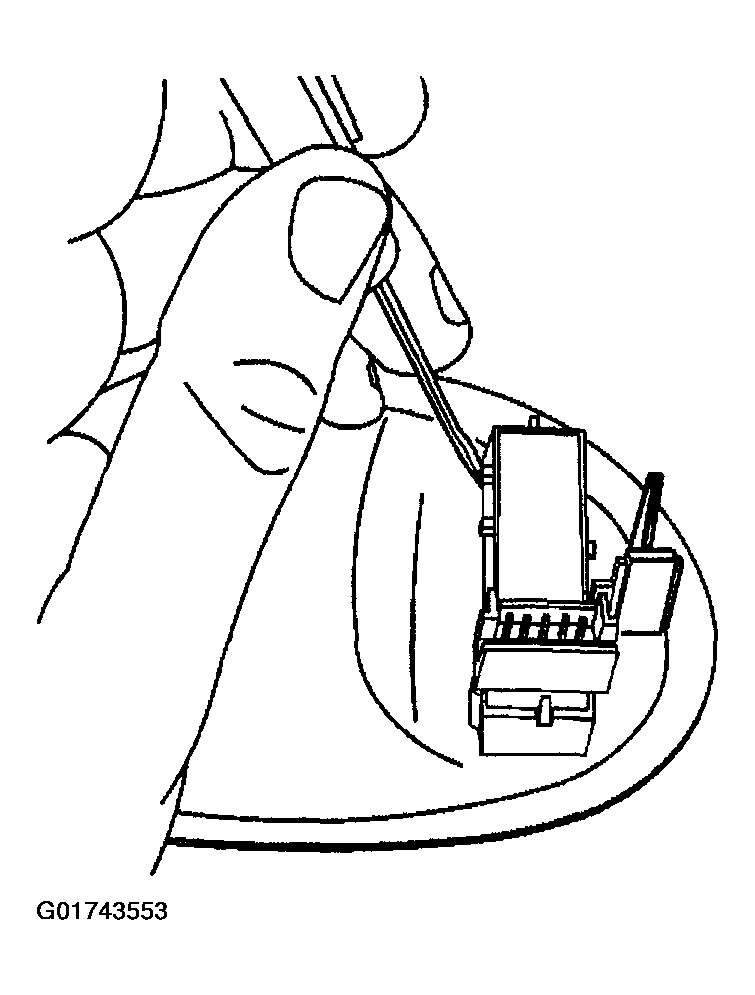

    4. Fig 1: Removing Power Door Lock Switch
    G01743553Courtesy of GENERAL MOTORS CORP.
